YAMAHA YFZ450R 2012 Owners Manual

8-45
8
EBU29189Battery The battery is located under the seat. (See page
4-10.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00620Never attempt to remove the battery cell seals,
as this would permanently damage the battery.To remove the battery
1. Remove the seat. (See page 4-10.)
2. Remove the battery holding plate by removing the bolts.
3. Disconnect the negative battery lead first, then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01001]
U18P66E0.book Page 45 Monday, May 16, 2011 4:23 PM

8-46
84. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
NOTICEECB00931To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery.To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent battery
damage.To install the batteryTIPBe sure the battery is fully charged.1. Place the battery in its compartment.
1. Bolt
2. Battery holding plate
3. Negative battery lead (black)
4. Positive battery lead (red)
1
1
2
3
4
U18P66E0.book Page 46 Monday, May 16, 2011 4:23 PM

8-47
8

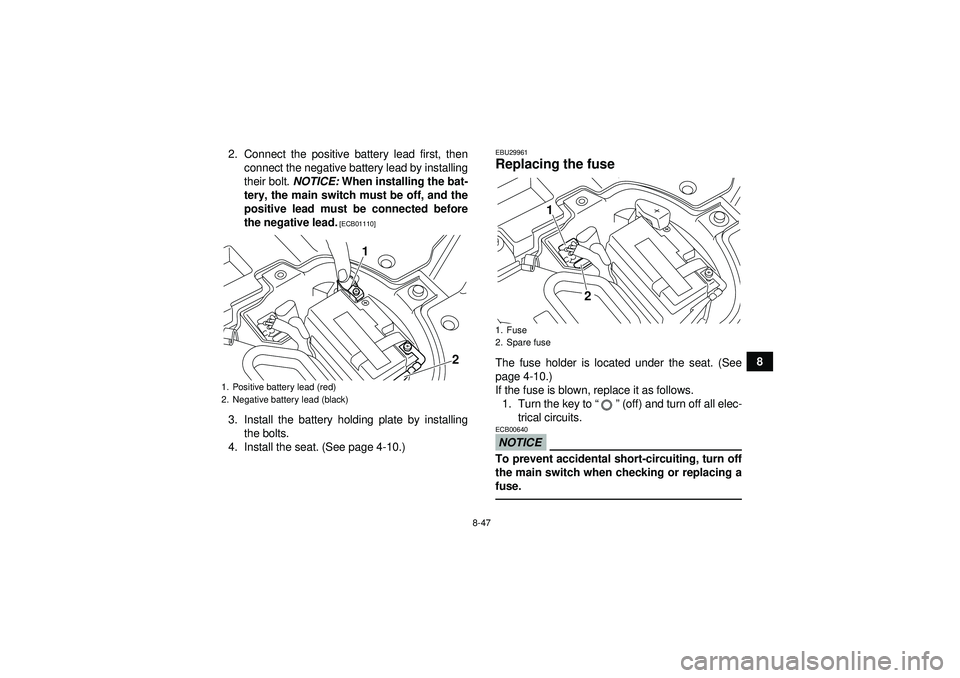

2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01110]
3. Install the battery holding plate by installing the bolts.
4. Install the seat. (See page 4-10.)
EBU29961Replacing the fuse The fuse holder is located under the seat. (See
page 4-10.)
If the fuse is blown, replace it as follows. 1. Turn the key to “” (off) and turn off all elec-
trical circuits.NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
1. Fuse
2. Spare fuse
1
2
U18P66E0.book Page 47 Monday, May 16, 2011 4:23 PM

8-48

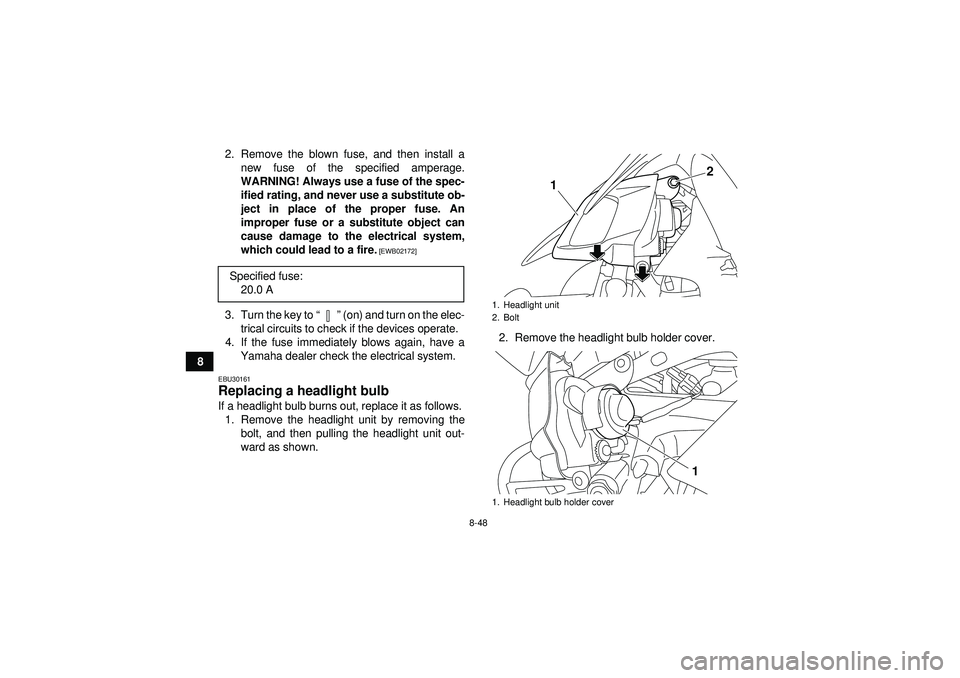

82. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “” (on) and turn on the elec-
trical circuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.EBU30161Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.1. Remove the headlight unit by removing the bolt, and then pulling the headlight unit out-
ward as shown. 2. Remove the headlight bulb holder cover.
Specified fuse:
20.0 A
1. Headlight unit
2. Bolt
1. Headlight bulb holder cover
1
2
1
U18P66E0.book Page 48 Monday, May 16, 2011 4:23 PM

8-49
8

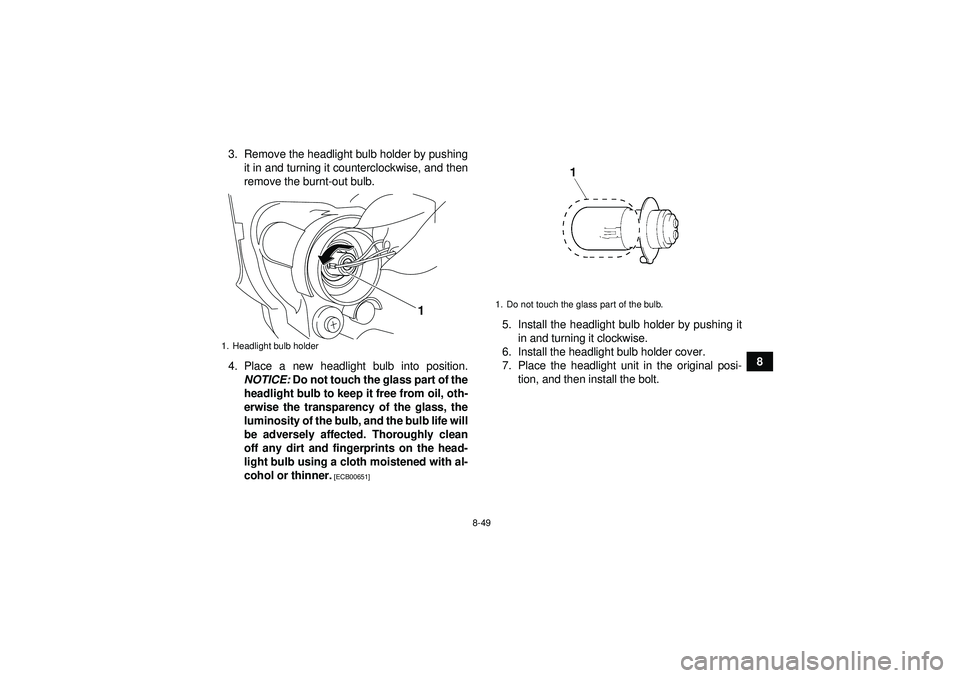

3. Remove the headlight bulb holder by pushing
it in and turning it counterclockwise, and then
remove the burnt-out bulb.
4. Place a new headlight bulb into position. NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00651]
5. Install the headlight bulb holder by pushing it in and turning it clockwise.
6. Install the headlight bulb holder cover.
7. Place the headlight unit in the original posi- tion, and then install the bolt.
1. Headlight bulb holder
1
1. Do not touch the glass part of the bulb.
U18P66E0.book Page 49 Monday, May 16, 2011 4:23 PM

8-50
88. Adjust the headlight beam if necessary.
EBU25561Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer make
this adjustment.To raise a headlight beam, turn the headlight beam
adjusting bolt in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
EBU26920Tail/brake light This model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a
Yamaha dealer check it.EBU25651Removing a wheel 1. Place the ATV on a level surface.
2. Loosen the wheel nuts.1. Headlight beam adjusting bolt
1
(a)
(b)
U18P66E0.book Page 50 Monday, May 16, 2011 4:23 PM

8-51
8
3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU27481Installing a wheel 1. Place the ATV on a level surface.
2. Install the wheel and the nuts.TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of the
wheel.
3. Lower the ATV to the ground.
4. Tighten the wheel nuts to the specified torques.
1. Wheel nut
1. Arrow markTightening torques:Front wheel nut:45 Nm (4.5 m ·kgf, 33 ft ·lbf)
Rear wheel nut: 45 Nm (4.5 m ·kgf, 33 ft ·lbf)
U18P66E0.book Page 51 Monday, May 16, 2011 4:23 PM

8-52
8
EBU25740Troubleshooting Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02280Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.U18P66E0.book Page 52 Monday, May 16, 2011 4:23 PM

8-53
8
EBU27693Troubleshooting charts Starting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition. Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Check the battery.
DryWet
Operate the electric starter.
The engine does not start.
Have a Yamaha dealer
check the ATV.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
U18P66E0.book Page 53 Monday, May 16, 2011 4:23 PM

8-54
8Engine overheating
WARNING
EWB02290Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the rec-
ommended coolant as soon as possible.Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
U18P66E0.book Page 54 Monday, May 16, 2011 4:23 PM
