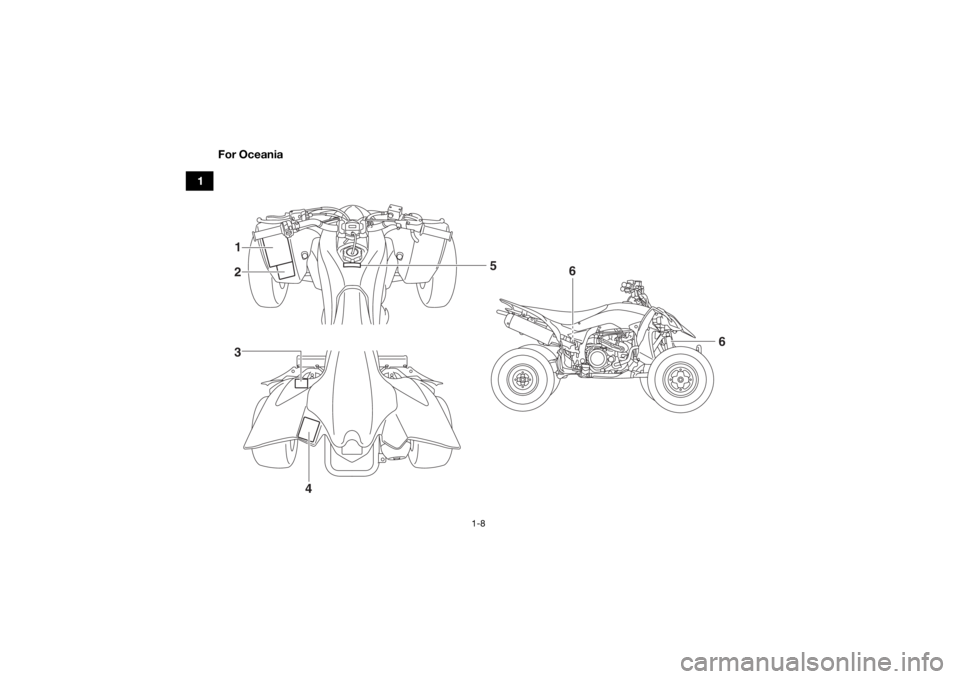

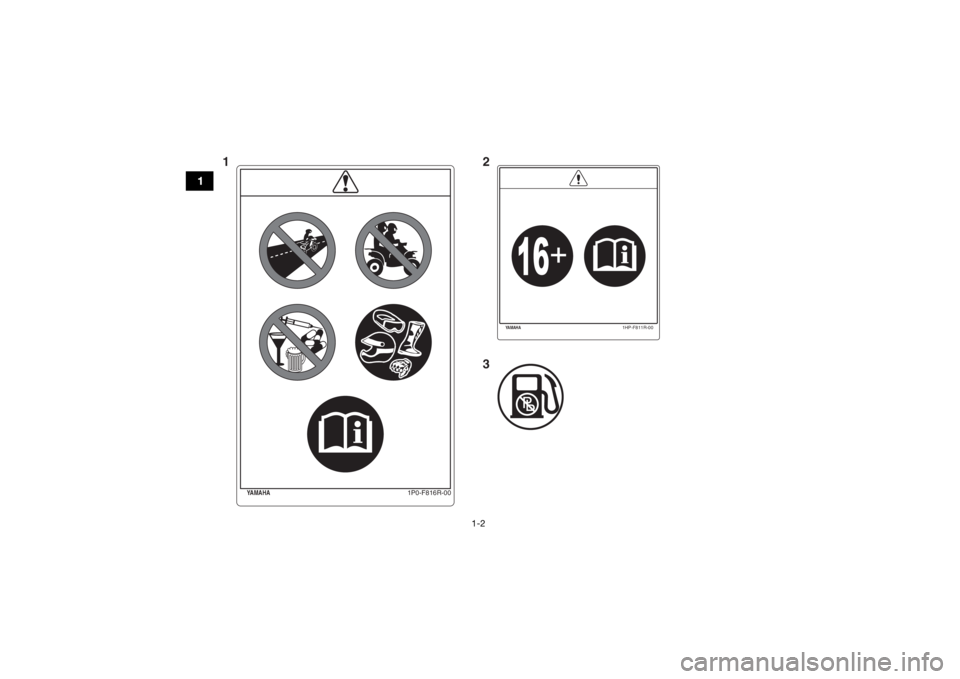

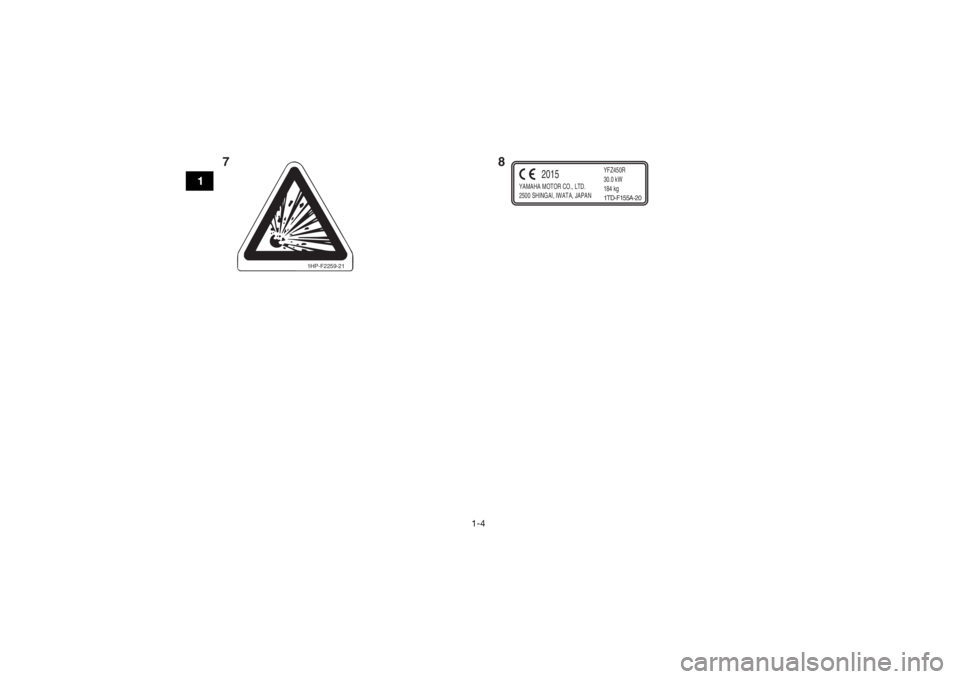

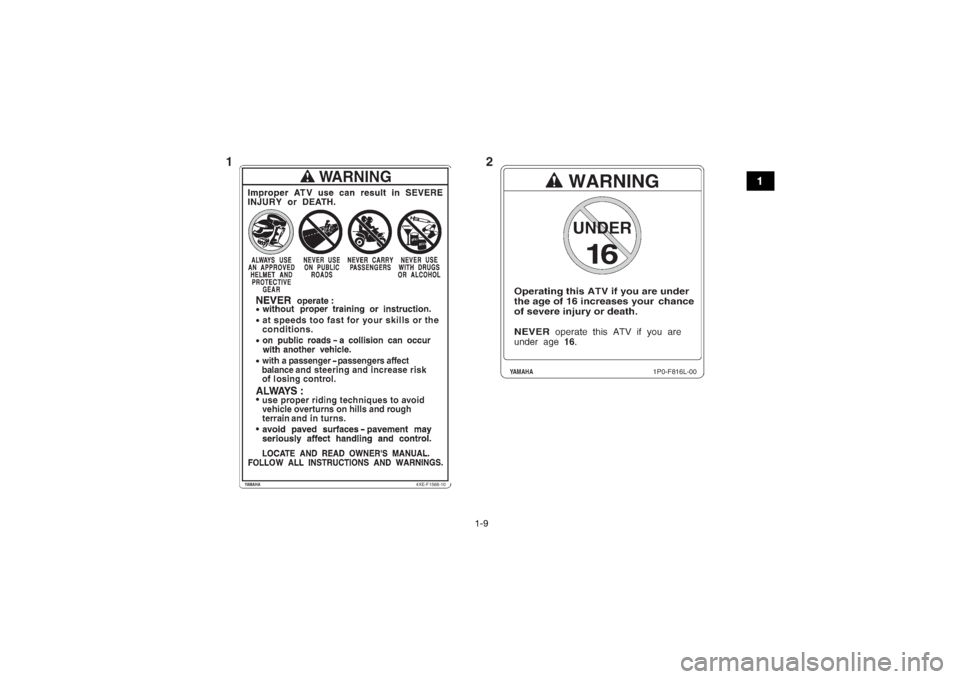

LOCATION OF THE WARNING AND SPECIFICATION LABELS
EBU30292Read and understand all of the labels on your ATV. These labels contain important information for safe and
proper operation.
Never remove any labels from your ATV. If a label becomes difficult to read or comes off, request a re-
placement label from your Yamaha dealer.
For Europe
8
7
1
2
543
7
6
U1TD62E0.book Page 1 Monday, May 18, 2015 9:20 AM

1-2
1
1P0-F816R-00
YAMAHA
1HP-F811R-00
YAMAHA
123U1TD62E0.book Page 2 Monday, May 18, 2015 9:20 AM

1-3
1

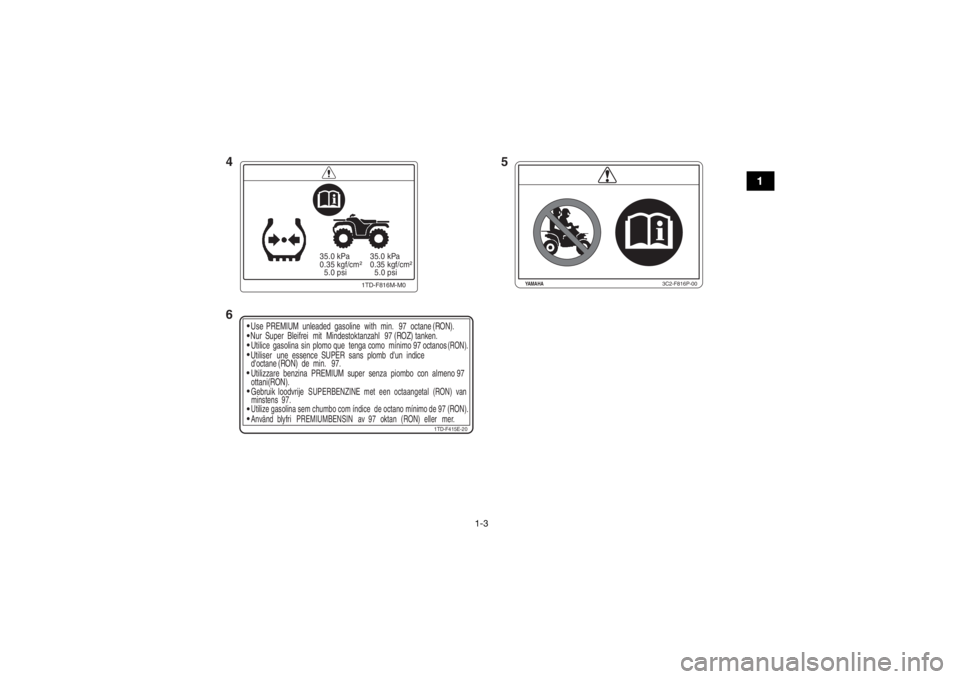

1TD-F415E-20
Use
PREMIUM unleaded gasoline with min. 97 octane (RON).
Nur Super Bleifrei mit Mindestoktanzahl 97 (ROZ) tanken.
Utilice gasolina sin plomo que tenga como mínimo 97 octanos
(RON).
Utiliser une essence SUPER sans plomb d'un indice
d'octane (RON) de min. 97.Utilizzare benzina PREMIUM super senza piombo con almeno 97
ottani(RON).
Gebruik loodvrije
SUPERBENZINE met een octaangetal (RON) van
minstens 97.
Utilize gasolina sem chumbo com índice de octano mínimo de 97 (RON).
Använd blyfri PREMIUMBENSIN av 97 oktan (RON) eller mer.
3C2-F816P-00
YAMAHA
35.0 kPa
0.35 kgf/cm²
5.0 psi 35.0 kPa
0.35 kgf/cm²
5.0 psi
1TD-F816M-M0
4
6 5
U1TD62E0.book Page 3 Monday, May 18, 2015 9:20 AM

1-4
1
1HP-F2259-21
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPANYFZ450R
30.0 kW
184 kg
2015
1TD-F155A-20
78U1TD62E0.book Page 4 Monday, May 18, 2015 9:20 AM

1-5
1

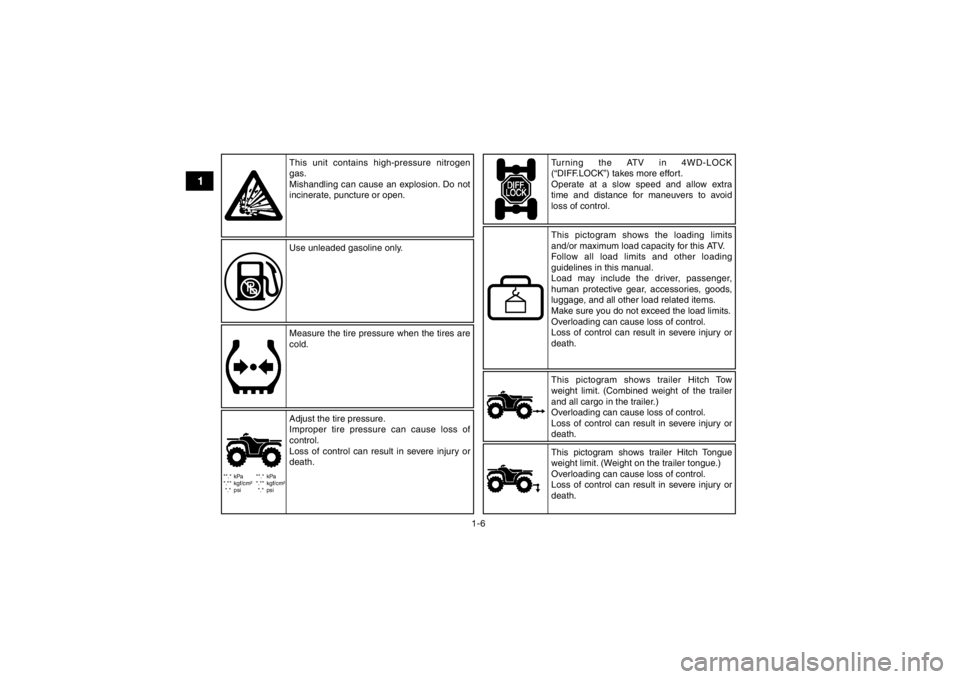

Familiarize yourself with the following pictograms and read the explanatory text, then make sure to check
the pictograms that apply to your model.
Read the Owner’s manual.
ALWAYS use an approved helmet and
protective gear.
For ATV Type 1 category Y12, use from 12
years old.
Operation of this ATV by children under the
age of 12 increases the risk of severe injury
or death.
Adult supervision required for children under
age 16.
Use from 16 years old.
Operating this ATV if you are under the age
of 16 increases your chance of severe injury
or death. NEVER use on paved roads.
NEVER carry passengers.
NEVER use with drugs or alcohol.
NEVER store fuel or flammable liquids.
U1TD62E0.book Page 5 Monday, May 18, 2015 9:20 AM

1-6
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
This pictogram shows trailer Hitch Tow
weight limit. (Combined weight of the trailer
and all cargo in the trailer.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This unit contains high-pressure nitrogen
gas.
Mishandling can cause an explosion. Do not
incinerate, puncture or open.
Use unleaded gasoline only.
Measure the tire pressure when the tires are
cold. Turning the ATV in 4WD-LOCK
(“DIFF.LOCK”) takes more effort.
Operate at a slow speed and allow extra
time and distance for maneuvers to avoid
loss of control.
Adjust the tire pressure.
Improper tire pressure can cause loss of
control.
Loss of control can result in severe injury or
death. This pictogram shows the loading limits
and/or maximum load capacity for this ATV.
Follow all load limits and other loading
guidelines in this manual.
Load may include the driver, passenger,
human protective gear, accessories, goods,
luggage, and all other load related items.
Make sure you do not exceed the load limits.
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
This pictogram shows trailer Hitch Tongue
weight limit. (Weight on the trailer tongue.)
Overloading can cause loss of control.
Loss of control can result in severe injury or
death.
U1TD62E0.book Page 6 Monday, May 18, 2015 9:20 AM

1-7
1
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
******
*** kW
*** kg
****1
2
341
2
3
4

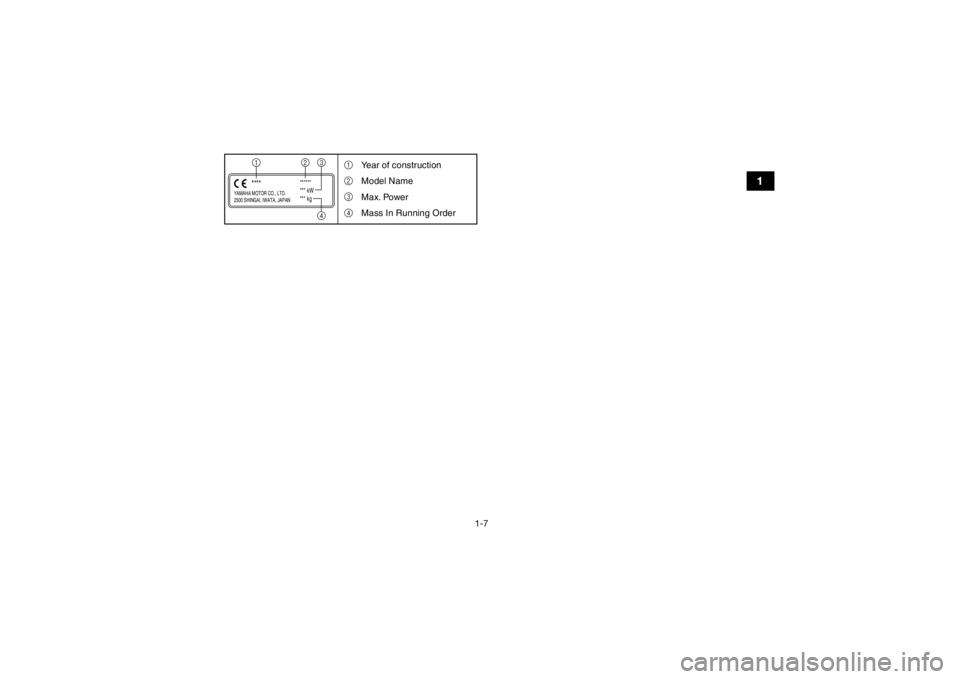

Year of construction
Model Name
Max. Power
Mass In Running Order
U1TD62E0.book Page 7 Monday, May 18, 2015 9:20 AM

1-8
1For Oceania
4
6
1
2
6
5
3
U1TD62E0.book Page 8 Monday, May 18, 2015 9:20 AM

1-9
1
4XE-F1568-10
YAMAHA
1P0-F816L-00
YAMAHA
12
U1TD62E0.book Page 9 Monday, May 18, 2015 9:20 AM

1-10
1
1HP-F2259-21
WARNING
OPERATING TIRE PRESSURE : Set with tires cold
Recommended
: Front
: 35.0
kPa
Rear
: 35.0
kPa

Minimum
: Front
: 32.0
kPa
Rear
: 32.0
kPa

Never set tire pressure below minimum.
It could cause the tire to dislodge from the rim.LOADINGMaximum weight capacity :
100 kg (220 lbs.)
Includes weight of operator, cargo and accessories.Improper tire pressure or overloading can cause
loss of control.
Loss of control can result in severe injury or
death.
5.0 psi
5.0 psi 4.6 psi
4.6 psi(
( )
() () )
1TD-F816M-00
WARNINGNEVER ride as a
passenger.Passengers can causea loss of control,resulting in SEVEREINJURY or DEATH.
3C2-F151H-00
YAMAHA
Use
97 octane
1TD-F415E-30
PREMIUM unleaded gasoline with min. (RON).
4 35
