YAMAHA YFZ450R 2018 Owners Manual

8-17
8
6. Remove the crankcase engine oil drain bolt
and its gasket.
TIPSkip steps 7–10 if the oil filter element is not being
replaced. 7. Remove the oil filter element cover by remov-ing the bolts.
1. Engine oil tank drain bolt
2. Gasket
1
2
1. Crankcase engine oil drain bolt
2. Gasket
1
2
UBW261E0.book Page 17 Friday, May 26, 2017 9:38 AM

8-18
88. Remove the oil filter element and the O-rings.
9. Install a new oil filter element and new O-
rings.
TIPMake sure that the O-rings are properly seated. 10. Install the oil filter element cover by installing the bolts, and then tighten them to the speci-
fied torque.
1. Oil filter element cover
2. Bolt
1
2
1. Oil filter element
2. O-ringTightening torque:Oil filter element cover bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
2
2
UBW261E0.book Page 18 Friday, May 26, 2017 9:38 AM

8-19
8
11. Install the crankcase engine oil drain bolt, the
engine oil tank drain bolt and their new gas-
ket, and then tighten the bolts to their speci-
fied torques.
12. Refill with the specified amount of the recom- mended engine oil through the engine oil tank
filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.
NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
 Make sure that no foreign material enters the
crankcase. 13. Check the engine oil tank filler cap O-ring for
damage, and replace it if necessary.
14. Install and tighten the engine oil tank filler cap.
15. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
16. Turn the engine off, and then check the oil level and correct it if necessary.
17. Install the engine guard by installing the bolts, and then tighten them to the specified torque.
NOTICE: Be sure to apply LOCTITE
® to the
engine guard bolts before installing them.
[ECB00372]
Tightening torques: Crankcase engine oil drain bolt:20 N·m (2.0 kgf·m, 15 lb·ft)
Engine oil tank drain bolt: 20 N·m (2.0 kgf·m, 15 lb·ft)
Recommended oil: See page 10-1.
Oil quantity: Without oil filter element replacement:1.40 L (1.48 US qt, 1.23 Imp.qt)
With oil filter element replacement: 1.45 L (1.53 US qt, 1.28 Imp.qt)
UBW261E0.book Page 19 Friday, May 26, 2017 9:38 AM

8-20
8
EBU29861CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart. Have a Yamaha dealer
change the coolant. WARNING! Never attempt
to remove the radiator cap when the engine is
hot.
[EWB02671]
EBU27945
To check the coolant level 1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.
TIPThe coolant should be between the minimum and
maximum level marks. 3. If the coolant is at or below the minimum levelmark, remove the coolant reservoir cap, add
coolant or distilled water to the maximum lev-
el mark, and then install the reservoir cap.
NOTICE: If coolant is not available, use
distilled water or soft tap water instead.
Do not use hard water or salt water since
they are harmful to the engine. If water has
Tightening torque:
Engine guard bolt:7 N·m (0.7 kgf·m, 5.2 lb·ft)1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1
2
3
UBW261E0.book Page 20 Friday, May 26, 2017 9:38 AM

8-21
8
been used instead of coolant, replace it
with coolant as soon as possible, other-
wise the cooling system will not be pro-
tected against frost and corrosion. If water
has been added to the coolant, have a
Yamaha dealer check the antifreeze con- tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]
TIP The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
 If the engine overheats, see page 8-52 for fur-
ther instructions.
EBU26809Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case. 1. Place the ATV on a level surface.
Coolant reservoir capacity (up to the maxi-
mum level mark):

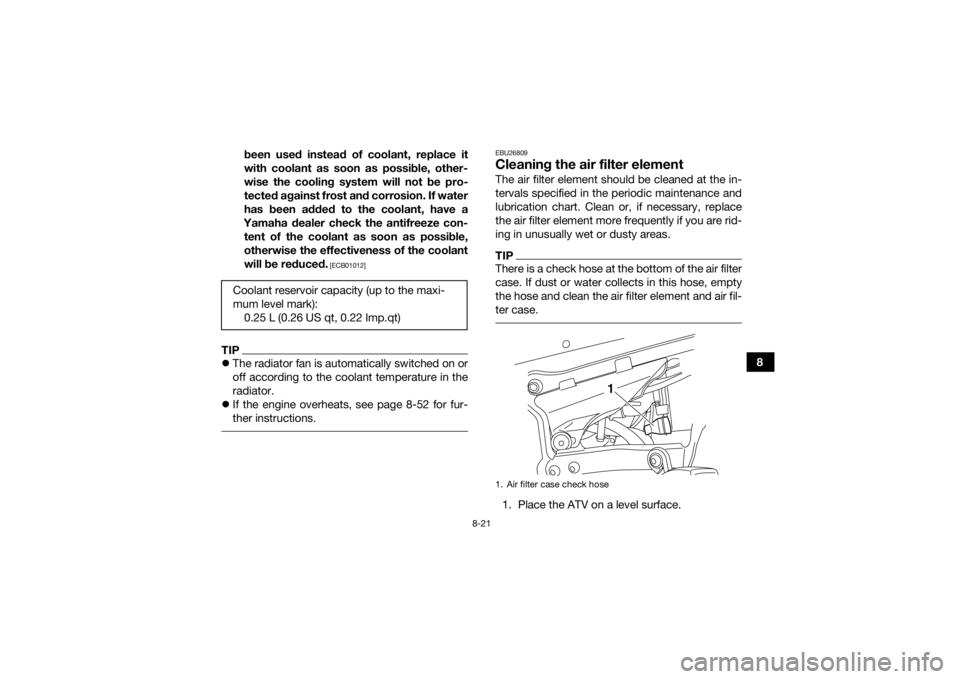

0.25 L (0.26 US qt, 0.22 Imp.qt)1. Air filter case check hose
1
UBW261E0.book Page 21 Friday, May 26, 2017 9:38 AM

8-22
82. Remove the seat. (See page 4-10.)
3. Remove the air filter case cover by unhooking
the holders.
4. Fully loosen the wing bolt.
5. Remove the air filter element together with the wing bolt and washer. 6. Remove the wing bolt and washer from the air
filter element.
7. Remove the sponge material from the air filter element frame.

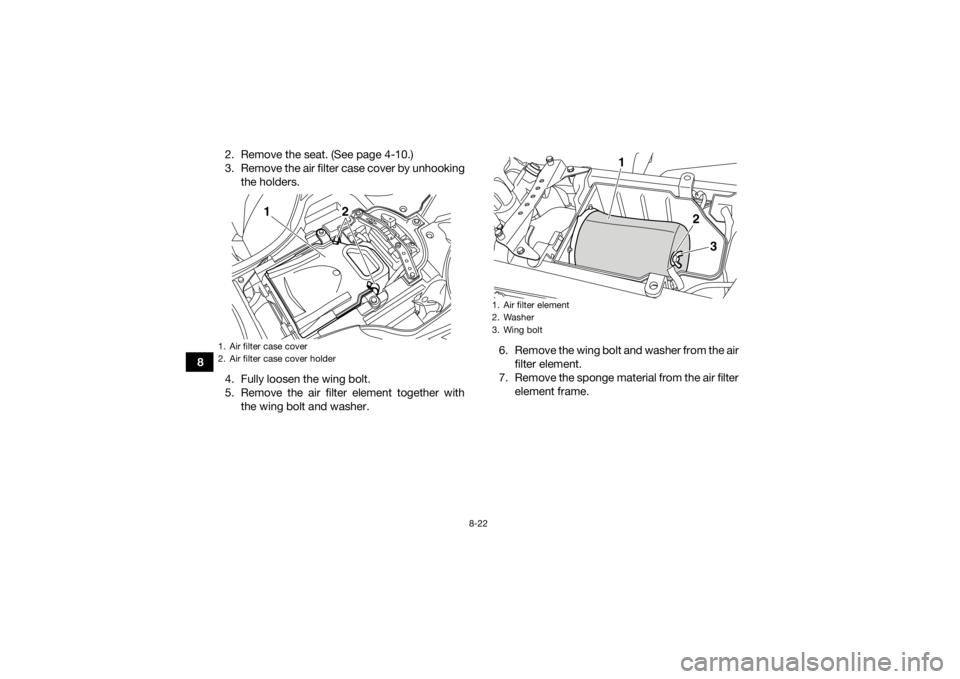

1. Air filter case cover
2. Air filter case cover holder
1
2
1. Air filter element
2. Washer
3. Wing bolt
3
2
1
UBW261E0.book Page 22 Friday, May 26, 2017 9:38 AM

8-23
8

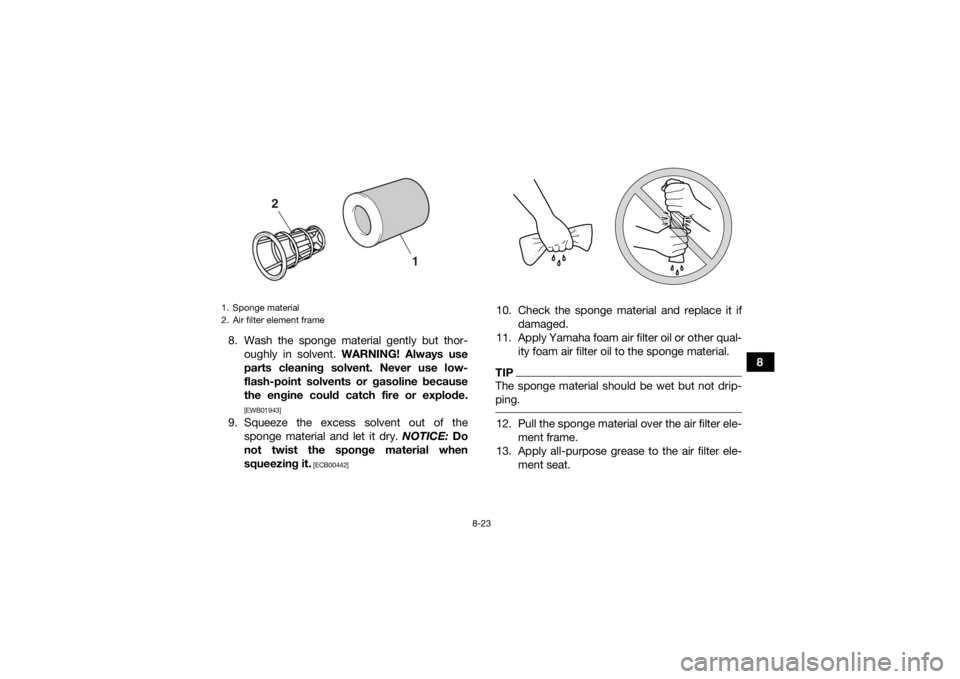

8. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]
9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]
10. Check the sponge material and replace it if damaged.
11. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.TIPThe sponge material should be wet but not drip-
ping. 12. Pull the sponge material over the air filter ele-ment frame.
13. Apply all-purpose grease to the air filter ele- ment seat.
1. Sponge material
2. Air filter element frame
1
2
UBW261E0.book Page 23 Friday, May 26, 2017 9:38 AM

8-24
814. Install the washer onto the air filter element
frame, and then insert the wing bolt into the
hole in the air filter element frame. NOTICE:
Be sure to install the washer with its
curved side facing outward as shown.
[ECB00454]
15. Insert the air filter element into the air filter case, and then tighten the wing bolt.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. Doing so would al-
low unfiltered air to enter the engine, caus-
ing rapid engine wear and possible engine
damage. Additionally, the fuel injection
system would be affected resulting in poor
engine performance and possible over-
heating.
[ECB00763]
16. Install the air filter case cover by hooking the holders onto the air filter case.

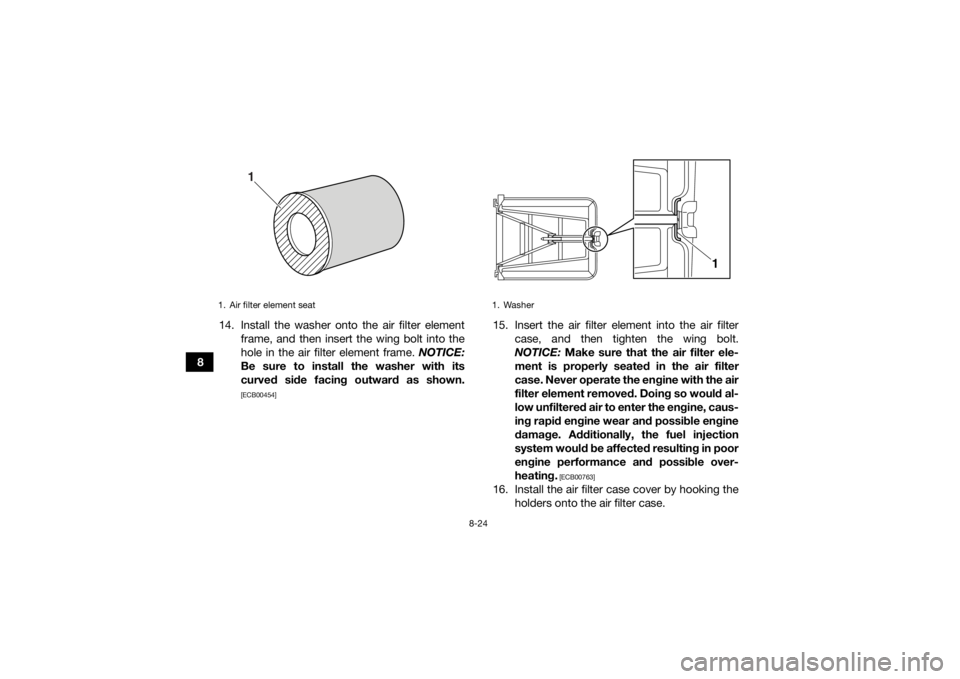

1. Air filter element seat
1
1. Washer
1
UBW261E0.book Page 24 Friday, May 26, 2017 9:38 AM

8-25
8
17. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the throttle body and the rub-
ber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU30862Cleaning the spark arresterSelect a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the tailpipe cover by removing the bolts. 2. Remove the retainer by removing the bolts,
and then remove the tailpipe and gasket from
the muffler.
1. Tailpipe cover
2. Bolt2
1 2
UBW261E0.book Page 25 Friday, May 26, 2017 9:38 AM

8-26
83. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing. 4. Install the gasket, tailpipe, and retainer and
align the bolt holes.
5. Install the bolts and tighten them to the spec- ified torque.
6. Install the tailpipe cover and align the bolt holes.
7. Install the bolts and tighten them to the spec- ified torque.

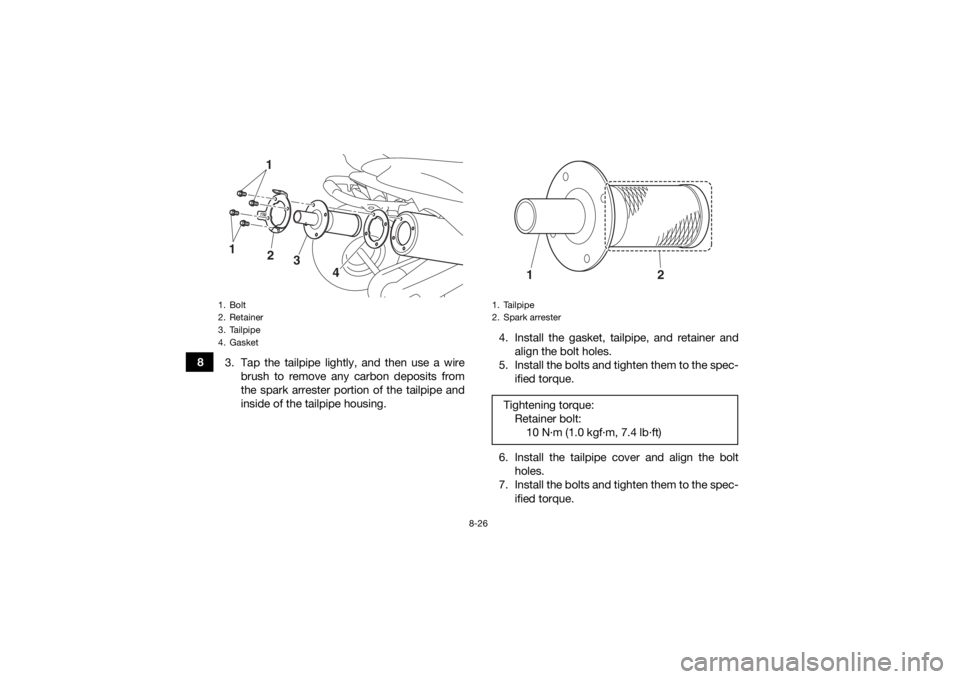

1. Bolt
2. Retainer
3. Tailpipe
4. Gasket1
2
3
4
1
1. Tailpipe
2. Spark arresterTightening torque:Retainer bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
2
