YAMAHA YFZ450R 2018 Owners Manual

8-47
8

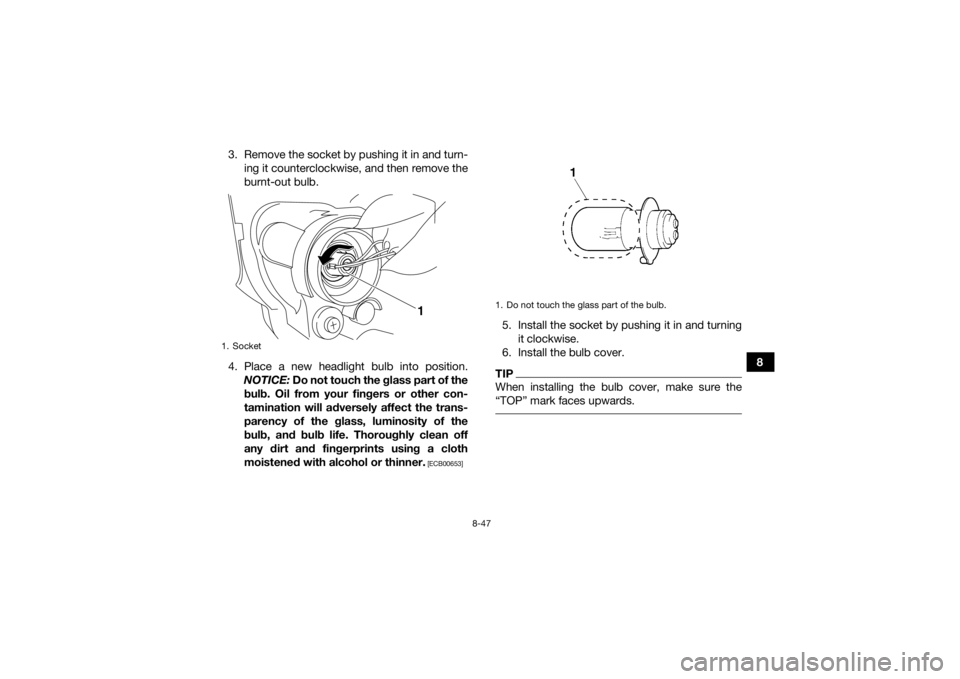

3. Remove the socket by pushing it in and turn-
ing it counterclockwise, and then remove the
burnt-out bulb.
4. Place a new headlight bulb into position. NOTICE: Do not touch the glass part of the
bulb. Oil from your fingers or other con-
tamination will adversely affect the trans-
parency of the glass, luminosity of the
bulb, and bulb life. Thoroughly clean off
any dirt and fingerprints using a cloth
moistened with alcohol or thinner.
[ECB00653]
5. Install the socket by pushing it in and turning it clockwise.
6. Install the bulb cover.TIPWhen installing the bulb cover, make sure the
“TOP” mark faces upwards.
1. Socket
1
1. Do not touch the glass part of the bulb.
UBW261E0.book Page 47 Friday, May 26, 2017 9:38 AM

8-48

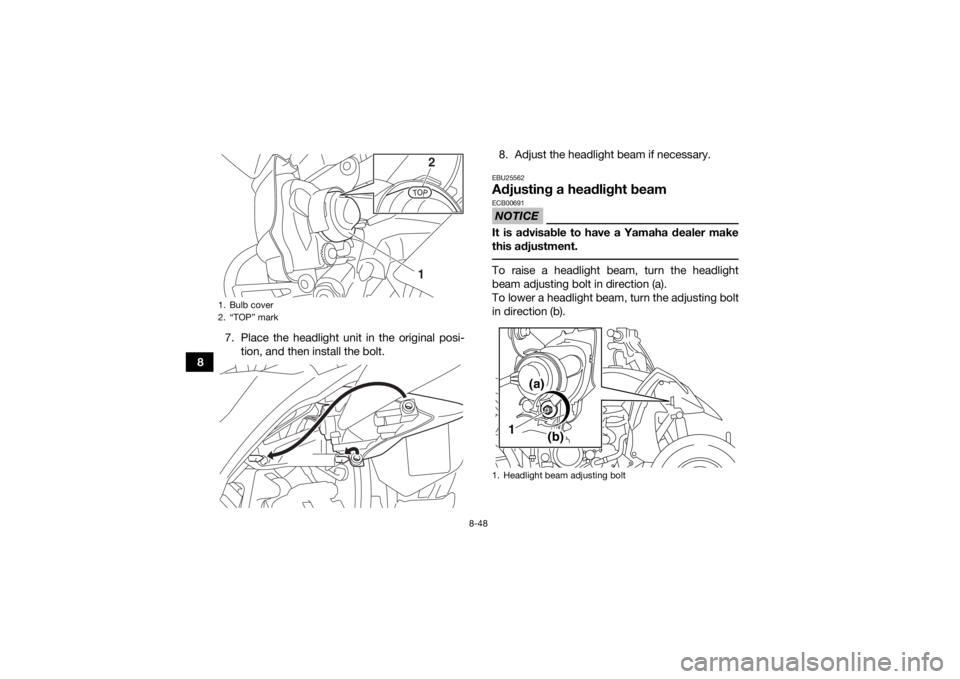

87. Place the headlight unit in the original posi-
tion, and then install the bolt. 8. Adjust the headlight beam if necessary.
EBU25562Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment. To raise a headlight beam, turn the headlight
beam adjusting bolt in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
1. Bulb cover
2. “TOP” mark
12
1. Headlight beam adjusting bolt
1
(a)
(b)
UBW261E0.book Page 48 Friday, May 26, 2017 9:38 AM

8-49
8
EBU26921Tail/brake lightThis model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a

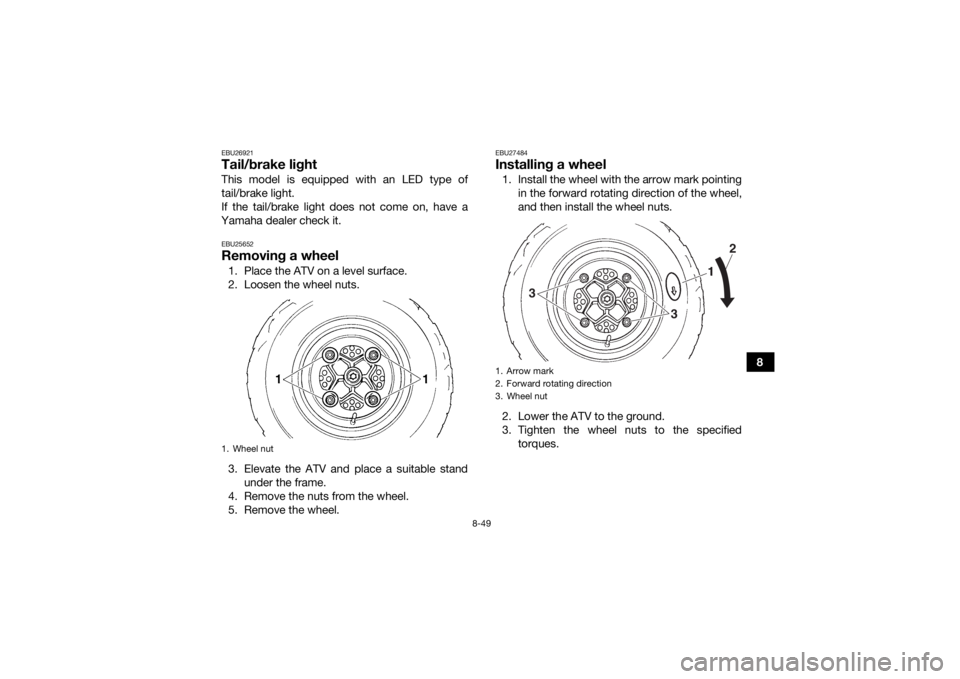

Yamaha dealer check it.EBU25652Removing a wheel1. Place the ATV on a level surface.
2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable stand under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU27484Installing a wheel1. Install the wheel with the arrow mark pointing in the forward rotating direction of the wheel,
and then install the wheel nuts.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified torques.
1. Wheel nut
1. Arrow mark
2. Forward rotating direction
3. Wheel nut
2
3
3
UBW261E0.book Page 49 Friday, May 26, 2017 9:38 AM

8-50
8
EBU25741TroubleshootingAlthough Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the
fuel, compression, or ignition systems, for exam-
ple, can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vi-
tal systems yourself. However, should your ATV
require any repair, take it to a Yamaha dealer,
whose skilled technicians have the necessary
tools, experience, and know-how to service the
ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWB02281Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe inju-
ry or property damage. Make sure there are no
open flames or sparks in the area, including pi-
lot lights from water heaters or furnaces.
Tightening torques:Front wheel nut:45 N·m (4.5 kgf·m, 33 lb·ft)
Rear wheel nut: 45 N·m (4.5 kgf·m, 33 lb·ft)
UBW261E0.book Page 50 Friday, May 26, 2017 9:38 AM

8-51
8
EBU27695Troubleshooting chartsStarting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the ATV.
The engine does not start.
Check the compression.
DryWet
Operate the electric starter.
Have a Yamaha dealer check the ATV.
The engine does not start.
Check the ignition.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
UBW261E0.book Page 51 Friday, May 26, 2017 9:38 AM

8-52
8Engine overheating
WARNING
EWB02291Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the
recommended coolant as soon as possible. Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer check
and repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
UBW261E0.book Page 52 Friday, May 26, 2017 9:38 AM

9-1
9
EBU25861
CLEANING AND STORAGE
EBU25903CleaningFrequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.1. Before cleaning the ATV: a. Block off the end of the exhaust pipe toprevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps are properly installed.
2. If the engine case is excessively greasy, apply degreaser with a paint brush. Do not apply
degreaser to the chain, sprockets or wheel
axles.
3. Rinse the dirt and degreaser off with a garden hose. Use only enough pressure to do the
job. WARNING! Wet brakes may have re-
duced stopping ability, increasing the
chance of an accident. Test the brakes af-
ter washing. Apply the brakes several
times at slow speeds to let friction dry out
the linings.
[EWB02312]
NOTICE: Excessive wa- ter pressure may cause water seepage
and deterioration of wheel bearings,
brakes, transmission seals and electrical
devices. Many expensive repair bills have
resulted from improper high-pressure de-
tergent applications such as those avail-
able in coin-operated car washers.
[ECB00712]
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or
bottle brush is handy for hard-to-reach pla-
ces.
5. Rinse the ATV off immediately with clean wa- ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Dry the chain and lubricate it to prevent it from rusting.
7. Clean the seat with a vinyl upholstery cleaner to keep the cover pliable and glossy.
8. Automotive type wax may be applied to all painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
UBW261E0.book Page 1 Friday, May 26, 2017 9:38 AM

9-2
9abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.
EBU27264StorageShort-term
Always store your ATV in a cool, dry place and, if
necessary, protect it against dust with a porous
cover.
NOTICE: Storing the ATV in a poorly ven-
tilated room or covering it with a tarp while it is
still wet, will allow water and humidity to seep
in and cause rust. To prevent corrosion, avoid
damp cellars, stables (because of the presence
of ammonia) and areas where strong chemi-
cals are stored.
[ECB00722]
Long-term
Before storing your ATV for several months: 1. Make any necessary repairs and perform all outstanding maintenance.
2. Follow all the instructions in the Cleaning sec- tion of this chapter. 3. Fill up the fuel tank and add fuel stabilizer (Fu-
el Med Rx if available), and then run the en-
gine for 5 minutes to distribute the treated
fuel.
4. Perform the following steps to protect the en- gine from internal corrosion.a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place the spark plug on the
cylinder head so that the electrodes are
grounded. (This will limit sparking during
the next step.)
d. Turn the engine over several times with the starter. (This will coat the cylinder wall
with oil.)
e. Remove the spark plug cap from the spark plug, and then install the spark plug and
the spark plug cap.
5. Lubricate all control cables and the pivoting points of all levers and pedals.
Specified amount:
7.5 ml per liter of fuel (1 oz per gallon)UBW261E0.book Page 2 Friday, May 26, 2017 9:38 AM

9-3
9
6. Put the frame on stands or blocks to raise all
wheels off the ground. (Alternatively, turn the
wheels each month to prevent the tires from
degrading in one spot.)
7. Cover the muffler outlet with a plastic bag to prevent moisture from entering it.
8. Remove the battery and fully charge it. (See page 8-42.)
UBW261E0.book Page 3 Friday, May 26, 2017 9:38 AM

10-1
10
EBU25962
SPECIFICATIONS
Dimensions:Overall length:1795 mm (70.7 in)
Overall width: 1240 mm (48.8 in)
Overall height:
1065 mm (41.9 in)
Seat height: 810 mm (31.9 in)
Wheelbase: 1270 mm (50.0 in)
Ground clearance:
235 mm (9.3 in)
Minimum turning radius: 3600 mm (142 in)Weight:Curb weight:
184.0 kg (406 lb)Noise and vibration level:Noise level (77/311/EEC):85.9 dB(A) at 3750 r/min
Uncertainty of measurement:
3.0 dB(A)
A-weighted sound power level: 99.0 dB(A) at 3750 r/min
Uncertainty of measurement: 3.0 dB(A) Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s²
Uncertainty of measurement: 0.1 m/s²
Vibration on handle (EN1032, ISO5008): Will not exceed 2.5 m/s²
Uncertainty of measurement:
0.8 m/s²
Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Single cylinder
Displacement: 449 cm³
Bore × stroke:
95.0 × 63.4 mm (3.74 × 2.50 in)
Compression ratio:
11.8 : 1
Starting system: Electric starter
Lubrication system: Dry sumpEngine oil:Recommended brand:YAMALUBE
