Safety information
1-4
1
tents, can create unstable han-
dling or a slow steering re-
sponse.
This vehicle is not desi gne d to
pull a trailer or to be attached to
a si decar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer. Aftermarket Parts, Accessories, an
d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories. Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension travel, steering travel or control opera-
tion, or obscure lights or reflec-
tors.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become
unstable in cross winds. These
accessories may also cause in-
stability when passing or being
passed by large vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
UBT4E0E0.book Page 4 Thursday, November 17, 2016 10:55 AM
Page 12 of 90
Safety information
1-5
1operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires an d Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to page
6-17 for tire specifications and more in-
formation on replacing your tires.
Transportin g the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle. Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-
torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
UBT4E0E0.book Page 5 Thursday, November 17, 2016 10:55 AM
Page 13 of 90
Description
2-1
2
EAU10411

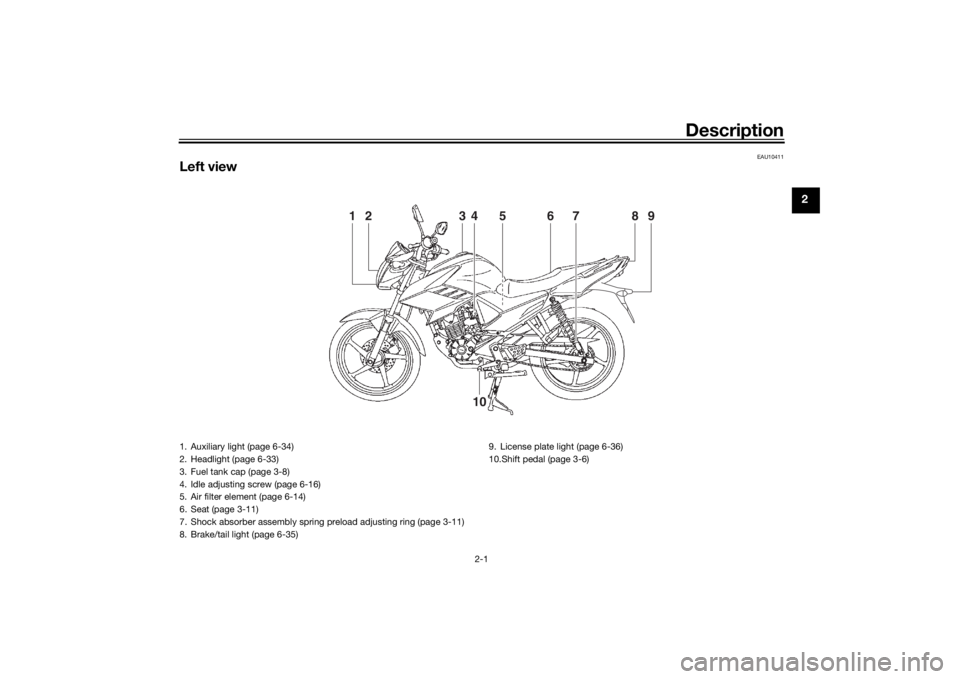

Left view
4
7
1
2
8
9
3
6
5
10
1. Auxiliary light (page 6-34)
2. Headlight (page 6-33)
3. Fuel tank cap (page 3-8)
4. Idle adjusting screw (page 6-16)
5. Air filter element (page 6-14)
6. Seat (page 3-11)
7. Shock absorber assembly spring preload adjusting ring (page 3-11)
8. Brake/tail light (page 6-35) 9. License plate light (page 6-36)
10.Shift pedal (page 3-6)
UBT4E0E0.book Page 1 Thursday, November 17, 2016 10:55 AM
Page 14 of 90
Description
2-2
2
EAU10421
Right view
3,4
1
2
5
6
7
8
9
1. Shock absorber assembly spring preload adjusting ring (page 3-11)
2. Owner’s tool kit (page 6-2)
3. Battery (page 6-30)
4. Fuses (page 6-31)
5. Engine oil filter element (page 6-11)
6. Engine oil drain bolt (page 6-11)
7. Engine oil filler cap (page 6-11)
8. Brake pedal (page 3-7) 9. Rear brake light switch (page 6-21)UBT4E0E0.book Page 2 Thursday, November 17, 2016 10:55 AM
Page 15 of 90
Description
2-3
2
EAU10431

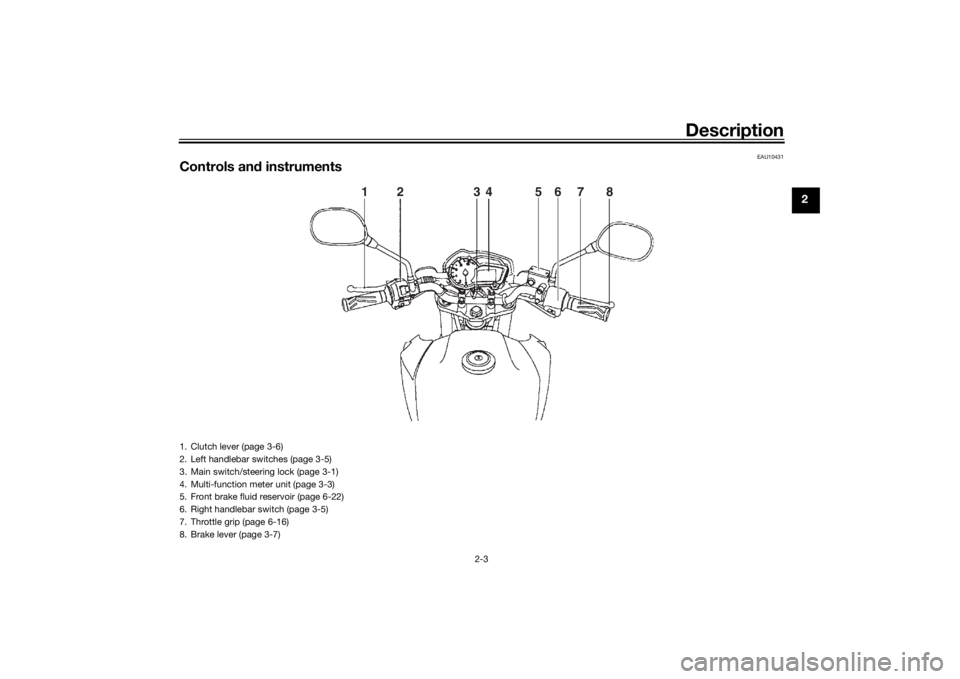

Controls and instruments
12 34 678
5
1. Clutch lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Main switch/steering lock (page 3-1)
4. Multi-function meter unit (page 3-3)
5. Front brake fluid reservoir (page 6-22)
6. Right handlebar switch (page 3-5)
7. Throttle grip (page 6-16)
8. Brake lever (page 3-7)
UBT4E0E0.book Page 3 Thursday, November 17, 2016 10:55 AM
Page 16 of 90
Instrument and control functions
3-1
3
EAU10462

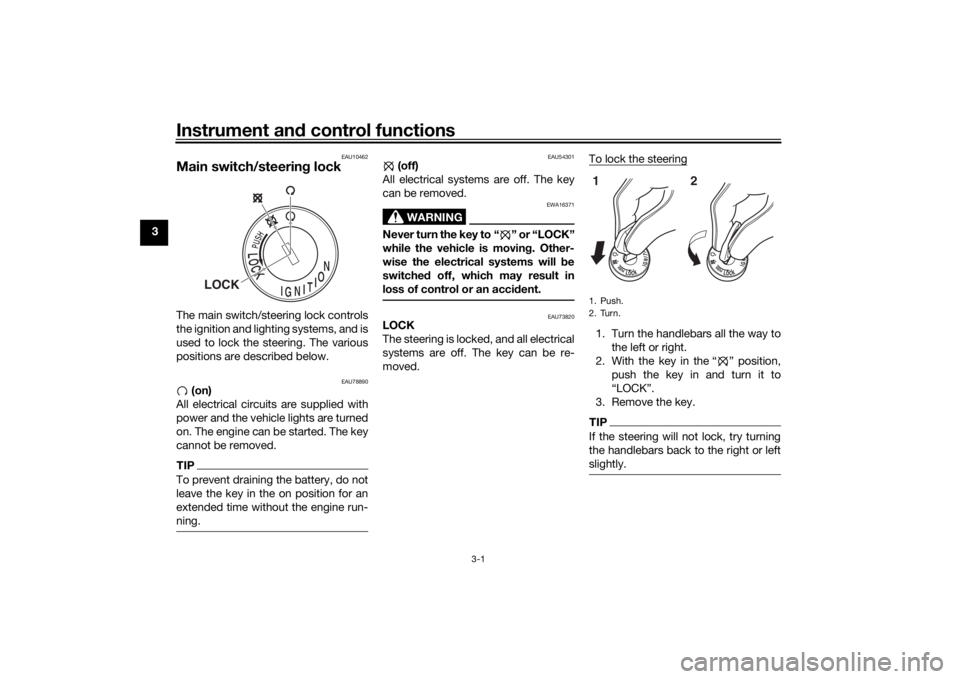

Main switch/steerin g lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU78890
(on)
All electrical circuits are supplied with
power and the vehicle lights are turned
on. The engine can be started. The key
cannot be removed.
TIPTo prevent draining the battery, do not
leave the key in the on position for an
extended time without the engine run-
ning.
EAU54301
(off)
All electrical systems are off. The key
can be removed.
WARNING
EWA16371
Never turn the key to “ ” or “LOCK”
while the vehicle is movin g. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an acci dent.
EAU73820
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved. To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. With the key in the “ ” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turning
the handlebars back to the right or left
slightly.
LOCK
1. Push.
2. Turn.12
UBT4E0E0.book Page 1 Thursday, November 17, 2016 10:55 AM
Page 17 of 90
Instrument and control functions
3-2
3
To unlock the steering
Insert the key and turn it to “ ”.
EAU1100D
In
dicator li ghts an d warnin g
lig ht
EAU11022
Turn si gnal in dicator li ght “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral in dicator li ght “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU78310
En gine trou ble warnin g li ght “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system.
The electrical circuit of the warning
light can be checked by turning the key
to “ ”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ ”,
or if the warning light remains on, have
a Yamaha dealer check the vehicle.
EAUE2572
Eco in dicator li ght “ECO”
This indicator light comes on when the
vehicle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator light goes off when the
vehicle is stopped.
1. Turn.
1
1. Turn signal indicator light “ ”
2. Neutral indicator light “ ”
3. High beam indicator light “ ”
4. Eco indicator light “ECO”
5. Engine trouble warning light “ ”
1
2
3
4
5
UBT4E0E0.book Page 2 Thursday, November 17, 2016 10:55 AM
Page 18 of 90
Instrument and control functions
3-3
3
TIPConsider the following tips to reduce
fuel consumption:
Avoid high engine speeds during
acceleration.
Travel at a constant speed.
Select the transmission gear that
is appropriate for the vehicle
speed.
EAU78331

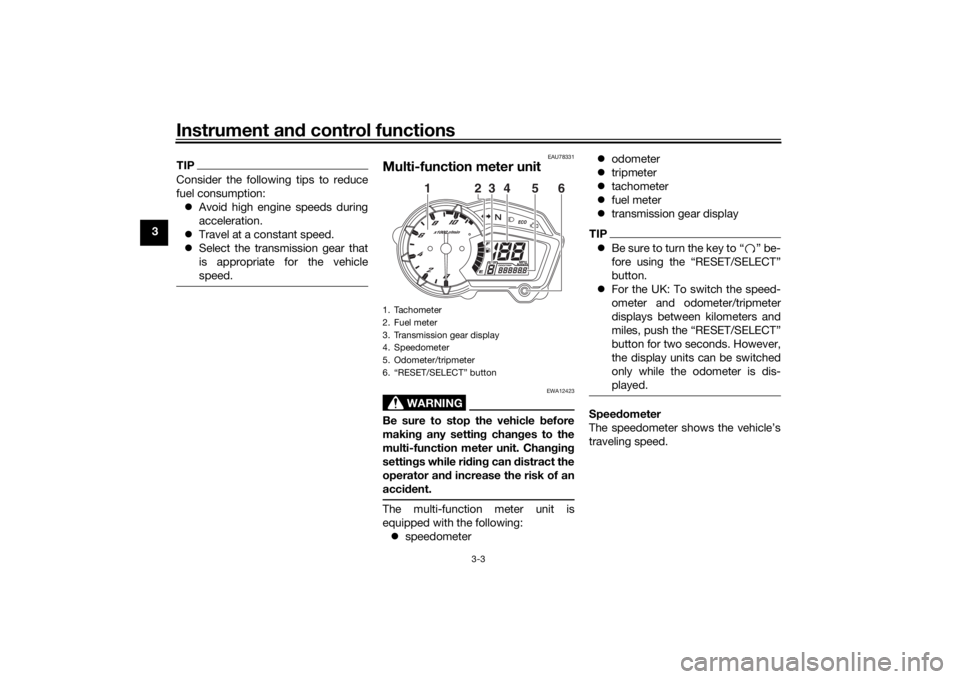

Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.The multi-function meter unit is
equipped with the following:
speedometer
odometer
tripmeter
tachometer
fuel meter
transmission gear display
TIPBe sure to turn the key to “ ” be-
fore using the “RESET/SELECT”
button.
For the UK: To switch the speed-
ometer and odometer/tripmeter
displays between kilometers and
miles, push the “RESET/SELECT”
button for two seconds. However,
the display units can be switched
only while the odometer is dis-
played.Speed ometer
The speedometer shows the vehicle’s
traveling speed.
1. Tachometer
2. Fuel meter
3. Transmission gear display
4. Speedometer
5. Odometer/tripmeter
6. “RESET/SELECT” button
2
3
4
1
5
6
UBT4E0E0.book Page 3 Thursday, November 17, 2016 10:55 AM
Page 19 of 90
Instrument and control functions
3-4
3
O

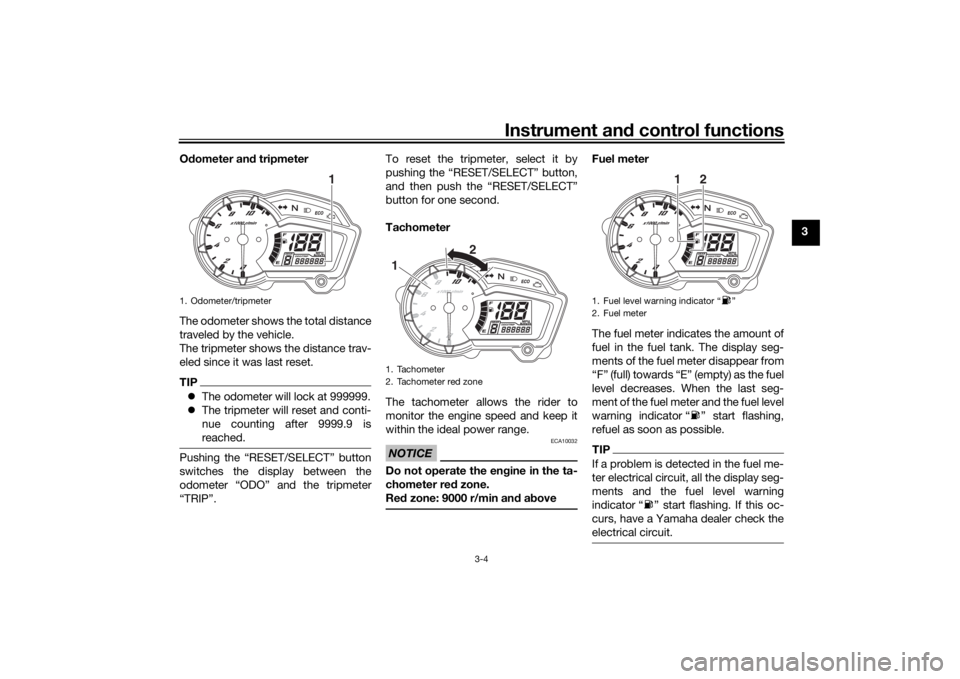

dometer an d tripmeter
The odometer shows the total distance
traveled by the vehicle.
The tripmeter shows the distance trav-
eled since it was last reset.
TIP The odometer will lock at 999999.
The tripmeter will reset and conti-
nue counting after 9999.9 is
reached.Pushing the “RESET/SELECT” button
switches the display between the
odometer “ODO” and the tripmeter
“TRIP”. To reset the tripmeter, select it by
pushing the “RESET/SELECT” button,
and then push the “RESET/SELECT”
button for one second.
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
NOTICE
ECA10032
Do not operate the en
gine in the ta-
chometer red zone.
Re d zone: 9000 r/min an d a bove
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment of the fuel meter and the fuel level
warning indicator “ ” start flashing,
refuel as soon as possible.TIPIf a problem is detected in the fuel me-
ter electrical circuit, all the display seg-
ments and the fuel level warning
indicator “ ” start flashing. If this oc-
curs, have a Yamaha dealer check the
electrical circuit.
1. Odometer/tripmeter
1
1. Tachometer
2. Tachometer red zone1 2
1. Fuel level warning indicator “ ”
2. Fuel meter
1
2
UBT4E0E0.book Page 4 Thursday, November 17, 2016 10:55 AM
Page 20 of 90

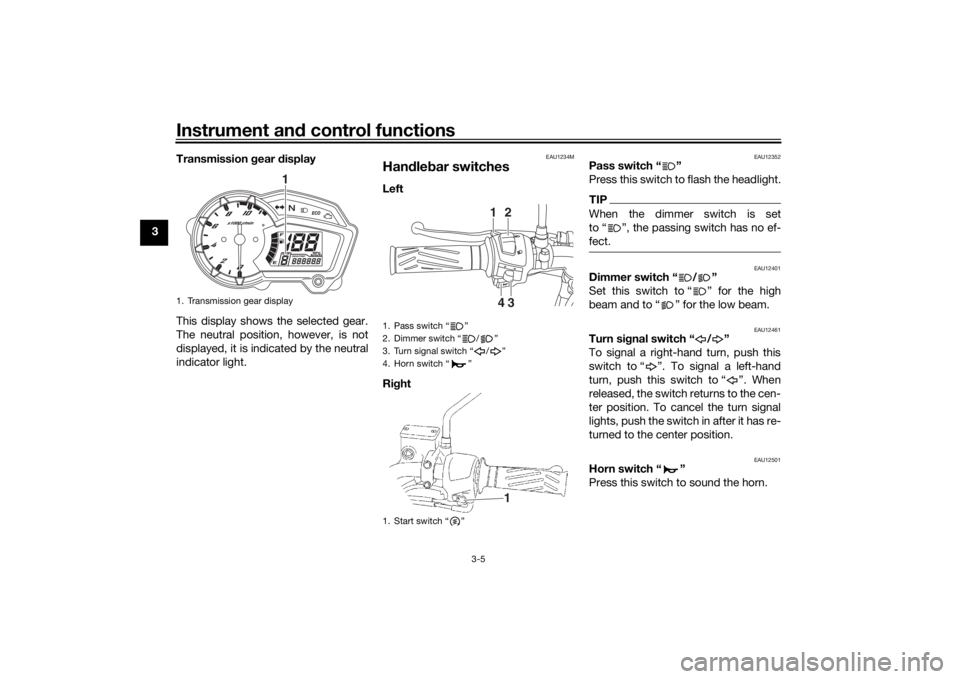

Instrument and control functions
3-5
3 Transmission
gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
EAU1234M
Han dle bar switchesLeft
Ri ght
EAU12352
Pass switch “ ”
Press this switch to flash the headlight.TIPWhen the dimmer switch is set
to “ ”, the passing switch has no ef-
fect.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn si gnal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
1. Transmission gear display
1
1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1. Start switch “ ”
12
34
1
UBT4E0E0.book Page 5 Thursday, November 17, 2016 10:55 AM
