5-29
5
NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings. TIPAlthough the total number of clicks or turns of
a damping force adjusting mechanism may
not exactly match the following specifications
due to small differences in production, the ac-
tual number of clicks or turns always repre-
sents the entire adjusting range. To obtain a
precise adjustment, it would be advisable to
check the number of clicks or turns of each
damping force adjusting mechanism and to
modify the specifications as necessary. Spring preload1. Elevate the vehicle and place a suitable
stand under the frame.
2. Loosen the locknut. 3. Turn the spring preload adjusting nut in
direction (a) to increase the spring pre-
load and thereby harden the suspension,
and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
TIPA special wrench can be obtained at a
Yamaha dealer to make this adjustment.1. Locknut
2. Special wrench
3. Spring preload adjusting nut
2
1
3
(a)
(b)
UB5J7BE0.book Page 29 Tuesday, June 18, 2019 10:07 AM
Page 62 of 198

5-30
5
The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher
the spring preload; the longer distance A is,
the lower the spring preload.
4. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Spring preload setting: Minimum (soft):Distance A = 437.6 mm (17.23 in)
Standard: Distance A = 424.9 mm (16.73 in)
Maximum (hard): Distance A = 412.2 mm (16.23 in)
1. Distance ATightening torque:Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)
1
UB5J7BE0.book Page 30 Tuesday, June 18, 2019 10:07 AM
Page 63 of 198

5-31
5
Rebound damping force
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.
TIPWhen adjusting the damping force settings,
turn the adjuster in direction (a) until it stops,
and then count the turns or clicks in direction
(b). Compression damping force
Fast compression damping forceTo increase the fast compression damping
force and thereby harden the compression
damping, turn the fast compression damping
force adjusting bolt in direction (a). To de-
1. Rebound damping force adjusting screw
1
(a)(b)
Rebound damping setting: Minimum (soft):26 click(s) in direction (b)
Standard: 12 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
UB5J7BE0.book Page 31 Tuesday, June 18, 2019 10:07 AM
Page 64 of 198

5-32
5
crease the fast compression damping force
and thereby soften the compression damp-
ing, turn the adjusting bolt in direction (b).Slow compression damping force
To increase the slow compression damping
force and thereby harden the compression
damping, turn the slow compression damp-
ing force adjusting screw in direction (a). To
decrease the slow compression damping for-
ce and thereby soften the compression
damping, turn the adjusting screw in direction
(b).

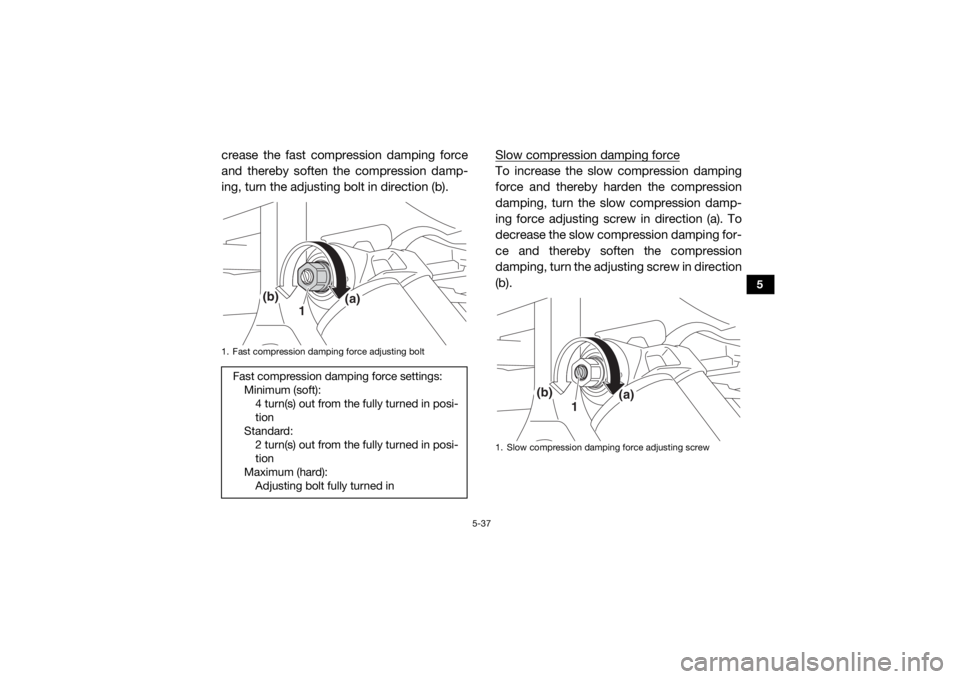

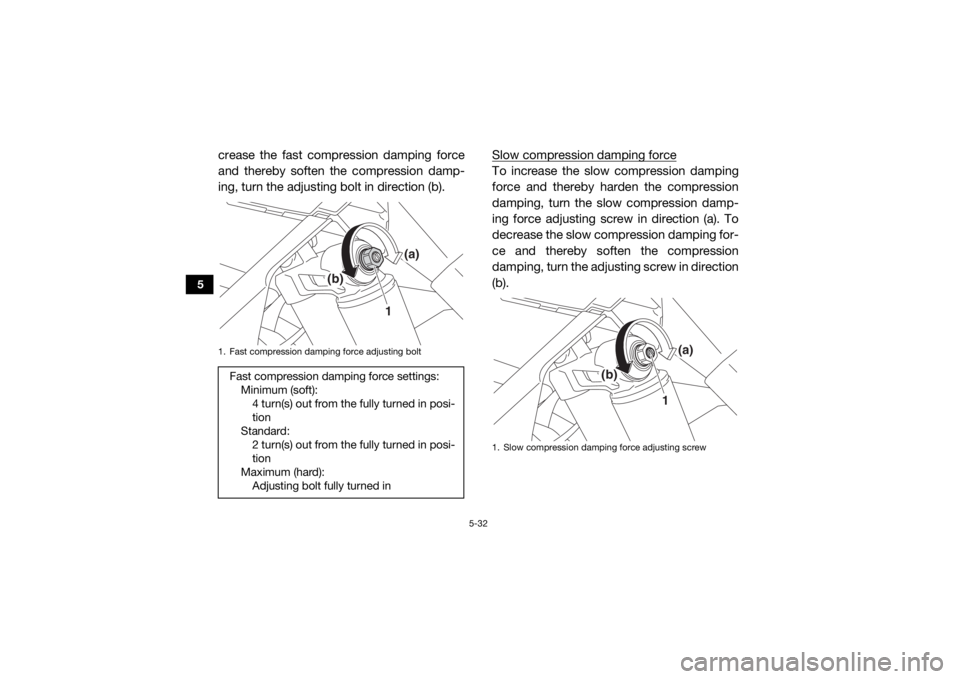

1. Fast compression damping force adjusting boltFast compression damping force settings:
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting bolt fully turned in
1
(a)
(b)
1. Slow compression damping force adjusting screw
1
(a)
(b)
UB5J7BE0.book Page 32 Tuesday, June 18, 2019 10:07 AM
Page 65 of 198

5-33
5
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
Do not subject the shock absorber as-
semblies to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service.
EBU35045Rear shock absorbersThe rear shock absorber assemblies are
equipped with a spring preload adjusting nut,
a rebound damping force adjusting screw, a
fast compression damping force adjusting
bolt, and a slow compression damping force
adjusting screw.
WARNING
EWB02492 Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
Slow compression damping force settings:
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
UB5J7BE0.book Page 33 Tuesday, June 18, 2019 10:07 AM
Page 66 of 198

5-34
5
adjusting screw or the oil reservoir with
your bare hand or skin until suspension
components have cooled.
Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident. NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings. TIPAlthough the total number of clicks or turns of
a damping force adjusting mechanism may
not exactly match the following specifications
due to small differences in production, the ac-
tual number of clicks or turns always repre-
sents the entire adjusting range. To obtain a
precise adjustment, it would be advisable to check the number of clicks or turns of each
damping force adjusting mechanism and to
modify the specifications as necessary.
Spring preload
1. Elevate the vehicle and place a suitable stand under the frame.
2. Loosen the locknut.
3. Turn the spring preload adjusting nut in
direction (a) to increase the spring pre-
load and thereby harden the suspension,
and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
UB5J7BE0.book Page 34 Tuesday, June 18, 2019 10:07 AM
Page 67 of 198

5-35
5
TIPA special wrench can be obtained at a
Yamaha dealer to make this adjustment.
The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher
the spring preload; the longer distance A is,
the lower the spring preload.
4. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]

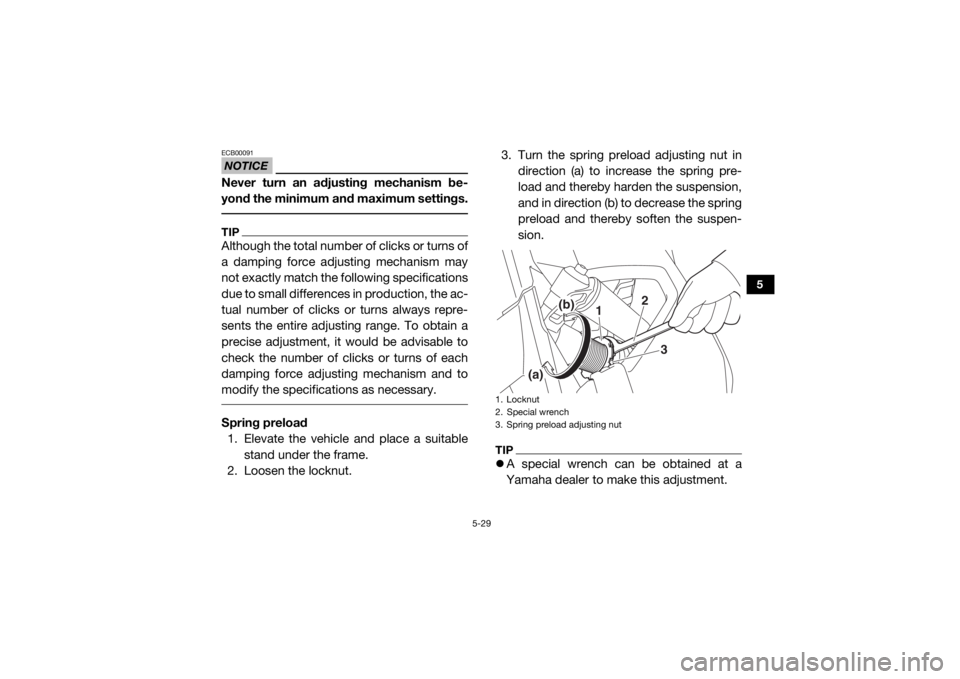

1. Locknut
2. Spring preload adjusting nut
3. Special wrench
1
3
2
(a)
(b)
Spring preload setting: Minimum (soft):Distance A = 433.1 mm (17.05 in)
Standard: Distance A = 420.4 mm (16.55 in)
Maximum (hard): Distance A = 407.7 mm (16.05 in)1. Distance A
1
UB5J7BE0.book Page 35 Tuesday, June 18, 2019 10:07 AM
Page 68 of 198

5-36
5
Rebound damping force
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.
TIPWhen adjusting the damping force settings,
turn the adjuster in direction (a) until it stops,
and then count the turns or clicks in direction
(b). Compression damping force
Fast compression damping forceTo increase the fast compression damping
force and thereby harden the compression
damping, turn the fast compression damping
force adjusting bolt in direction (a). To de-
Tightening torque: Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)1. Rebound damping force adjusting screw
1(a)
(b)
Rebound damping setting:Minimum (soft):26 click(s) in direction (b)
Standard: 12 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
UB5J7BE0.book Page 36 Tuesday, June 18, 2019 10:07 AM
Page 69 of 198

5-37
5
crease the fast compression damping force
and thereby soften the compression damp-
ing, turn the adjusting bolt in direction (b).Slow compression damping force
To increase the slow compression damping
force and thereby harden the compression
damping, turn the slow compression damp-
ing force adjusting screw in direction (a). To
decrease the slow compression damping for-
ce and thereby soften the compression
damping, turn the adjusting screw in direction
(b).
1. Fast compression damping force adjusting boltFast compression damping force settings:
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting bolt fully turned in
1
(a)
(b)
1. Slow compression damping force adjusting screw
1
(a)
(b)
UB5J7BE0.book Page 37 Tuesday, June 18, 2019 10:07 AM
Page 70 of 198

5-38
5
WARNING

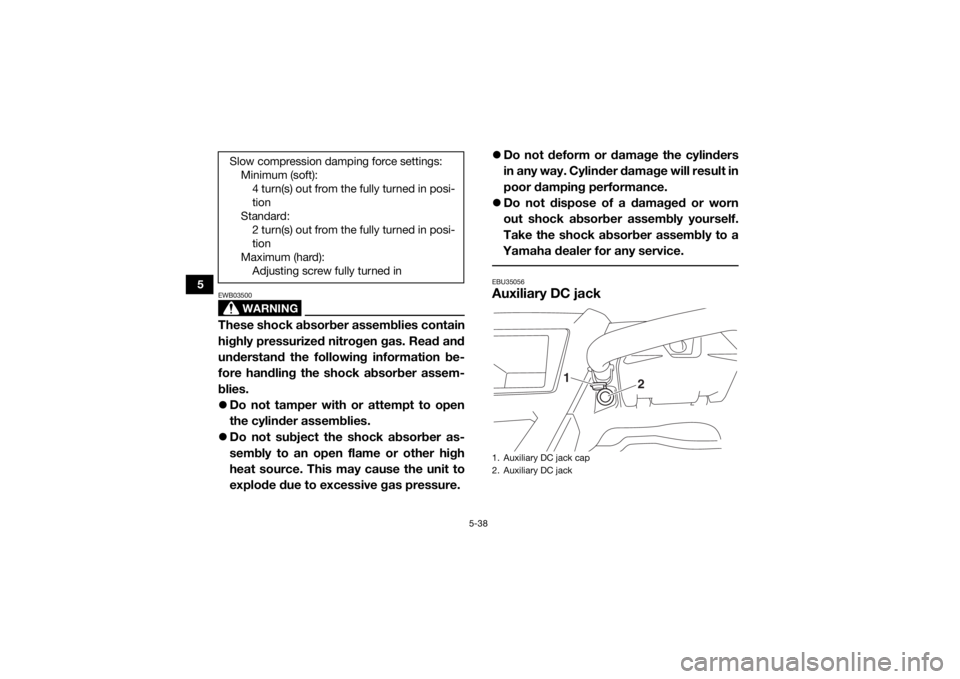

EWB03500These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
Do not subject the shock absorber as-
sembly to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service.
EBU35056Auxiliary DC jack
Slow compression damping force settings: Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
1. Auxiliary DC jack cap
2. Auxiliary DC jack
2
1
