YAMAHA YXZ1000R SS 2019 Repair Manual

4-31
4
When storing any documents in the storage
compartments, be sure to wrap them in a
plastic bag so that they will not get wet. When
washing the vehicle, be careful not to let any
water enter the storage compartments. To
access the underseat storage compartment,
remove the seat cushion. (See page 4-26.)
NOTICEECB02241To protect from damage, do not put metal
items, like tools, or sharply edged items di-
rectly in the storage compartment. If these
items must be stored, wrap them in appro-
priate cushioning material. EBU31520Cup holdersBe sure to tightly close the cap of any plastic
bottle before placing it in a cup holder.
Some plastic bottles may not fit into the cup
holders depending on their size and shape.
WARNING
EWB03240 Never ride with any open or glass con-
tainers in the cup holders; otherwise, the
contents may spill and the glass contain-
ers may be thrown about and break, and
possibly injure people in the vehicle dur-
ing sudden braking or an accident.
1. Storage compartment
1
UB5H7AE0.book Page 31 Wednesday, July 4, 2018 1:37 PM

4-32
4
Do not place any other items than seal-
able plastic containers in the cup hold-
ers; otherwise, they may be thrown
about and possibly injure people in the
vehicle during sudden braking or an ac-
cident. EBU35022Cargo bed
WARNING
EWB03250Never carry passengers in the cargo
bed. 
Do not exceed the specified maximum
load limits. Heavier cargo could cause
loss of control because of improper
weight balance.
There are four cargo hooks in the cargo bed.
For additional loading information, see page
6-12.
1. Cup holder
1
1. Cargo hookMaximum load limit: 136.0 kg (300 lb)
1
1
UB5H7AE0.book Page 32 Wednesday, July 4, 2018 1:37 PM

4-33
4
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook. EBU38380Front shock absorbersThe shock absorber assemblies are equipped
with the following adjusters.YXZ10YEXK:

Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
YXZ10YESK (SE model): Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
YXZ10YESK (LE model): Spring preload adjusting nut
 High speed rebound damping force adjust-
ing bolt
1. Flag pole bracket
1
1
UB5H7AE0.book Page 33 Wednesday, July 4, 2018 1:37 PM

4-34
4
Low speed rebound damping force adjust-
ing screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting bolt and screw, or the oil reser-
voir with your bare hand or skin until
suspension components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident.
Notes on adjusting the suspension
A special wrench and special tool can be
obtained at a Yamaha dealer to make the
spring preload or crossover setting adjust-
ment.
 When adjusting the damping force settings,
turn the adjuster in direction (a) until it
stops, and then count the turns or clicks in
direction (b).
 Although a damping force adjuster may
turn or click beyond the stated minimum
settings, such adjustments are ineffective
and may damage the suspension.NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings. Spring preload
1. Loosen the locknut.
2. Turn the spring preload adjusting nut in
direction (a) to increase the spring pre-
load and thereby harden the suspension,
UB5H7AE0.book Page 34 Wednesday, July 4, 2018 1:37 PM

4-35
4
and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
YXZ10YEXK YXZ10YESK (SE model)
1. Locknut
2. Special wrench
3. Spring preload adjusting nut
2
1
3
(a)
(b)
1. Locknut
2. Special wrench
3. Spring preload adjusting nut
2
1
3
(a)
(b)
UB5H7AE0.book Page 35 Wednesday, July 4, 2018 1:37 PM

4-36
4
YXZ10YESK (LE model)TIPThe spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher the
spring preload; the longer distance A is, the
lower the spring preload. 1. Locknut
2. Special wrench
3. Spring preload adjusting nut
2
1
3
(a)
(b)
Spring preload setting:Minimum (soft):Distance A =
437.6 mm (17.23 in) (YXZ10YEXK)
501.7 mm (19.75 in) [YXZ10YESK (LE
model), YXZ10YESK (SE model)]
Standard: Distance A =
424.9 mm (16.73 in) (YXZ10YEXK)
489.0 mm (19.25 in) [YXZ10YESK (LE
model), YXZ10YESK (SE model)]
Maximum (hard): Distance A =
412.2 mm (16.23 in) (YXZ10YEXK)
476.3 mm (18.75 in) [YXZ10YESK (LE
model), YXZ10YESK (SE model)]
UB5H7AE0.book Page 36 Wednesday, July 4, 2018 1:37 PM

4-37
4
YXZ10YEXK
YXZ10YESK3. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Crossover setting (YXZ10YESK)
The crossover setting adjusts the timing when
the shock absorber transitions from the soft
spring to the hard spring.TIP It is recommended to adjust the crossover
setting a similar distance whenever the
spring preload is adjusted.
 The crossover setting is measured from the
bottom of the spring retainer to the top of
the crossover locknut.
1. Distance A
1. Distance A
11
Tightening torque:
Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)
UB5H7AE0.book Page 37 Wednesday, July 4, 2018 1:37 PM

4-38
4
1. Loosen the crossover locknut as shown.2. Turn the crossover adjusting nut in direc-
tion (a) to increase the crossover setting
and in direction (b) to decrease the cross-
over setting.1. Distance B
2. Spring retainer
3. Crossover locknut
4. Crossover adjusting nut
3
4 12
1. Special tool
2. 3/8 inch (9.5 mm) drive wrench
3. Crossover locknut
12
3
90
UB5H7AE0.book Page 38 Wednesday, July 4, 2018 1:37 PM

4-39
4

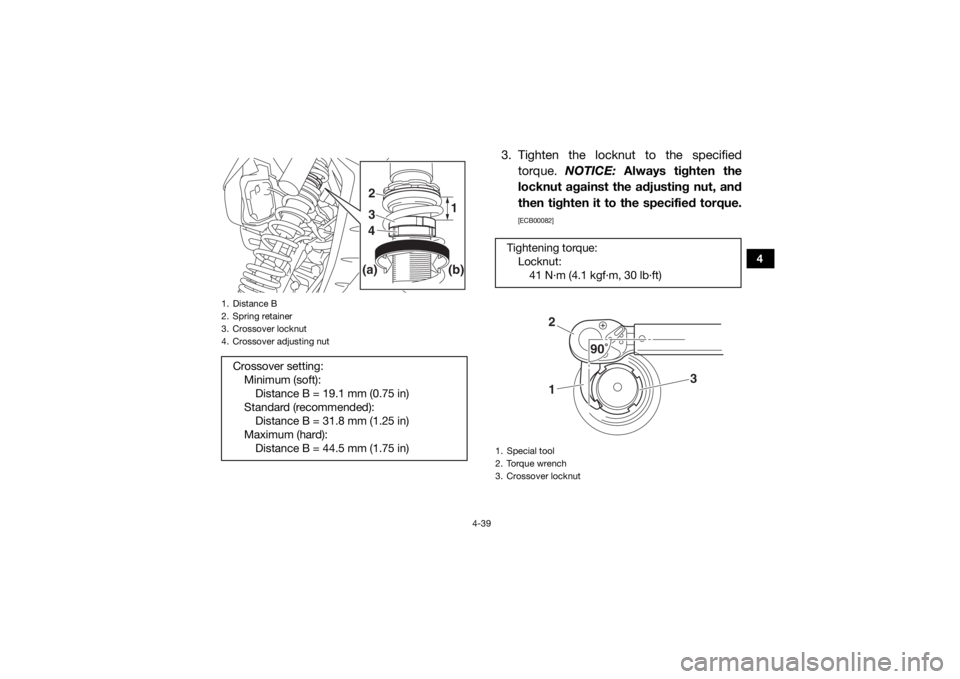

3. Tighten the locknut to the specifiedtorque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
1. Distance B
2. Spring retainer
3. Crossover locknut
4. Crossover adjusting nutCrossover setting: Minimum (soft):Distance B = 19.1 mm (0.75 in)
Standard (recommended): Distance B = 31.8 mm (1.25 in)
Maximum (hard): Distance B = 44.5 mm (1.75 in)
3
4 12
(b)
(a)
Tightening torque:
Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)1. Special tool
2. Torque wrench
3. Crossover locknut
21
3
90
UB5H7AE0.book Page 39 Wednesday, July 4, 2018 1:37 PM

4-40
4
Rebound damping force [YXZ10YEXK /
YXZ10YESK (SE model)]
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.Rebound damping force [YXZ10YESK (LE
model)]
High speed rebound damping force
To increase the rebound damping force and
thereby harden the high speed rebound
damping, turn the rebound damping force
adjusting bolt in direction (a). To decrease the
rebound damping force and thereby soften
the high speed rebound damping, turn the
adjusting bolt in direction (b).
1. Rebound damping force adjusting screw
1
(a)(b)
Rebound damping setting:
Minimum (soft):26 click(s) in direction (b)
Standard: 12 click(s) in direction (b)
Maximum (hard): 1 click(s) in direction (b)
