EBU36620Brake light switchThe brake light, which is activated by the
brake pedal, should come on just before
braking takes effect. Since the brake light
switch is a component of the YCC-S system,
it must be adjusted by a Yamaha dealer, who
has the necessary professional knowledge
and experience.EBU35930Cable inspection and lubrication
WARNING
EWB03380Damaged cables could restrict operation,
which may cause an accident or injury. In-
spect control cables frequently and re-
place damaged cables. Corrosion can
result when the outer covering of control
cables becomes damaged. Cables can
also become frayed or kinked.
Lubricate the cable ends. If the cables do not
operate smoothly, ask a Yamaha dealer to re-
place them.EBU36760Pedal lubricationThe pivoting parts of the brake and accelera-
tor pedals should be lubricated periodically to
prevent rust and ensure smooth operation.Recommended lubricant:Yamalube LubezAll (synthetic lubricant spray with PTFE)
UBAS7AE0.book Page 54 Wednesday, June 19, 2019 11:51 AM

9-55
9

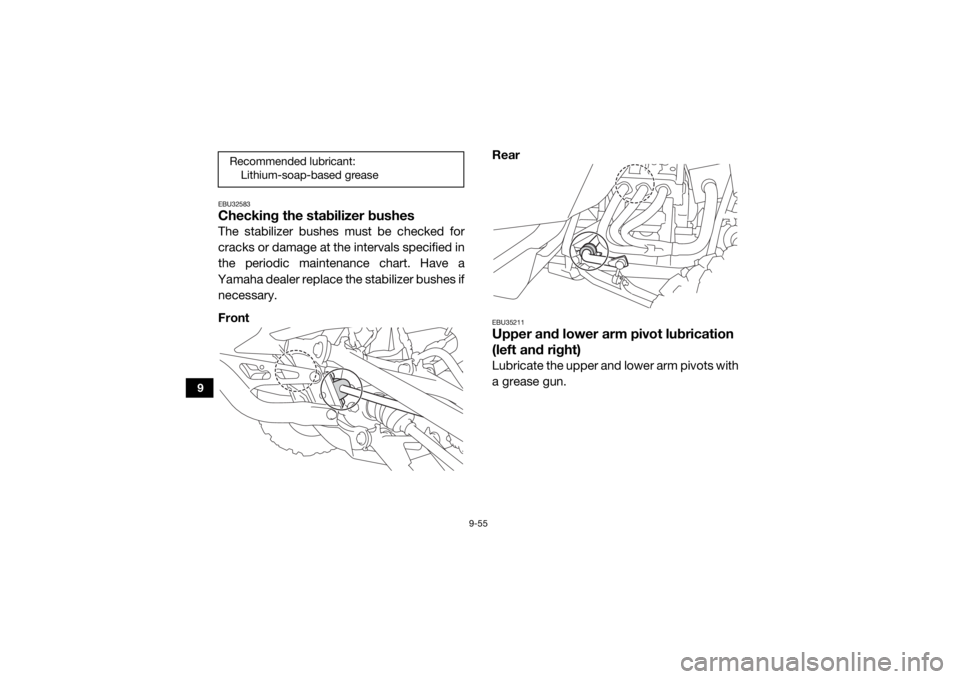

EBU32583Checking the stabilizer bushesThe stabilizer bushes must be checked for
cracks or damage at the intervals specified in
the periodic maintenance chart. Have a
Yamaha dealer replace the stabilizer bushes if necessary.
Front Rear
EBU35211Upper and lower arm pivot lubrication
(left and right)Lubricate the upper and lower arm pivots with
a grease gun.
Recommended lubricant:
Lithium-soap-based grease
UBAS7AE0.book Page 55 Wednesday, June 19, 2019 11:51 AM

9-56
9
Front
Rear

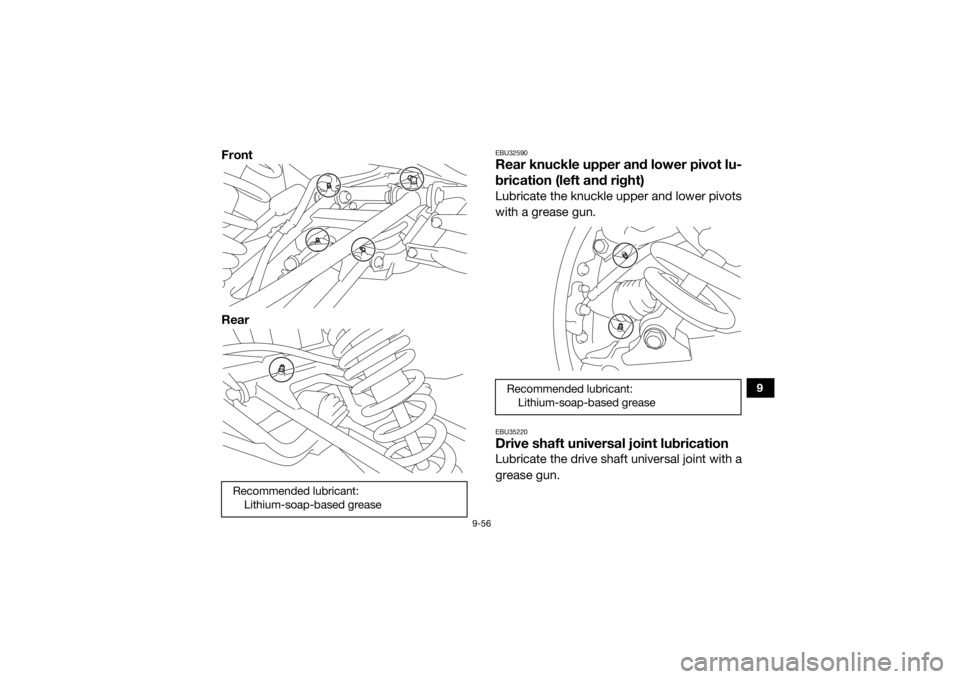

EBU32590Rear knuckle upper and lower pivot lu-
brication (left and right)Lubricate the knuckle upper and lower pivots
with a grease gun.EBU35220Drive shaft universal joint lubricationLubricate the drive shaft universal joint with a
grease gun.
Recommended lubricant:Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
UBAS7AE0.book Page 56 Wednesday, June 19, 2019 11:51 AM

9-57
9
EBU32600Steering shaft lubricationLubricate the pivot points.
EBU32610Wheel removal1. Loosen the wheel nuts.
2. Elevate the vehicle and place a suitablestand under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
Recommended lubricant: Lithium-soap-based grease
Recommended lubricant: Lithium-soap-based grease
UBAS7AE0.book Page 57 Wednesday, June 19, 2019 11:51 AM

9-58
9
EBU35833Checking and tightening the bead lock
(equipped models)Check the bead lock at the intervals specified
in the periodic maintenance chart and when-
ever the tires have been replaced.Tighten the bead lock bolts to the specified
torque in a crisscross pattern.
EBU32620Tire replacementAlways use the same size and type of tires
recommended in this owner’s manual. The
tires that came with your Yamaha YXZ1000R
1. Wheel nut
11
1. Bead lock
2. BoltTightening torque:
Bead lock bolts:37 N·m (3.7 kgf·m, 27 lb·ft)1
2
22 2
UBAS7AE0.book Page 58 Wednesday, June 19, 2019 11:51 AM

9-59
9
were designed to match the performance ca-
pabilities and to provide the best combination
of handling, braking, and comfort. It is best to
replace all four tires at the same time. If that is
not possible, you must replace the tires in
pairs (front or rear) with tires of the same size
and type as the originals. Never replace just
one tire.
WARNING
EWB03390Installing improper tires on your Yamaha
YXZ1000R can affect handling and stabili-
ty. This can cause a loss of control. The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of America for this model.
EBU33090Wheel installation1. Install the wheel and the nuts.
2. Lower the vehicle so that the wheel is on the ground.
3. Tighten the wheel nuts in a crisscross pattern to the specified torque.
WARNING
EWB03400Do not reverse the rims on your Yamaha
YXZ1000R to widen the track width. In-
stalling wheels improperly increases the
risk of wheel failure and accidents. Front tire:Size:29 x 9.00R-14NHS
Manufacturer/model: MAXXIS/M917 / BIGHORN
Rear tire: Size:29 x 11.00R-14NHS
Manufacturer/model: MAXXIS/M918 / BIGHORN
UBAS7AE0.book Page 59 Wednesday, June 19, 2019 11:51 AM

9-60
9
EBU35232BatteryThis model is equipped with a 12–volt VRLA
(valve–regulated lead–acid) battery. There is
no need to check the electrolyte or to add dis-
tilled water. However, the battery lead con-
nections need to be checked and tightened,
and the battery terminals cleaned if corroded.
If the battery seems to have discharged, re-
charge it as soon as possible.
WARNING
EWB03410Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burnedby the sulfuric acid in battery electrolyte. In
case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.

WARNING
EWB03420Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition. To remove the battery
1. Turn the key to “ ” (off).
2. Remove panel A. (See page 9-11.)
Tightening torques: Front wheel nut:95 N·m (9.5 kgf·m, 70 lb·ft)
Rear wheel nut: 95 N·m (9.5 kgf·m, 70 lb·ft)
UBAS7AE0.book Page 60 Wednesday, June 19, 2019 11:51 AM

9-61
9
3. Remove the battery holding plate by re-moving the bolts.
4. Disconnect the negative battery lead first, then the positive battery lead by remov-
ing their bolt. NOTICE: When removing
the battery, the main switch must be
off, and the negative lead must be dis-
connected before the positive lead.
[ECB01002]
5. Pull the battery out of its compartment.
To charge the battery
 Remove it from vehicle and confirm the rec-
ommended charging rate as specified on
the battery itself.
 Select a suitable charger and follow the
manufacturer’s instructions, or have a
Yamaha dealer charge it for you.
1. Battery holding plate
2. Bolt
1 2
2
1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
UBAS7AE0.book Page 61 Wednesday, June 19, 2019 11:51 AM

9-62
9
Keep in mind that the battery tends to dis-
charge more quickly if the vehicle is
equipped with optional electrical accesso-
ries.NOTICEECB00933To charge a VRLA (valve-regulated lead-
acid) battery, a special battery charger is
required. Using a conventional battery
charger will damage the battery. To store the battery
If the vehicle will not be used for more than
one month, remove the battery, fully charge
it, and then place it in a cool, dry place.
 If the battery will be stored for more than
two months, check it at least once a month
and fully charge it if necessary.
NOTICEECB00942Always keep the battery charged. Stor-
ing the battery in a discharged state for
an extended period of time will cause
permanent battery damage.
 Do not store the battery in an excessive-
ly cold or warm place [below freezing or
above 30 °C (90 °F)]. To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first,
then the negative battery lead by install-
ing their bolt. NOTICE: When installing
the battery, the main switch must be
off, and the positive lead must be con-
nected before the negative lead.
[ECB01111]
UBAS7AE0.book Page 62 Wednesday, June 19, 2019 11:51 AM

9-63
9
3. Install the battery holding plate by install-ing the bolts.
4. Install the panel.TIP Make sure the battery leads are installed as
shown.
 Fully charge the battery before installing it.
EBU35244Jump-startingJump-starting the vehicle should be avoided.
The battery should be removed and charged
instead.
WARNING
EWB03430To avoid battery explosion and/or serious
damage to the electrical system:
Do not connect the negative lead of the
jumper cable to the negative terminal of
the battery.
 Do not touch the positive lead of the
jumper cable to the negative lead.
 Do not reverse the polarity of the jumper
cables when connecting to the batteries. However, if the vehicle must be jump-started,
proceed as follows.
1. Turn the key to “ ” (off).
2. Remove panel A. (See page 9-11.)
3. Remove the passenger seat cushion. (See page 5-25.)
1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
