8-19
8
then begin to coast down the hill. Use engine
braking as much as possible, gently applying
the brakes when necessary.
Downhill
Check the terrain carefully before going
downhill. When possible, choose a path that
lets you drive your vehicle straight downhill.
Choose your path carefully and drive slowly
enough to be able to react to obstacles that
you encounter.
For more traction and control, before going
down steeper and/or rougher slopes, shift
into low gear and select “4WD” or “DIFF
LOCK”. Engine braking will help you go
downhill slowly. Go as slowly as possible. If
you begin to go too fast, apply the brakes
gently. Avoid hard application of the brakes,
which could cause the vehicle to slide.If you are sliding or skidding, try to steer in the
direction the vehicle is sliding, to regain con-
trol. For example, if you feel the back of the
vehicle start to slide to your right, steer to the
right.
If you must turn on the hill to avoid an obsta-
cle, do so slowly and carefully. If the vehicle
starts to tip, immediately steer in the downhill
direction if there are no obstacles in your
path. As you regain proper balance, gradually
steer again in the direction you want to go.
Rough terrain
Operation over rough terrain should be done
with caution.

Look for and avoid obstacles that could
cause damage to the vehicle or could lead
to a rollover or accident.
 Do not drive in a way that will get the vehicle
airborne, as injury, loss of control, and
damage to the vehicle could occur.UBAS7AE0.book Page 19 Wednesday, June 19, 2019 11:51 AM

8-21
8
If you feel the vehicle begin to slide sideways
or fishtail (rear-wheel sliding), steer into the di-
rection of the slide if possible, to regain direc-
tional control. For example, if you feel the
back of the vehicle start to slide to your right,
steer to the right.
Brush or wooded areas
When operating in areas with brush or trees,
watch carefully on both sides and above the
vehicle for obstacles such as branches that
the vehicle might hit, causing an accident.
Watch for brush that might enter the vehicle
as you pass and strike you or the passenger.
Never hold onto the cage/frame. The passen-
ger should always hold onto the passenger
handhold with both hands.
The muffler and other engine parts become
extremely hot during operation and remain
hot after the engine has stopped. To reduce
the risk of fire during operation or after leaving
the vehicle, do not let brush, grass and other
materials collect under the vehicle, near the muffler or exhaust pipe, or next to other hot
parts. Check under the vehicle after operating
in areas where combustible materials may
have collected. Do not idle or park the vehicle
in long dry grass or other dry ground cover.
Encountering obstacles
If you cannot go around an obstacle, such as
a fallen tree or a ditch, stop the vehicle where
it is safe to do so. Set the parking brake and
get out to inspect the area thoroughly. Look
from both your approach side and exit side. If
you believe you can continue safely, choose
the path that will allow you to get over the ob-
stacle and at as close to a right angle as pos-
sible to minimize vehicle tipping. Go only fast
enough to maintain your momentum but still
give yourself plenty of time to react to chang-
es in conditions.UBAS7AE0.book Page 21 Wednesday, June 19, 2019 11:51 AM

9-1
9
EBU32007PERIODIC MAINTENANCE AND ADJUSTMENTEBU32010Periodic inspection, adjustment, and lubrica-
tion will keep your vehicle in the safest and
most efficient condition possible. Safety is an
obligation of the vehicle owner/operator. The
most important points of vehicle inspection,
adjustment, and lubrication are explained on
the following pages.
WARNING
EWB01842Failure to properly maintain the vehicle or
performing maintenance activities incor-
rectly may increase your risk of injury or
death during service or while using the ve-
hicle. If you are not familiar with vehicle
service, have a Yamaha dealer perform the
service.
WARNING
EWB02563Turn off the engine when performing main-
tenance unless otherwise specified.
A running engine has moving parts that
can catch on body parts or clothing and
electrical parts that can cause shocks or
fires.
 Running the engine while servicing can
lead to eye injury, burns, fire, or carbon
monoxide poisoning - possibly leading
to death. See page 3-6 for more informa-
tion about carbon monoxide.
WARNING
EWB02691Brake discs, calipers, drums, and linings
can become very hot during use. To avoid
possible burns, let brake components cool
before touching them.
UBAS7AE0.book Page 1 Wednesday, June 19, 2019 11:51 AM

9-4
9
EBU37180Maintenance chartsEven if the vehicle isn’t driven for the stated mileage or engine hours, the month maintenance
intervals should still be followed. Items marked with an asterisk should be performed by a
Yamaha dealer as they require special tools, data and technical skills.EBU35772Periodic maintenance chart for the emission control systemNO. ITEM ROUTINE INITIAL
EVERY
Whichev- er comes first month 1 3 6 6 12
km
(mi) 240
(150) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Fuel line • Check fuel hose for cracks or damage.
• Replace if necessary. √√√
2 *Va l v e s • Check valve clearance and adjust if neces-
sary. Every 5000 km (3200 mi).
3 *Spark plugs • Check condition.
• Adjust gap and clean.
• Replace if necessary. √√√√√
4 *Breather system • Check breather hose for cracks or damage.
• Replace if necessary. √√√
5 *Fuel injection • Adjust synchronization. √√√√√
UBAS7AE0.book Page 4 Wednesday, June 19, 2019 11:51 AM

9-6
9
EBU35802General maintenance and lubrication chartNO. ITEMROUTINE INITIAL
EVERY
Whichev- er comes first month 1 3 6 6 12
km
(mi) 240
(150) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320
1 *Cooling system • Check coolant leakage.
• Repair if necessary.
√√√√√
• Change coolant. Every 2 years
2 Primary air filter
(foam)
•Clean.
• Replace if necessary. Every 300–600 km (200–400 mi)
(more often in wet or dusty condi-
tions)
* Secondary air fil-
ter (paper)
• Replace. Every 2000–5000 km (1200–3000
mi)
(more often in wet or dusty condi-
tions)
3Engine oil • Change (warm engine before draining). √√√√
4 Engine oil filter
cartridge • Replace.
√√√
5 Transmission oil • Check oil level and for leakage.
√√√√√
• Change. √√√√
6 Final gear oil • Check oil level.
√√√√√
• Change. √√
UBAS7AE0.book Page 6 Wednesday, June 19, 2019 11:51 AM

9-9
9
EBU35070TIPInspect and service the vehicle more frequently if you drive aggressively or in severe conditions
such as rain, mud, sand or unusually dusty areas.
 Service the clutch system in similar fashion and at similar intervals to the brake system.21 *Drive shaft uni-
versal joint • Lubricate with lithium-soap-based grease.
√√√
22 *Drive shaft seal • Check for cracks or other damage, and re-
place if necessary. Every 1000 km (600 mi)
23 *Drive shaft spline • Lubricate with lithium-soap-based grease. Every 1000 km (600 mi)
24 *Engine mount • Check for cracks or damage.
• Check bolt tightness.
√√√
25 *Front and rear
axle boots • Check for cracks or other damage, and re-
place if necessary. √√
26 *Fittings and fas-
teners • Check all chassis fittings and fasteners.
• Correct if necessary.
√√√√√
NO. ITEM
ROUTINE INITIAL
EVERY
Whichev- er comes first month136612
km
(mi) 240
(150) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320UBAS7AE0.book Page 9 Wednesday, June 19, 2019 11:51 AM

9-18
9
2. Turn the panel lock 1/4 turn counter-clockwise, and then push the tab on the
p a n e l l o c k d o w n s o t h a t i t i s p o i n t i n g r e a r -
ward.EBU3543AEngine oil and oil filterCheck the engine oil level before each opera-
tion. In addition, change the oil and the oil fil-
ter cartridge at the intervals specified in the
periodic maintenance chart.
NOTICEECB03020 Do not use oils with a diesel specifica-
tion of “CD” or oils of a higher quality
than specified. In addition, do not use
oils labeled “ENERGY CONSERVING II”
or higher.
 Make sure that no foreign material en-
ters the oil tank. To check the engine oil level
1. Park the vehicle on a level surface.
2. Remove panel D. (See page 9-11.)
3. Start the engine and warm it up to a nor- mal operating temperature (the engine oil
temperature should reach 60 °C [140 °F]),
then let the engine idle for a minimum of
ten seconds before turning the engine off.TIPIf the engine is cold, take the vehicle for a
short drive or let it idle for approximately ten
minutes before checking the engine oil level.
Recommended engine oil:YA M A L U B E5W-30, 10W-30, 10W-40, 15W-40, 20W-
40, 20W-50
Oil quantity: Oil change only:2.50 L (2.64 US qt, 2.20 Imp.qt)
Oil change and filter replacement: 2.70 L (2.85 US qt, 2.38 Imp.qt)
UBAS7AE0.book Page 18 Wednesday, June 19, 2019 11:51 AM

9-19
9
4. Remove the engine oil tank filler cap andwipe the dipstick with a clean rag.
5. Insert the dipstick back into the oil tank (without screwing it in), and then remove
it again to check the oil level.
6. If the oil level is below the tip of the dip- stick, add oil.
TIPAdd oil a little at a time so as not to overfill be-
yond the maximum level mark. 7. Check the O-ring for damage, and re-place it if necessary.
8. Install the engine oil tank filler cap.
9. Install the panel.
To change the engine oil 1. Park the vehicle on a level surface.
2. Remove panel D. (See page 9-11.)
3. Remove the engine oil tank cover by re- moving the bolts.
1. Engine oil tank filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstick
45
32
1
UBAS7AE0.book Page 19 Wednesday, June 19, 2019 11:51 AM

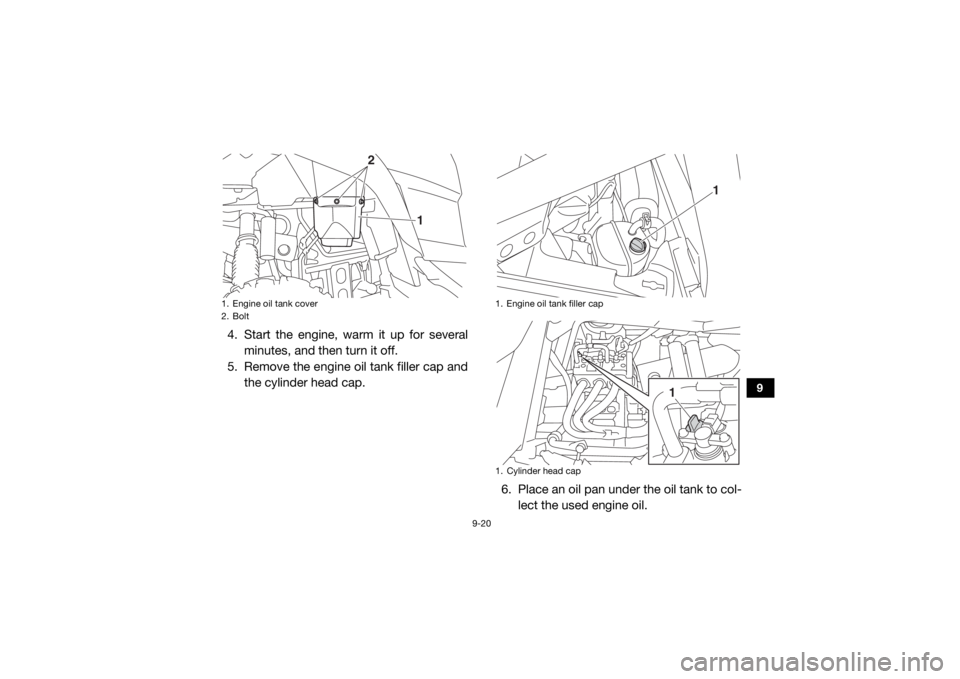

9-20
9
4. Start the engine, warm it up for severalminutes, and then turn it off.
5. Remove the engine oil tank filler cap and the cylinder head cap.
6. Place an oil pan under the oil tank to col-lect the used engine oil.1. Engine oil tank cover
2. Bolt
1
2
1. Engine oil tank filler cap
1. Cylinder head cap
1
1
UBAS7AE0.book Page 20 Wednesday, June 19, 2019 11:51 AM

9-21
9
7. Remove the oil tank drain bolt and usedgasket.
8. Place an oil pan under the engine to col- lect the used engine oil.
9. Remove the engine oil drain bolt and used gasket.
TIPA “ ” mark is stamped on the crankcase
near the engine oil drain bolt. 10. Install the engine oil drain bolt with new gasket, the oil tank drain bolt with new
gasket, and then tighten the bolts to the
specified torques.
1. Engine oil tank drain bolt
2. Gasket
2
1
1. Engine oil drain bolt
2. Gasket
3. “ ” mark
1 2
3
