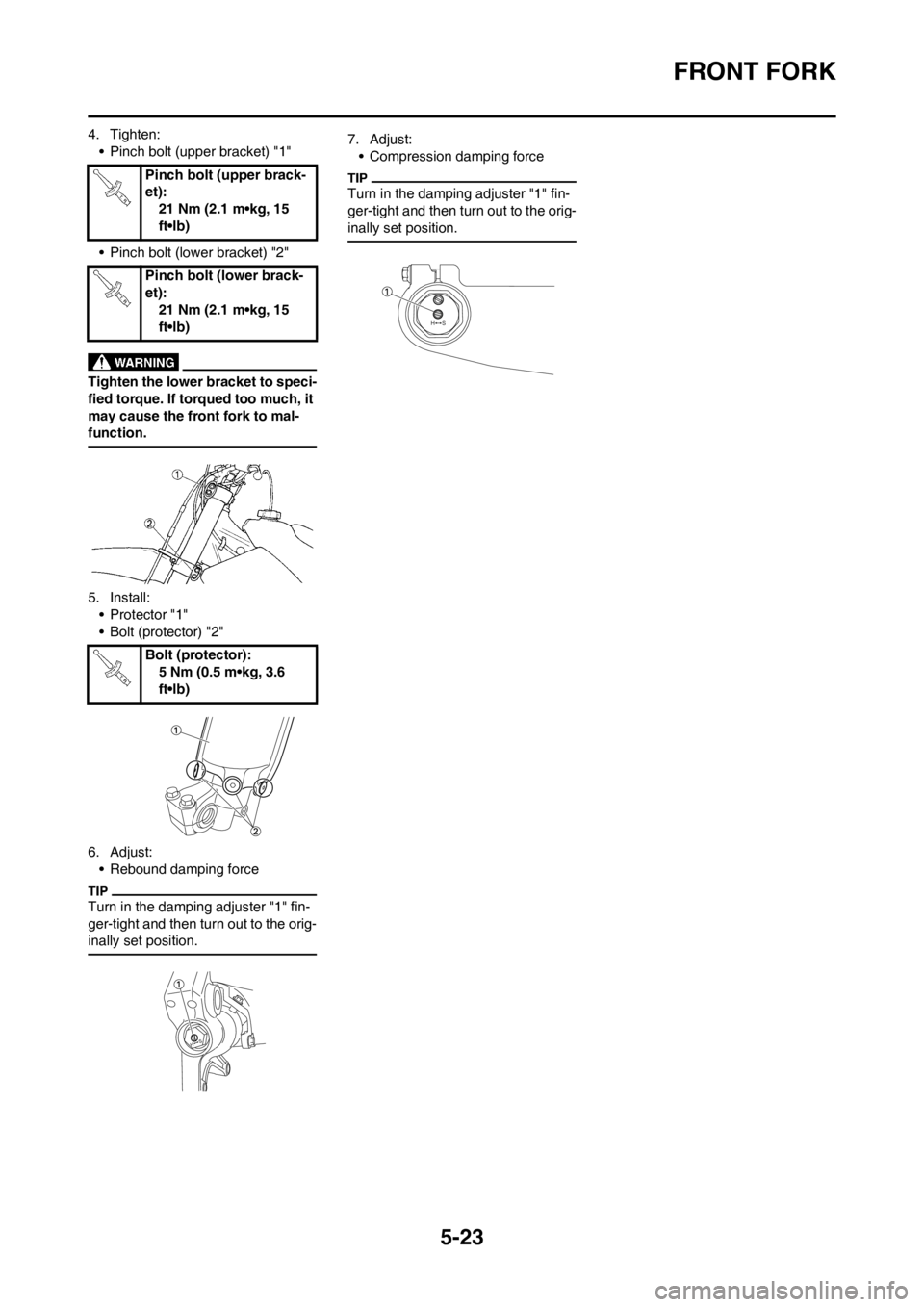

Page 131 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-23
FRONT FORK
4. Tighten:
• Pinch bolt (upper bracket) "1"
• Pinch bolt (lower bracket) "2"
Tighten the lower bracket to speci-
fied torque. If torqued too much, it
may cause the front fork to

Page 132 of 168

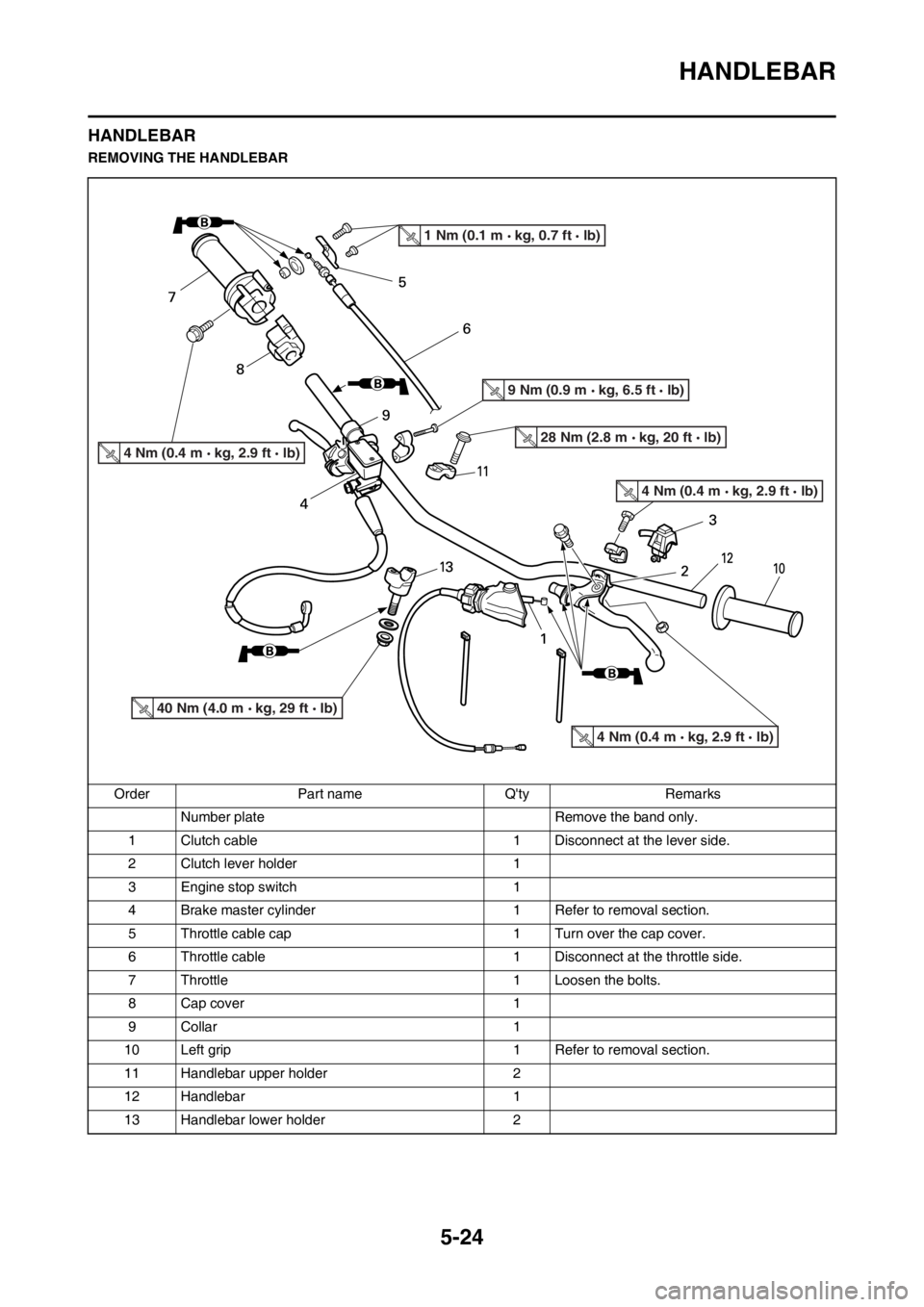

YAMAHA YZ125LC 2012  Owners Manual 5-24
HANDLEBAR
HANDLEBAR
REMOVING THE HANDLEBAR
Order Part name Qty Remarks
Number plate Remove the band only.
1 Clutch cable 1 Disconnect at the lever side.
2 Clutch lever holder 1
3 Engine stop swi

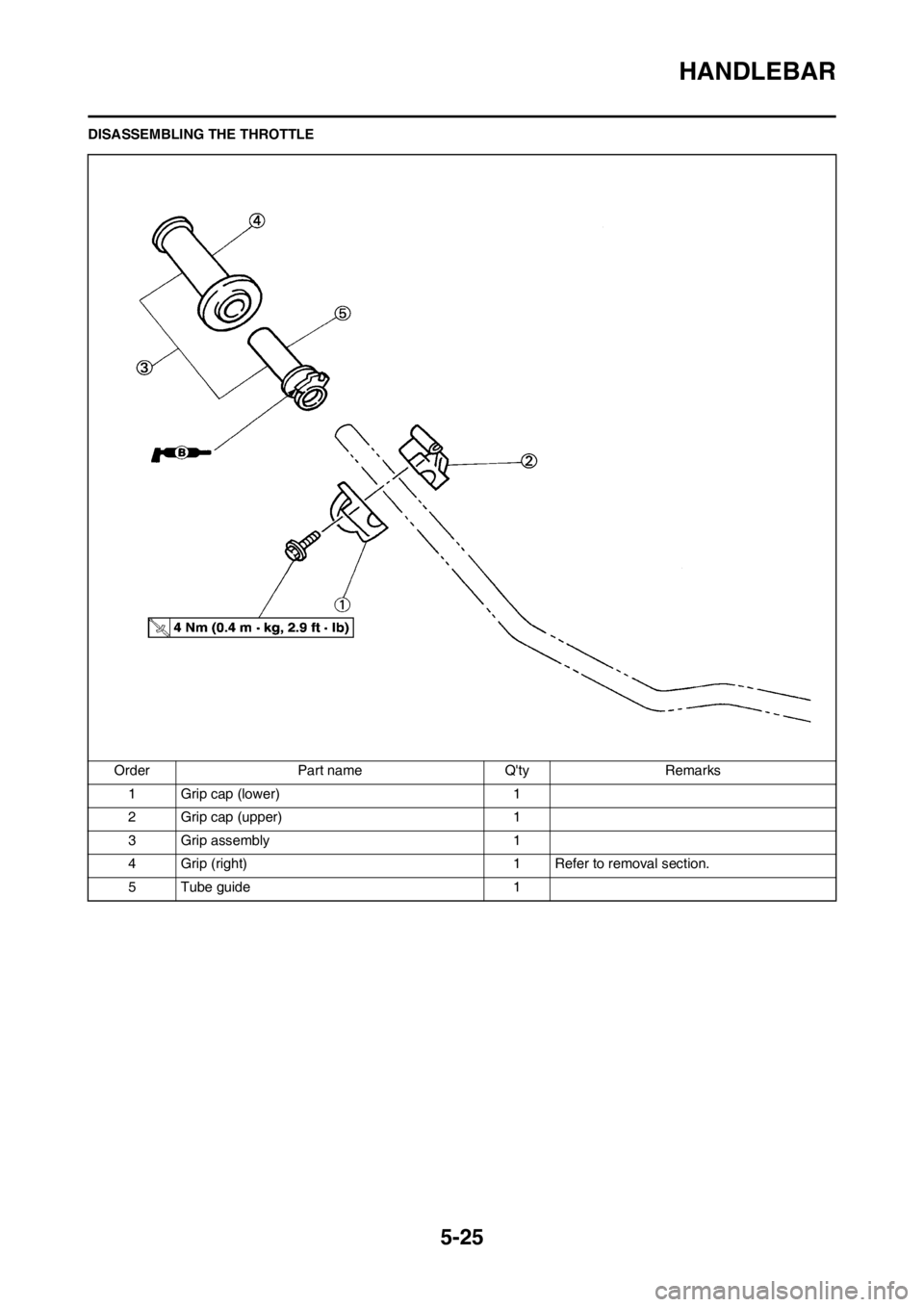

Page 133 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-25
HANDLEBAR
DISASSEMBLING THE THROTTLE
Order Part name Qty Remarks
1 Grip cap (lower) 1
2 Grip cap (upper) 1
3 Grip assembly 1
4 Grip (right) 1 Refer to removal section.
5 Tube guide 1

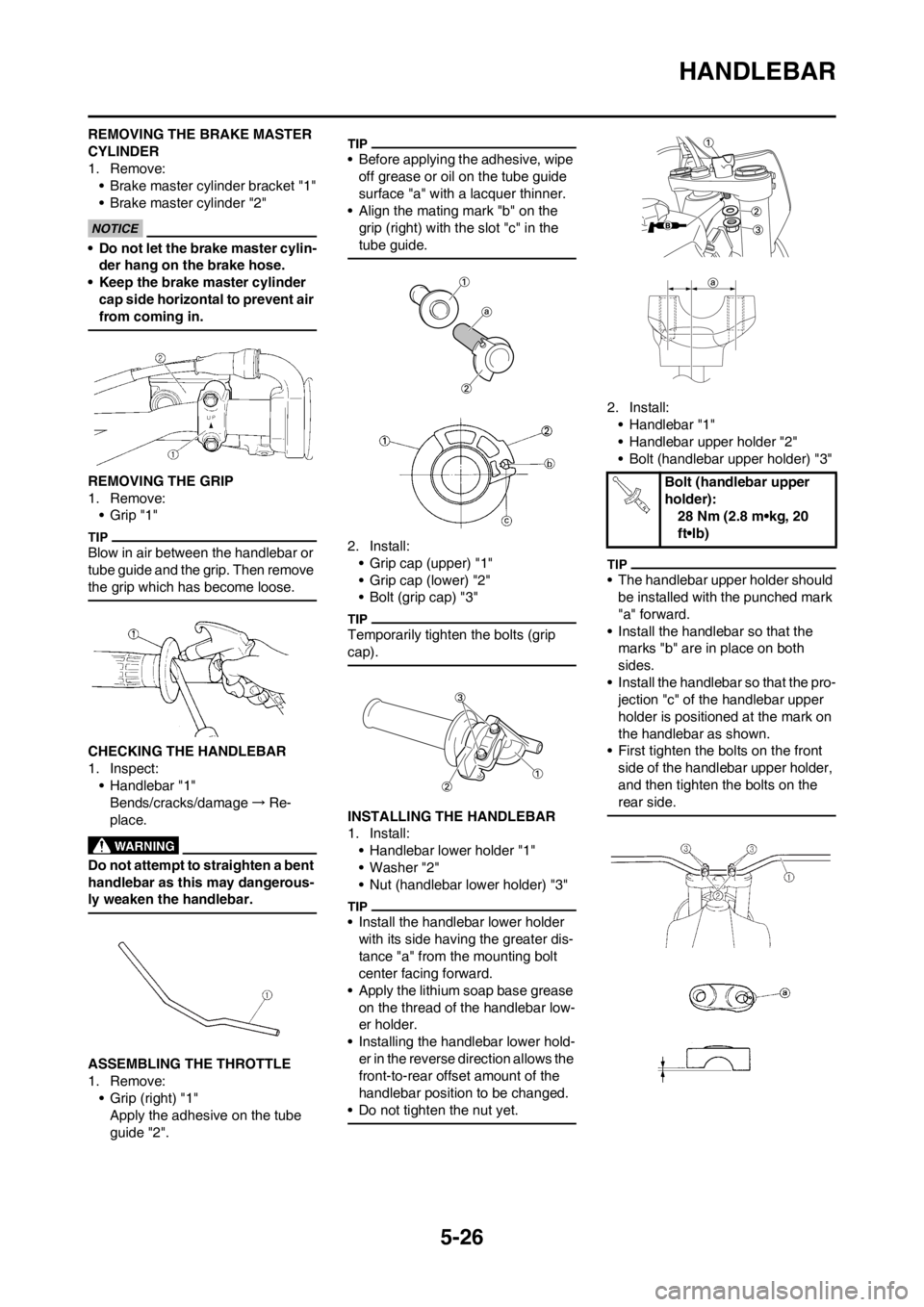

Page 134 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-26
HANDLEBAR
REMOVING THE BRAKE MASTER
CYLINDER
1. Remove:
• Brake master cylinder bracket "1"
• Brake master cylinder "2"
• Do not let the brake master cylin-
der hang on the brake hose.
•

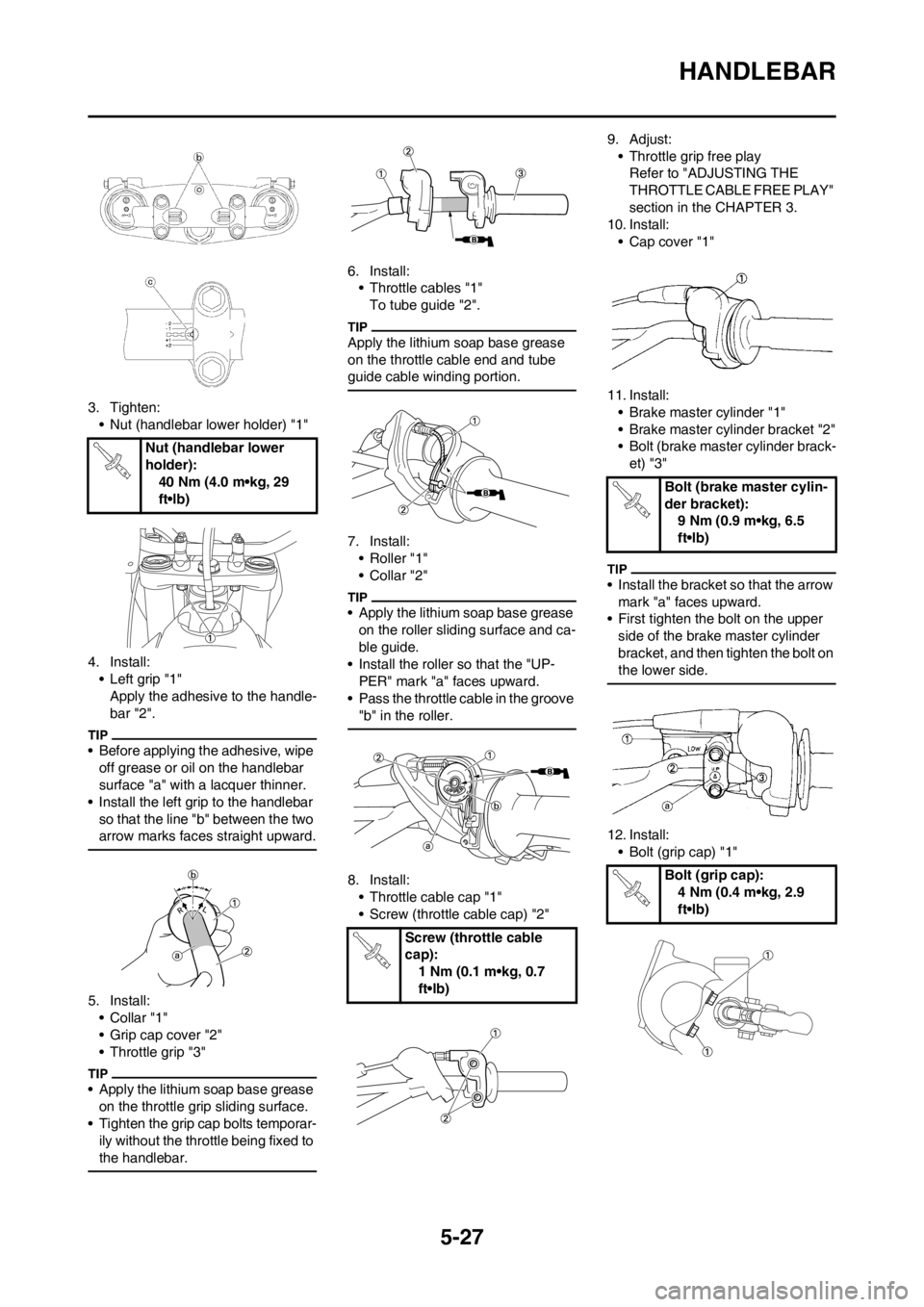

Page 135 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-27
HANDLEBAR
3. Tighten:
• Nut (handlebar lower holder) "1"
4. Install:
• Left grip "1"
Apply the adhesive to the handle-
bar "2".
• Before applying the adhesive, wipe
off grease or oil on th

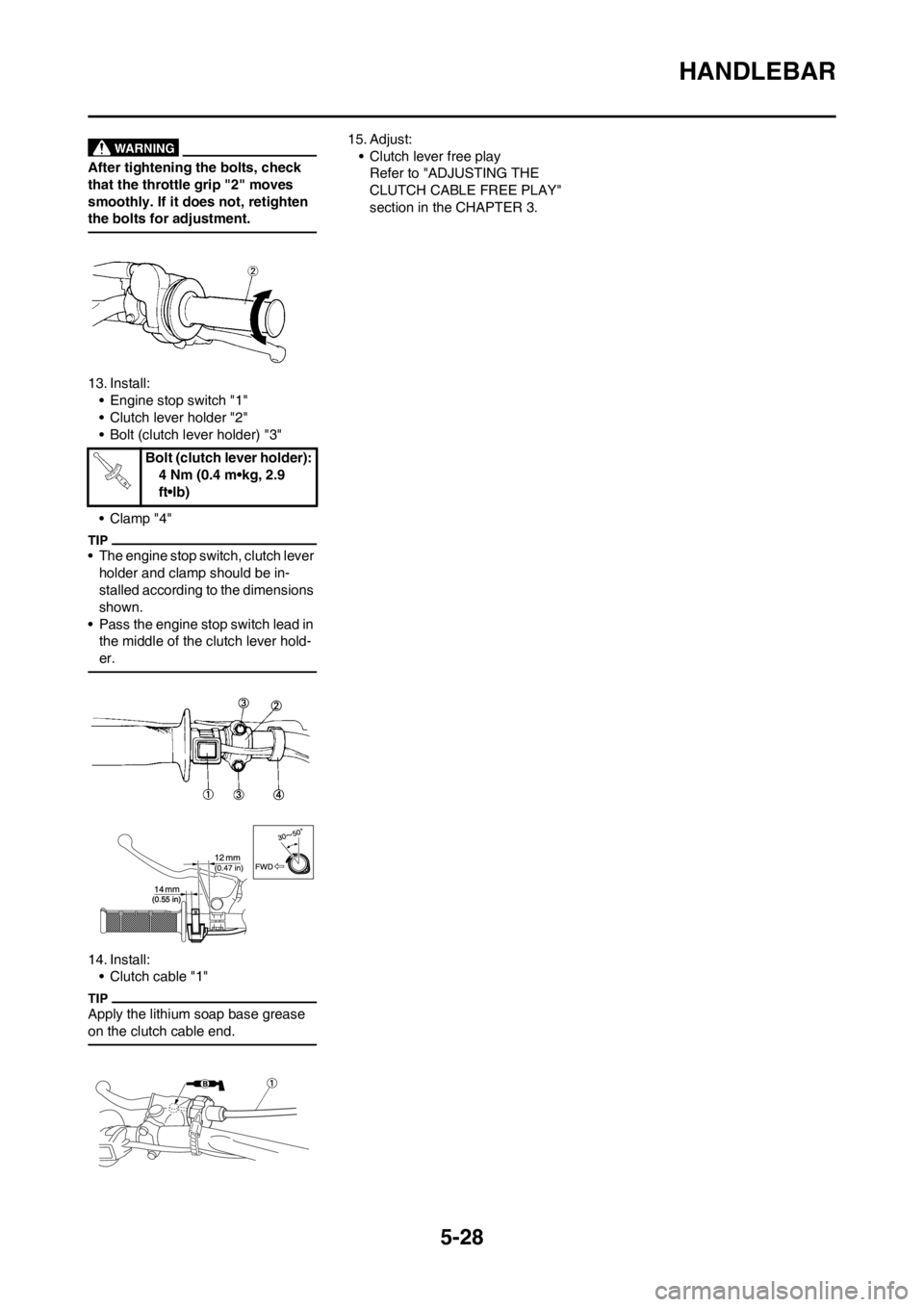

Page 136 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-28
HANDLEBAR
After tightening the bolts, check
that the throttle grip "2" moves
smoothly. If it does not, retighten
the bolts for adjustment.
13. Install:
• Engine stop switch "1"
• Clutch le

Page 137 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-29
STEERING
STEERING
REMOVING THE STEERING

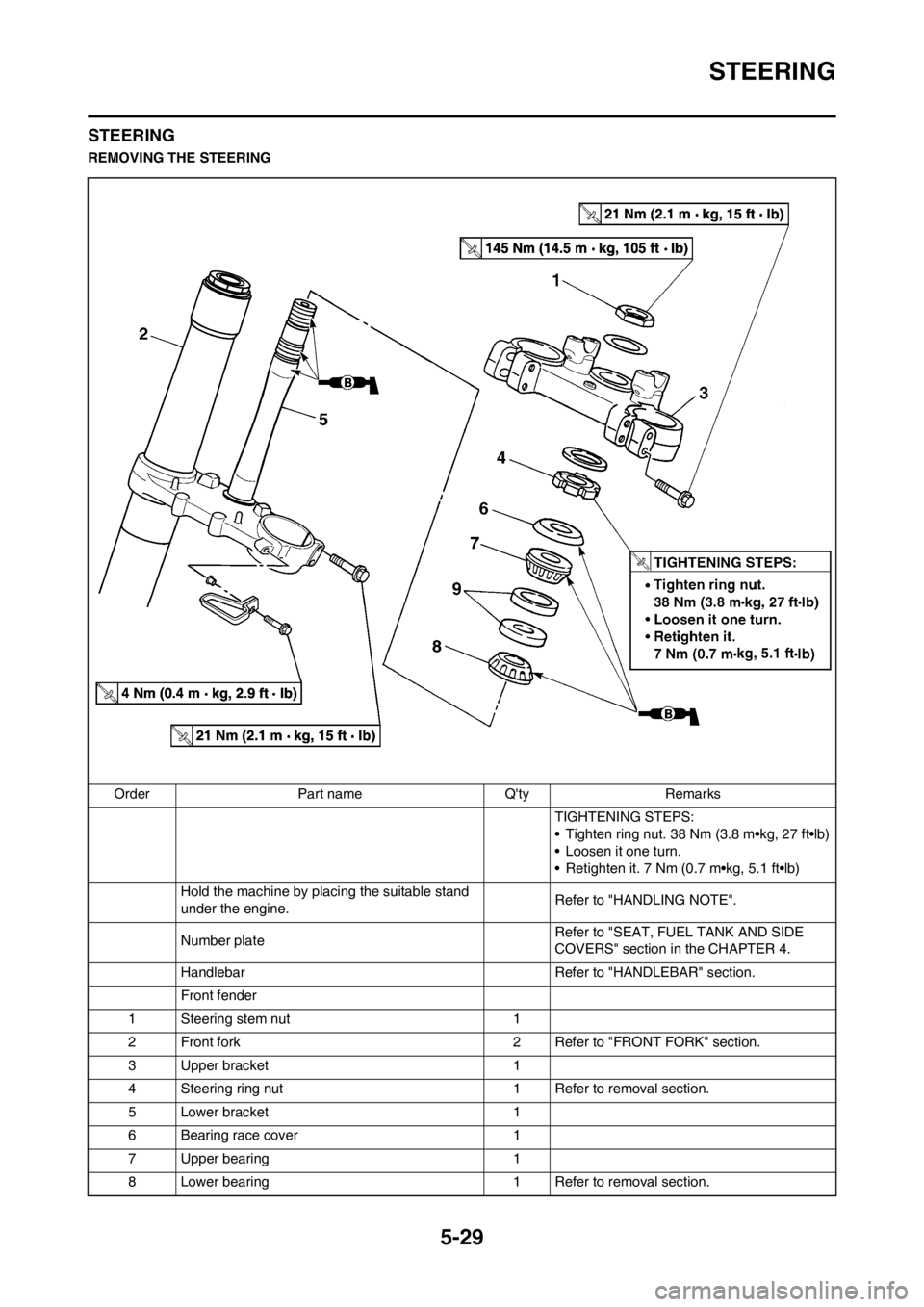

Order Part name Qty Remarks
TIGHTENING STEPS:
• Tighten ring nut. 38 Nm (3.8 m•kg, 27 ft•lb)
• Loosen it one turn.
• Retighten it. 7 Nm (0.7 mâ€

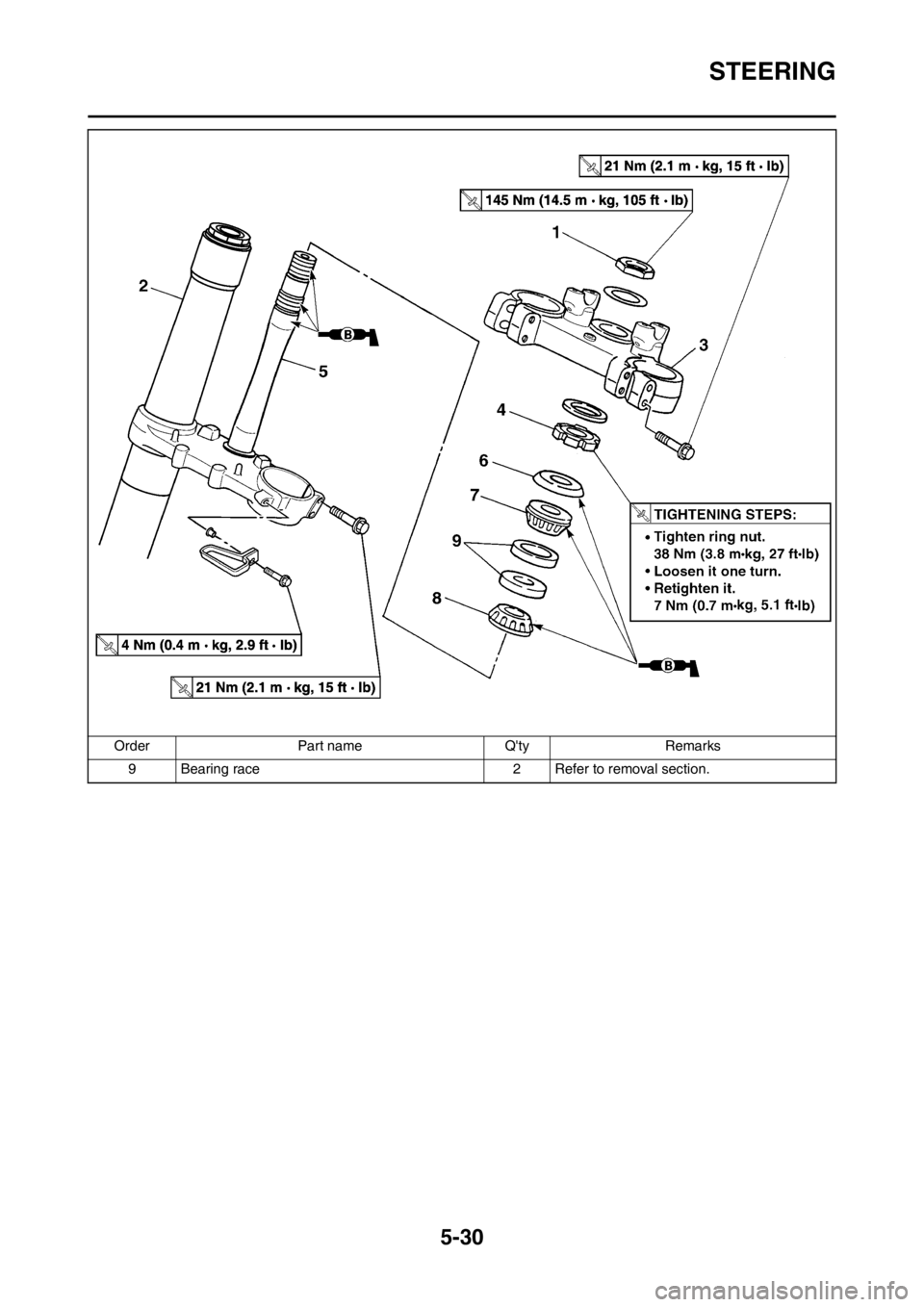

Page 138 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-30
STEERING
9 Bearing race 2 Refer to removal section. Order Part name Qty Remarks

Page 139 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-31
STEERING
HANDLING NOTE

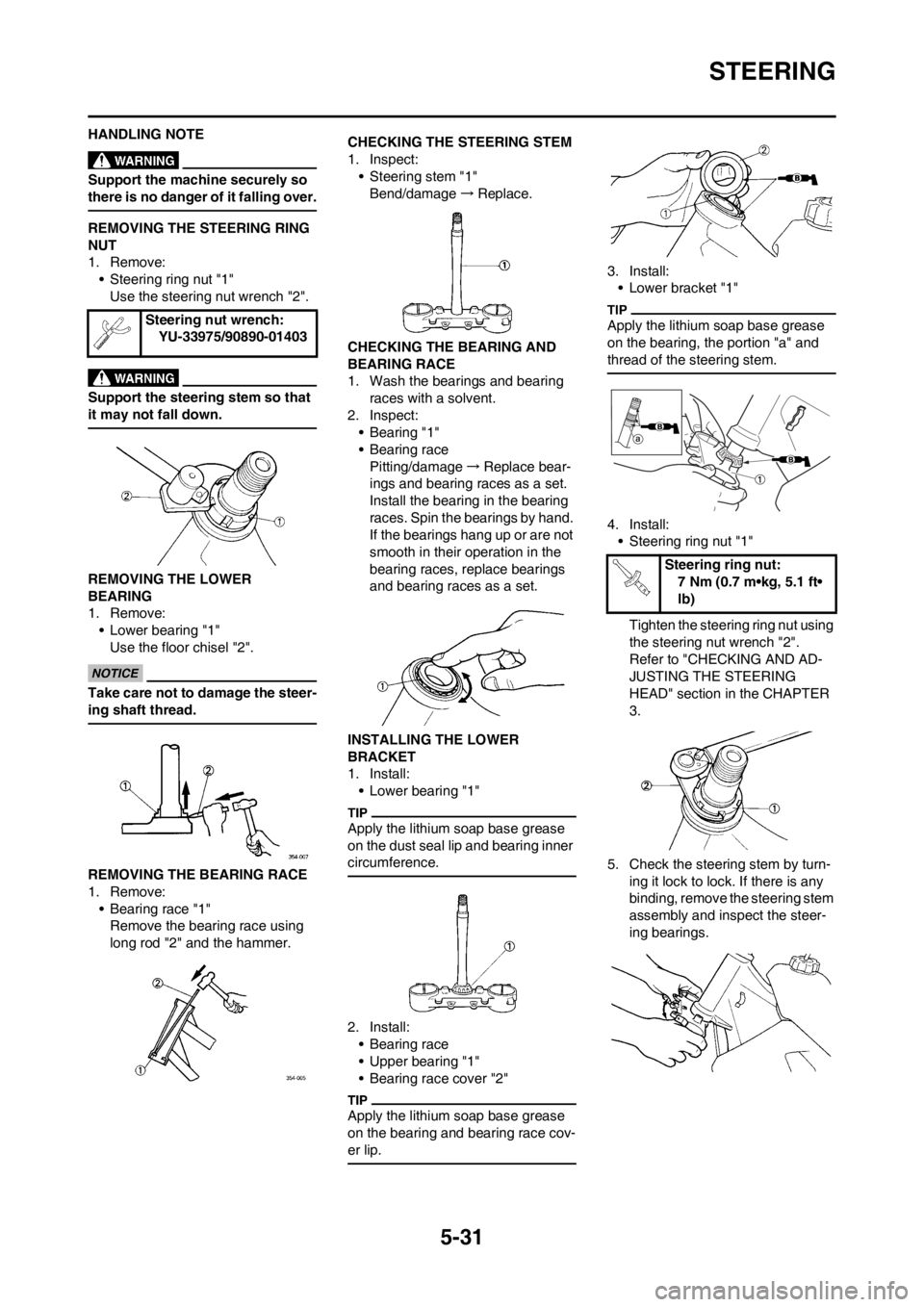

Support the machine securely so
there is no danger of it falling over.
REMOVING THE STEERING RING
NUT
1. Remove:
• Steering ring nut "1"
Use the steering nut wrench "2"

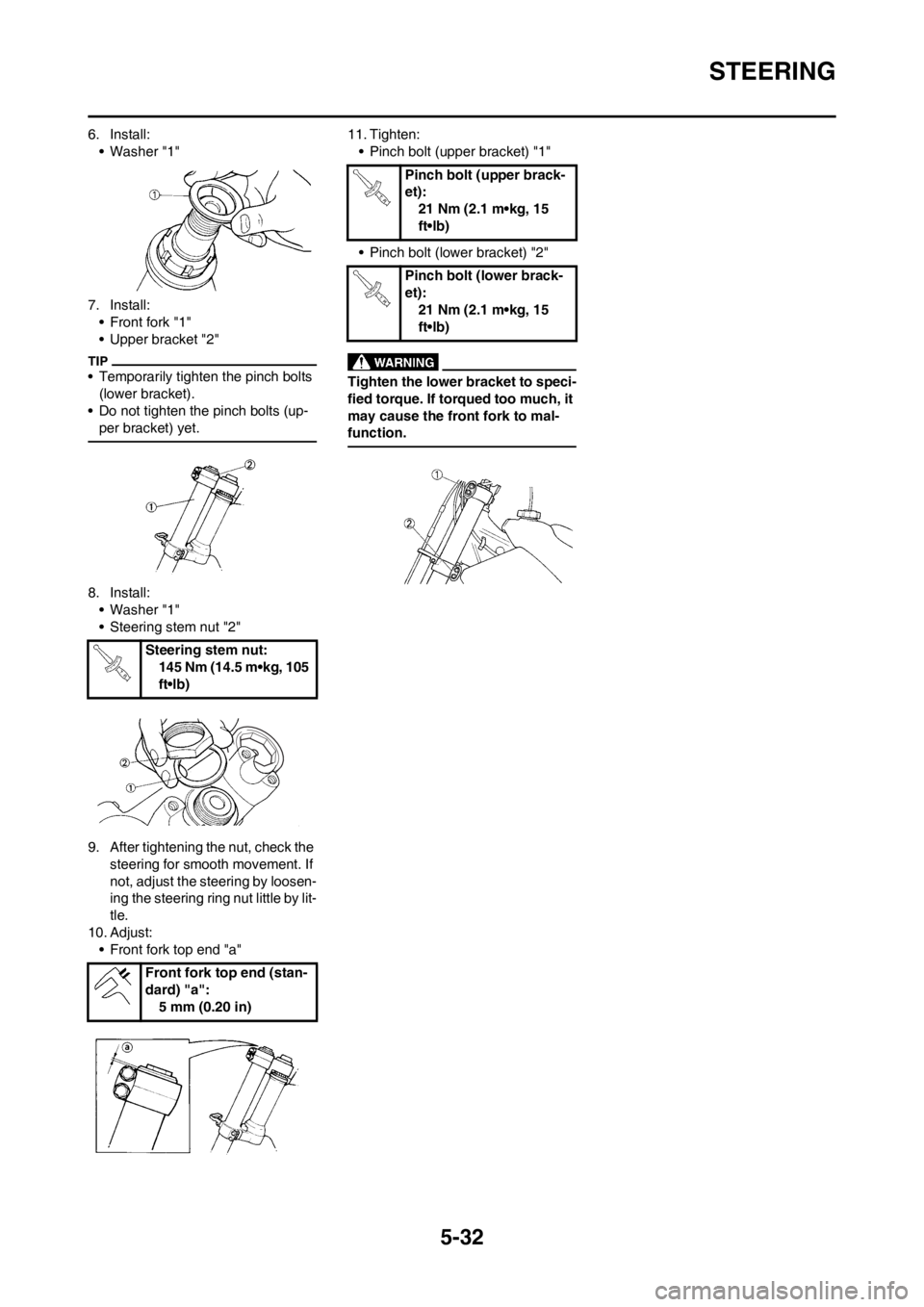

Page 140 of 168

YAMAHA YZ125LC 2012  Owners Manual 5-32
STEERING
6. Install:
• Washer "1"
7. Install:
• Front fork "1"
• Upper bracket "2"
• Temporarily tighten the pinch bolts
(lower bracket).
• Do not tighten the pinch bolts (up-
per brac
