4 - 49
ENG
OIL FILTER, WATER PUMP AND CRANKCASE COVER
(RIGHT)
EC4G3000

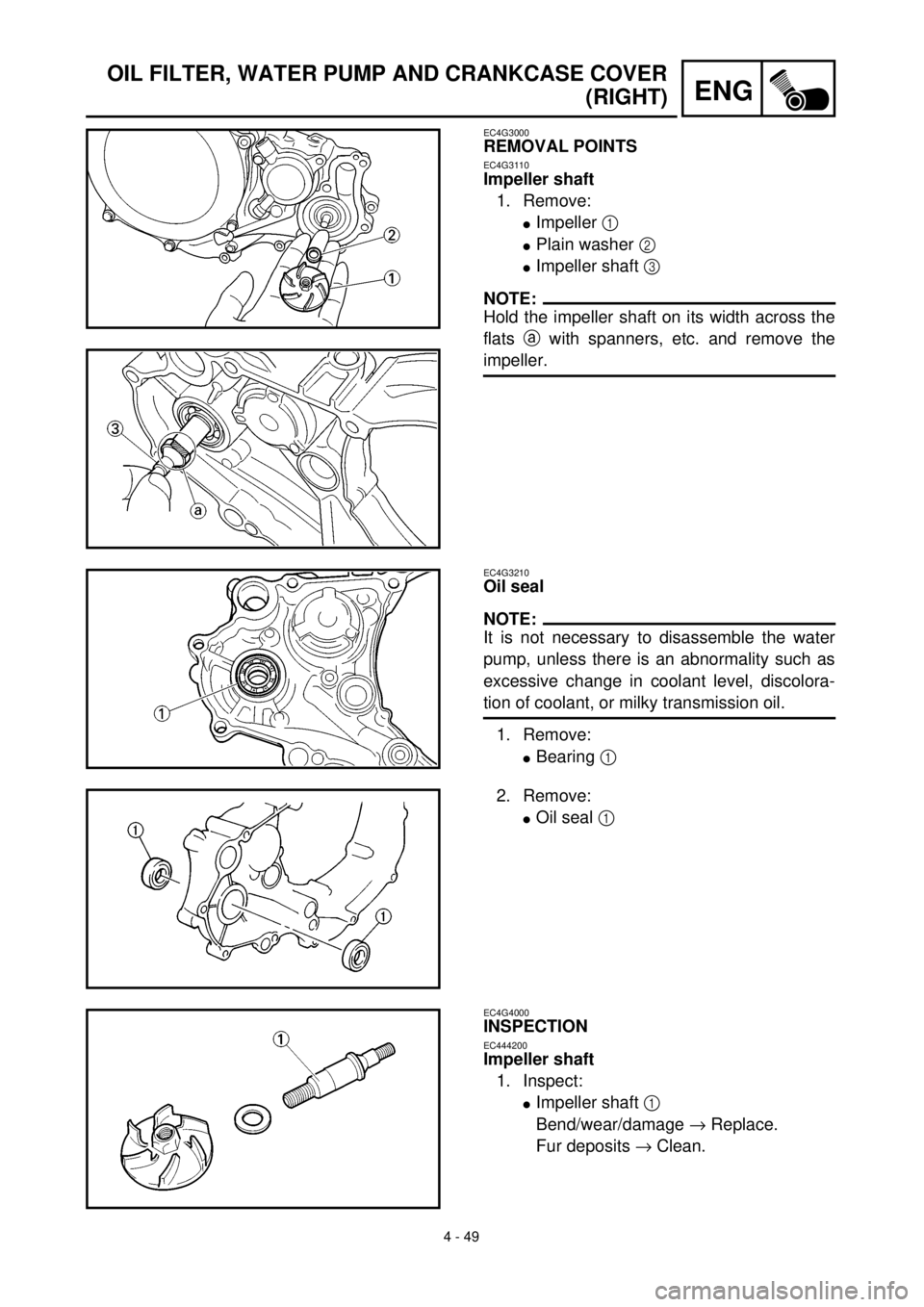

REMOVAL POINTS
EC4G3110
Impeller shaft
1. Remove:
lImpeller 1
lPlain washer 2
lImpeller shaft 3
NOTE:
Hold the impeller shaft on its width across the
flats a with spanners, etc. and remove the
impeller.
EC4G3210
Oil seal
NOTE:
It is not necessary to disassemble the water
pump, unless there is an abnormality such as
excessive change in coolant level, discolora-
tion of coolant, or milky transmission oil.
1. Remove:
lBearing 1
2. Remove:
lOil seal 1
EC4G4000
INSPECTION
EC444200
Impeller shaft
1. Inspect:
lImpeller shaft 1
Bend/wear/damage ® Replace.
Fur deposits ® Clean.

4 - 51
ENG
OIL FILTER, WATER PUMP AND CRANKCASE COVER
(RIGHT)
EC4G5220
Impeller shaft
1. Install:
lImpeller shaft 1
lPlain washer 2
lImpeller shaft 3
NOTE:
lTake care so that the oil seal lip is not dam-
aged or the spring does not slip off its posi-
tion.
lWhen installing the impeller shaft, apply the
engine oil on the oil seal lip and impeller
shaft. And install the shaft while turning it.
lHold the impeller shaft on its width across
the flats a with spanners, etc. and remove
the impeller.
Crankcase cover (right)
1. Install:
lDowel pin 1
lO-ring 2
lCollar 3
lGasket 4 New
2. Install:
lCrankcase cover (right) 1
lBolt
NOTE:
lWhen installing the crankcase cover onto the
crankcase, be sure that the impeller shaft
end 2 aligns with the balancer end slot 3.
lTighten the bolts in stage, using a crisscross
pattern.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)

4 - 81
ENG

CRANKCASE AND CRANKSHAFT
EC4N4101

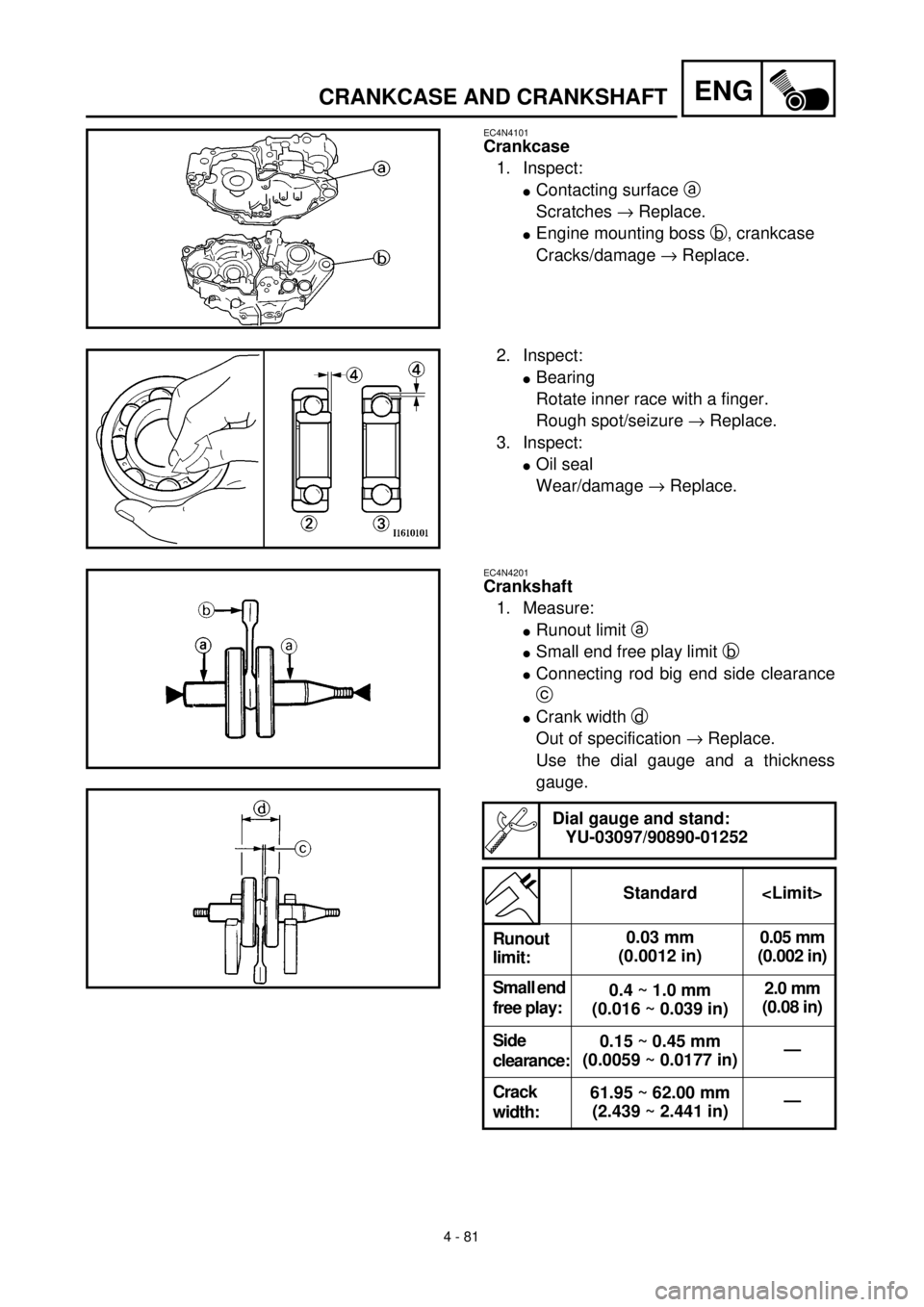

Crankcase
1. Inspect:
l
Contacting surface
a

Scratches
®
Replace.
l
Engine mounting boss
b
, crankcase
Cracks/damage
®
Replace.
2. Inspect:
l
Bearing
Rotate inner race with a finger.
Rough spot/seizure
®
Replace.
3. Inspect:
l
Oil seal
Wear/damage
®
Replace.
EC4N4201
Crankshaft
1. Measure:
l
Runout limit
a

l
Small end free play limit
b

l
Connecting rod big end side clearance
c

l
Crank width
d

Out of specification
®
Replace.
Use the dial gauge and a thickness
gauge.
Dial gauge and stand:
YU-03097/90890-01252
Standard
Runout
limit:0.03 mm
(0.0012 in)0.05 mm
(0.002 in)
Small end
free play:0.4 ~ 1.0 mm
(0.016 ~ 0.039 in)2.0 mm
(0.08 in)
Side
clearance:0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)—
Crack
width:61.95 ~ 62.00 mm
(2.439 ~ 2.441 in)—
