check engine YAMAHA YZ450F 2015 Owner's Guide

ELECTRICAL SYSTEM
3-36
2. Attach:
• Timing light “1”
• Digital tachometer “2”
To the high tension code “3”.
3. Adjust:
• Engine idling speed
Refer to “ADJUSTING THE ENGINE
IDLING SPEED” on page 3-16.
4. Check:
• Ignition timing
Check whether the alignment mark “a” on
the left crankcase cover is within the firing
range “b” on the rotor.
Incorrect firing range  Check rotor and
Crankshaft position sensor.
5. Install:
• Timing mark accessing screwTiming light
90890-03141
YU-03141
Digital tachometer
90890-06760
YU-39951-B
Timing mark accessing screw
6 Nm (0.6 m·kgf, 4.3 ft·lbf)
2
1
3
a
b
T R..

CHAIN DRIVE
4-65
4. Check:
• Drive chain rollers “1”
Damage/wear  Replace the drive chain.
• Drive chain side plates “2”
Damage/wear  Replace the drive chain.
5. Lubricate:
•Drive chain
EAS1SL5193CHECKING THE DRIVE SPROCKET
1. Check:
• Drive sprocket
More than 1/4 tooth wear “a”  Replace the
drive sprocket and the rear wheel sprocket
as a set.
Bent tooth  Replace the drive sprocket
and the rear wheel sprocket as a set.
EAS1SL5194CHECKING THE REAR WHEEL SPROCKET
Refer to “CHECKING AND REPLACING THE
REAR WHEEL SPROCKET” on page 4-8.
EAS1SL5195INSTALLING THE DRIVE CHAIN
1. Install:
• Drive chain “1”
• Drive chain joint “2”
• Joint clip “3”
EWA
WARNING
When installing the joint clip, always keep
the direction as shown in the figure.2. Lubricate:
•Drive chain
3. Install:
• Drive sprocket
• Lock washer
• Drive sprocket nut
Refer to “ENGINE REMOVAL” on page 5-1.
ECA1DX1014
NOTICE
Never install a new drive chain onto worn
drive sprockets; this will dramatically short-
en the drive chain’s life.
4. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-27.
ECA13550
NOTICE
A drive chain that is too tight will overload
the engine and other vital parts, and one
that is too loose can skip and damage the
swingarm or cause an accident. Therefore,
keep the drive chain slack within the speci-
fied limits.
b. Correct
1. Drive chain roller
2. Drive sprocket
New
Drive sprocket nut
75 Nm (7.5 m·kgf, 54 ft·lbf)
Drive chain slack
50–60 mm (1.97–2.36 in)
New
T R..

5
ENGINE
ENGINE REMOVAL......................................................................................... 5-1
REMOVING THE SILENCER ..................................................................... 5-6
REMOVING THE EXHAUST PIPE 2.......................................................... 5-6
REMOVING THE DRIVE SPROCKET ....................................................... 5-6
REMOVING THE ENGINE ......................................................................... 5-7
CHECKING THE SILENCER AND EXHAUST PIPE.................................. 5-7
CHANGING THE SILENCER FIBER ......................................................... 5-7
INSTALLING THE ENGINE........................................................................ 5-8
INSTALLING THE BRAKE PEDAL ............................................................ 5-9
INSTALLING THE DRIVE SPROCKET...................................................... 5-9
INSTALLING THE EXHAUST PIPE AND MUFFLER............................... 5-10
CAMSHAFT.................................................................................................... 5-11
REMOVING THE CAMSHAFT ................................................................. 5-13
CHECKING THE CAMSHAFT.................................................................. 5-14
CHECKING THE TIMING CHAIN AND CAMSHAFT SPROCKET .......... 5-15
CHECKING THE TIMING CHAIN TENSIONERS .................................... 5-15
CHECKING THE DECOMPRESSION SYSTEM...................................... 5-16
INSTALLING THE CAMSHAFTS ............................................................. 5-16
CYLINDER HEAD........................................................................................... 5-19
REMOVING THE CYLINDER HEAD........................................................ 5-21
CHECKING THE TIMING CHAIN GUIDE (INTAKE SIDE) ...................... 5-21
CHECKING THE CYLINDER HEAD ........................................................ 5-21
INSTALLING THE CYLINDER HEAD ...................................................... 5-22
VALVES AND VALVE SPRINGS................................................................... 5-24
REMOVING THE VALVES ....................................................................... 5-25
CHECKING THE VALVES AND VALVE GUIDES ................................... 5-26
CHECKING THE VALVE SEATS ............................................................. 5-27
CHECKING THE VALVE SPRINGS......................................................... 5-29
CHECKING THE VALVE LIFTERS .......................................................... 5-29
INSTALLING THE VALVES ..................................................................... 5-30
CYLINDER AND PISTON............................................................................... 5-32
REMOVING THE PISTON ....................................................................... 5-33
CHECKING THE CYLINDER AND PISTON ............................................ 5-33
CHECKING THE PISTON RINGS............................................................ 5-34
CHECKING THE PISTON PIN ................................................................. 5-35
INSTALLING THE PISTON AND CYLINDER .......................................... 5-35

ENGINE REMOVAL
5-7
EAS1SL5201REMOVING THE ENGINE
1. Remove:
• Pivot shaft “1”
TIP
If the pivot shaft is pulled all the way out, the
swingarm will come loose. If possible, insert a
shaft of similar diameter into the other side of
the swingarm to support it.
2. Remove:
• Engine “1”
From the right side.
TIP
• Make sure that the couplers, the hoses, and
the cables are disconnected.
• Lift up the engine, and remove this from its
lower part toward the right of the chassis.
EAS1SL5202CHECKING THE SILENCER AND EXHAUST
PIPE
1. Check:
•Gasket “1”
Damage  Replace.
EAS1SL5203CHANGING THE SILENCER FIBER
1. Remove:
•Bolt “1”
• Silencer body “2”
ECA33DD026
NOTICE
Do not hit the silencer stay “a” as it may do
damage to the silencer.
TIP
Remove the inner pipe while holding the silenc-
er in place with a vise etc.
2. Remove:
•Rivet “1”
• Silencer cap “2”
1
1
1
a
1
2
2
1

ENGINE REMOVAL
5-10
EAS1SL5207INSTALLING THE EXHAUST PIPE AND
MUFFLER
1. Install:
•Gasket
• Exhaust pipe 1 “1”
• Nut (exhaust pipe 1) “2”
TIP
First temporarily tighten nuts to 7 Nm (0.7
m·kgf, 5.1 ft·lbf). Then retighten them to 10 Nm
(1.0 m·kgf, 7.2 ft·lbf).
2. Install:
•Clamp
• Exhaust pipe 2 “1”
• Bolt (exhaust pipe 2) “2”
TIP
Install and temporarily tighten the exhaust pipe
2 with its end positioned as shown with respect
to the exhaust pipe 1.3. Install:
•Clamp
• Silencer “1”
• Bolt (silencer) “2”
TIP
Install and temporarily tighten the silencer so
that its joint is positioned as shown with respect
to the exhaust pipe 2.
4. Tighten:
• Bolt (exhaust pipe 2)
•Clamp
TIP
Tighten while checking that their front and rear
joints are inserted in position. Nut (exhaust pipe)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
T R..
1
22
1
2
2mm (0.08in)
Bolt (silencer)
30 Nm (3.0 m·kgf, 22 ft·lbf)
Bolt (exhaust pipe 2)
20 Nm (2.0 m·kgf, 14 ft·lbf)
Clamp
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
T R..
2
2
1
2mm (0.08in)
T R..
T R..

CAMSHAFT
5-16
EAS1SL5213CHECKING THE DECOMPRESSION SYS-
TEM
1. Check:
• Decompression system
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Check that the decompressor cam “1”
moves smoothly.
b. Check that the decompressor lever pin “2”
projects from the camshaft.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS1SL5214INSTALLING THE CAMSHAFTS
1. Install:
• Exhaust camshaft “1”
• Intake camshaft “2”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the crankshaft counterclockwise with a
wrench.
TIP
• Apply molybdenum disulfide oil to the cam-
shafts.
• Apply the engine oil on the decompression
system.
• Fill the cylinder head with engine oil up to the
tops “a” of the valve lifters.b. Align the top dead center (TDC) mark “a” on
the rotor with the alignment mark “b” on the
crankcase cover.
c. Fit the timing chain “3” onto both camshaft
sprockets and install the camshafts on the
cylinder head.
TIP
Make sure that the alignment mark “c” on the
exhaust camshaft sprocket and the alignment
mark “d” on the intake camshaft sprocket are
aligned with the edge of the cylinder head.
ECA33DD029
NOTICE
Do not turn the crankshaft during the cam-
shaft installation. Damage or improper
valve timing will result.
d. Install the clips, the camshaft caps and the
bolts (camshaft cap).
1
2
Bolt (camshaft cap)
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
a
aa
b
a
c 3
d
T R..

CYLINDER HEAD
5-19
EAS1SL5215
CYLINDER HEAD
Removing the cylinder head
Order Part name Q’ty Remarks
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Exhaust pipe and silencer Refer to “ENGINE REMOVAL” on page 5-1.
Radiator hose Disconnect.
Coolant temperature sensor coupler Disconnect.
Throttle body Refer to “THROTTLE BODY” on page 7-5.
Camshaft Refer to “CAMSHAFT” on page 5-11.
Upper engine bracket Refer to “ENGINE REMOVAL” on page 5-1.
1 Bolt (cylinder head) 2
2 Bolt (cylinder head) 4
3 Cylinder head 1
4 Cylinder head gasket 1
5 Timing chain guide (intake side) 1
6 Oil check bolt 2
7 66
1st
2nd
Final20 Nm (2.0 m
kgf, 14 ftIbf)T.
R.
30 Nm (3.0 mkgf, 22 ftIbf)
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
10 Nm (1.0 mkgf, 7.2 ftIbf)T.R.
15 Nm (1.5 mkgf, 11 ftIbf)T.R.

CYLINDER AND PISTON
5-35
EAS1SL5231CHECKING THE PISTON PIN
1. Check:
• Piston pin
Blue discoloration/grooves  Replace the
piston pin and then check the lubrication
system.
2. Measure:
• Piston pin outside diameter “a”
Out of specification  Replace the piston
pin.
3. Measure:
• Piston pin bore inside diameter “b”
Out of specification  Replace the piston.
EAS1SL5232INSTALLING THE PISTON AND CYLINDER
1. Install:
• Oil ring expander “1”
• Lower oil ring rail “2”
• Upper oil ring rail “3”
• 2nd ring “4”
• Top ring “5”
TIP
Be sure to install the piston rings so that the
manufacturer’s marks or numbers face up.
2. Install:
• Piston “1”
• Piston pin “2”
• Piston pin clip “3”
TIP
• Apply the engine oil to the piston pin.
• Install the piston with the F mark “a” on it
pointing to its intake (front) side.
• Before installing the piston pin clip, cover the
crankcase opening with a cloth to prevent the
clip from falling into the crankcase. Piston ring end gap
Top ring
End gap (installed)
0.20–0.30 mm (0.0079–0.0118 in)
Limit
0.55 mm (0.0217 in)
End gap (installed)
0.35–0.50 mm (0.0138–0.0197 in)
Limit
0.85 mm (0.0335 in)
Oil ring
End gap (installed)
0.20–0.50 mm (0.0079–0.0197 in)
Piston pin outside diameter
17.991–18.000 mm (0.7083–
0.7087 in)
Limit
17.971 mm (0.7075 in)
Piston pin bore inside diameter
18.004–18.015 mm (0.7088–
0.7093 in)
Limit
18.045 mm (0.7104 in)
b
New

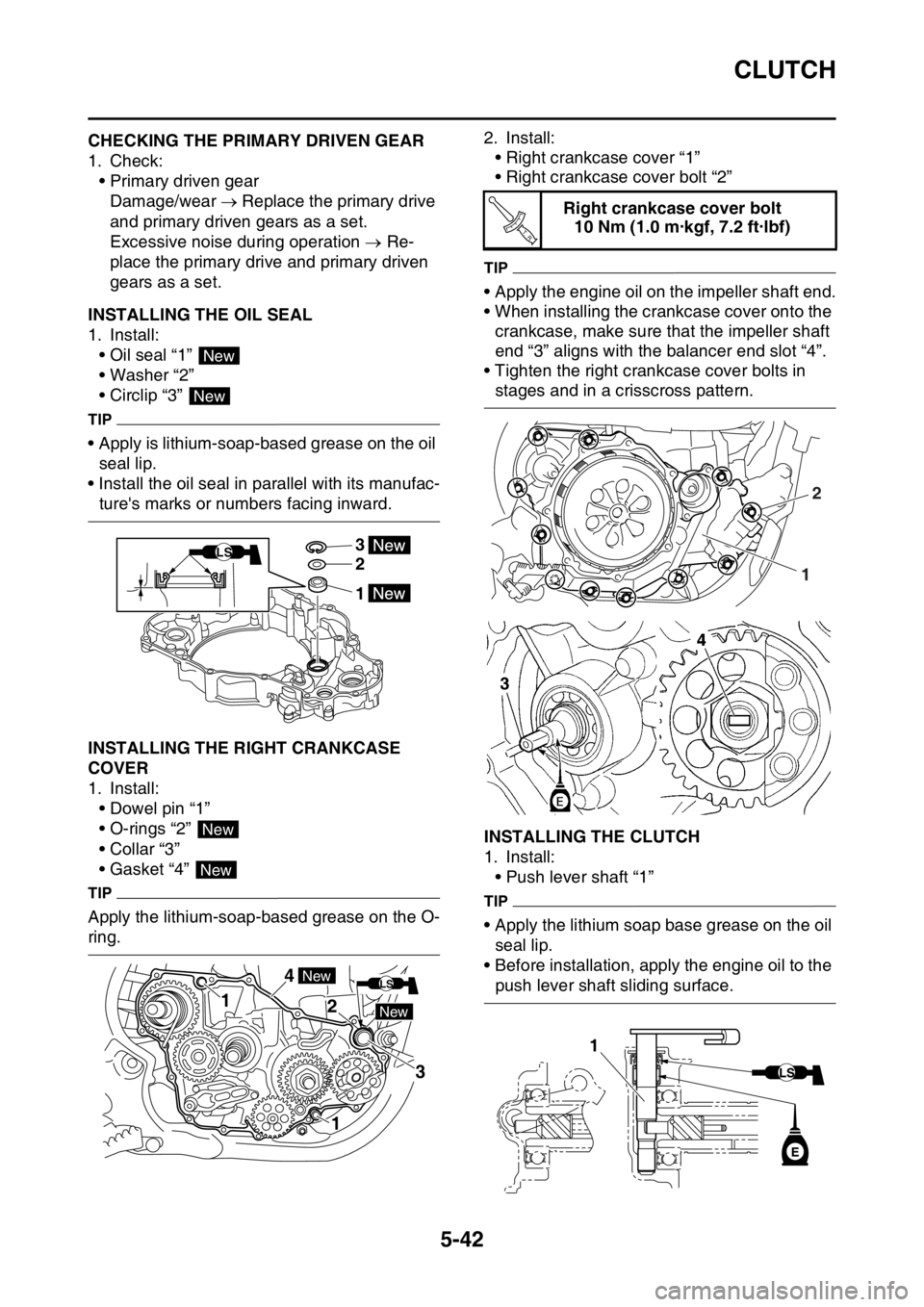

CLUTCH
5-42
EAS1SL5244CHECKING THE PRIMARY DRIVEN GEAR
1. Check:
• Primary driven gear
Damage/wear  Replace the primary drive
and primary driven gears as a set.
Excessive noise during operation  Re-
place the primary drive and primary driven
gears as a set.
EAS1SL5245INSTALLING THE OIL SEAL
1. Install:
• Oil seal “1”
• Washer “2”
• Circlip “3”
TIP
• Apply is lithium-soap-based grease on the oil
seal lip.
• Install the oil seal in parallel with its manufac-
ture's marks or numbers facing inward.
EAS1SL5246INSTALLING THE RIGHT CRANKCASE
COVER
1. Install:
• Dowel pin “1”
• O-rings “2”
• Collar “3”
• Gasket “4”
TIP
Apply the lithium-soap-based grease on the O-
ring.2. Install:
• Right crankcase cover “1”
• Right crankcase cover bolt “2”
TIP
• Apply the engine oil on the impeller shaft end.
• When installing the crankcase cover onto the
crankcase, make sure that the impeller shaft
end “3” aligns with the balancer end slot “4”.
• Tighten the right crankcase cover bolts in
stages and in a crisscross pattern.
EAS1SL5247INSTALLING THE CLUTCH
1. Install:
• Push lever shaft “1”
TIP
• Apply the lithium soap base grease on the oil
seal lip.
• Before installation, apply the engine oil to the
push lever shaft sliding surface.
New
New
3
2
1
LS
New
New
1
1 4
2
New
New
3
LS
Right crankcase cover bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
T R..
12
1

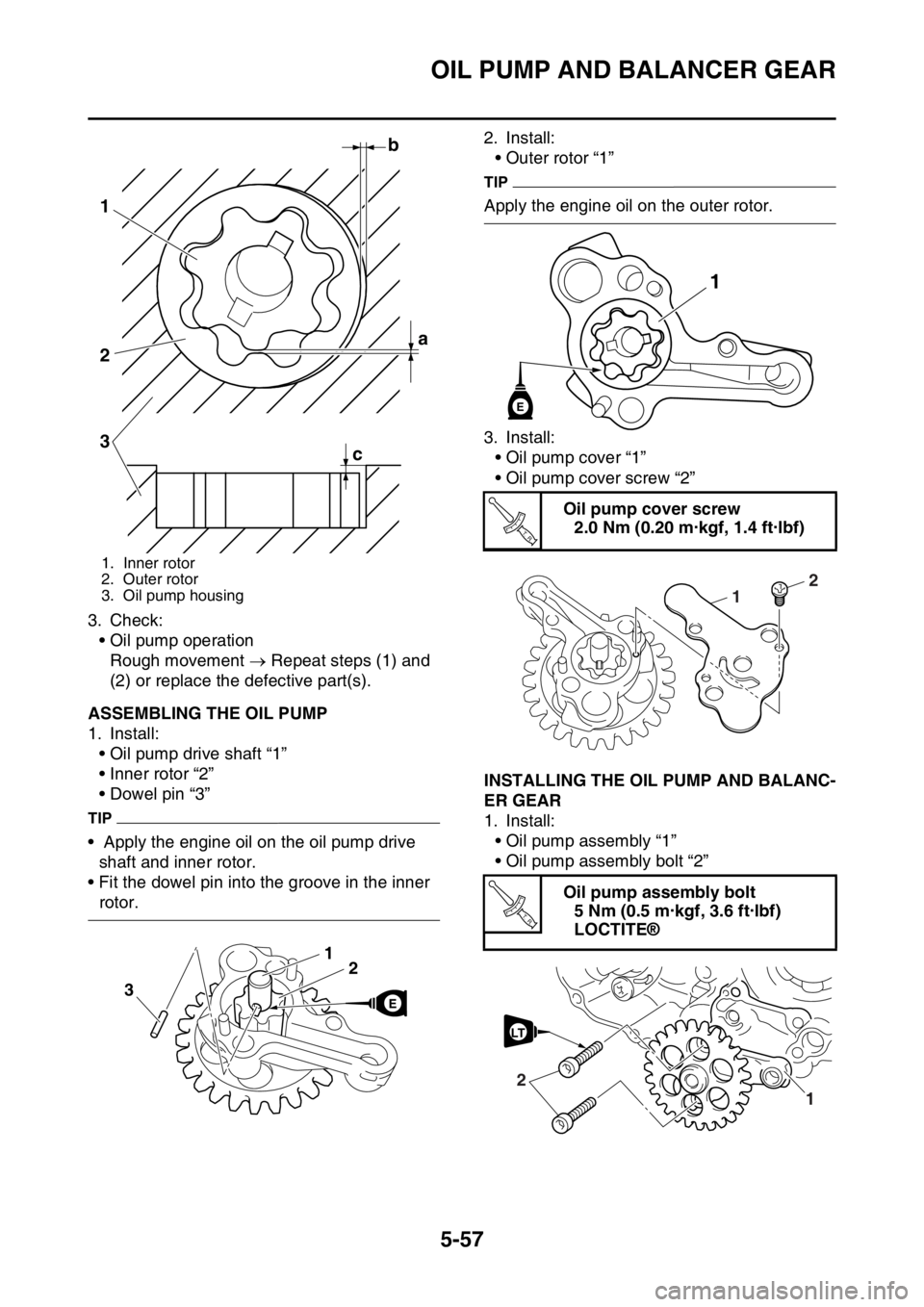

OIL PUMP AND BALANCER GEAR
5-57
3. Check:
• Oil pump operation
Rough movement  Repeat steps (1) and
(2) or replace the defective part(s).
EAS1SL5271ASSEMBLING THE OIL PUMP
1. Install:
• Oil pump drive shaft “1”
• Inner rotor “2”
• Dowel pin “3”
TIP
• Apply the engine oil on the oil pump drive
shaft and inner rotor.
• Fit the dowel pin into the groove in the inner
rotor.2. Install:
• Outer rotor “1”
TIP
Apply the engine oil on the outer rotor.
3. Install:
• Oil pump cover “1”
• Oil pump cover screw “2”
EAS1SL5272INSTALLING THE OIL PUMP AND BALANC-
ER GEAR
1. Install:
• Oil pump assembly “1”
• Oil pump assembly bolt “2”
ECA1DX1023
1. Inner rotor
2. Outer rotor
3. Oil pump housing
b
a 1
2
3
c
21
3
Oil pump cover screw
2.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
Oil pump assembly bolt
5 Nm (0.5 m·kgf, 3.6 ft·lbf)
LOCTITE®
1
E
T R..
2
1
T R..
1
2
LT
