FUEL INJECTION SYSTEM
8-10
EASB111324
FUEL INJECTION SYSTEM

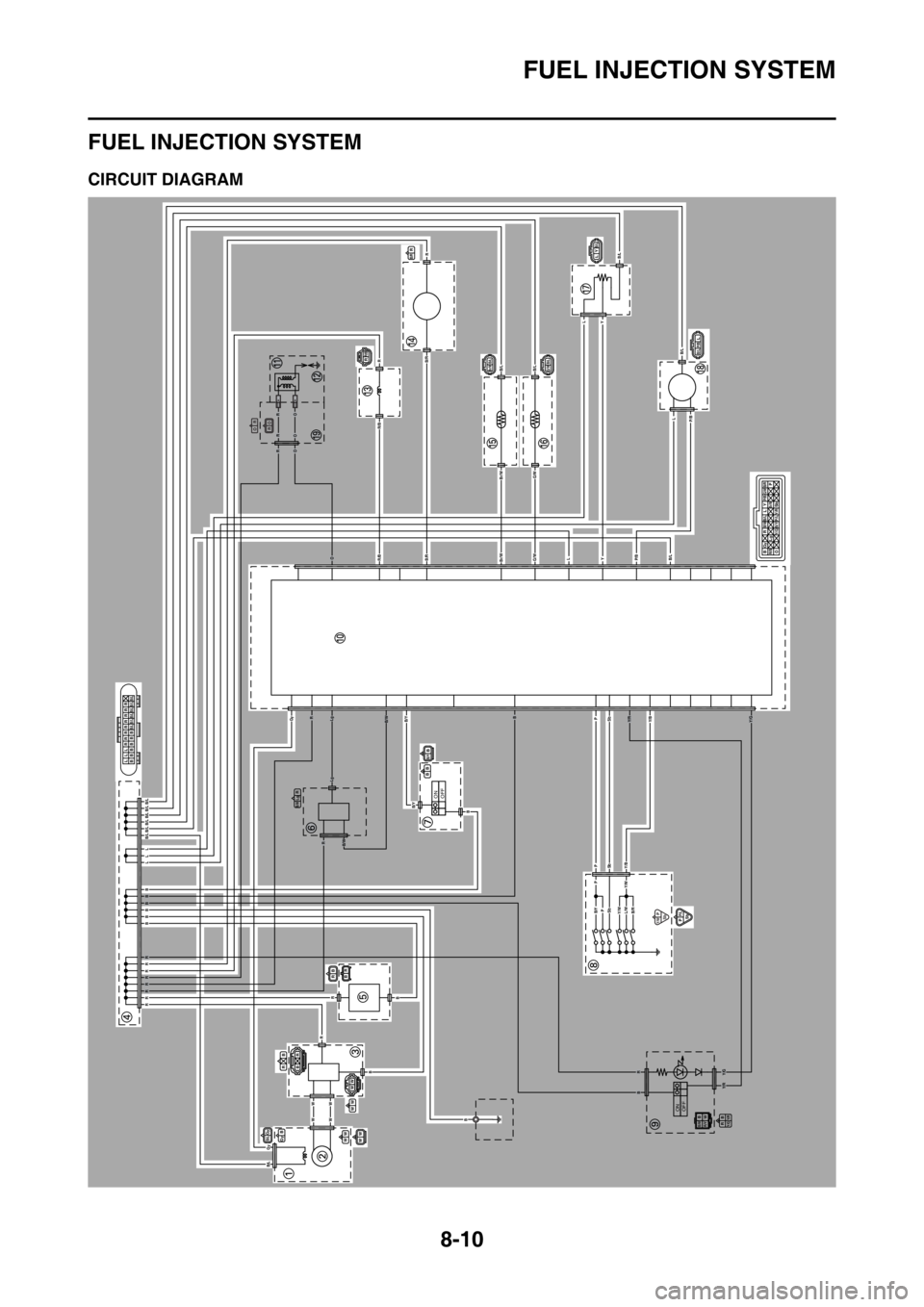

EASB111325CIRCUIT DIAGRAM
ONOFF
ONOFF
B R
RRRRRRRR
BBBBBB
LLL
B/LB/LB/LB/LB/LB/L
B/L
Gy
W
W
W
W
R
R
B
B
B
B
RY/RY/G
Y/GY/B
Y/B
Y/W
Y/WB/YL/WB/R
B/Y
B/Y
B/W
R/B
R/B
B/R
B/R
G/WP/B
P/B
B/L
B/L
B/L
G/W
Br/W
Br/W
B/LB/L
B/W
Y/RSbP
Sb
Sb
P
P
P
L
L
LY
Y
B
B
LgGy
Lg
R
R
R
R
R
R
O
O
O
RO
WWW W
W W
W W
R B
B/LGyB Gy
BRRB
RLgB/W
B/YB
B B
PP/LSbSbY/WP
B RY/R Y/GBB/WWR/Y
BGy R
B/WB/LLYP/BG/WB/R
R/BLg
Br/W
P
O
Y/GB/YP/LY/RSb
RR/B
RB/R
B/LBr/WB/L G/W
LYB/L
B/LP/BL
L LLRRRRRRRR
BBBBBB
B/L B/L B/L B/L B/L B/L
R O
OR

FUEL INJECTION SYSTEM
8-11
1. Crankshaft position sensor
2. AC magneto
3. Rectifier/regulator
4. Joint connector
5. Condenser
7. Engine stop switch
8. Neutral switch
10.ECU
13.Fuel injector
14.Fuel pump
15.Intake air temperature sensor
16.Coolant temperature sensor
17.Throttle position sensor
18.Intake air temperature sensor

FUEL INJECTION SYSTEM
8-12
EASB111326YAMAHA DIAGNOSTIC TOOL
This model uses the Yamaha diagnostic tool to identify malfunctions.
For information about using the Yamaha diagnostic tool, refer to the operation manual that is included
with the tool.
FEATURES OF THE YAMAHA DIAGNOSTIC TOOL
A diagnosis can be made more quickly than traditional methods with the Yamaha diagnostic tool.
Using this software, ECU and sensor data, as well as fault diagnosis, vehicle maintenance, and any
necessary information can be recorded and displayed on your computer screen through a USB
adapter connected to the computer interface with a communication cable connected to the vehicle’s
ECU.
Data obtained in various functions can be saved as vehicle history, and can be accumulated.
FUNCTIONS OF THE YAMAHA DIAGNOSTIC TOOL
However, the diagnostic tool cannot be used to freely change the basic vehicle functions, such as
adjusting the ignition timing.Yamaha diagnostic tool
90890-03231
Yamaha diagnostic tool (US)
90890-03234
Fault diagnosis mode Fault codes recorded on the ECU are read, and the con-
tents are displayed.
Function diagnostic mode Check the operation of the output value of each sensor
and actuator.
Inspection mode Determine whether each sensor or actuator is functioning
properly.
CO adjustment mode Adjust the concentration of CO admissions during idling.
Monitoring mode Displays a graph of sensor output values for actual oper-
ating conditions.
Logging mode Records and saves the sensor output value in actual driv-
ing conditions.
View log Displays the logging data.
ECU rewrite If necessary, the ECU is rewritten using the ECU rewrite
data provided by Yamaha. Ignition timing adjustment, etc.
cannot be changed from the vehicle’s original state.

FUEL INJECTION SYSTEM
8-13
CONNECTING THE YAMAHA DIAGNOSTIC TOOL
1. Remove the coupler for connecting setting tool.
2. Connect the FI diagnostic tool sub-lead.
3. Connect the FI diagnostic tool sub-lead to the battery.
TIP
• Prepare the fully charged 12 V battery for yourself.
• For information on how to connect and use the Yamaha diagnostic tool, refer to “YAMAHA DIGNO-
STIC TOOL OPERATION MANUAL”.
EASB111327TROUBLESHOOTING DETAILS
This section describes the measures per fault code No. displayed on the Yamaha diagnostic tool.
Check and service the items or components that are the probable cause of the malfunction following
the order given in the troubleshooting chart.
After the check and service of the malfunctioning part have been completed, reset the Yamaha diag-
nostic tool display according to the “Reinstatement method”.
Fault code No.: To be displayed on the Yamaha diagnostic tool when the engine fails to work nor-
mally
Diagnostic code No.: To be used when the diagnostic mode is active FI diagnostic tool sub-lead
90890-03212
YU-03212

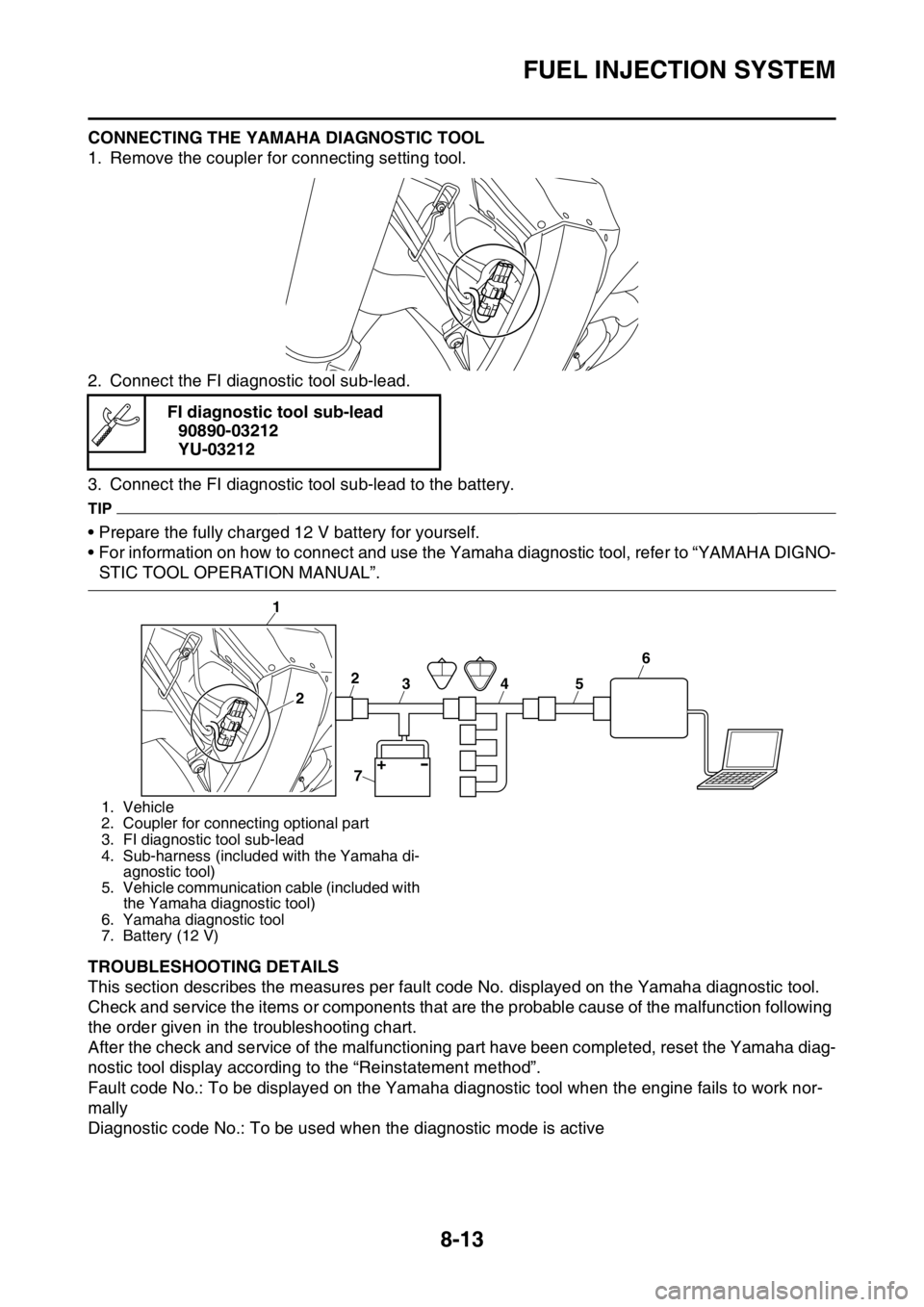

1. Vehicle
2. Coupler for connecting optional part
3. FI diagnostic tool sub-lead
4. Sub-harness (included with the Yamaha di-
agnostic tool)
5. Vehicle communication cable (included with
the Yamaha diagnostic tool)
6. Yamaha diagnostic tool
7. Battery (12 V)
1
3 2
2456
7

FUEL INJECTION SYSTEM
8-14
Fault code 12
SymptomCrankshaft position sensor: no normal signals are received
from the crankshaft position sensor.
Fail-safe systemUnable to start engine
Unable to drive vehicle
Diagnostic code No.—
Diagnostic tool display—
Procedure—
Or-
derProbable cause of malfunc-
tion and checkMaintenance job Reinstatement method
1 Connection of crankshaft po-
sition sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Crank the engine.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2 Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Crank the engine.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
3 Wire harness continuity. Open or short circuit  Re-
place the wire harness.
Between the crankshaft posi-
tion sensor coupler and ECU
coupler.
gray–gray
black/blue–black/blueCrank the engine.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
4 Mounted condition of crank-
shaft position sensor.
Check for looseness or
pinching.
Check the gap between the
crankshaft position sensor
and the pickup rotor.Improperly mounted sensor
 Remount or replace the
sensor. “AC MAGNETO” on
page 5-61.Crank the engine.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
5 Defective crankshaft position
sensor.Check the crankshaft position
sensor.
“CHECKING THE CRANK-
SHAFT POSITION SEN-
SOR” on page 8-42.Crank the engine.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
6 Faulty ECU Replace the ECU.

FUEL INJECTION SYSTEM
8-15
TIP
If fault code Nos. 13 and 14 are both displayed, perform checkup and repair jobs for fault code No.
13 first.
Fault code 13
Symptom Intake air pressure sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.03
Diagnostic tool displayDisplays the intake air pressure.
ProcedureThe atmospheric pressure is displayed on the Yamaha diagnostic
tool.
Or-
derProbable cause of malfunc-
tion and checkMaintenance job Reinstatement method
1 Connection of intake air pres-
sure sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2 Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
3 Connection of sub wire har-
ness coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the sub-
wire harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
4 Wire harness continuity. Open or short circuit  Re-
place the wire harness.
Between intake air pressure
sensor coupler and ECU cou-
pler.
pink/black–pink/black
blue–blue
black/blue–black/blueTurn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
5 Mounted condition of intake
air pressure sensor.
Check for looseness or
pinching.
Check the mounted position
for correctness.Improperly mounted sensor
 Remount or replace the
sensor.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.

FUEL INJECTION SYSTEM
8-16
TIP
If fault code Nos. 13 and 14 are both displayed, perform checkup and repair jobs for fault code No.
13 first.6 Defective intake air pressure
sensor.Execute the diagnostic mode.
(Code No.03)
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
0 m above sea level: About
101 kPa
1000 m above sea level:
About 90 kPa
2000 m above sea level:
About 80 kPa
3000 m above sea level:
About 70 kPaTurn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
7 Faulty ECU Replace the ECU.
Fault code 14
SymptomIntake air pressure sensor: hose system malfunction (clogged
or detached hose)
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.03
Diagnostic tool displayDisplays the intake air pressure.
ProcedureThe atmospheric pressure is displayed on the Yamaha diagnostic
tool.
Or-
derProbable cause of malfunc-
tion and checkMaintenance job Reinstatement method
1 The intake air pressure sen-
sor hose is damaged, discon-
nected, clogged, twisted or
bent.Repair or replace the sensor
hose.After starting the engine, idle
this and wait about 5 sec-
onds.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order. Fault code 13
Symptom Intake air pressure sensor: open or short circuit detected.

FUEL INJECTION SYSTEM
8-17
2 Defective intake air pressure
sensor.Execute the diagnostic mode.
(Code No. 03)
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
0 m above sea level: About
101 kPa
1000 m above sea level:
About 90 kPa
2000 m above sea level:
About 80 kPa
3000 m above sea level:
About 70 kPa
Fault code 15
Symptom Throttle position sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.01
Diagnostic tool displayDisplays the throttle angle.
• 11–14 (throttle in fully closed position)
• 109–116 (throttle in fully opened position)
ProcedureCheck with throttle valves fully closed.
Check with throttle valves fully opened.
Or-
derProbable cause of malfunc-
tion and checkMaintenance job Reinstatement method
1 Connection of throttle posi-
tion sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
2 Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the wire
harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order. Fault code 14
SymptomIntake air pressure sensor: hose system malfunction (clogged
or detached hose)

FUEL INJECTION SYSTEM
8-18
3 Connection of sub wire har-
ness coupler.
Check the locking condition
of the coupler.
Disconnect the coupler, and
check the pins (for bent or
broken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler secure-
ly, or repair/replace the sub-
wire harness.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
4 Wire harness continuity. Open or short circuit  Re-
place the wire harness.
Between throttle position
sensor coupler and ECU cou-
pler.
yellow–yellow
blue–blue
black/blue–black/blueTurn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
5 Mounted condition of throttle
position sensor.
Check for looseness or
pinching.
Check the mounted condition
for correctness.Improperly mounted sensor
 Remount or replace the
sensor.
Refer to “ADJUSTING THE
THROTTLE POSITION SEN-
SOR” on page 7-9.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
6 Applied voltage of throttle po-
sition sensor lead.Check the applied voltage.
(black/blue–blue)
Refer to “CHECKING THE
THROTTLE POSITION SEN-
SOR” on page 8-44.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
Location of discon-
nected leadOutput
voltage
Disconnected
ground lead5 V
Disconnected out-
put lead0 V
Disconnected
power supply lead0 V
7 Defective throttle position
sensor.Execute the diagnostic mode.
(Code No. 1)
When the throttle is fully
closed, 11–14 displays.
When the throttle is fully
opened, 109–116 displays.
Incorrect display range 
Replace the throttle position
sensor.Turn “ON” the switch on the
FI diagnostic tool sub-lead.
Fault code No. is not dis-
played  Repair is finished.
Fault code No. is displayed 
Go to next order.
8 Faulty ECU Replace the ECU. Fault code 15
Symptom Throttle position sensor: open or short circuit detected.
