Periodic maintenance an d a djustment
7-31
7
EAU86410

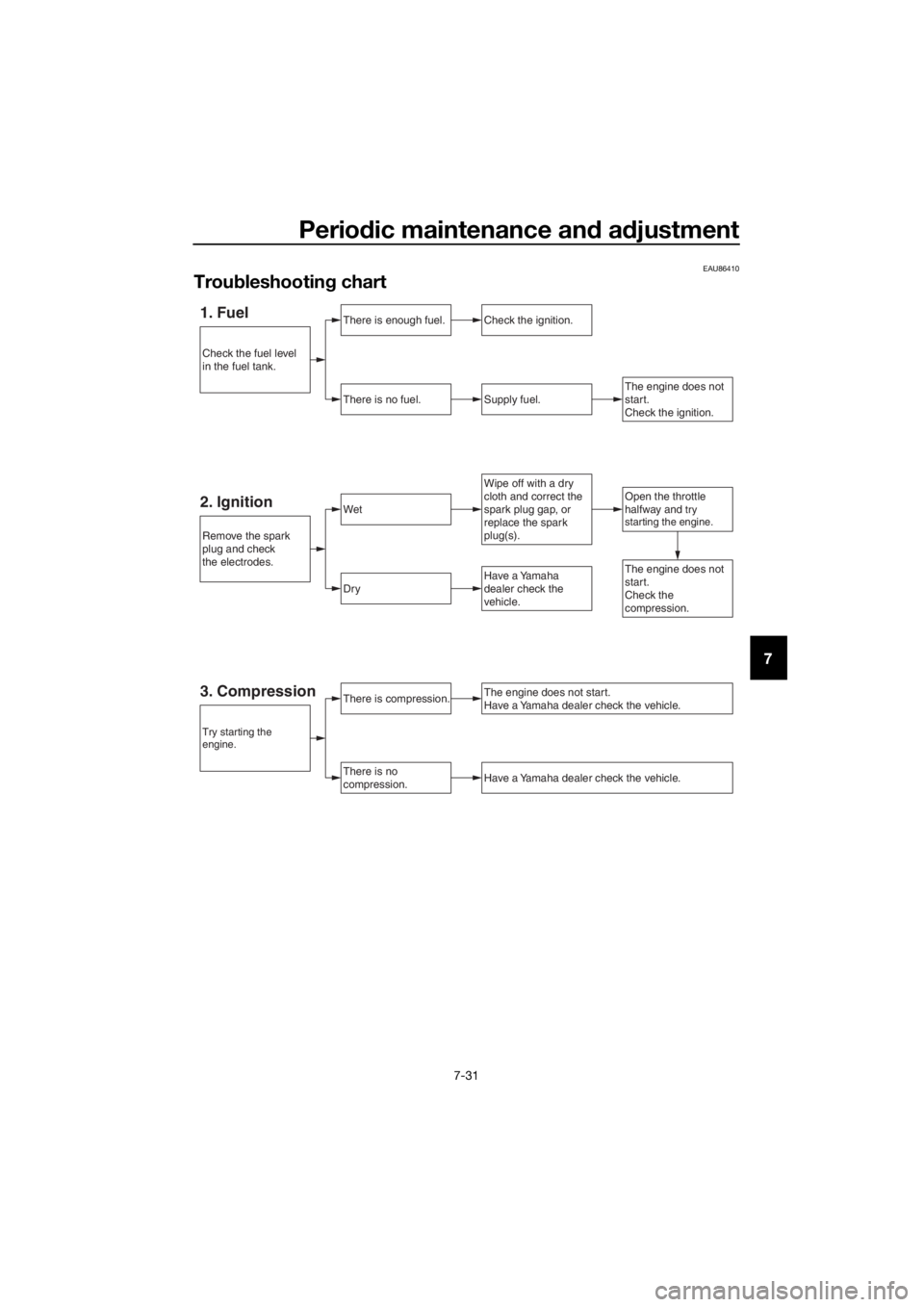

Trou bleshootin g chart
1. FuelThere is enough fuel.
There is no fuel.
Check the ignition.
Supply fuel.The engine does not
start.
Check the ignition.
Open the throttle
halfway and try
starting the engine.
Wipe off with a dry
cloth and correct the
spark plug gap, or
replace the spark
plug(s).
2. IgnitionWet
Dry
There is compression.
There is no
compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Have a Yamaha dealer check the vehicle.
The engine does not
start.
Check the
compression.Have a Yamaha
dealer check the
vehicle.
Remove the spark
plug and check
the electrodes.
Try starting the
engine.
Check the fuel level
in the fuel tank.
3. Compression
UBR882E0.book Page 31 Wednesday, February 26, 2020 11:39 AM

Periodic maintenance an d a djustment
7-32
7
EAU86430En gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot.
Scal din g hot flui d an d steam may b e blown out un der pressure, which
coul d cause serious injury. Be sure to wait until the eng ine has cooled.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly ro-
tate the cap counterclockwise to the detent to allow any resi dual pres-
sure to escape. When the hissin g soun d has stopped , press down on the
cap while turnin g it counterclockwise, an d then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided
that it is changed to the recommended coolant as soon as possible.
Wait until the engine
has cooled.
Check the coolant
level in the reservoir
and radiator.Add coolant.
(See TIP.)
The coolant level is
OK.
There is no leakage.
There is leakage.
The coolant level is
low.
Check the cooling
system for leakage.
Have a Yamaha
dealer check and
repair the cooling
system.
Start the engine. If the engine overheats again,
have a Yamaha dealer check and repair the cooling
system.
UBR882E0.book Page 32 Wednesday, February 26, 2020 11:39 AM

Motorcycle care and stora ge
8-1
8
EAU37834
Matte color caution
NOTICE
ECA15193
Some mo dels are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
a d vice on what pro ducts to use be-
fore cleanin g the vehicle. Usin g a
b rush, harsh chemical prod ucts or
cleanin g compoun ds when cleanin g
these parts will scratch or damag e
their surface. Wax also shoul d not
b e applie d to any matte colored fin-
ishe d parts.
EAU86440
Care
Frequent, thorough cleaning of the ve-
hicle will not only enhance its appear-
ance but also will improve its general
performance and extend the useful life
of many components. Washing, clean-
ing, and polishing will also give you a
chance to inspect the condition of the
vehicle more frequently. Be sure to
wash the vehicle after riding in the rain
or near the sea, because salt is corro-
sive to metals.
TIP
 The roads of heavy snowfall areas
may be sprayed with salt as a de-
icing method. This salt can stay on
the roads well into spring, so be
sure to wash the underside and
chassis parts after riding in such
areas.
 Genuine Yamaha care and main-
tenance products are sold under
the YAMALUBE brand in many
markets worldwide.
NOTICE
ECA26280
Improper cleanin g can cause cos-
metic an d mechanical damag e. Do
not use:  high-pressure washers or
steam-jet cleaners. Excessive
water pressure may cause wa-
ter seepag e and d eterioration of
wheel bearin gs, brakes, trans-
mission seals an d electrical de-
vices. Avoi d hi gh-pressure
d eter gent applications such as
those availab le in coin-operate d
car washers.
UBR882E0.book Page 1 Wednesd ay, February 26, 2020 11:39 AM

Motorcycle care and stora ge
8-2
8 
harsh chemicals, inclu din g
stron g aci dic wheel cleaners,
especially on spoke or mag ne-
sium wheels.
 harsh chemicals, a brasive
cleanin g compoun ds, or wax on
matte-finishe d parts. Brushes
can scratch an d damag e the
matte-finish, use soft spon ge or
towel only.
 towels, spon ges, or brushes
contaminated with abrasive
cleanin g pro ducts or stron g
chemicals such as, solvents,
g asoline, rust removers, brake
flui d, or antifreeze, etc.
Before washin g
1. Park the vehicle out of direct sun- light and allow it to cool. This will
help avoid water spots.
2. Make sure all caps, covers, elec- trical couplers and connectors are
tightly installed.
3. Cover the muffler end with a plas- tic bag and a strong rubber band.
4. Pre-soak stubborn stains like in- sects or bird droppings with a wet
towel for a few minutes.
5. Remove road grime and oil stains with a quality degreasing agent
and a plastic-bristle brush or
sponge. NOTICE: Do not use
d eg reasin g a gent on areas re-
quirin g lu brication such as
seals, gaskets, an d wheel axles.
Follow prod uct instructions.
[ECA26290]
Washing
1. Rinse off any degreaser and spray down the vehicle with a garden
hose. Use only enough pressure
to do the job. Avoid spraying wa-
ter directly into the muffler, instru-
ment panel, air inlet, or other inner
areas such as underseat storage
compartments.
2. Wash the vehicle with a quality au- tomotive-type detergent mixed
with cool water and a soft, clean
towel or sponge. Use an old tooth-
brush or plastic-bristle brush for
hard-to-reach places. NOTICE:
Use col d water if the vehicle has
b een exposed to salt. Warm wa-
ter will increase salt’s corrosive
properties.
[ECA26301]
3. For windshield-equipped vehicles: Clean the windshield with a soft
towel or sponge dampened with
water and a pH neutral detergent.
If necessary, use a high-quality
windshield cleaner or polish for
motorcycles. NOTICE: Never use
any stron g chemicals to clean
the win dshield . Additionally,
some cleanin g compoun ds for
plastic may scratch the win d-
shield , so be sure to test all
cleanin g prod ucts before gen-
eral application.
[ECA26310]
4. Rinse off thoroughly with clean water. Be sure to remove all deter-
gent residues, as they can be
harmful to plastic parts.
After washin g
1. Dry the vehicle with a chamois or absorbent towel, preferably mi-
crofiber terrycloth.
UBR882E0.book Page 2 Wednesd ay, February 26, 2020 11:39 AM

Motorcycle care and stora ge
8-3
8
2. For drive chain-equipped models:
Dry and then lubricate the drive
chain to prevent rust.
3. Use a chrome polish to shine chrome, aluminum, and stainless
steel parts. Often the thermally in-
duced discoloring of stainless
steel exhaust systems can be re-
moved through polishing.
4. Apply a corrosion protection spray on all metal parts including
chrome or nickel-plated surfaces.
WARNING! Do not apply silicone
or oil spray to seats, han d g rips,
ru bber foot pe gs or tire tread s.
Otherwise these parts will b e-
come slippery, which coul d
cause loss of control. Thor-
ou ghly clean the surfaces of
these parts before operatin g the
vehicle.
[EWA20650]
5. Treat rubber, vinyl, and unpainted plastic parts with a suitable care
product.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces using a non-abrasive wax or use a detail
spray for motorcycles.
8. When finished cleaning, start the engine and let it idle for several
minutes to help dry any remaining
moisture.
9. If the headlight lens has fogged up, start the engine and turn on
the headlight to help remove the
moisture.
10. Let the vehicle dry completely be- fore storing or covering it.
NOTICE
ECA26320
Do not apply wax to ru bber or
unpainte d plastic parts.
 Do not use a brasive polishin g
compoun ds as they will wear
away the paint.
 Apply sprays an d wax sparin gly.
Wipe off excess afterwar ds.
WARNING
EWA20660
Contaminants left on the brakes or
tires can cause loss of control.  Make sure there is no lu bricant
or wax on the brakes or tires.
 If necessary, wash the tires with
warm water an d a mil d d eter-
g ent.
 If necessary, clean the brake
d iscs an d pad s with b rake
cleaner or acetone.
 Before ri din g at hi gher spee ds,
test the vehicle’s brakin g per-
formance an d cornerin g b ehav-
ior.
UBR882E0.book Page 3 Wednesd ay, February 26, 2020 11:39 AM

Motorcycle care and stora ge
8-4
8
EAU86460
Stora ge
Always store the vehicle in a cool, dry
place. If necessary, protect it against
dust with a porous cover. Be sure the
engine and the exhaust system are
cool before covering the vehicle. If the
vehicle often sits for weeks at a time
between uses, the use of a quality fuel
stabilizer is recommended after each
fill-up.
NOTICE
ECA21170
 Storin g the vehicle in a poorly
ventilate d room or coverin g it
with a tarp, while it is still wet,
will allow water an d humi dity to
seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are stored .
Long term stora ge
Before storing the vehicle long term (60
days or more): 1. Make all necessary repairs and perform any outstanding mainte-
nance.
2. Follow all instructions in the Care Section of this chapter.
3. Fill up the fuel tank and add fuel stabilizer according to product in-
structions.
4. Run the engine for 5 minutes to distribute treated fuel through the
fuel system.
5. For vehicles with a fuel cock: Turn the fuel cock lever to the off posi-
tion. 6. For vehicles with a carburetor: To
prevent fuel deposits from build-
ing up, drain the fuel in the carbu-
retor float chamber into a clean
container. Retighten the drain bolt
and pour the fuel back into the fuel
tank.
7. Use a quality engine fogging oil according to product instructions.
If engine fogging oil is not avail-
able, perform the following steps
for each cylinder:a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter or kick-
starter. (This will coat the cylin-
der wall with oil.) WARNING!
To prevent d amage or injury
from sparkin g, make sure to
g roun d the spark plu g elec-
tro des while turning the en-
g ine over.
[EWA10952]
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
8. Lubricate all control cables, piv- ots, levers and pedals, as well as
the sidestand and centerstand (if
equipped).
9. Check and correct the tire air pressure, and then lift the vehicle
so that all wheels are off the
UBR882E0.book Page 4 Wednesd ay, February 26, 2020 11:39 AM

Motorcycle care and stora ge
8-5
8
ground. If maintenance stands are
not available, turn the wheels a lit-
tle once a month in order to pre-
vent the tires from becoming
degraded in one spot.
10. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
11. For vehicles with a battery: Re- move and fully charge it, or attach
a maintenance charger. NOTICE:
Confirm that the b attery and its
char ger are compati ble. Do not
char ge a VRLA battery with a
conventional char ger.
[ECA26330]
UBR882E0.book Page 5 Wednesd ay, February 26, 2020 11:39 AM

Specifications
9-1
9
Dimensions:
Overall length:1615 mm (63.6 in)
Overall width:
760 mm (29.9 in)
Overall height: 1000 mm (39.4 in)
Seat height: 755 mm (29.7 in)
Wheelbase:
1140 mm (44.9 in)
Ground clearance: 265 mm (10.43 in)
Wei ght:
Curb weight:
61 kg (134 lb)
Maximum rider weight:
50.0 kg (110 lb)
Engine:
Combustion cycle:
2-stroke
Cooling system:
Liquid cooled
Number of cylinders: Single cylinder
Displacement: 65 cm³
Bore × stroke:
43.5 × 43.6 mm (1.71 × 1.72 in)
Starting system: Kickstarter
Engine oil:
Engine oil:
YAMALUBE 2R
Recommended brand:
Transmission oil:
Type: Motor oil SAE 10W-30 type SE or higher or
Gear oil SAE 85W GL-3
Quantity: 0.50 L (0.53 US qt, 0.44 Imp.qt)
Coolant quantity:
Radiator (including all routes):
0.38 L (0.40 US qt, 0.33 Imp.qt)
Fuel:
Recommended fuel:Unleaded gasoline (E10 acceptable)
Octane number (RON):
98
Fuel tank capacity: 3.5 L (0.9 US gal, 0.8 Imp.gal)
Car buretor:
Type × quantity:
PWK28 × 1
Drivetrain:
Gear ratio:
1st:
2.455 (27/11)
2nd: 1.882 (32/17)
3rd: 1.529 (26/17)
4th:
1.263 (24/19)
5th: 1.095 (23/21)
6th: 0.960 (24/25)
Front tire:
Type:With tube
Size: 60/100-14 30M
Manufacturer/model:
MAXXIS/MAXXCROSS SI
Rear tire:
Type:With tube
Size:
80/100-12 41M
Manufacturer/model: MAXXIS/MAXXCROSS SI
Front brake:
Type:
Hydraulic single disc brake
Rear brake:
Type:
Hydraulic single disc brake
Front suspension:
Type:Telescopic fork
Rear suspension:
Type:
Swingarm
UBR882E0.book Page 1 Wednesd ay, February 26, 2020 11:39 AM

Consumer information
10-1
10
EAU26366
Id entification num bers
Record the vehicle identification num-
ber and the engine serial number in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
EAU26401Vehicle i dentification num ber
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En gine serial num ber
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
1
1. Engine serial number
1
UBR882E0.book Page 1 Wednesd ay, February 26, 2020 11:39 AM

Consumer information
10-2
10
EAU89670
Reporting safety defects (For CANADA customers)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform Transport Canada in addi-
tion to notifying Yamaha Motor Canada Ltd, Canada. If Transport Canada re-
ceives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, Transport Canada cannot become involved in individual problems be-
tween you, your dealer, or Yamaha Motor Canada Ltd., Canada.
To contact Transport Canada, you may call Defect Investigations and Recall Divi-
sion at 819-994-3328 or toll free 1-800-333-0510, go to www.tc.gc.ca or email:
[email protected] or write to Transport Canada, 330 Sparks Street Ottawa, ON,
K1A 0N5.
You can also obtain other information about motor vehicle safety from
www.tc.gc.ca.
UBR882E0.book Page 2 Wednesd ay, February 26, 2020 11:39 AM
