YAMAHA YZ85 2012 User Guide

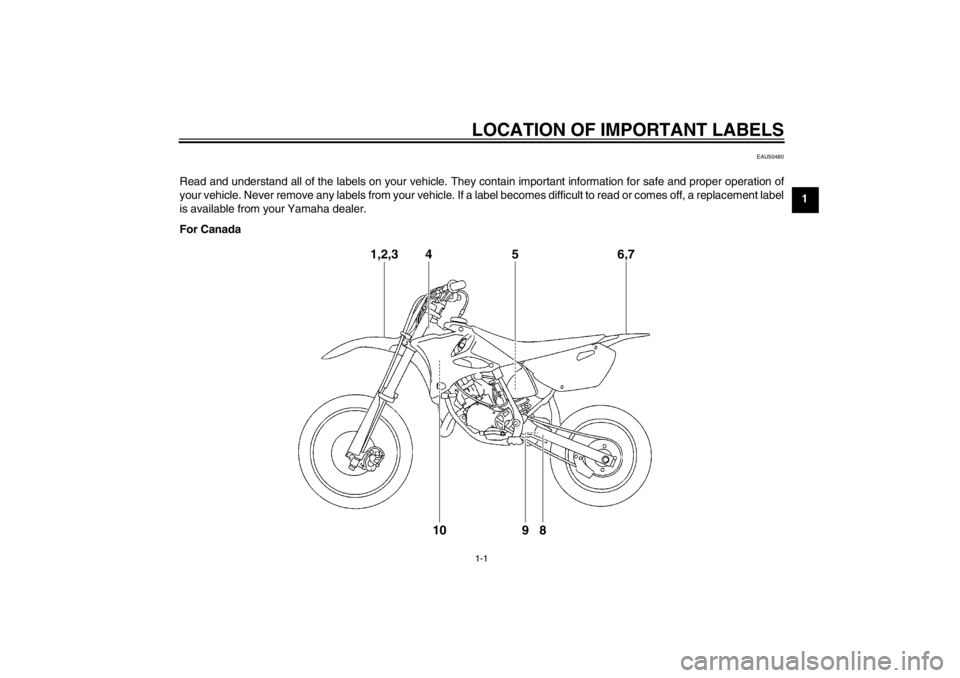

LOCATION OF IMPORTANT LABELS1-1
1
EAU50480
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
For Canada
1,2,3
4
5
6,7
8
9
10
U1SN80E0.book Page 1 Thursday, June 9, 2011 11:24 AM

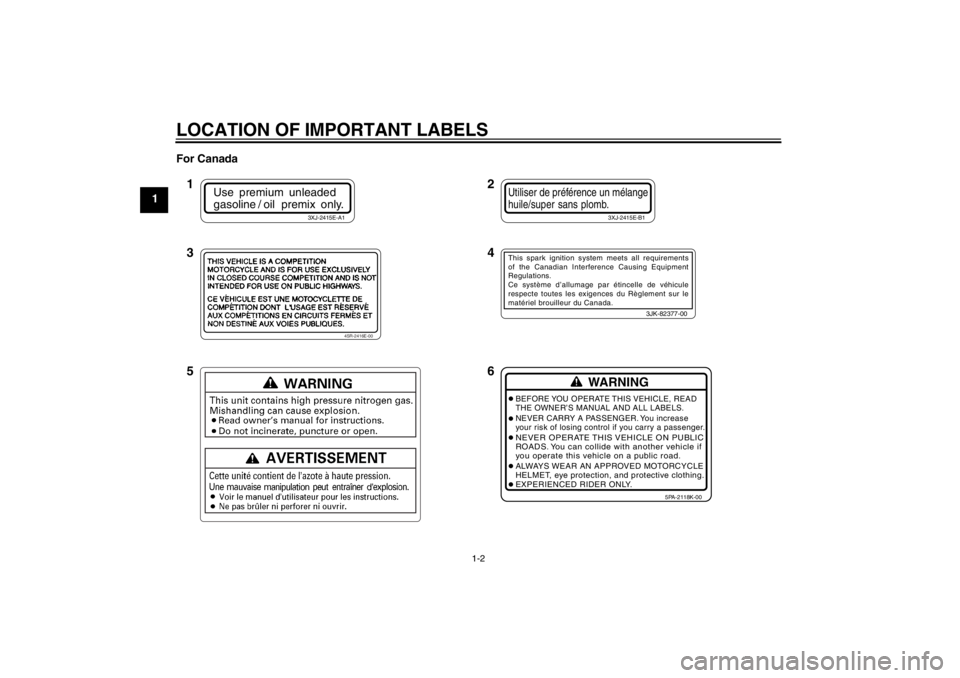

LOCATION OF IMPORTANT LABELS
1-2
1For Canada
Use premium unleaded
gasoline / oil premix only.
3XJ-2415E-A1
Utiliser de préférence un mélangehuile/super sans plomb.
3XJ-2415E-B1
4SR-2416E-00
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
WARNING
BEFORE YOU OPERATE THIS VEHICLE, READ
THE OWNER’S MANUAL AND ALL LABELS.
NEVER CARRY A PASSENGER. You increase
your risk of losing control if you carry a passenger.NEVER OPERATE THIS VEHICLE ON PUBLIC
ROADS. You can collide with another vehicle if
you operate this vehicle on a public road.ALWAYS WEAR AN APPROVED MOTORCYCLE
HELMET, eye protection, and protective clothing.
EXPERIENCED RIDER ONLY.
5PA-2118K-00
2
4
6
1
3
5
U1SN80E0.book Page 2 Thursday, June 9, 2011 11:24 AM

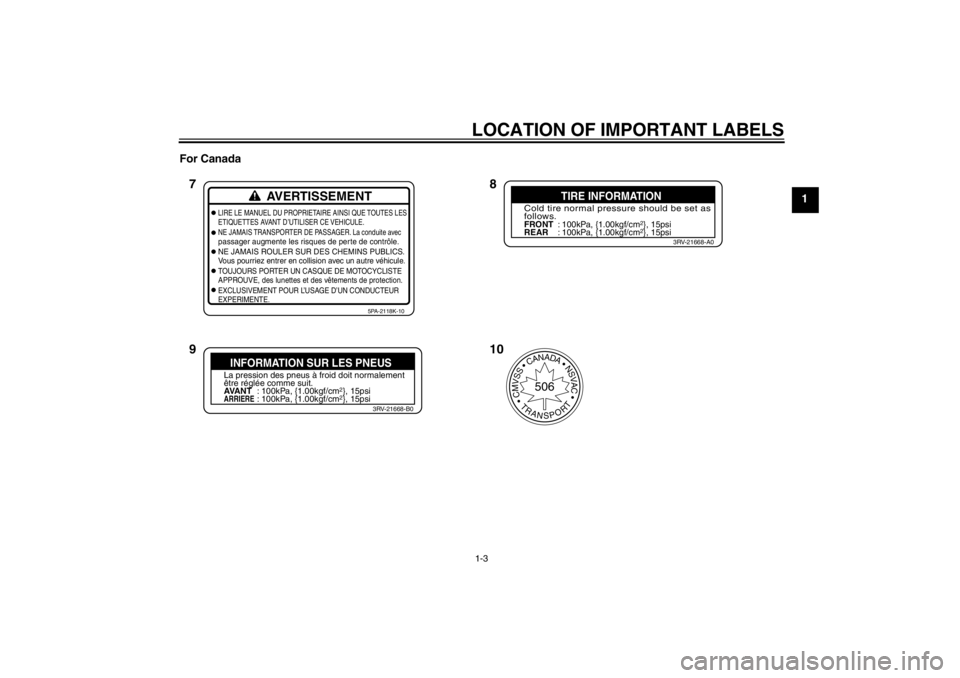

LOCATION OF IMPORTANT LABELS1-3
1
For Canada
AVERTISSEMENT
LIRE LE MANUEL DU PROPRIETAIRE AINSI QUE TOUTES LES
ETIQUETTES AVANT D
’UTILISER CE VEHICULE.
NE JAMAIS TRANSPORTER DE PASSAGER. La conduite avecpassager augmente les risques de perte de contr ôle.
NE JAMAIS ROULER SUR DES CHEMINS PUBLICS.Vous pourriez entrer en collision avec un autre v éhicule
.
TOUJOURS PORTER UN CASQUE DE MOTOCYCLISTEAPPROUVE, des lunettes et des vêtements de protection.EXCLUSIVEMENT POUR L’USAGE D’UN CONDUCTEUR
EXPERIMENTE.
5PA-2118K-10
Cold tire normal pressure should be set as
follows.FRONT
REAR : 100kPa, {1.00kgf/cm
2}, 15psi
: 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
TIRE INFORMATION
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANTARRIERE
: 100kPa, {1.00kgf/cm
2}, 15psi
: 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-B0
INFORMATION SUR LES PNEUS
CMVSSCANADANSVAC
TRANSPORT
506
8
10
7
9
U1SN80E0.book Page 3 Thursday, June 9, 2011 11:24 AM

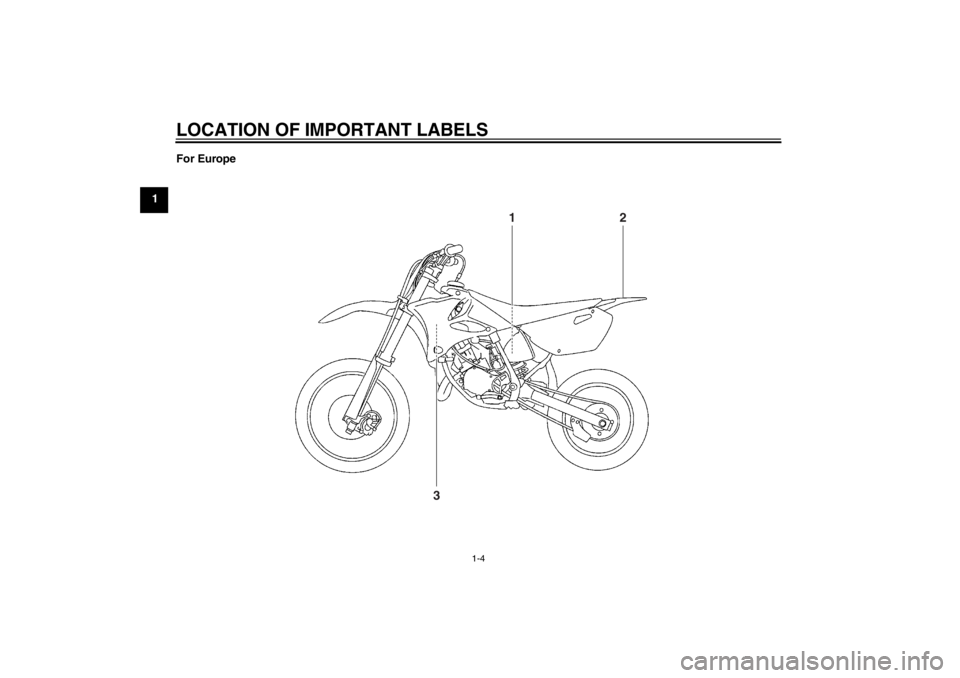

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
1
2
3
U1SN80E0.book Page 4 Thursday, June 9, 2011 11:24 AM

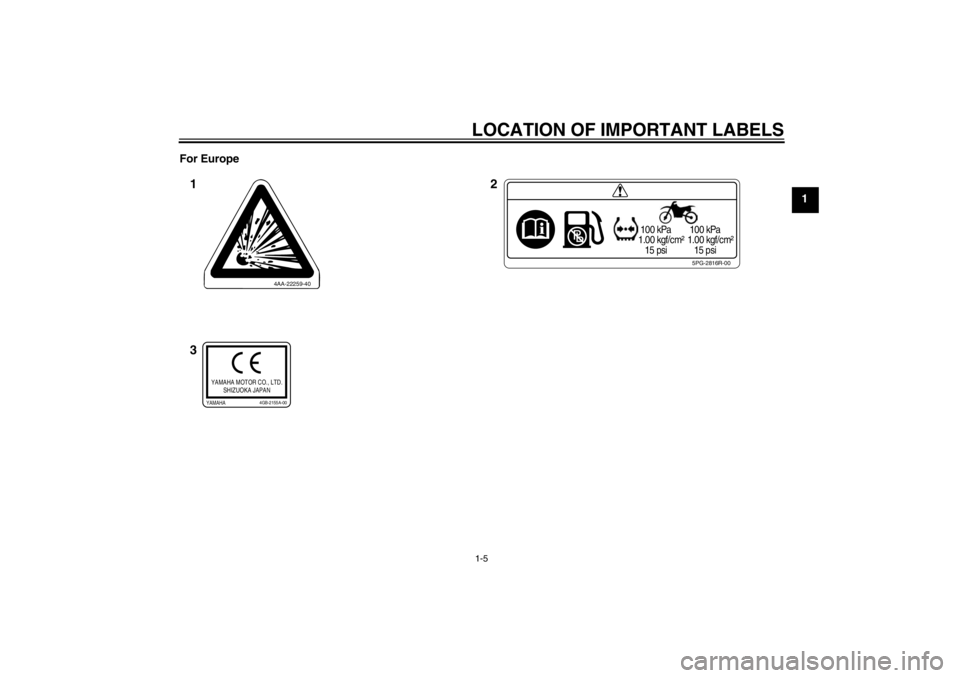

LOCATION OF IMPORTANT LABELS1-5
1
For Europe
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi
100 kPa
1.00 kgf/cm²
15 psi
4AA-22259-40
YAMAHA MOTOR CO., LTD.
SHIZUOKA JAPANYAMAHA
4GB-2155A-00
2
1
3
U1SN80E0.book Page 5 Thursday, June 9, 2011 11:24 AM

LOCATION OF IMPORTANT LABELS
1-6
1Familiarize yourself with the following pictograms and read the explanatory text.
**.* kPa
*.** kgf/cm²
*.* psi **.* kPa
*.** kgf/cm²
*.* psi
Read the Owner ’s manual.
This unit contains high-pressure
nitrogen gas.
Mishandling can cause
an explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery. Use unleaded gasoline only.
Measure the tire pressure when
the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
U1SN80E0.book Page 6 Thursday, June 9, 2011 11:24 AM

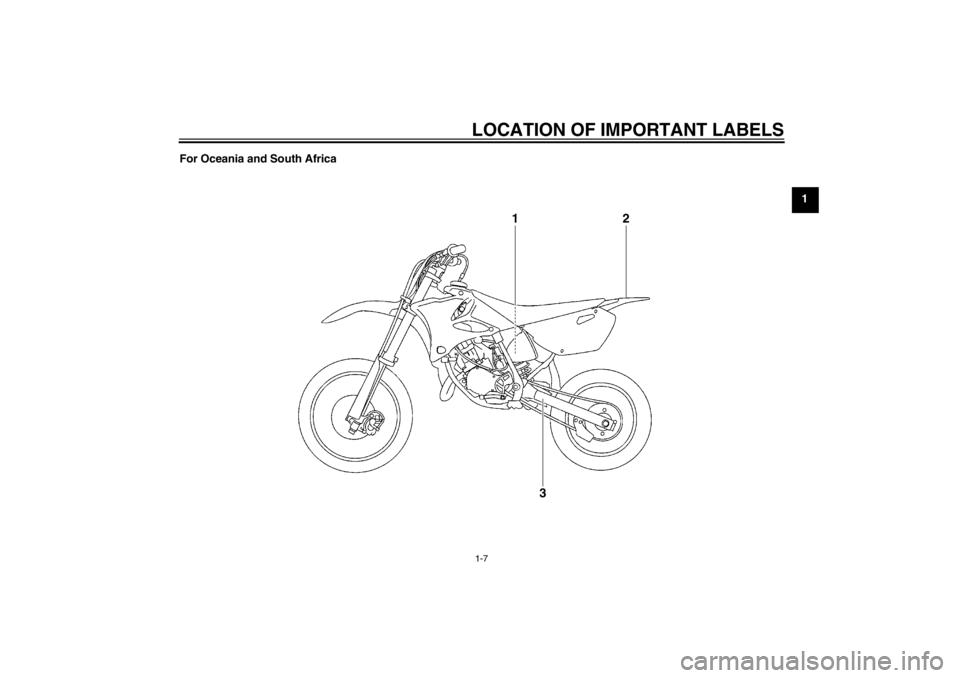

LOCATION OF IMPORTANT LABELS1-7
1
For Oceania and South Africa
1
2
3
U1SN80E0.book Page 7 Thursday, June 9, 2011 11:24 AM

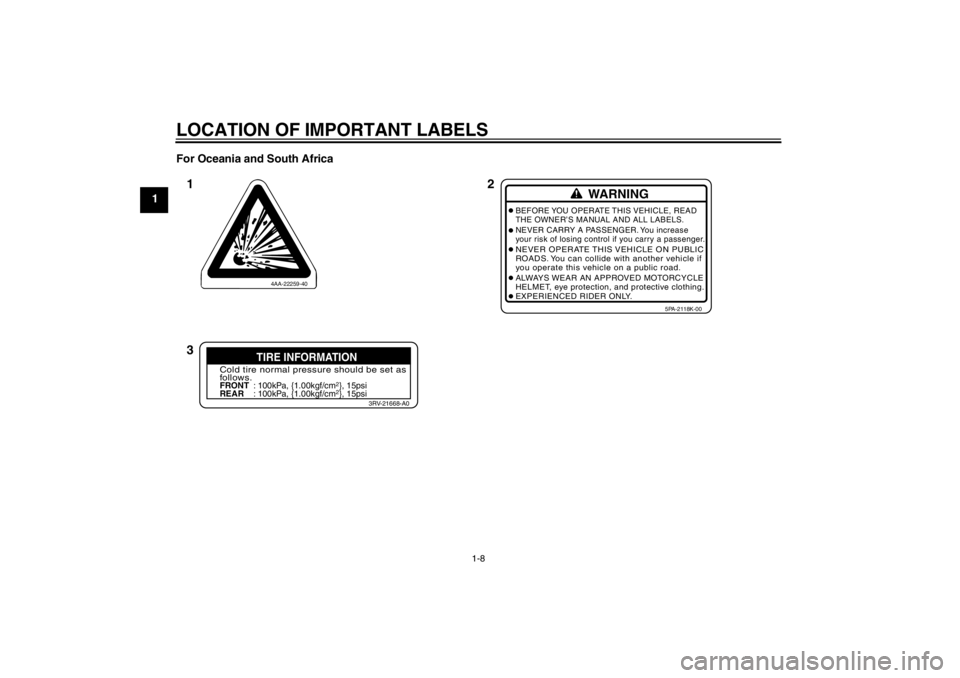

LOCATION OF IMPORTANT LABELS
1-8
1For Oceania and South Africa
4AA-22259-40
WARNING
BEFORE YOU OPERATE THIS VEHICLE, READ
THE OWNER’
S MANUAL AND ALL LABELS.
NEVER CARRY A PASSENGER. You increase
your risk of losing control if you carry a passenger.NEVER OPERATE THIS VEHICLE ON PUBLIC
ROADS. You can collide with another vehicle if
you operate this vehicle on a public road.ALWAYS WEAR AN APPROVED MOTORCYCLE
HELMET, eye protection, and protective clothing.
EXPERIENCED RIDER ONLY.
5PA-2118K-00
Cold tire normal pressure should be set as
follows.FRONT
REAR : 100kPa, {1.00kgf/cm
2}, 15psi
: 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
TIRE INFORMATION
2
1
3
U1SN80E0.book Page 8 Thursday, June 9, 2011 11:24 AM

2-1
2
SAFETY INFORMATION
EAU41467
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:

Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.


Observe the warnings and mainte-
nance requirements in this Own-
er ’s Manual.


Obtain qualified training in safe
and proper riding techniques.


Obtain professional technical ser-
vice as indicated in this Owner ’s
Manual and/or when made neces-
sary by mechanical conditions. Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
 Wear a brightly colored jacket.
 Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
 Ride where other motorists can
see you. Avoid riding in another
motorist ’s blind spot.


Many accidents involve inexperi-
enced operators.
 Make sure that you are qualified
and that you only lend your mo-
torcycle to other qualified opera-
tors.
 Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
 We recommend that you prac-
tice riding your motorcycle until
you have become thoroughly fa-
miliar with the motorcycle and all
of its controls.
U1SN80E0.book Page 1 Thursday, June 9, 2011 11:24 AM

SAFETY INFORMATION
2-2
2


Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to excessive speed or under-
cornering (insufficient lean angle
for the speed). Never travel faster
than warranted by conditions.


Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.


The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motorcy-
cle.


Never ride under the influence of
alcohol or other drugs.


Be sure the transmission is in neu-
tral before starting the engine.Protective Apparel
The majority of fatalities from motorcy-
cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.


Always wear an approved helmet.


Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.


The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.


Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.


Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause burns.Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing car-
bon monoxide can cause headaches,
dizziness, drowsiness, nausea, confu-
sion, and eventually death.
Carbon Monoxide is a colorless, odor-
less, tasteless gas which may be
present even if you do not see or smell
any engine exhaust. Deadly levels of
carbon monoxide can collect rapidly
and you can quickly be overcome and
unable to save yourself. Also, deadly
levels of carbon monoxide can linger
for hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poison-
ing, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
MENT.


Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
U1SN80E0.book Page 2 Thursday, June 9, 2011 11:24 AM
