MOTORCYCLE CARE AND STORAGE
8-3
8
NOTICE
ECA10800
●
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
●
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
●
Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIPConsult a Yamaha dealer for advice on
what products to use.
EAU41514
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10810
●
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.
●
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:1. Follow all the instructions in the “Care” section of this chapter. 2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.
3. Drain the fuel tank and fuel lines, and the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up.
4. Perform the following steps to pro- tect the cylinder, piston rings, etc.
from corrosion.a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
U1SN81E0.book Page 3 Tuesday, June 12, 2012 3:17 PM

MOTORCYCLE CARE AND STORAGE
8-4
8prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]
5. Lubricate all control cables and the
pivoting points of all levers and
brake pedal.
6. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
7. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.TIPMake any necessary repairs before
storing the motorcycle.U1SN81E0.book Page 4 Tuesday, June 12, 2012 3:17 PM

SPECIFICATIONS
9-1
9
Dimensions:Overall length:YZ85 1818 mm (71.6 in)
YZ85D 1818 mm (71.6 in)
YZ85LW 1903 mm (74.9 in)
YZ85LWD 1903 mm (74.9 in)
Overall width:
758 mm (29.8 in)
Overall height: YZ85 1161 mm (45.7 in)
YZ85D 1161 mm (45.7 in)
YZ85LW 1205 mm (47.4 in)
YZ85LWD 1205 mm (47.4 in)
Seat height: YZ85 864 mm (34.0 in)
YZ85D 864 mm (34.0 in)
YZ85LW 904 mm (35.6 in)
YZ85LWD 904 mm (35.6 in)
Wheelbase:
YZ85 1255 mm (49.4 in)
YZ85D 1255 mm (49.4 in)
YZ85LW 1286 mm (50.6 in)
YZ85LWD 1286 mm (50.6 in)
Ground clearance: YZ85 351 mm (13.82 in)
YZ85D 351 mm (13.82 in)
YZ85LW 393 mm (15.47 in)
YZ85LWD 393 mm (15.47 in)Weight:Curb weight:
YZ85 71 kg (157 lb)
YZ85D 71 kg (157 lb)
YZ85LW 73 kg (161 lb)
YZ85LWD 73 kg (161 lb)
Engine:Engine type:Liquid cooled 2-stroke
Cylinder arrangement:
Single cylinder
Displacement: 84 cm³
Bore × stroke:
47.5 × 47.8 mm (1.87 × 1.88 in)
Compression ratio:
8.20 : 1
Starting system: Kickstarter
Lubrication system: PremixEngine oil:Type:YAMALUBE 2RTransmission oil:Type:
YAMALUBE 4 (10W-40) or SAE 10W-40
Oil change quantity: 0.50 L (0.53 US qt, 0.44 Imp.qt)Cooling system:Radiator capacity (including all routes):
0.54 L (0.57 US qt, 0.48 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:Premium unleaded gasoline only
Fuel tank capacity: 5.0 L (1.32 US gal, 1.10 Imp.gal)
Carburetor:Type × quantity:
PWK28 x 1Spark plug(s):Manufacturer/model: NGK/BR10EG
Spark plug gap: 0.5–0.6 mm (0.020–0.024 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:
3.611 (65/18)
Final drive: Chain
Secondary reduction ratio: YZ85 3.428 (48/14)
YZ85D 3.428 (48/14)
YZ85LW 3.714 (52/14)
YZ85LWD 3.714 (52/14)
Transmission type:
Constant mesh 6-speed
Operation: Left foot operation
Gear ratio: 1st:2.454 (27/11)
2nd: 1.882 (32/17)
3rd:
1.529 (26/17)
4th: 1.294 (22/17)
U1SN81E0.book Page 1 Tuesday, June 12, 2012 3:17 PM

SPECIFICATIONS
9-2
9
5th:1.130 (26/23)
6th: 1.000 (25/25)
Chassis:Frame type:Semi double cradle
Caster angle: YZ85 26.30 °
YZ85D 26.30 °
YZ85LW 26.90 °
YZ85LWD 26.90 °
Trail:
YZ85 88 mm (3.5 in)
YZ85D 88 mm (3.5 in)
YZ85LW 105 mm (4.2 in)
YZ85LWD 105 mm (4.2 in)Front tire:Type:With tube
Size:
YZ85 70/100-17 40M
YZ85D 70/100-17 40M
YZ85LW 70/100-19 42M
YZ85LWD 70/100-19 42M
Manufacturer/model: DUNLOP/D756FRear tire:Type:
With tube Size:
YZ85 90/100-14 49M
YZ85D 90/100-14 49M
YZ85LW 90/100-16 52M
YZ85LWD 90/100-16 52M
Manufacturer/model: DUNLOP/D756
Tire air pressure (measured on cold
tires):
Front: 100 kPa (1.00 kgf/cm², 15 psi)
Rear:
100 kPa (1.00 kgf/cm², 15 psi)
Front wheel:Wheel type:Spoke wheel
Rim size:
YZ85 17x1.40
YZ85D 17x1.40
YZ85LW 19x1.40
YZ85LWD 19x1.40Rear wheel:Wheel type:Spoke wheel
Rim size:
YZ85 14x1.60
YZ85D 14x1.60
YZ85LW 16x1.85
YZ85LWD 16x1.85Front brake:Type:Single disc brake
Operation:
Right hand operation Specified brake fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation: Right foot operation
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel:
275.0 mm (10.83 in)Rear suspension:Type:Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: YZ85 282.0 mm (11.10 in)
YZ85D 282.0 mm (11.10 in)
YZ85LW 287.0 mm (11.30 in)
YZ85LWD 287.0 mm (11.30 in)Electrical system:Ignition system:
CDI
U1SN81E0.book Page 2 Tuesday, June 12, 2012 3:17 PM

CONSUMER INFORMATION
10-1
10
EAU40792
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26460
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U1SN81E0.book Page 1 Tuesday, June 12, 2012 3:17 PM

INDEXAAir filter element, cleaning..................... 7-12BBrake and clutch levers, checking and lubricating ..................... 7-24
Brake fluid, changing ............................ 7-22
Brake fluid level, checking .................... 7-20
Brake lever .............................................. 4-2
Brake lever free play, checking ............. 7-19
Brake pedal ............................................. 4-2
Brake pedal, checking and lubricating ..................... 7-25CCables, checking and lubricating .......... 7-24
Carburetor, adjusting ............................ 7-14
Care ........................................................ 8-1
Clutch lever ............................................. 4-1
Clutch lever free play, adjusting ............ 7-18
Coolant.................................................. 7-10DDrive chain, cleaning and lubricating .... 7-23
Drive chain slack ................................... 7-22EEngine break-in ....................................... 6-3
Engine idling speed............................... 7-14
Engine, starting a warm .......................... 6-1
Engine stop button .................................. 4-1FFront and rear brake pads, checking .... 7-20
Front fork, adjusting ................................ 4-7
Front fork, bleeding ................................. 4-9
Front fork, checking .............................. 7-26
Fuel ......................................................... 4-3
Fuel cock................................................. 4-5 Fuel tank breather hose.......................... 4-5
Fuel tank cap .......................................... 4-3
HHandlebar switch .................................... 4-1IIdentification numbers .......................... 10-1KKickstarter............................................... 4-6LLabels, location....................................... 1-1MMatte color, caution ................................ 8-1
Model label ........................................... 10-1PParking ................................................... 6-4
Part locations .......................................... 3-1
Periodic maintenance and
lubrication chart .................................... 7-2RRear suspension, lubricating ................ 7-25SSafety information................................... 2-1
Seat ........................................................ 4-7
Shifting.................................................... 6-2
Shift pedal............................................... 4-1
Shift pedal, checking ............................ 7-19
Shock absorber assembly, adjusting ...... 4-9
Sidestand.............................................. 4-12
Spark plug, checking .............................. 7-8
Specifications ......................................... 9-1
Starter (choke) knob ............................... 4-6
Starting and warming up a cold engine ........................................ 6-1
Steering, checking ................................ 7-27 Storage.................................................... 8-3
Supporting the motorcycle .................... 7-27
Swingarm pivots, lubricating ................. 7-26
TThrottle grip and cable,
checking and lubricating ..................... 7-24
Throttle grip free play, adjusting ............ 7-15
Tires ...................................................... 7-15
Transmission oil ...................................... 7-9
Troubleshooting .................................... 7-31
Troubleshooting charts.......................... 7-32VVehicle identification number ................ 10-1WWheel bearings, checking ..................... 7-27
Wheel (front) ......................................... 7-28
Wheel (rear) .......................................... 7-29
Wheels .................................................. 7-17
U1SN81E0.book Page 1 Tuesday, June 12, 2012 3:17 PM

U1SN81E0.book Page 2 Tuesday, June 12, 2012 3:17 PM

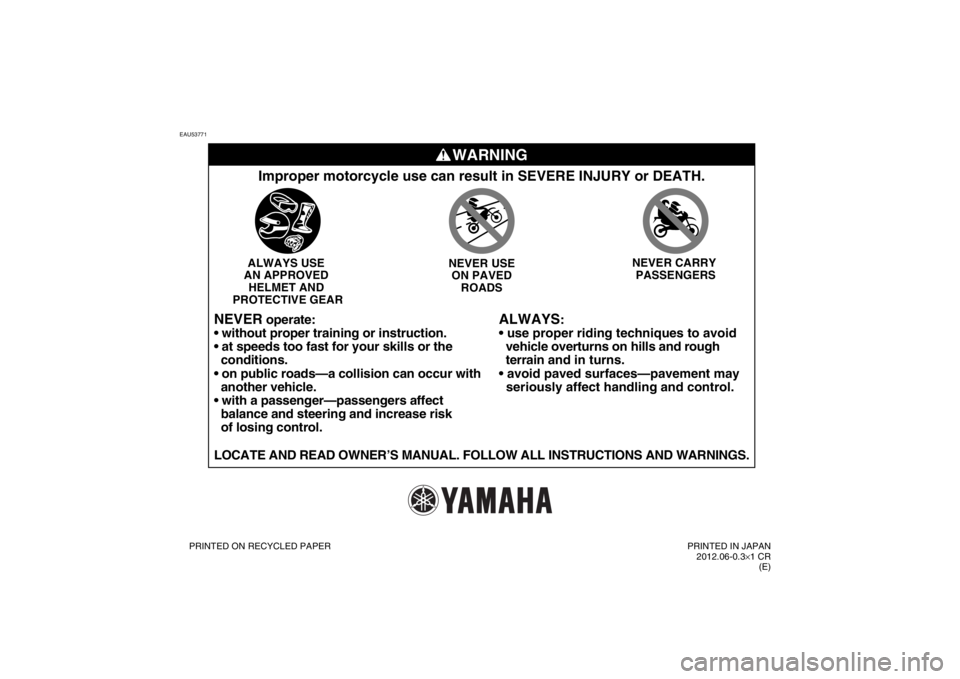

EAU53771
