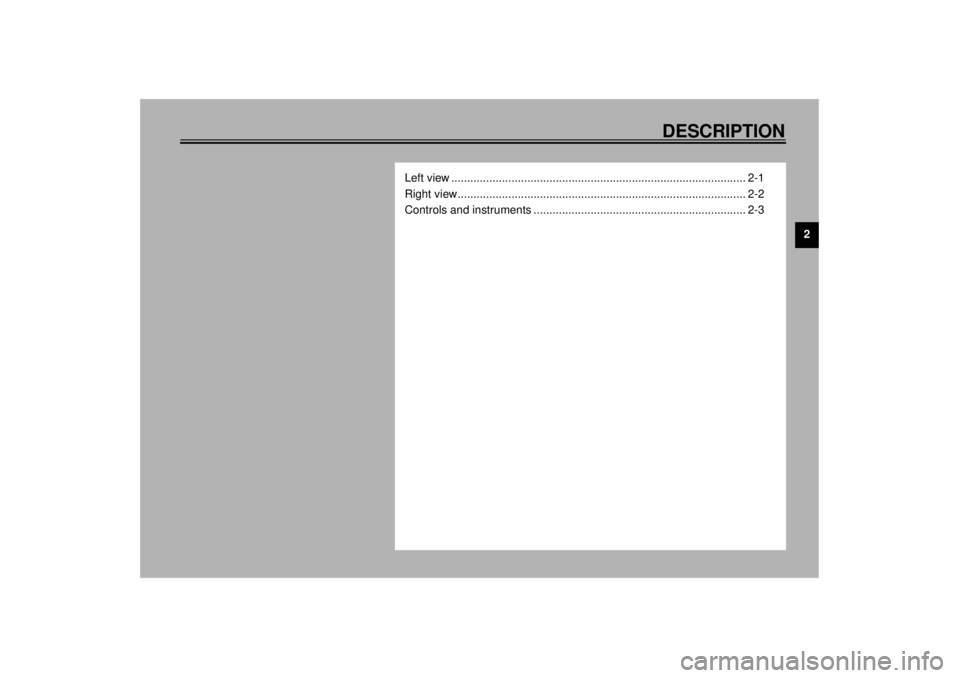

YAMAHA YZF-R1 2000 User Guide DESCRIPTION
2
Left view ............................................................................................. 2-1
Right view ...................................................................

Page 12 of 115

YAMAHA YZF-R1 2000 User Guide 2-1
2
EAU00026

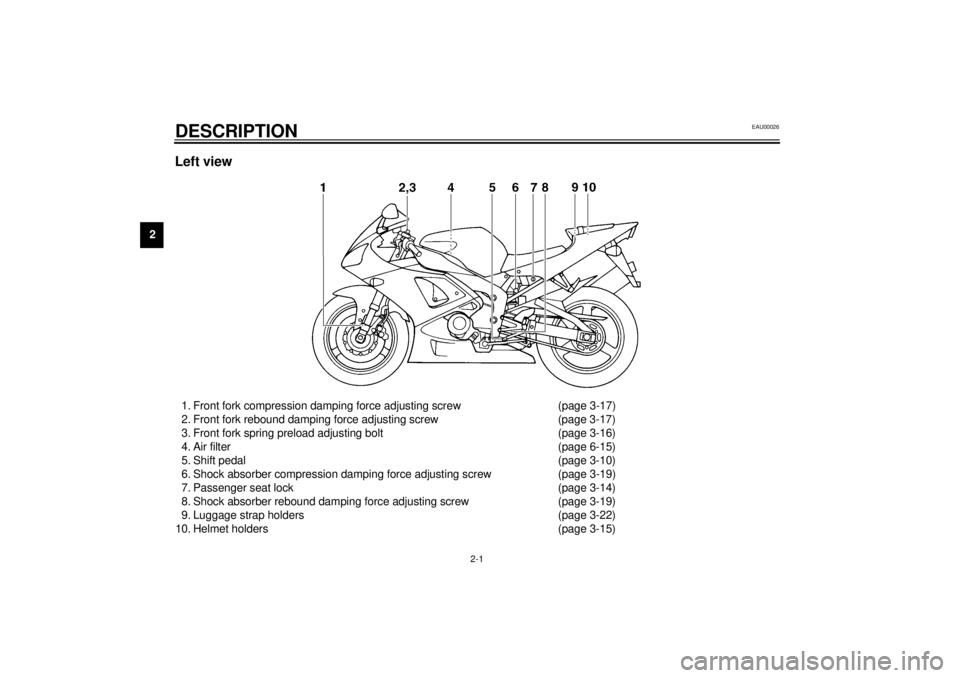

2-DESCRIPTIONLeft view1. Front fork compression damping force adjusting screw (page 3-17)
2. Front fork rebound damping force adjusting screw (page 3-17)
3. Front fork spring preload ad

Page 13 of 115

YAMAHA YZF-R1 2000 User Guide DESCRIPTION
2-2
2
Right view11. Owner’s tool kit (page 6-1)
12. Fuses (page 6-34)
13. Rear brake fluid reservoir (page 6-26)
14. Battery (page 6-33)
15. Shock absorber spring preload
adjusting ring

Page 14 of 115

YAMAHA YZF-R1 2000 User Guide DESCRIPTION
2-3
2

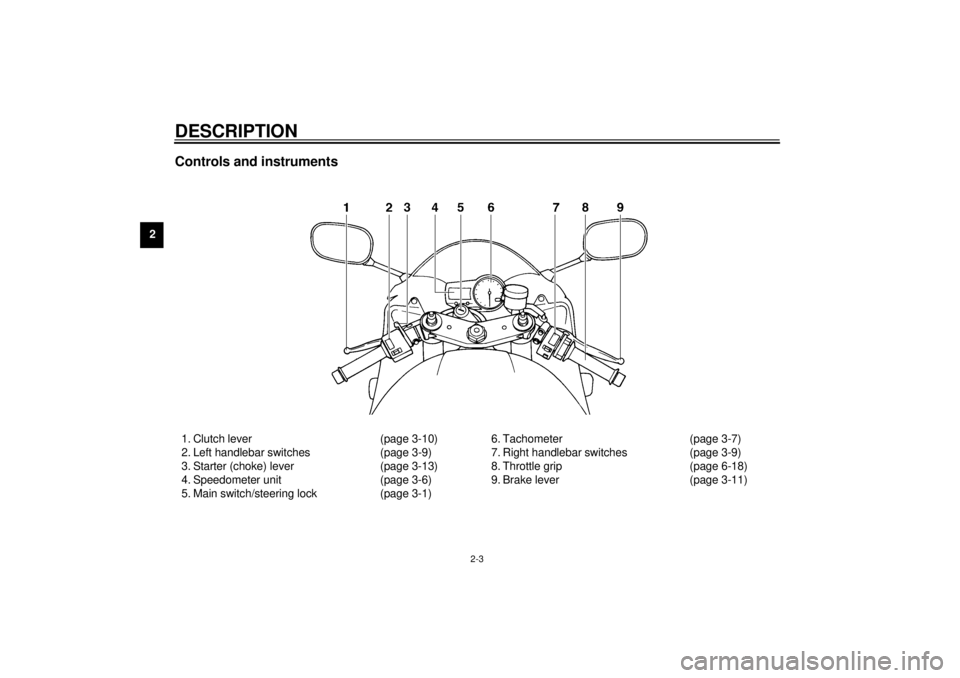

Controls and instruments1. Clutch lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Starter (choke) lever (page 3-13)
4. Speedometer unit (page 3-6)
5. Main switch/steering

Page 15 of 115

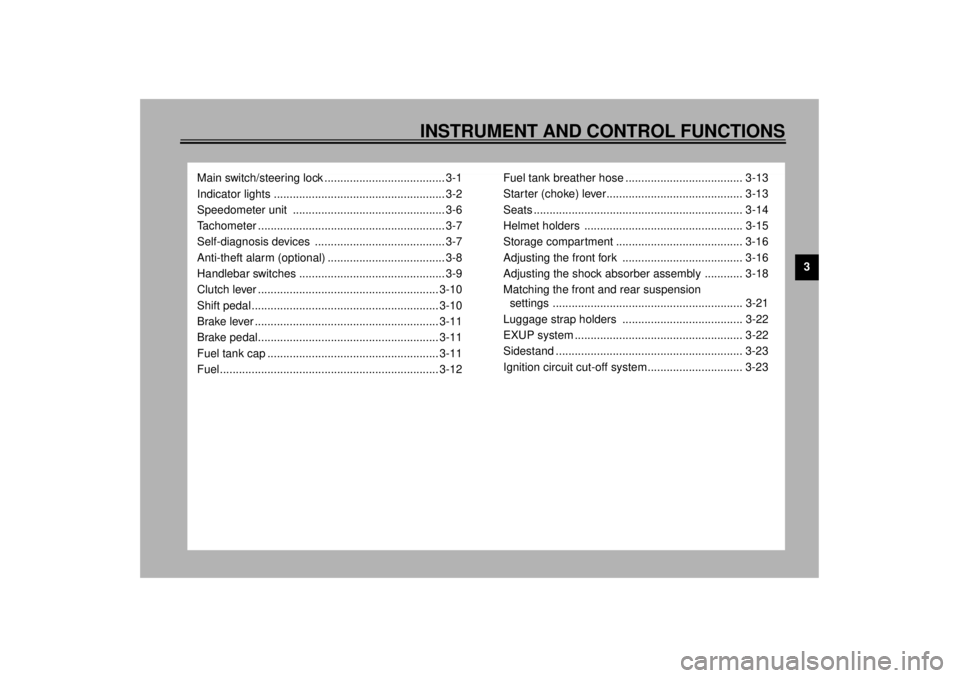

YAMAHA YZF-R1 2000 User Guide 3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................... 3-1
Indicator lights ...................................................... 3-2
Speedometer unit  ..

Page 16 of 115

YAMAHA YZF-R1 2000 User Guide 3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The vari

Page 17 of 115

YAMAHA YZF-R1 2000 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU01574
 (Parking)
The steering is locked, and the taillights
and auxiliary lights are on, but all other
electrical systems are off. The key can
be removed.
The

Page 18 of 115

YAMAHA YZF-R1 2000 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU03155
Oil level warning light “ ”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checke

Page 19 of 115

YAMAHA YZF-R1 2000 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 3. Push the start switch. If the warn-
ing light does not come on while
pushing the start switch, have a
Yamaha dealer check the electri-
cal circuit.
EC000002
C

Page 20 of 115

YAMAHA YZF-R1 2000 User Guide INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
CB-25E
Coolant
temperatureDisplay Conditions What to do0–39 °CMessage “LO” is
displayed.OK. Go ahead with riding.
40–116 °CTemperature is
displayed.
