MOTORCYCLE CARE AND STORAGE
7-4
7
ECA00013
CAUTION:@ l
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
l
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
l
Avoid using abrasive polishing
compounds as they will wear
away the paint.
@NOTE:@ Consult a Yamaha dealer for advice on
what products to use. @
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:@ l
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.
l
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
@
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.
3. Drain the carburetor float cham-
bers by loosening the drain bolts;
this will prevent fuel deposits from
building up. Pour the drained fuel
into the fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
E_5jj.book Page 4 Friday, September 8, 2000 3:33 PM

MOTORCYCLE CARE AND STORAGE
7-5
7a. Remove the spark plug caps and
spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto the
spark plugs, and then place the
spark plugs on the cylinder head
so that the electrodes are ground-
ed. (This will limit sparking during
the next step.)
d. Turn the engine over several times
with the starter. (This will coat the
cylinder walls with oil.)
e. Remove the spark plug caps from
the spark plugs, and then install
the spark plugs and the spark plug
caps.
EWA00003
WARNING
@ To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over. @
6. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place (less
than 0°C or more than 30°C). For
more information on storing the
battery, see page 6-33.
NOTE:@ Make any necessary repairs before
storing the motorcycle. @
E_5jj.book Page 5 Friday, September 8, 2000 3:33 PM

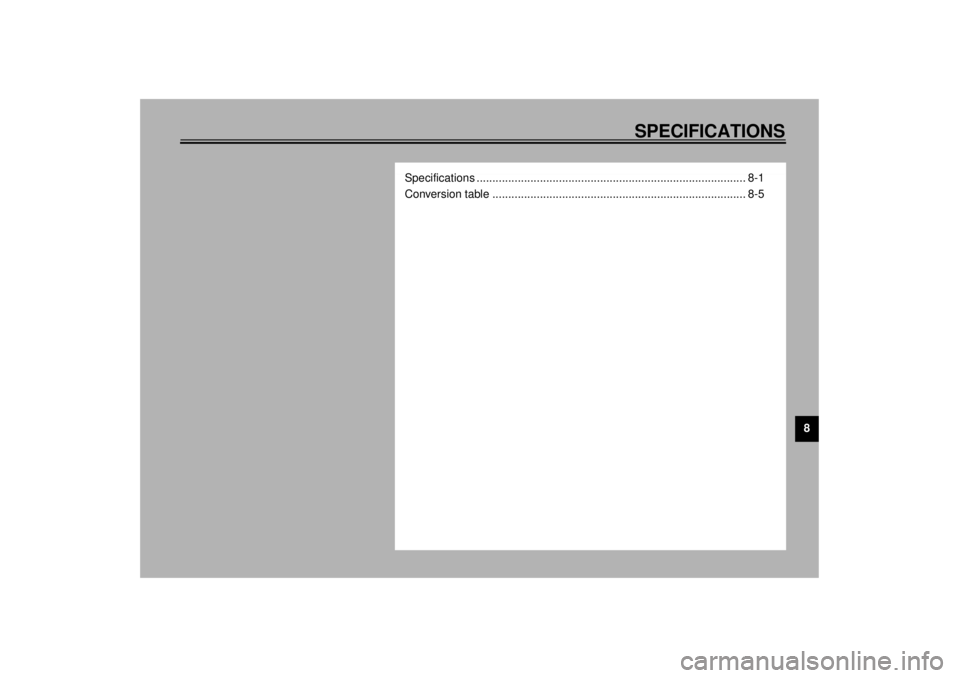

SPECIFICATIONS
8
Specifications ..................................................................................... 8-1
Conversion table ................................................................................ 8-5
E_5jj.book Page 1 Friday, September 8, 2000 3:33 PM

8-1
8
EAU01038
8-SPECIFICATIONSSpecificationsCS-01E
Model YZF-R1
Dimensions
Overall length 2,035 mm
Overall width 695 mm
Overall height 1,105 mm
Seat height 815 mm
Wheelbase 1,395 mm
Ground clearance 140 mm
Minimum turning radius 3,400 mm
Basic weight (with oil and full
fuel tank)
194 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 998 cm
3
Bore ´ stroke 74 ´ 58 mm
Compression ratio 11.8:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 2.7 L
With oil filter car tridge
replacement 2.9 L
Total amount (dry engine) 3.6 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
E_5jj.book Page 1 Friday, September 8, 2000 3:33 PM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
2.55 L
Air filterDry type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 18 L
Fuel reserve amount 3.8 L
Carburetor
Manufacturer MIKUNI
Model ´ quantity BDSR40 ´ 4
Spark plug
Manufacturer/model NGK / CR9E or
DENSO / U27ESR-N
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.581
Secondary reduction system Chain drive
Secondary reduction ratio 2.688
Number of drive chain
sprocket teeth (rear/front) 16/43
Transmission type Constant-mesh 6-speed
Operation Left footGear ratio
1st 2.500
2nd 1.842
3rd 1.500
4th 1.333
5th 1.200
6th 1.115
Chassis
Frame type Diamond
Caster angle 24°
Trail 92 mm
Tires
Front
Type Tubeless
Size 120/70 ZR17 (58 W)
Manufacturer/
model Metzeler / MEZ3Y Front
Dunlop / D207FQ
Rear
Type Tubeless
Size 190/50 ZR17 (73 W)
Manufacturer/
model Metzeler / MEZ3Y
Dunlop / D207N
E_5jj.book Page 2 Friday, September 8, 2000 3:33 PM

SPECIFICATIONS
8-3
8
Maximum load* 201 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kg/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 ´ MT 3.50
Rear
Type Cast wheel
Size 17 ´ MT 6.00
Brakes
Front
Type Dual disc brake
Operation Right hand
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 135 mm
Rear 130 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 365 W@ 5,000 r/min
Battery
Model GT12B-4
Voltage, capacity 12 V, 10 Ah
Headlight typeQuartz bulb (halogen)
E_5jj.book Page 3 Friday, September 8, 2000 3:33 PM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 2
Tail/brake light 12 V, 5/21 W ´ 2
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 5 W ´ 2
Meter lighting LED
Neutral indicator light LED
High beam indicator light LED
Turn signal indicator light LED
Fuel level warning light LED
Oil level warning light LED
Fuses
Main fuse 30 A
Headlight fuse 20 A
Signaling system fuse 20 A
Radiator fan fuse 10 A
Ignition fuse 15 A
Odometer fuse 10 A
E_5jj.book Page 4 Friday, September 8, 2000 3:33 PM

SPECIFICATIONS
8-5
8
EAU01064
Conversion tableCS-02E All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
ExampleMETRIC MULTIPLIER IMPERIAL
** mm´ 0.03937 = ** in
2 mm´ 0.03937 = 0.08 in
Conversion tableMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/h 0.6214 mi/h
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm3)
cc (cm3)
L (liter)
L (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_5jj.book Page 5 Friday, September 8, 2000 3:33 PM
