PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU03164

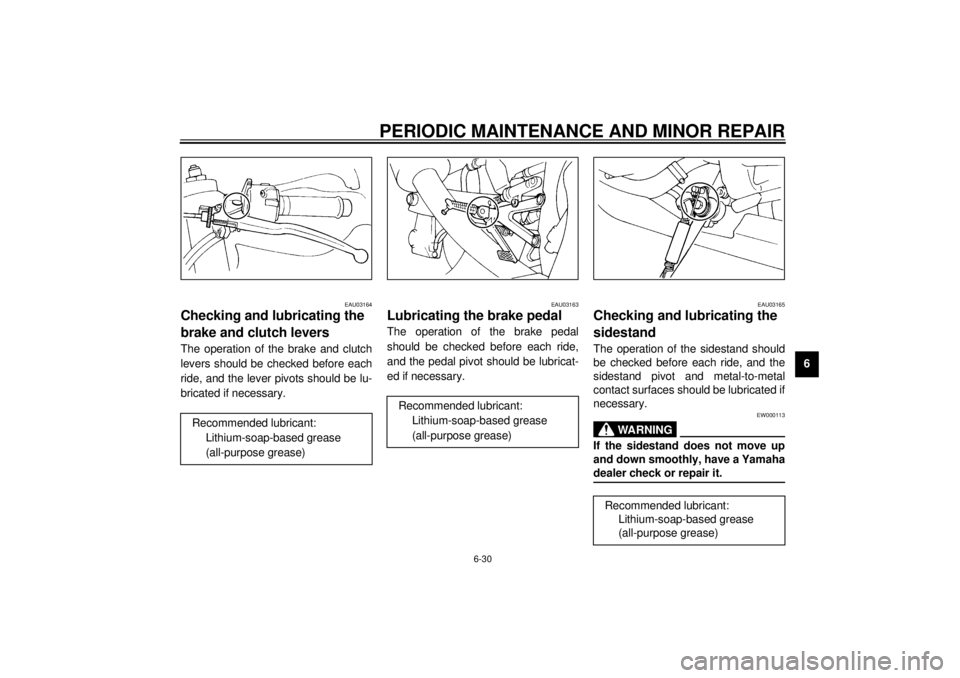

Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
EAU03163
Lubricating the brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU03165
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
EW000113
WARNING
@ If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. @
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
E_5jj.book Page 30 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU03166
Lubricating the rear
suspension The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU02939
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @Check the inner tubes for scratches,

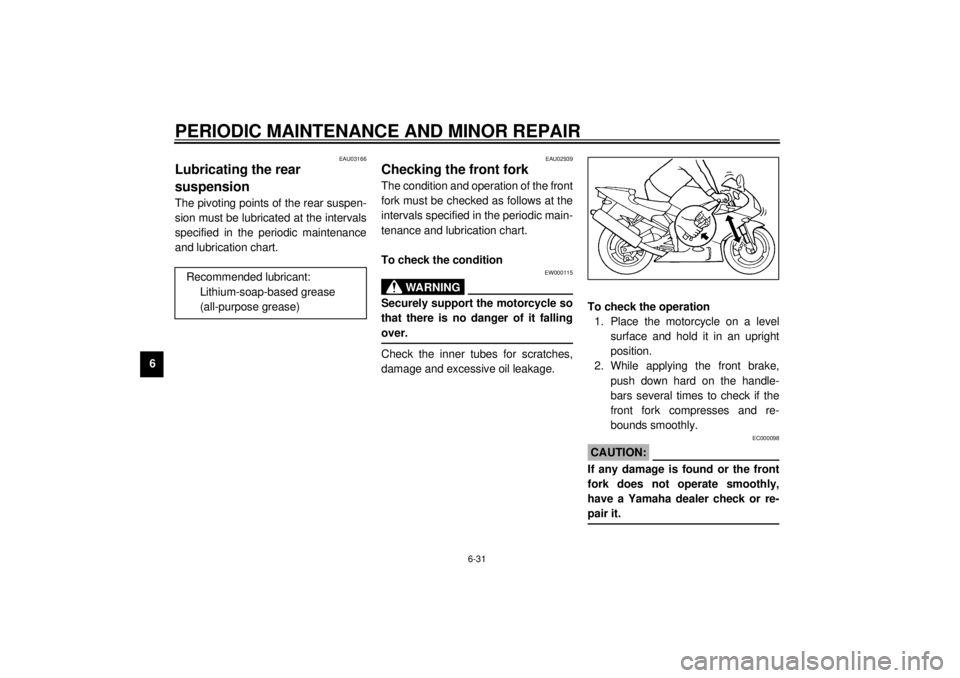

damage and excessive oil leakage.To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
EC000098
CAUTION:@ If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it. @
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
E_5jj.book Page 31 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU00794
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
EW000115
WARNING
@ Securely support the motorcycle so
that there is no danger of it falling
over. @
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the
steering.
EAU01144
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
E_5jj.book Page 32 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU01291
Battery This motorcycle is equipped with a
sealed-type (MF) battery, which does
not require any maintenance. There is
no need to check the electrolyte or to
add distilled water.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the motorcycle is equipped with op-
tional electrical accessories.
EW000116
WARNING
@ l
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
• EYES: Flush with water for
15 minutes and seek prompt
medical attention.
l
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
l
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
@To store the battery
1. If the motorcycle will not be used
for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
E_5jj.book Page 33 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
EC000102
CAUTION:@ l
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
l
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is re-
quired. Using a conventional
battery charger will damage the
battery. If you do not have ac-
cess to a sealed-type (MF) bat-
tery charger, have a Yamaha
dealer charge your battery.
@
EAU03610
Replacing the fuses The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the rider seat.
(See page 3-14 for rider seat removal
and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Headlight fuse
2. Radiator fan fuse
3. Ignition fuse
4. Signaling system fuse
5. Odometer fuse
6. Spare fuse (´ 3)
1. Main fuse
2. Spare main fuseSpecified fuses:
Main fuse: 30 A
Headlight fuse: 20 A
Signaling system fuse: 20 A
Radiator fan fuse: 10 A
Ignition fuse: 15 A
Odometer fuse: 10 A
E_5jj.book Page 34 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EC000103
CAUTION:@ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. @3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU00826
Replacing the headlight bulb This motorcycle is equipped with a
quartz bulb headlight. If the headlight
bulb burns out, replace it as follows.
1. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.2. Unhook the headlight bulb holder,
and then remove the defective
bulb.1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
E_5jj.book Page 35 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EW000119
WARNING
@ Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down. @3. Place a new bulb into position, and
then secure it with the bulb holder.
EC000104
CAUTION:@ Take care not to damage the follow-
ing parts:l
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosi-
ty of the bulb, and the bulb life
will be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
l
Headlight lens
• Do not affix any type of tinted
film or stickers to the head-
light lens.
• Do not use a headlight bulb of
a wattage higher than
specified.
@4. Install the bulb cover, and then
connect the coupler.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Do not touch this area.
E_5jj.book Page 36 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
6
EAU01358
Replacing the tail/brake light
bulb 1. Remove the passenger seat. (See
page 3-14 for passenger seat re-
moval and installation procedures.)
2. Remove the tail/brake light bulb
cover.3. Remove the socket (together
with the bulb) by turning it
counterclockwise.
4. Remove the defective bulb by
pushing it in and turning it
counterclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the bulb cover.
8. Install the passenger seat.
EAU03497
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it
counterclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
1. Tail/brake light bulb cover
1. Socket
1. Screw
E_5jj.book Page 37 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6
ECA00065
CAUTION:@ Do not overtighten the screw, other-
wise the lens may break. @
EAU01579
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motor-
cycle is in a stable and level position
before starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
E_5jj.book Page 38 Friday, September 8, 2000 3:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EAU03167
Front wheelTo remove the front wheel
EW000122
WARNING
@ l
It is advisable to have a Yamaha
dealer service the wheel.
l
Securely support the motor-
cycle so that there is no danger
of it falling over.
@1. Remove cowling A. (See page 6-5
for cowling removal and installa-
tion procedures.)2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.
3. Lift the front wheel off the ground
according to the procedure on
page 6-38.4. Remove the brake hose holders
on each side by removing the
bolts.
5. Remove the brake caliper on each
side by removing the bolts.
6. Pull the wheel axle out, and then
remove the wheel.
ECA00046
CAUTION:@ Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut. @

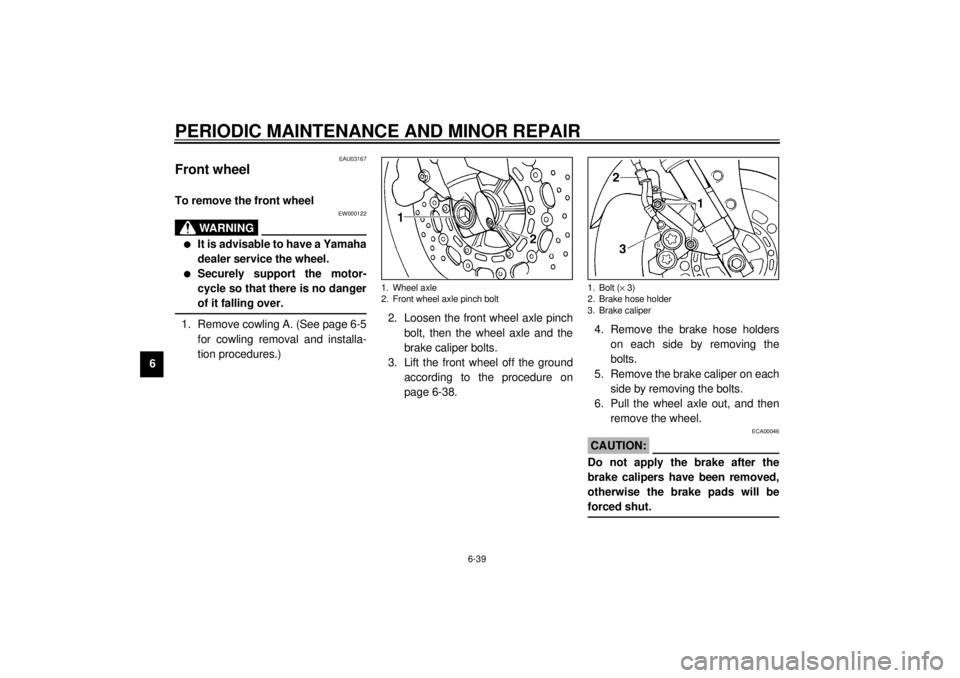

1. Wheel axle
2. Front wheel axle pinch bolt
1. Bolt (´ 3)
2. Brake hose holder
3. Brake caliper
E_5jj.book Page 39 Friday, September 8, 2000 3:33 PM
