INSTRUMENT AND CONTROL FUNCTIONS
3-17
3 5. Push the “SELECT” button to con-
firm the selected brightness level.
The control mode changes to the
shift timing indicator light activity
function.
To set the shift timing indicator light ac-
tivity function1. Push the “RESET” button to select
one of the following indicator light
activity settings:


The indicator light stays on
when activated. (This setting
is selected when the indicator
light stays on.)


The indicator light flashes
when activated. (This setting
is selected when the indicator
light flashes four times per
second.)


The indicator light is deacti-
vated; in other words, it does
not come on or flash. (This
setting is selected when the
indicator light flashes once
every two seconds.)2. Push the “SELECT” button to con-
firm the selected indicator light ac-
tivity. The control mode changes to
the shift timing indicator light acti-
vation function.
To set the shift timing indicator light ac-
tivation functionTIPThe shift timing indicator light activation
function can be set between 7000 r/min
and 15000 r/min. From 7000 r/min to
12000 r/min, the indicator light can be
set in increments of 500 r/min. From
12000 r/min to 15000 r/min, the indica-
tor light can be set in increments of 200
r/min.1. Push the “RESET” button to select
the desired engine speed for acti-
vating the indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift timing indicator light deactiva-
tion function.To set the shift timing indicator light de-
activation functionTIP

The shift timing indicator light de-
activation function can be set be-
tween 7000 r/min and 15000 r/min.
From 7000 r/min to 12000 r/min,
the indicator light can be set in in-
crements of 500 r/min. From
12000 r/min to 15000 r/min, the in-
dicator light can be set in incre-
ments of 200 r/min.


Be sure to set the deactivation
function to a higher engine speed
than for the activation function,
otherwise the shift timing indicator
light remains deactivated.
1. Push the “RESET” button to select
the desired engine speed for deac-
tivating the indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift timing indicator light bright-
ness function.
U14BE1E0.book Page 17 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3To adjust the shift timing indicator light
brightness1. Push the “RESET” button to select
the desired indicator light bright-
ness level.
2. Push the “SELECT” button to con-
firm the selected indicator light
brightness level. The control mode
changes to the throttle opening po-
sition display.
To set the throttle opening position dis-play1. Push the “RESET” button to select
one of the following activity set-
tings:


The throttle opening seg-
ments and “R1” are displayed.


“R1” is displayed only.


Neither throttle opening seg-
ments nor “R1” are displayed.
2. Push the “SELECT” button to con-
firm the selected throttle opening
position display activity. The dis-
play returns to the odometer or
tripmeter mode.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches Left1. Pass switch “PASS”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
5. Hazard switch“”
U14BE1E0.book Page 18 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3 Right
EAU12370
Pass switch “PASS”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU47494
Drive mode switch “MODE”
WARNING
EWA15340
Do not change the D-mode while the
vehicle is moving.Using this switch changes the drive
mode to “STD”, “A”, or “B” in the follow-
ing order:
STD → A → B → STD
1. Engine stop switch“/”
2. Drive mode switch “MODE”
3. Start switch“”
1
2
3
U14BE1E0.book Page 19 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3The throttle grip must be completely
closed in order to change the drive
mode. (See page 3-1 for an explana-
tion of each drive mode.)
TIP

The mode is set to “STD” by de-
fault. The “STD” mode resets
when the key is turned to “OFF”.


The selected mode is shown on
the drive mode display. (See page
3-14.)
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-33.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
1. Shift pedal
1
U14BE1E0.book Page 20 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
EAU33851
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a
brake lever position adjusting knob. To
adjust the distance between the brake
lever and the handlebar grip, turn the
adjusting knob while holding the lever
pushed away from the handlebar grip.
When the desired position is obtained,be sure to set it by aligning a groove on
the adjusting knob with the“” mark
on the brake lever.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever
2. Brake lever position adjusting knob
3. Distance between brake lever and handlebar
grip
4.“” mark
42
1
3
1. Brake pedal
1
U14BE1E0.book Page 21 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
EAU13074

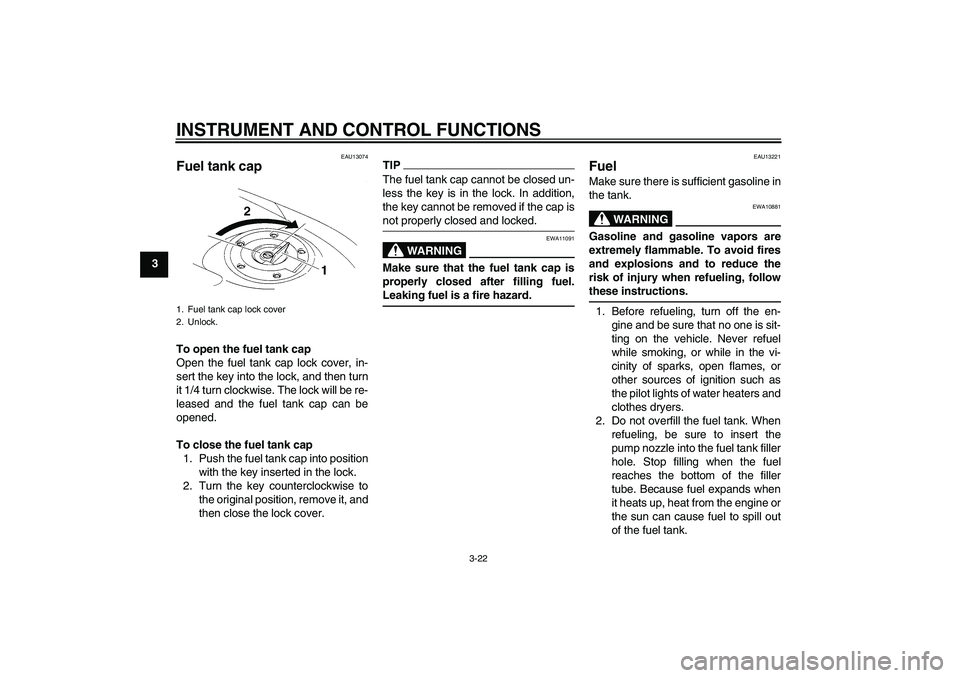

Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.
1. Fuel tank cap lock cover
2. Unlock.U14BE1E0.book Page 22 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-23
3
3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU13390
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a differentbrand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
1. Fuel tank filler tube
2. Maximum fuel level
21
Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
3.1 L (0.82 US gal, 0.68 Imp.gal)
U14BE1E0.book Page 23 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
EAU34072
Fuel tank breather/overflow
hose Before operating the motorcycle:

Check the fuel tank breather/over-
flow hose connection.


Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if damaged.


Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.


Make sure that the end of the fuel
tank breather/overflow hose is po-
sitioned outside of the cowling.
EAU13433
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.


Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.


Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.


Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
1. Fuel tank breather/overflow hose
1
U14BE1E0.book Page 24 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-25
3
EAU47271
Seats Passenger seat
To remove the passenger seat1. Insert the key into the seat lock,
and then turn it clockwise.
2. Lift the front of the passenger seat
and pull it forward.
To install the passenger seat1. Insert the projection on the rear of
the passenger seat into the seat
holder as shown, and then push
the front of the seat down to lock it
in place.2. Remove the key.
Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Pull up the corners on the rear of
the rider seat as shown, remove
the bolts with the hexagon wrench
located on the bottom of the pas-
senger seat, and then pull the seat
off.
To install the rider seat
1. Insert the projections into the seat
holders as shown, then place the
seat in the original position.
1. Passenger seat lock
2. Unlock.
12
1. Projection
2. Seat holder
1
2
1. Bolt
1. Passenger seat
2. Hexagon wrench
1
21
U14BE1E0.book Page 25 Friday, July 24, 2009 10:55 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-26
3
2. Install the bolts with the hexagon
wrench.
3. Insert the hexagon wrench back
into its holder on the passenger
seat.
4. Install the passenger seat.
TIPMake sure that the seats are properly
secured before riding.
EAU47530
Helmet holder The helmet holder is located on the bot-
tom of the passenger seat.
To secure a helmet to the helmet
holder
1. Remove the passenger seat. (See
page 3-25.)
2. Attach the helmet to the helmet
holder, and then securely install
the passenger seat. WARNING!
Never ride with a helmet at-
tached to the helmet holder,
since the helmet may hit ob-
jects, causing loss of control
and possibly an accident.
[EWA10161]
To release the helmet from the hel-
met holder
Remove the passenger seat, remove
the helmet from the helmet holder, and
then install the seat.
1. Projection
2. Seat holder
1
21
1. Helmet holder
1
U14BE1E0.book Page 26 Friday, July 24, 2009 10:55 AM
