YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18680
TIP
Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to

Page 62 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18712

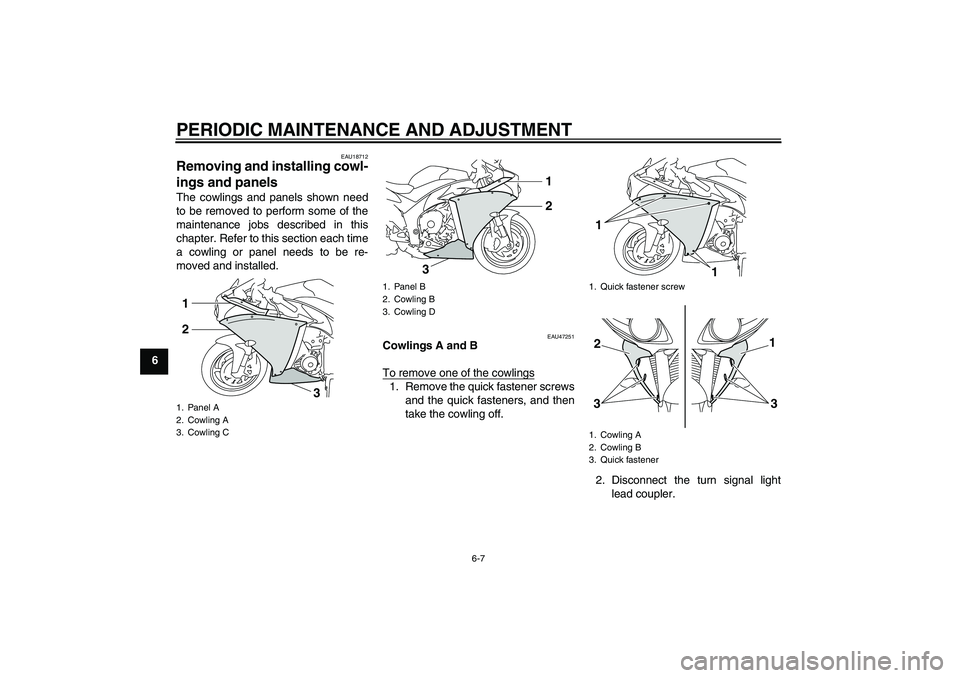

Removing and installing cowl-
ings and panels The cowlings and panels shown need
to be removed to perform some of the
maintenance jobs described in t

Page 63 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-8

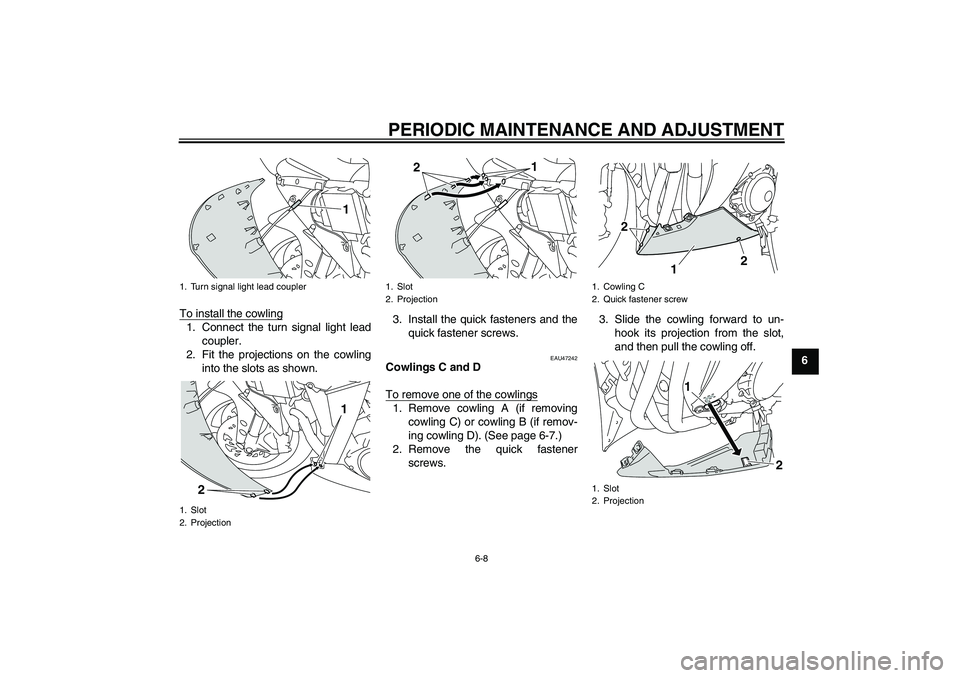

6 To install the cowling
1. Connect the turn signal light lead
coupler.
2. Fit the projections on the cowling
into the slots as shown.3. Install the quick faste

Page 64 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6To install the cowling

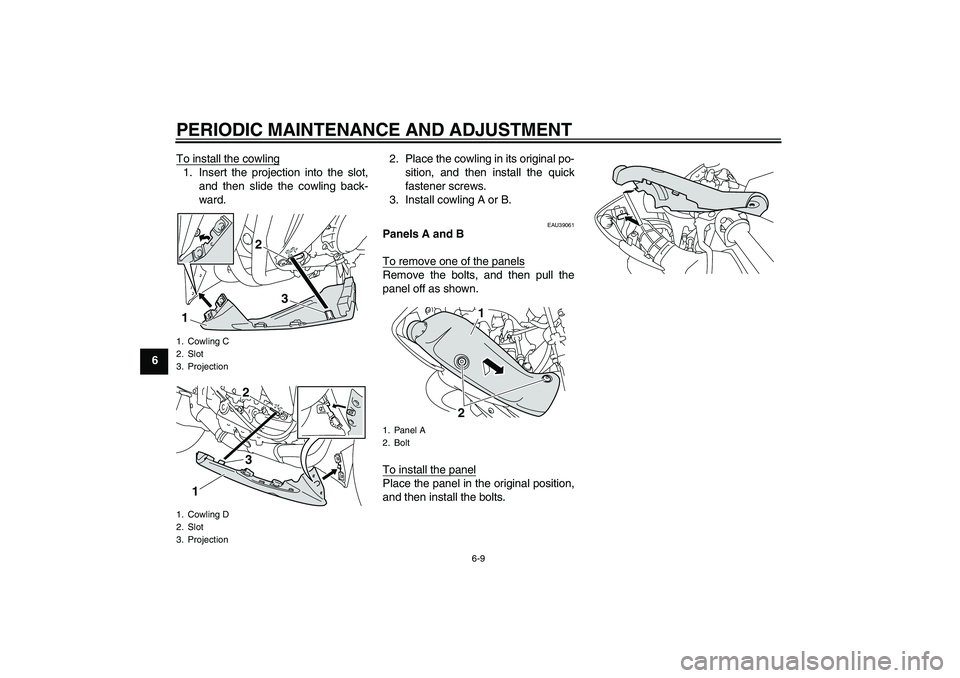

1. Insert the projection into the slot,
and then slide the cowling back-
ward.2. Place the cowling in its original po-
sition, and then

Page 65 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
EAU19652
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since

Page 66 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
EAU47281
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filt

Page 67 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
TIPAn oil filter wrench is available at a
Yamaha dealer.6. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIPMake sure

Page 68 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620

In order to prevent clutch slip-
pag

Page 69 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6 3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the coolant
reservoir cap, and th

Page 70 of 110

YAMAHA YZF-R1 2010 Repair Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
64. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
 [EWA10381]
5. Remove the coolant drain bolt and
its g
