ignition YAMAHA YZF-R6 2000 Owners Manual

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/Steering lockThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition. To lock the steering, turn the
handlebars all the way to the left. While
pushing the key into the main switch,
turn it from “OFF” to “LOCK” and re-
move it. To release the lock, turn the
key to “OFF” while pushing.
EW000016
WARNING
@ Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”. @1. Push
2. Turn
E_5eb_Functions.fm Page 1 Thursday, November 18, 1999 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU00152

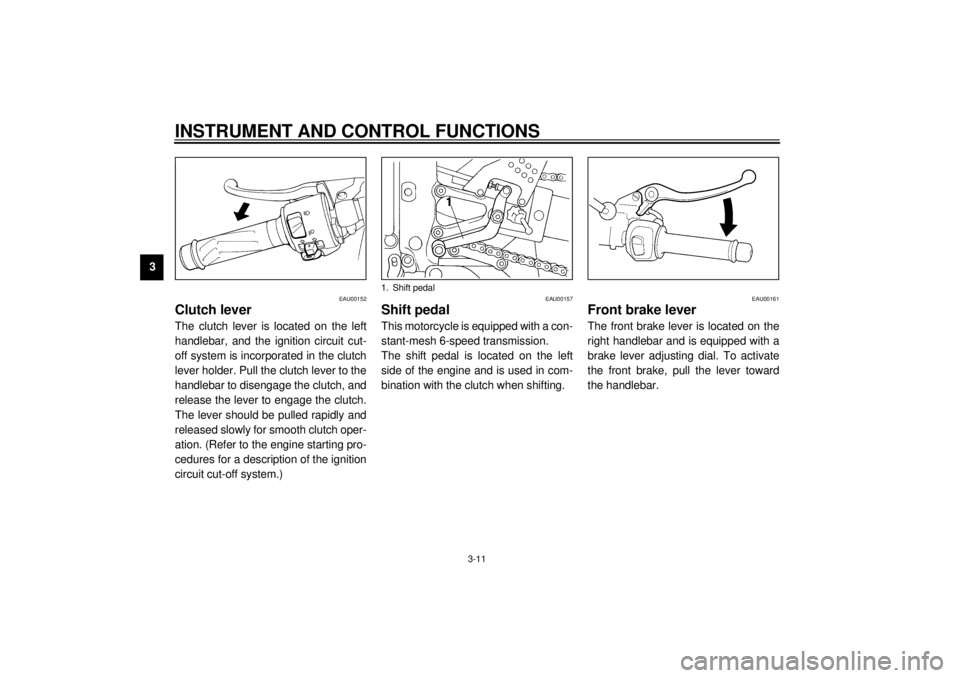

Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)
EAU00157
Shift pedalThis motorcycle is equipped with a con-
stant-mesh 6-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
EAU00161
Front brake leverThe front brake lever is located on the
right handlebar and is equipped with a
brake lever adjusting dial. To activate
the front brake, pull the lever toward
the handlebar.
1. Shift pedal
E_5eb_Functions.fm Page 11 Thursday, November 18, 1999 4:03 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-23
3
EAU01600
Luggage strap holdersThere are two luggage strap holders
below the rear of the passenger seat.
EAU00330
SidestandThis model is equipped with an ignition
circuit cut-off system. The motorcycle
must not be ridden when the sidestand
is down. The sidestand is located on
the left side of the frame. (Refer to
page 5-1 for an explanation of this sys-
tem.)
EW000044
WARNING
@ This motorcycle must not be operat-
ed with the sidestand in the down
position. If the stand is not properly
retracted, it could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Yamaha has designed into this
motorcycle a lockout system to as-
sist the operator in fulfilling the re-
sponsibility of retracting the
sidestand. Please check carefully
the operating instructions listed be-
low and if there is any indication of a
malfunction, return the motorcycle
to a Yamaha dealer immediately for
repair. @
1. Luggage strap holder (´ 2)E_5eb_Functions.fm Page 23 Thursday, November 18, 1999 4:03 PM

OPERATION AND IMPORTANT RIDING POINTS
5-5
5
EAU01128
Engine break-inThere is never a more important period
in the life of your motorcycle than the
period between zero and 1,600 km. For
this reason we ask that you carefully
read the following material. Because
the engine is brand new, you must not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full throttle oper-
ation, or any condition which might re-
sult in excessive heating of the engine,
must be avoided.
EAU01329
0 ~ 1,000 km
Avoid operation above 5,000 r/min.
1,000 ~ 1,600 km
Avoid cruising speeds in excess of
6,000 r/min.
EC000052
CAUTION:@ After 1,000 km of operation, be sure
to replace the engine oil and oil fil-
ter. @1,600 km and beyond
Proceed with normal riding.
EC000053
CAUTION:@ l
Never let engine speeds enter
the red zone.
l
If any engine trouble should oc-
cur during the break-in period,
consult a Yamaha dealer imme-
diately.
@
EAU00460
ParkingWhen parking the motorcycle, stop the
engine and remove the ignition key.
EW000058
WARNING
@ The exhaust system is hot. Park the
motorcycle in a place where pedes-
trians or children are not likely to
touch the motorcycle. Do not park
the motorcycle on a slope or soft
ground; the motorcycle may over-
turn. @
E_5eb_Operation.fm Page 5 Thursday, November 18, 1999 4:05 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6 Battery storage
This motorcycle is equipped with a dig-
ital speedometer and the odometer
memory tends to drain the battery.
When the motorcycle is not used for a
month or longer, be sure to remove the
battery, fully charge it and store it in a
cool, dry place.
EC000102
CAUTION:@ l
Completely recharge the bat-
tery before storing. Storing a
discharged battery can cause
permanent battery damage.
l
Use a battery charger designed
for a sealed-type (MF) battery.
Using a conventional battery
charger will cause battery dam-
age. If you do not have a sealed-
type battery charger, contact
your Yamaha dealer.
l
Always make sure the connec-
tions are correct when reinstall-
ing the battery.
@
EAU01754
Fuse replacementThe fuse boxes are located under the
rider seat. If any fuse is blown, turn off
the main switch and the switch of the
circuit in question. Install a new fuse of
specified amperage. Turn on the
switches and see if the electrical device
operates. If the fuse immediately blows
again, consult a Yamaha dealer.
EC000103
CAUTION:@ Do not use fuses of higher amper-
age rating than those recommend-
ed. Substitution of a fuse of
improper rating can cause extensive
electrical system damage and pos-
sibly a fire. @
1. Ignition fuse
2. Headlight fuse
3. Signaling system fuse
4. Spare fuse (´ 3)
5. Radiator fan fuse
6. Odometer fuse
1. Main fuse
2. Spare fuse
E_5eb_Periodic.fm Page 34 Thursday, November 18, 1999 4:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU01822*
Headlight bulb replacementThis motorcycle is equipped with a
quartz bulb headlight.
If the headlight bulb burns out, replace
the bulb as follows:
1. Remove panel C. (See page 6-8
for panel removal and installation
procedures.)
2. Remove the headlight connector
and the bulb holder cover.3. Unhook the bulb holder and re-
move the defective bulb.
EW000119
WARNING
@ Keep flammable products and your
hands away from a bulb while it is
on, as it is hot. Do not touch a bulb
until it cools down. @4. Put a new bulb into position and
secure it in place with the bulb
holder. Specified fuses:
Main fuse: 30 A
Headlight fuse: 20 A
Signaling system fuse: 20 A
Radiator fan fuse: 7.5 A
Ignition fuse: 15 A
Odometer fuse: 7.5 A
1. Connector
2. Bulb holder cover
1. Bulb holder
E_5eb_Periodic.fm Page 35 Thursday, November 18, 1999 4:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6
EAU01246
Rear wheel installation1. Install the wheel assembly and in-
sert the axle.
2. Install and adjust the drive chain.
(See page 6-28 for details about
adjusting the drive chain slack.)
3. Install the axle nut and let the
motorcycle down.
4. Install the caliper and caliper bolts.
Make sure there is enough gap
between the brake pads before in-
stalling the caliper onto the brake
disc.
5. Tighten the axle nut and caliper
bolts to the specified torques.
EAU01008
TroubleshootingAlthough Yamaha motorcycles receive
a rigid inspection before shipment from
the factory, trouble may occur during
operation.
Any problem in the fuel, compression,
or ignition systems can cause poor
starting and loss of power. The trouble-
shooting chart describes a quick, easy
procedure for making checks.
If your motorcycle requires any repair,
bring it to a Yamaha dealer. The skilled
technicians at a Yamaha dealership
have the tools, experience, and know-
how to properly service your motor-
cycle. Use only genuine Yamaha parts
on your motorcycle. Imitation parts may
look like Yamaha parts, but they are of-
ten inferior. Consequently, they have a
shorter service life and can lead to ex-
pensive repair bills. Tightening torque:
Axle nut:
150 Nm (15.0 m·kg)
Caliper bolt:
40 Nm (4.0 m·kg)
E_5eb_Periodic.fm Page 40 Thursday, November 18, 1999 4:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-41
6
EAU02990

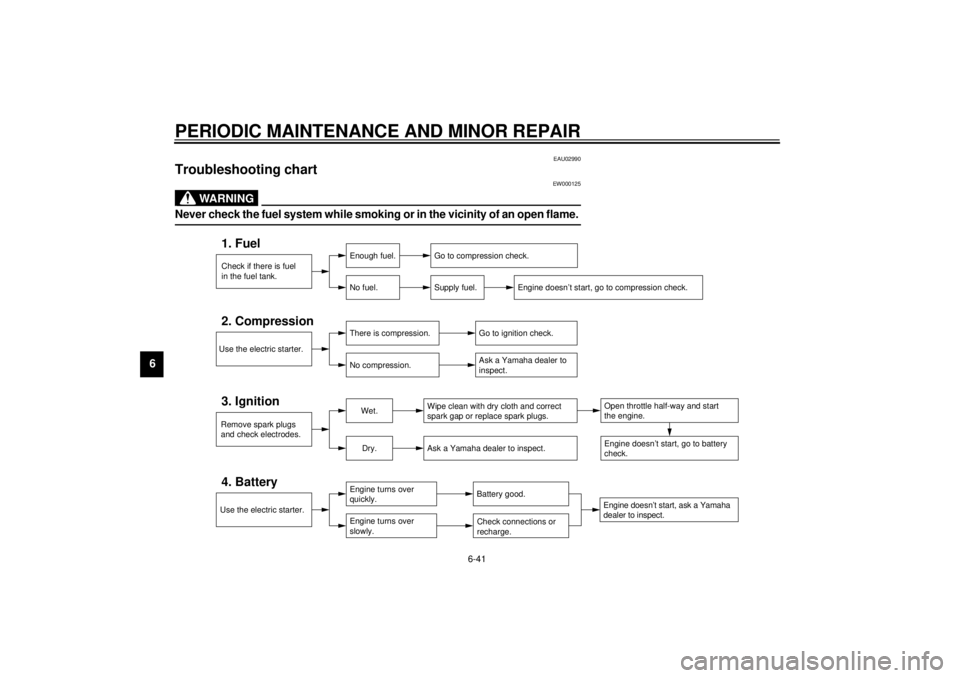

Troubleshooting chart
EW000125
WARNING
@ Never check the fuel system while smoking or in the vicinity of an open flame. @
Check if there is fuel
in the fuel tank.1. Fuel
Enough fuel.
No fuel.
Go to compression check.
Supply fuel.
Engine doesn’t start, go to compression check.
Use the electric starter.2. Compression
There is compression.
No compression.
Go to ignition check.
Ask a Yamaha dealer to
inspect.
Remove spark plugs
and check electrodes.3. Ignition
Wet.
Dry.
Wipe clean with dry cloth and correct
spark gap or replace spark plugs.
Ask a Yamaha dealer to inspect.
Engine doesn’t start, ask a Yamaha
dealer to inspect.Engine doesn’t start, go to battery
check.Open throttle half-way and start
the engine.
Use the electric starter.4. Battery
Engine turns over
quickly.
Engine turns over
slowly.
Battery good.Check connections or
recharge.
E_5eb_Periodic.fm Page 41 Thursday, November 18, 1999 4:06 PM

SPECIFICATIONS
8-3
8
Air pressure (cold tire)
Up to 90 kg load*
Front 250 kPa; 2.50 kg/cm
2; 2.50 bar
Rear 250 kPa; 2.50 kg/cm2; 2.50 bar
90 kg load ~ maximum
load*
Front 250 kPa; 2.50 kg/cm2; 2.50 bar
Rear 290 kPa; 2.90 kg/cm2; 2.90 bar
High speed riding
Front 250 kPa; 2.50 kg/cm2; 2.50 bar
Rear 250 kPa; 2.50 kg/cm2; 2.50 bar
* Load is total weight of cargo, rider, passenger and accessories.
Wheels
Front
Ty p e C a s t
Size 17 ´ MT 3.50
Rear
Ty p e C a s t
Size 17 ´ MT 5.50
Brakes
Front
Type Dual disc brake
Operation Right hand operation
Fluid DOT 4Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Fr o n t
Ty p e Te l e s c o p i c f o r k
Rear
Type Swingarm (link suspension)
Shock absorbers
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 130 mm
Rear 120 mm
Electrical
Ignition system C.D.I.
Charging system
Type A.C. magneto
Standard output 14 V, 320 W@ 5,000 r/min
Battery
Type GT12B-4
Voltage, capacity 12 V, 10 AH
Headlight typeQuartz bulb (halogen)
E_5eb_Spec.fm Page 3 Thursday, November 18, 1999 4:08 PM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 2
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 5 W ´ 2
Meter light 12 V, 1.4 W ´ 2
Neutral indicator light LED
High beam indicator light LED
Turn indicator light LED
Fuel indicator light LED
Oil level/coolant temperature
indicator light LED
Fuses
Main fuse 30 A
Headlight fuse 20 A
Signaling system fuse 20 A
Radiator fan fuse 7.5 A
Ignition fuse 15 A
Odometer fuse 7.5 A
E_5eb_Spec.fm Page 4 Thursday, November 18, 1999 4:08 PM
