INSTRUMENT AND CONTROL FUNCTIONS
1 1
2 2
4 4
5 53 3

1. Pass switch “PASS”
2. Lights switch
3. Dimmer switch
4. Turn signal switch
5. Horn switch “ ”
EAU00118
Handlebar switches
EAU00120
Pass switch “PASS”
Press the switch to operate the passing
light.
EAU00134
Lights switch
Turning the lights switch to “ ”,
turns on the auxiliary light, meter lights
and taillight. Turning the lights switch to
“ ”, turns the headlight on also.
EAU00121
Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once
the switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
Horn switch “ ”
Press the switch to sound the horn.
1 1
2 2

1. Engine stop switch
2. Start switch “ ”
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:

See starting instructions prior to
starting the engine.
a a1 1
2
2

1. Lever position adjusting dial
2. Arrow mark
a. Lever distance
EAU00153
Clutch lever
The clutch lever is located on the left
handlebar. It is equipped with a clutch
lever adjusting dial and a clutch switch,
which is integrated into the ignition cir-
cuit cut-off system. (Refer to the engine
starting procedures for a description of
this system.) To disengage the clutch,
pull the clutch lever toward the handle-
bar. To engage the clutch, release the
lever. The lever should be pulled rapid-
ly and released slowly for smooth
clutch operation. To adjust the distance between the
clutch lever and the handlebar grip,
turn the clutch adjusting dial while
pushing the lever forward. Make sure
the setting on the clutch lever adjusting
dial is aligned with the arrow mark.

1 - 10
INSTRUMENT AND CONTROL FUNCTIONS
1 1

1. Shift pedal
EAU00157
Shift pedal
This motorcycle is equipped with a con-
stant-mesh 6-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
1. Lever position adjusting dial
2. Arrow mark
a. Lever distance
EAU00161
Front brake lever
The front brake lever is located on the
right handlebar and is equipped with a
brake lever adjusting dial.
To activate the front brake, pull the le-
ver toward the handlebar.
To adjust the front brake lever position,
turn the brake lever adjusting dial while
pulling the lever forward. Make sure the
setting on the brake lever adjusting dial
is aligned with the arrow mark.
1 1
1. Rear brake pedalEAU00162
Rear brake pedal
The rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
1. OpenEAU00172
Fuel tank cap
To open
Insert the key and turn it 1/4 turn clock-
wise. The lock will be released and the
cap can be opened.
To close
Push the tank cap into position with the
key inserted. To remove the key, turn it
counterclockwise to the original posi-
tion.
1 1NOTE:
This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly.
EW000023
WARNING
Be sure the cap is properly installed
and locked in place before riding the
motorcycle.
1. Filler tube
2. Fuel level
EAU01183
Fuel
Make sure there is sufficient fuel in the
tank. Fill the fuel tank to the bottom of
the filler tube as shown in the illustra-
tion.
EW000130
WARNING
Do not overfill the fuel tank. Avoid
spilling fuel on the hot engine. Do
not fill the fuel tank above the bot-
tom of the filler tube or it may over-
flow when the fuel heats up later and
expands.

1 - 11
INSTRUMENT AND CONTROL FUNCTIONS
EAU00185
CAUTION:
Always wipe off spilled fuel immedi-
ately with a dry and clean soft cloth.
Fuel may deteriorate painted surfac-
es or plastic parts.
EAU00191
NOTE:
If knocking or pinging occurs, use a dif-
ferent brand of gasoline or higher oc-
tane grade.Recommended fuel:
Premium unleaded gasoline
with a research octane
number of 95 or higher.
Fuel tank capacity:
Total:
23 L
Reserve:
4.8 L
1 1
a a b b
1. Starter (choke) “ ”EAU00210
Starter (choke) “ ”
Starting a cold engine requires a richer
air-fuel mixture. A separate starter cir-
cuit supplies this mixture.
Move in direction
a to turn on the
starter (choke).
Move in direction
b to turn off the
starter (choke).
EAU00331
Sidestand/clutch switch
operation check
Check the operation of the sidestand
switch and clutch switch against the in-
formation below.
COPY CD-11ECD-11E
TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP.
PULL IN CLUTCH LEVER AND
PUSH THE START SWITCH.
ENGINE WILL START.
SIDESTAND IS DOWN.
CLUTCH SWITCH IS OK.
TURN THE MAIN SWITCH TO “ON”
AND THE ENGINE STOP SWITCH TO
“”.
CD-11E
EW000045
WARNING
If improper operation is noted, con-
sult a Yamaha dealer immediately.
ENGINE WILL STALL.
SIDESTAND SWITCH IS OK.

1 - 12
OPERATION AND IMPORTANT RIDING POINTS
OPERATION AND IMPORTANT RIDING POINTS
EAU00373
WARNING
lBefore riding this motorcycle,
become thoroughly familiar
with all operating controls and
their functions. Consult a
Yamaha dealer regarding any
control or function that you do
not thoroughly understand.
lNever start your engine or let it
run for any length of time in a
closed area. The exhaust fumes
are poisonous and can cause
loss of consciousness and
death within a short time. Al-
ways operate your motorcycle
in an area with adequate venti-
lation.
lBefore starting out, always be
sure the sidestand is up. Fail-
ure to retract the sidestand
completely can result in a seri-
ous accident when you try to
turn a corner.
EAU01382*
Starting the engine
NOTE:
This motorcycle is equipped with an ig-
nition circuit cut-off system.
The engine can be started only under
one of the following conditions:
lThe transmission is in neutral.
lThe sidestand is up, the transmis-
sion is in gear and the clutch is
disengaged.
The motorcycle must not be ridden
when the sidestand is down.
EW000054
WARNING
Before going through the following
steps, check the function of the sid-
estand switch and clutch switch.
(Refer to page 1-11.)
COPY CF-28ECF-28E
TURN THE MAIN SWITCH TO “ON” AND THE
ENGINE STOP SWITCH TO “ ”.
IF TRANSMISSION IS IN NEUTRAL AND
SIDESTAND IS DOWN,
PUSH THE START SWITCH.
ENGINE WILL START.
RETRACT SIDESTAND AND PUT
TRANSMISSION IN GEAR.
IF TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP,
PULL IN THE CLUTCH LEVER AND PUSH START
SWITCH. ENGINE WILL START.
MOTORCYCLE CAN BE RIDDEN.MOTORCYCLE CAN BE RIDDEN.

1 - 13
OPERATION AND IMPORTANT RIDING POINTS
1. Turn the main switch to “ON” and
the engine stop switch to “ ”.
ECA00005
CAUTION:
The warning light and fuel indicator
light should come on for a few sec-
onds and then go off. If an indicator
light does not go off, refer to the cor-
responding indicator light circuit
check in the “INSTRUMENT AND
CONTROL FUNCTIONS” section.
2. Shift the transmission into neutral.
NOTE:
When the transmission is in neutral, the
neutral indicator light should be on. If
the light does not come on, ask a
Yamaha dealer to inspect it.
3. Turn on the starter (choke) and
completely close the throttle grip.
4. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, then
try again. Each attempt should be as
short as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one attempt.5. After starting the engine, move
the starter (choke) to the halfway
position.
NOTE:
For maximum engine life, never accel-
erate hard with a cold engine!
6. After the engine is warm, turn off
the starter (choke) completely.
NOTE:
The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
EAU01258
Starting a warm engine
The starter (choke) is not required
when the engine is warm.
EC000046
CAUTION:
See the “Engine break-in” section
prior to operating the motorcycle for
the first time.
1 16
65
5
4 4
3 3
N N2 2
1 1
1. Shift pedal
N. Neutral
EAU00423
Shifting
The transmission lets you control the
amount of power you have available at
a given speed for starting, accelerating,
climbing hills, etc. The use of the shift
pedal is shown in the illustration.
To shift into neutral, depress the shift
pedal repeatedly until it reaches the
end of its travel, then raise the pedal
slightly.
EC000048
CAUTION:
lDo not coast for long periods
with the engine off, and do not
tow the motorcycle a long dis-
tance. Even with gears in neu-
tral, the transmission is only
properly lubricated when the
engine is running. Inadequate
lubrication may damage the
transmission.
lAlways use the clutch when
changing gears. The engine,
transmission, and driveline are
not designed to withstand the
shock of forced shifting and
can be damaged by shifting
without using the clutch.

1 - 14
OPERATION AND IMPORTANT RIDING POINTS/
INCLUDED ACCESSORIES
EAU01128
Engine break-in
There is never a more important period
in the life of your motorcycle than the
period between zero and 1,600 km. For
this reason we ask that you carefully
read the following material. Because
the engine is brand new, you must not
put an excessive load on it for the first
1,600 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full throttle oper-
ation, or any condition which might re-
sult in excessive heating of the engine,
must be avoided.
EAU013290 ~ 1,000 km
Avoid operation above 5,500 r/min.
1,000 ~ 1,600 km
Avoid cruising speeds in excess of
7,000 r/min.
EC000052
CAUTION:
After 1,000 km of operation, be sure
to replace the engine oil and oil fil-
ter.
1,600 km and beyond
Proceed with normal riding.
EC000053
CAUTION:
lNever let engine speeds enter
the red zone.
lIf any engine trouble should oc-
cur during the break-in period,
consult a Yamaha dealer imme-
diately.
EAU00460
Parking
When parking the motorcycle, stop the
engine and remove the ignition key.
EW000058
WARNING
The exhaust system is hot. Park the
motorcycle in a place where pedes-
trians or children are not likely to
touch the motorcycle. Do not park
the motorcycle on a slope or soft
ground; the motorcycle may over-
turn.
INCLUDED ACCESSORIES
EAU01575
Tool kit
The tools provided in the owner’s tool
kit are to assist you in the performance
of periodic maintenance. However,
some other tools such as a torque
wrench are also necessary to perform
the maintenance correctly.
The service information included in this
manual is intended to provide you, the
owner, with the necessary information
for completing some of your own pre-
ventive maintenance and minor re-
pairs.
NOTE:
If you do not have necessary tools re-
quired during a service operation, take
your motorcycle to a Yamaha dealer
for service.
EW000063
WARNING
Modifications to this motorcycle not
approved by Yamaha may cause
loss of performance, and render it
unsafe for use. Consult a Yamaha
dealer before attempting any chang-
es.

1 - 16
MOTORCYCLE CARE AND STORAGE
1. Clean your motorcycle with cold
water and soap after the engine
has cooled down.
ECA00012
CAUTION:
Do not use warm water since it in-
creases the corrosive action of the
salt.
2. Be sure to apply a corrosion pro-
tection spray on all (even chrome-
and nickel-plated) metal surfaces
to prevent corrosion.After cleaning
1. Dry the motorcycle with a cham-
ois or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all (even chrome-
and nickel-plated) metal surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
CAUTION:
Do not wax the frame, swingarm and
other similar matte metal parts, as
this may deteriorate their finish.
8. Let the motorcycle dry completely
before storing it or covering it.
EWA00001
WARNING
Make sure that there is no oil or wax
on the brakes and tires. If necessary,
clean the brake discs and linings
with a regular brake disc cleaner or
acetone, and wash the tires with
warm water and mild soap. Then,
carefully test the motorcycle for its
braking performance and cornering
behavior.
ECA00013
CAUTION:
lApply spray oil and wax spar-
ingly and wipe off any excess.
lNever apply oil or wax on rub-
ber and plastic parts, but treat
them with a suitable care prod-
uct.
lAvoid using abrasive polishing
compounds as they wear away
the paint.
NOTE:
Consult a Yamaha dealer for advice on
what products to use.
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:
lStoring the motorcycle in a
poorly ventilated room or cov-
ering it with a tarp while it is still
wet will allow water and humid-
ity to seep in and cause rust.
lTo prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.Long-term
Long term storage (60 days or more) of
your motorcycle will require some pre-
ventive procedures to guard against
deterioration. After throughly cleaning
the motorcycle, prepare for storage as
follows:
1. Drain the fuel tank.
2. Remove the empty fuel tank, pour
a cup of engine oil in the tank,
shake the tank to coat the inner
surfaces thoroughly and drain off
the excess oil. Reinstall the tank.
3. Remove the spark plug, pour
about one tablespoon of engine
oil in the spark plug hole and rein-
stall the spark plug. Turn the en-
gine over several times (ground
spark plug lead wires) to coat the
cylinder walls with oil.

1 - 17
MOTORCYCLE CARE AND STORAGE/
CONSUMER INFORMATION
WARNING
When using the starter motor to
crank the engine, remove the spark
plug wires, and ground them to pre-
vent sparking.
4. Remove the drive chain. Thor-
oughly clean the chain with kero-
sene and lubricate it. Reinstall the
chain or store it in a plastic bag
(tied to frame for safekeeping).
5. Lubricate all control cables.
6. Block up the frame to raise both
wheels off the ground.
7. Tie a plastic bag over the exhaust
pipe outlet to prevent moisture
from entering.
8. If strong in a humid or salt-air at-
mosphere, coat all exposed metal
surfaces with a light film of oil. Do
not apply oil to any rubber parts or
the seat cover.9. Remove the battery and charge it.
Store it in a dry place and re-
change it once a month. Do not
store the battery in an excessively
warm or cold place (less than 0°C
(30°F) or more than 30°C (90°F)).
NOTE:
Make any necessary repairs before
storing the motorcycle.
CONSUMER INFORMATION
EAU01040
Identification numbers record
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided for assistance when ordering
spare parts from a Yamaha dealer or
for reference in case the vehicle is sto-
len.
1. KEY IDENTIFICATION
NUMBER:
2. VEHICLE IDENTIFICATION
NUMBER:
3. MODEL LABEL INFORMATION:
1. Key identification numberEAU01041
Key identification number
The key identification number is
stamped on the key tag. Record this
number in the space provided and use
it for reference when obtaining a new
key.
1. Vehicle identification numberEAU01043
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
state.

1 - 18
CONSUMER INFORMATION/
TROUBLESHOOTING CHART
1. Model labelEAU01049
Model label
The model label is affixed to the loca-
tion shown in the figure. Record the in-
formation on this label in the space
provided. This information will be need-
ed to order spare parts from your
Yamaha dealer.
1 1
TROUBLESHOOTING
TROUBLESHOOTING CHARTEW000125
WARNING
Never check the fuel system while smoking or in the vicinity of an open flame.
Check if there is fuel
in the fuel tank.
1. FuelEnough fuel.
No fuel.Go to compression check.
Supply fuel.
Use electric starter.
2. CompressionThere is compression.
No compression.Go to ignition check.
Ask a Yamaha dealer to
inspect.
Remove spark
plugs and
check electrodes.
3. IgnitionWet.
Dry.Wipe clean with dry cloth and correct
spark gap or replace spark plugs.
Ask a Yamaha dealer to inspect.
Engine doesn’t start, go to battery
check.
Open throttle half-way and start
the engine.
Use electric starter.
4. BatteryEngine turns over
quickly.
Engine turns over
slowly.Battery good.
Check connections or
recharge.
Engine doesn’t start, ask a Yamaha
dealer to inspect.
Engine doesn’t start, go to compression check.

1 - 19
TROUBLESHOOTING CHART

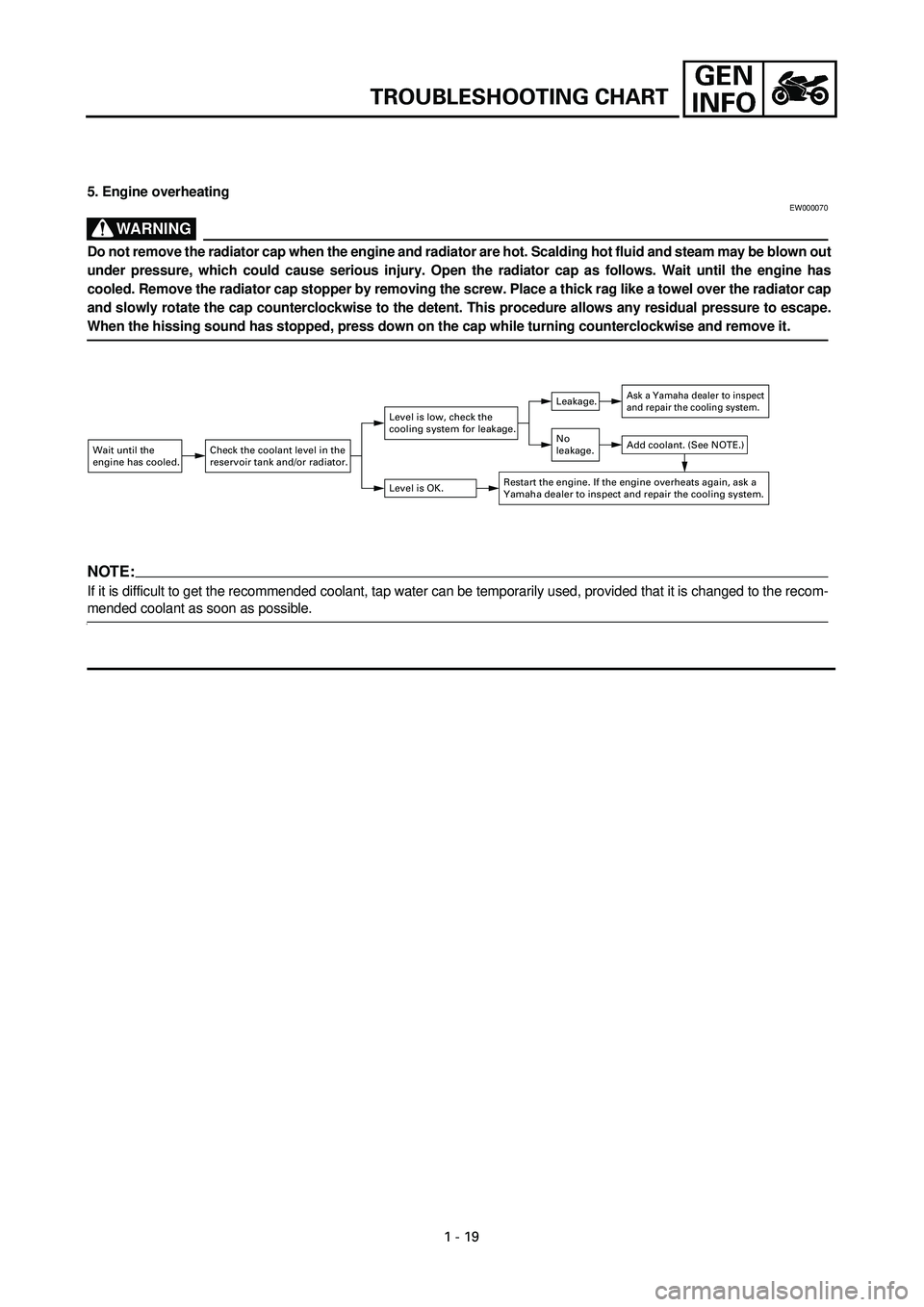

5. Engine overheatingEW000070
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be blown out
under pressure, which could cause serious injury. Open the radiator cap as follows. Wait until the engine has
cooled. Remove the radiator cap stopper by removing the screw. Place a thick rag like a towel over the radiator cap
and slowly rotate the cap counterclockwise to the detent. This procedure allows any residual pressure to escape.
When the hissing sound has stopped, press down on the cap while turning counterclockwise and remove it.
NOTE:
If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is changed to the recom-
mended coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level in the
reservoir tank and/or radiator.
Level is OK.
Level is low, check the
cooling system for leakage.
No
leakage.
Leakage.Ask a Yamaha dealer to inspect
and repair the cooling system.
Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and repair the cooling system.
