INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EC000015
CAUTION:@ Never attempt to turn an adjuster
beyond the maximum or minimum
setting. @NOTE:@ Although the number of clicks between
the minimum and maximum settings
may vary with each individual shock
absorber and may not exactly match
these specifications, it is always the full
damping force range that extends over
the actual number of clicks. @
EAU01592*
Rear shock absorber
adjustmentThis shock absorber is equipped with
spring preload and damping force ad-
justers.
EC000015
CAUTION:@ Never attempt to turn an adjuster
beyond the maximum or minimum
setting. @

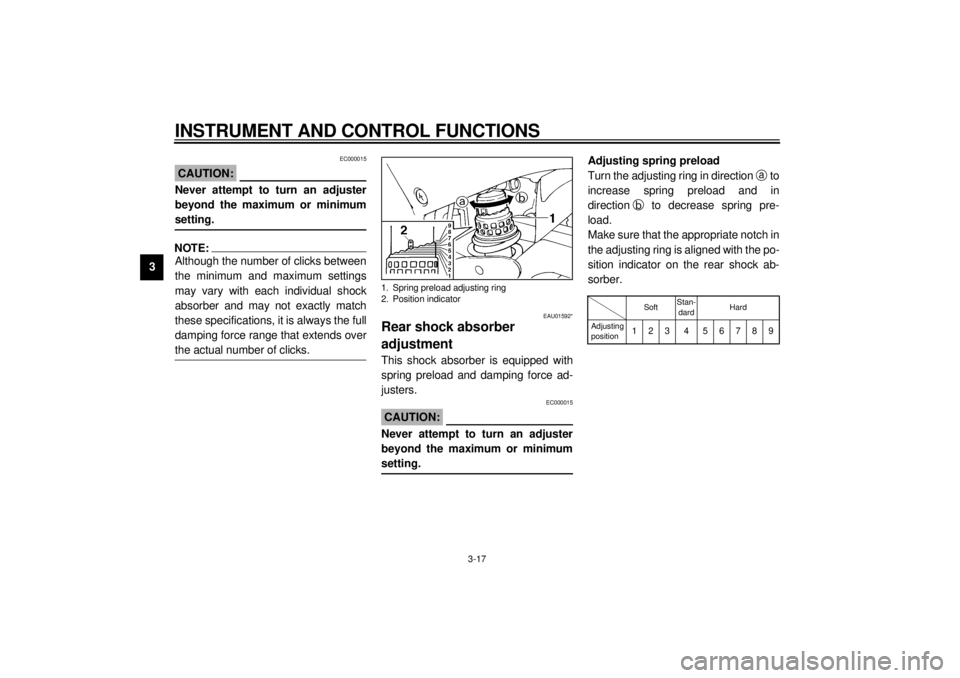

Adjusting spring preload
Turn the adjusting ring in direction a
to
increase spring preload and in
directionb
to decrease spring pre-
load.
Make sure that the appropriate notch in
the adjusting ring is aligned with the po-
sition indicator on the rear shock ab-
sorber.CI-15E
1. Spring preload adjusting ring
2. Position indicator
SoftStan-
dardHard
Adjusting
position
123 4 56789
E_4sv_Functions.fm Page 17 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3

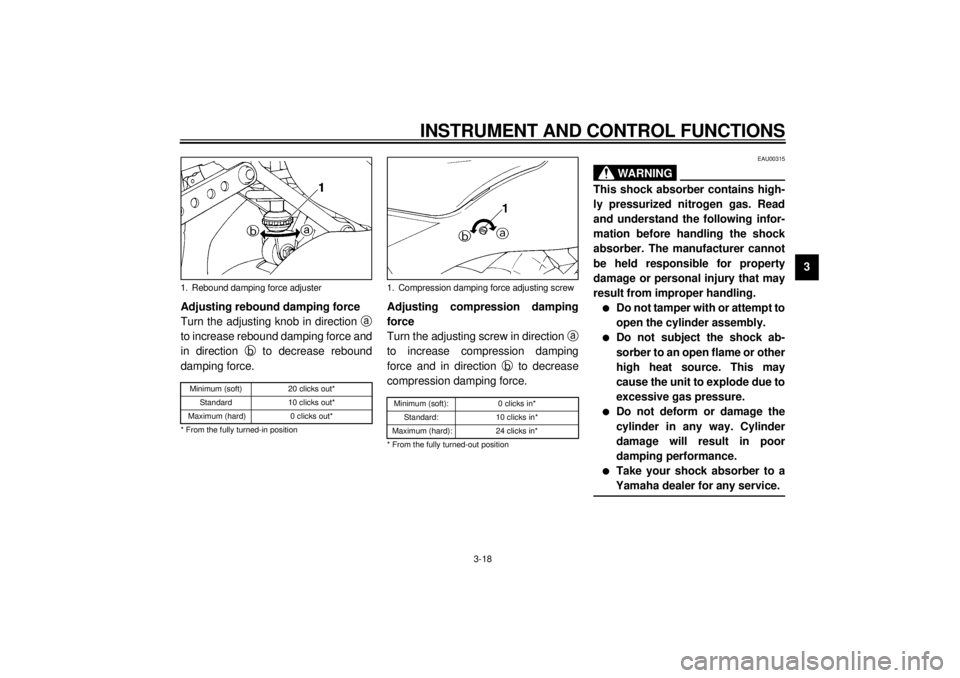

Adjusting rebound damping force
Turn the adjusting knob in direction a
to increase rebound damping force and
in direction b
to decrease rebound
damping force.
CI-29E
Adjusting compression damping
force
Turn the adjusting screw in direction a
to increase compression damping
force and in direction b
to decrease
compression damping force.CI-28EEAU00315
WA R N I N G
@ This shock absorber contains high-
ly pressurized nitrogen gas. Read
and understand the following infor-
mation before handling the shock
absorber. The manufacturer cannot
be held responsible for property
damage or personal injury that may
result from improper handling.l
Do not tamper with or attempt to
open the cylinder assembly.
l
Do not subject the shock ab-
sorber to an open flame or other
high heat source. This may
cause the unit to explode due to
excessive gas pressure.
l
Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
l
Take your shock absorber to a
Yamaha dealer for any service.
@
1. Rebound damping force adjusterMinimum (soft) 20 clicks out*
Standard 10 clicks out*
Maximum (hard) 0 clicks out*
* From the fully turned-in position
1. Compression damping force adjusting screwMinimum (soft): 0 clicks in*
Standard: 10 clicks in*
Maximum (hard): 24 clicks in*
* From the fully turned-out position
E_4sv_Functions.fm Page 18 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
EAU00324

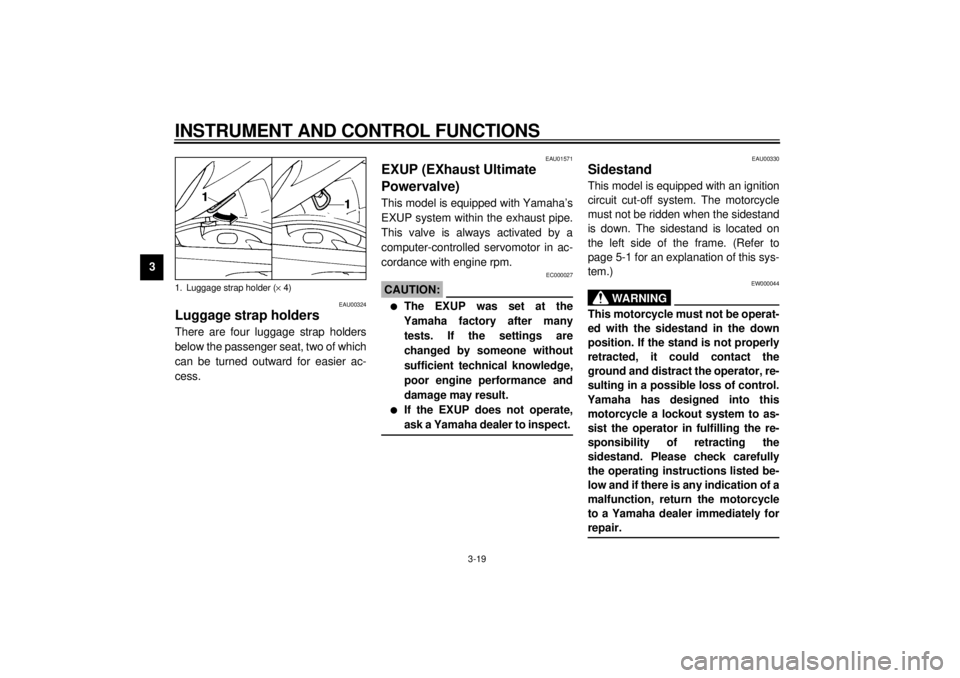

Luggage strap holdersThere are four luggage strap holders
below the passenger seat, two of which
can be turned outward for easier ac-
cess.
EAU01571
EXUP (EXhaust Ultimate
Powervalve)This model is equipped with Yamaha’s
EXUP system within the exhaust pipe.
This valve is always activated by a
computer-controlled servomotor in ac-
cordance with engine rpm.
EC000027
CAUTION:@ l
The EXUP was set at the
Yamaha factory after many
tests. If the settings are
changed by someone without
sufficient technical knowledge,
poor engine performance and
damage may result.
l
If the EXUP does not operate,
ask a Yamaha dealer to inspect.
@
EAU00330
SidestandThis model is equipped with an ignition
circuit cut-off system. The motorcycle
must not be ridden when the sidestand
is down. The sidestand is located on
the left side of the frame. (Refer to
page 5-1 for an explanation of this sys-
tem.)
EW000044
WA R N I N G
@ This motorcycle must not be operat-
ed with the sidestand in the down
position. If the stand is not properly
retracted, it could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Yamaha has designed into this
motorcycle a lockout system to as-
sist the operator in fulfilling the re-
sponsibility of retracting the
sidestand. Please check carefully
the operating instructions listed be-
low and if there is any indication of a
malfunction, return the motorcycle
to a Yamaha dealer immediately for
repair. @
1. Luggage strap holder (´ 4)E_4sv_Functions.fm Page 19 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU00331

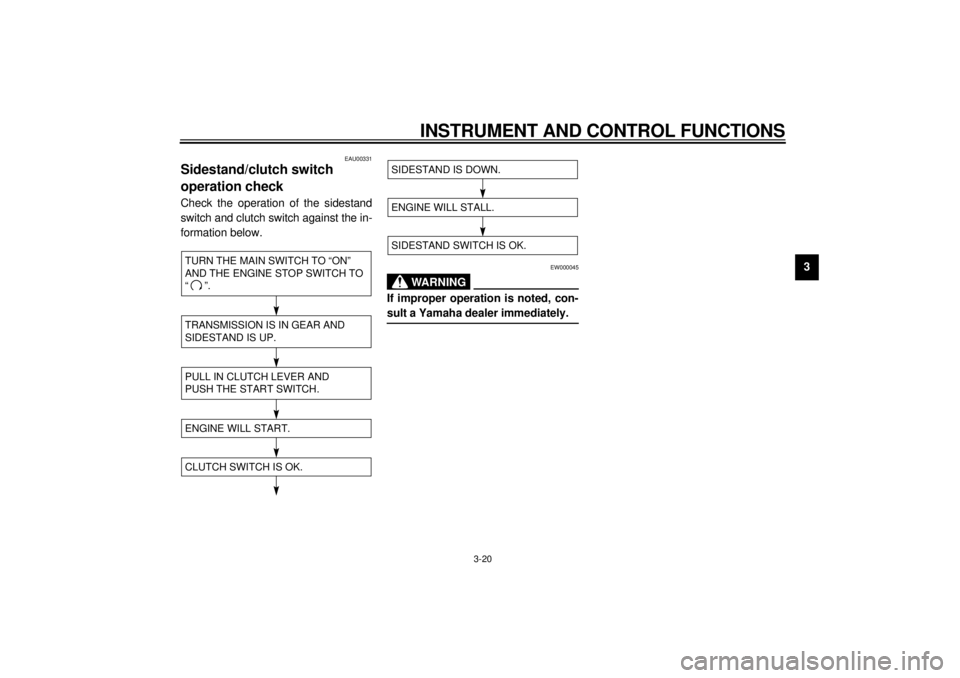

Sidestand/clutch switch
operation checkCheck the operation of the sidestand
switch and clutch switch against the in-
formation below.CD-11E
CD-11E
EW000045
WA R N I N G
@ If improper operation is noted, con-
sult a Yamaha dealer immediately. @
TURN THE MAIN SWITCH TO “ON”
AND THE ENGINE STOP SWITCH TO
“”.TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP.PULL IN CLUTCH LEVER AND
PUSH THE START SWITCH.ENGINE WILL START.CLUTCH SWITCH IS OK.
SIDESTAND IS DOWN.ENGINE WILL STALL.SIDESTAND SWITCH IS OK.
E_4sv_Functions.fm Page 20 Tuesday, August 31, 1999 3:42 PM
