YAMAHA YZF1000 2000 User Guide

2-1
2
EAU00026
2-DESCRIPTIONLeft view1. Starter (choke) “ ” (page 3-13)
2. Air filter (page 6-12)
3. Fuse box (page 6-28)
4. Helmet holder (page 3-14)
5. Rider seat lock (page 3-13)
6. Storage compartment (page 3-15)
7. Tool kit (page 6-1)8. Rear shock absorber compression
damping force adjusting screw (page 3-17)
9. Main fuse (page 6-28)
10. Shift pedal (page 3-10)
11. Front fork compression damping force
adjusting screw (page 3-16)
E_4sv_Description.fm Page 1 Tuesday, August 31, 1999 3:41 PM

DESCRIPTION
2-2
2
Right view12. Tail/brake light (page 6-30)
13. Passenger seat (page 3-14)
14. Coolant reservoir tank (page 6-11)
15. Rider seat (page 3-13)
16. Rear shock absorber spring preload
adjusting ring (page 3-17)
17. Fuel tank (page 3-11)
18. Front fork spring preload adjusting bolt (page 3-15)19. Front fork rebound damping force
adjusting screw (page 3-16)
20. Headlight (page 6-29)
21. Rear brake pedal (page 3-11)
22. Rear shock absorber rebound damping
force adjusting knob (page 3-18)
23. Rear brake fluid level check window
E_4sv_Description.fm Page 2 Tuesday, August 31, 1999 3:41 PM

DESCRIPTION
2-3
2
Controls/Instruments24. Clutch lever (page 3-9)
25. Left handlebar switches (page 3-8)
26. Speedometer (page 3-6)
27. Main switch/steering lock (page 3-1)
28. Tachometer (page 3-6)
29. Coolant temperature gauge (page 3-7)
30. Right handlebar switches (page 3-9)
31. Throttle grip (page 6-15)
32. Front brake lever (page 3-10)E_4sv_Description.fm Page 3 Tuesday, August 31, 1999 3:41 PM

3

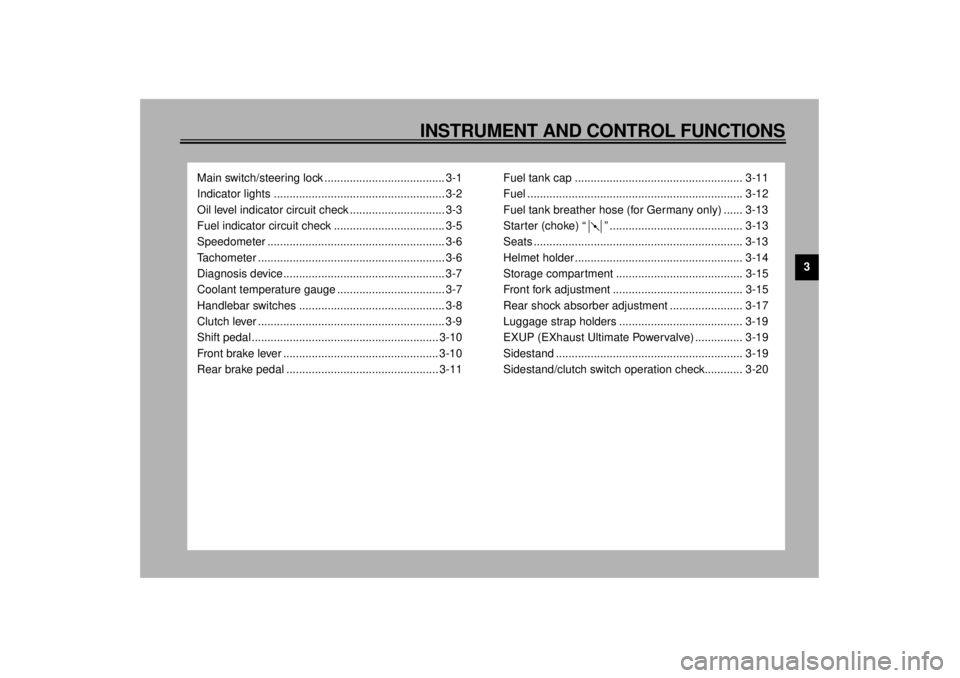

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................... 3-1
Indicator lights ...................................................... 3-2
Oil level indicator circuit check .............................. 3-3
Fuel indicator circuit check ................................... 3-5
Speedometer ........................................................ 3-6
Tachometer ........................................................... 3-6
Diagnosis device................................................... 3-7
Coolant temperature gauge .................................. 3-7
Handlebar switches .............................................. 3-8
Clutch lever ........................................................... 3-9
Shift pedal ........................................................... 3-10
Front brake lever ................................................. 3-10
Rear brake pedal ................................................ 3-11Fuel tank cap ..................................................... 3-11
Fuel .................................................................... 3-12
Fuel tank breather hose (for Germany only) ...... 3-13
Starter (choke) “ ” .......................................... 3-13
Seats .................................................................. 3-13
Helmet holder..................................................... 3-14
Storage compartment ........................................ 3-15
Front fork adjustment ......................................... 3-15
Rear shock absorber adjustment ....................... 3-17
Luggage strap holders ....................................... 3-19
EXUP (EXhaust Ultimate Powervalve) ............... 3-19
Sidestand ........................................................... 3-19
Sidestand/clutch switch operation check............ 3-20
E_4sv_FunctionsTOC.fm Page 1 Tuesday, August 31, 1999 3:42 PM

3-1
3
EAU00027
3-INSTRUMENT AND CONTROL FUNCTIONS
EAU00029*
Main switch/steering lockThe main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on. The
engine can be started. The key cannot
be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00040
LOCK
The steering is locked in this position
and all electrical circuits are switched
off. The key can be removed in this po-
sition.
To lock the steering, turn the handle-
bars all the way to the left. While push-
ing the key into the main switch, turn it
from “OFF” to “LOCK” and remove it.
To release the lock, turn the key to
“OFF” while pushing.
EW000016
WA R N I N G
@ Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result in
loss of control or an accident. Be
sure the motorcycle is stopped be-
fore turning the key to “OFF” or
“LOCK”. @1. Push
2. Turn
E_4sv_Functions.fm Page 1 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU00048
P (Parking)
The steering is locked in this position,
and the taillight and auxiliary light come
on but all other circuits are off. The key
can be removed in this position.
To use the parking position, first lock
the steering, then turn the key to “P”.
Do not use this position for an extend-
ed length of time as the battery may
discharge.
EAU00056
Indicator lights
EAU00057
Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU00061
Neutral indicator light “ ”
This indicator comes on when the
transmission is in neutral.
EAU00063
High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.
EAU01313
Oil level indicator light “ ”
This indicator comes on when the oil
level is low. This light circuit can be
checked by the procedure on page 3-3.
EC000000
CAUTION:@ Do not run the motorcycle until you
know it has sufficient engine oil. @NOTE:@ Even if the oil is filled to the specified
level, the indicator light may flicker
when riding on a slope or during sud-
den acceleration or deceleration, but
this is normal. @
1. Neutral indicator light “ ”
2. Oil level indicator light “ ”
3. Fuel indicator light “ ”
4. Turn indicator light “ ”
5. High beam indicator light “ ”
E_4sv_Functions.fm Page 2 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00071
Oil level indicator circuit check
CB-48E
Turn the main switch to “ON” and
the engine stop switch to “ ”.
Oil level indicator light
does not come on.
Oil level indicator light
comes on.Check engine oil level.
Oil level indicator light
comes on.
Oil level indicator light
does not come on.
Engine oil level and
electrical circuit are OK.
Go ahead with riding.
Put the transmission in neutral or
apply the clutch lever, then push
the start switch.
Oil level
is OK.
Supply
engine oil.Oil level
is low.
Ask a Yamaha dealer to
inspect electrical circuit.
E_4sv_Functions.fm Page 3 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU01154
Fuel indicator light “ ”
When the fuel level drops below ap-
proximately 4.5 L, this light will come
on. When this light comes on, fill the
tank at the first opportunity. This light
circuit can be checked by the proce-
dure on page 3-5.
E_4sv_Functions.fm Page 4 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00085
Fuel indicator circuit check
CB-46E
Turn the main switch to “ON” and the
engine stop switch to “ ”.
Fuel indicator light does
not come on.
Fuel indicator light
comes on.Check the fuel level.
Fuel indicator light
comes on.
Fuel indicator light
does not come on.
Fuel level and electrical
circuit are OK.
Go ahead with riding.
Put the transmission in neutral or
apply the clutch lever, then push
the start switch.
Fuel level
is OK.
Supply fuel.Fuel level
is low.
Ask a Yamaha dealer to
inspect electrical circuit.
E_4sv_Functions.fm Page 5 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00095
SpeedometerThe speedometer shows riding speed.
This speedometer is equipped with an
odometer and trip odometer. The trip
odometer can be reset to “0” with the
reset knob. Use the trip odometer to
estimate how far you can ride on a tank
of fuel. This information will enable you
to plan fuel stops in the future.
EAU00101
TachometerThis model is equipped with an electric
tachometer so the rider can monitor the
engine speed and keep it within the
ideal power range.
EC000003
CAUTION:@ Do not operate in the red zone.
Red zone: 11,500 r/min and above @
1. Speedometer
2. Odometer
3. Trip odometer
4. Reset knob
1. Tachometer
2. Red zone
E_4sv_Functions.fm Page 6 Tuesday, August 31, 1999 3:42 PM
