CLOSING THE BOOT
Lower the tailgate until you hear the locking click fig. 74. OPENING THE BOOT IN AN EMERGENCY
fig. 75
To open the boot from inside if the car battery is flat or
the electric lock of the rear door is faulty, proceed as
follows:
❒
tilt the rear seats fully forward (see “Extending the
boot” in this section);
❒ press lever B inside the boot.
F0U077Abfig. 75
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 77

78
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U078Abfig. 76
EXTENDING THE BOOT
Tilting the rear seat forwards gives maximum loading
volume.
Proceed as follows:
❒fully lower the rear seat head restraints;
❒ check that the seat belts are not twisted;
F0U079Abfig. 77
F0U081Abfig. 78
❒tilt the cushions forward as shown by the arrow
fig. 76;
❒ operate the handles A and B-fig. 77 to release the
backrests and guide them down onto the cushion.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 78

79
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Repositioning the rear seat fig. 79
Raise the backrests and push them back until the locking
click of both retainers is heard.
Position the seat belt buckles upwards and set the
cushion to the position of normal use.
IMPORTANT The backrest is correctly secured when
the red band next to the handles disappears. This red
band indicates that the backrest is not secured. When
returning the backrest to its normal position, make sure
that it is correctly fastened and that you hear the lock
click.
F0U082Abfig. 79
Make sure the backrest is properly secured at both
sides to prevent it moving forward in the event of sharp
braking that may cause injuries to passengers.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 79

80
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
REMOVING THE PARCEL SHELF
To remove the parcel shelf in order to extend the boot:
release the upper ends of the links A-fig. 80 by removing
the eyelets from the pins, unhook and swivel the parcel
shelf in its housing and then release both pins
fig. 81 from the side holes.
F0U083Abfig. 80F0U085Abfig. 82
F0U084Abfig. 81
Once removed, the parcel shelf can be positioned
between the back of the front seats and the folded
cushion of the rear seat fig. 82.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 80

81
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U086Abfig. 83

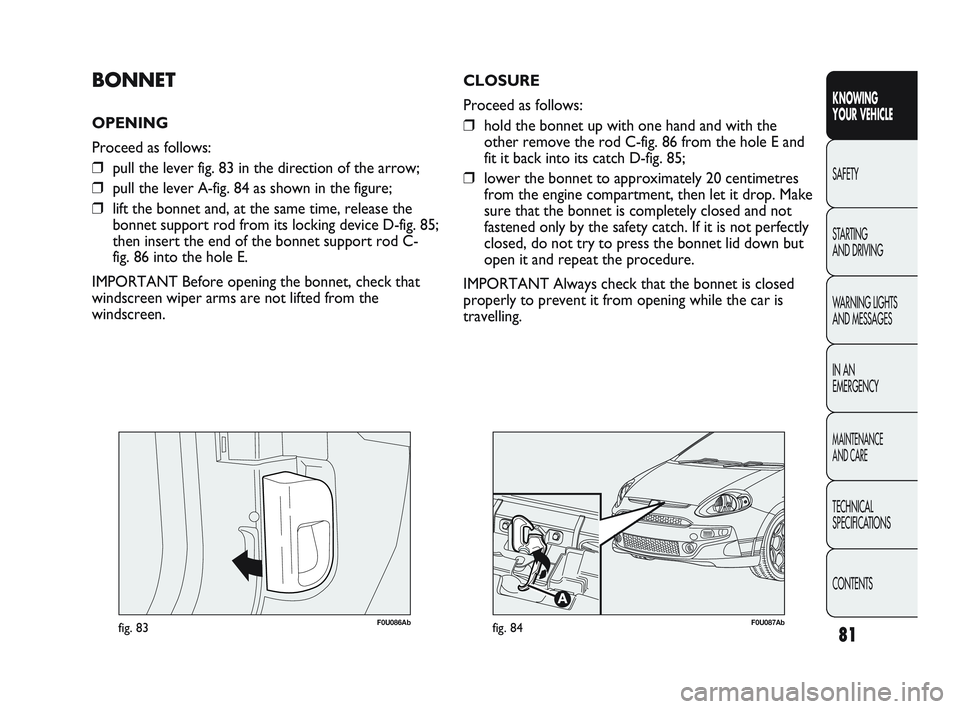

BONNET
