TYRE PRESSURE MONITORING
SYSTEM (TPMS)
(for versions/markets where provided)
The car may be equipped with a tyre pressure
monitoring system (T.P.M.S.). This system comprises a
radio frequency transmitter fitted to each wheel (on the
rim inside the tyre), which is able to send information
on the pressure of each tyre to the control unit.
Take the greatest of care when checking
or restoring the tyre pressures. If the
pressure is too high, road hold is compromised,
there is more demand on the suspension and
wheels, and the tyres wear abnormally.
WARNING
Tyre pressure should be checked when
the tyres are cold; if, for whatever
reason, you check the pressure when the tyres
are hot, do not reduce the pressure even if it is
higher than the recommended value, but check
again when the tyres are cold.
WARNING
IMPORTANT NOTES ABOUT THE TPMS
SYSTEM
The fault indications are not stored and will therefore
not be displayed after the engine has been switched off
and then on again. If the fault conditions persist, the
control unit will send the relative indications to the
instrument panel only after the vehicle has been in
motion for a short time.
The presence of the TPMS does not
exonerate the driver from regularly
checking the pressure of the tyres and the spare
wheel (see “Wheels” in the “Maintenance and
care” section).
WARNING
The TPMS is not able to warn you of
sudden tyre pressure losses (for example
when a tyre bursts). In this case, stop the car,
braking with care and avoiding sharp steering
actions.
WARNING
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:08 Pagina 93

95
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

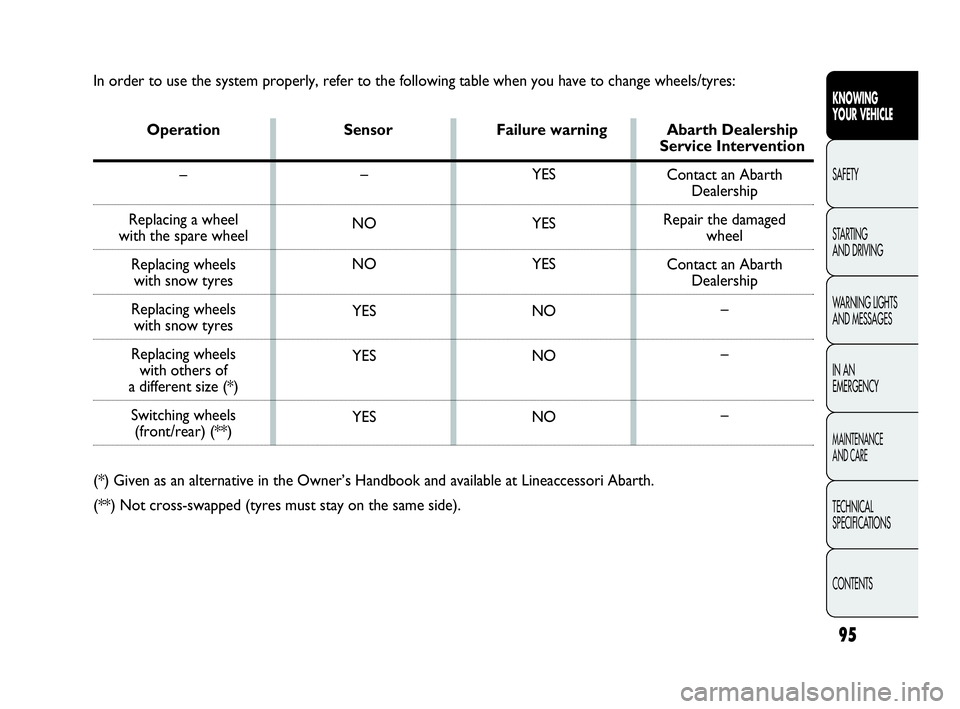

In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Failure warning Abarth Dealership
Service Intervention
–
Replacing a wheel
with the spare wheel
Replacing wheels
with snow tyres
Replacing wheels
with snow tyres
Replacing wheels
with others of
a different size (*)
Switching wheels
(front/rear) (**)
(*) Given as an alternative in the Owner’s Handbook and available at Lineaccessori Abarth.
(**) Not cross-swapped (tyres must stay on the same side).–
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NOContact an Abarth
Dealership
Repair the damaged
wheel
Contact an Abarth
Dealership
–
–
–
