Used batteries are harmful to the
environment. They should be disposed
of, as specified by law, in the special
containers provided, otherwise take them to
the Abarth Dealership, which will deal with
their disposal.REPLACING THE REMOTE
CONTROL COVER fig. 7
To replace the remote control cover, follow the
procedure shown in the diagram.
Request for additional remote controls
The system can recognise up to 8 keys with
incorporated remote control. Should a new key with
remote control be necessary, contact an Abarth
Dealership, taking the CODE card, a personal identity
document and the car’s ownership documents with you.
fig. 7F0U008Ab
CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGESSTARTING
AND DRIVINGSAFETY
KNOWING
YOUR VEHICLE
8
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 8

110
F0U108Abfig. 108
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Remember that, in the event of a violent
collision, back seat passengers not
wearing seat belts represent a serious danger
not only to themselves but also to the front seat
passengers.
WARNING
Ensure that the backrest is properly
secured on both sides so that it does not
fly forwards in the event of sharp braking and
injure passengers.
WARNING
IMPORTANT After putting the seats back to their
travelling position, restore the seat belt position to
make them ready for use.
Never press button C-fig. 106 when
travelling.
WARNING
The rear seat belts must be used as shown in the
diagram in fig. 107.
IMPORTANT When the red band next to the backrest
folding levers fig. 108 disappears, it means the backrest
is properly secured.
If you can still see the red band, the backrest is not
securely fastened. When returning the backrest to its
normal position, make sure that it is correctly fastened
and you hear the lock click.
109-130 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:39 Pagina 110

117
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U115Abfig. 115
The diagram is indicative and for
assembly purposes only. Refer to the
instructions supplied with the child restraint for
the fastening.
WARNING

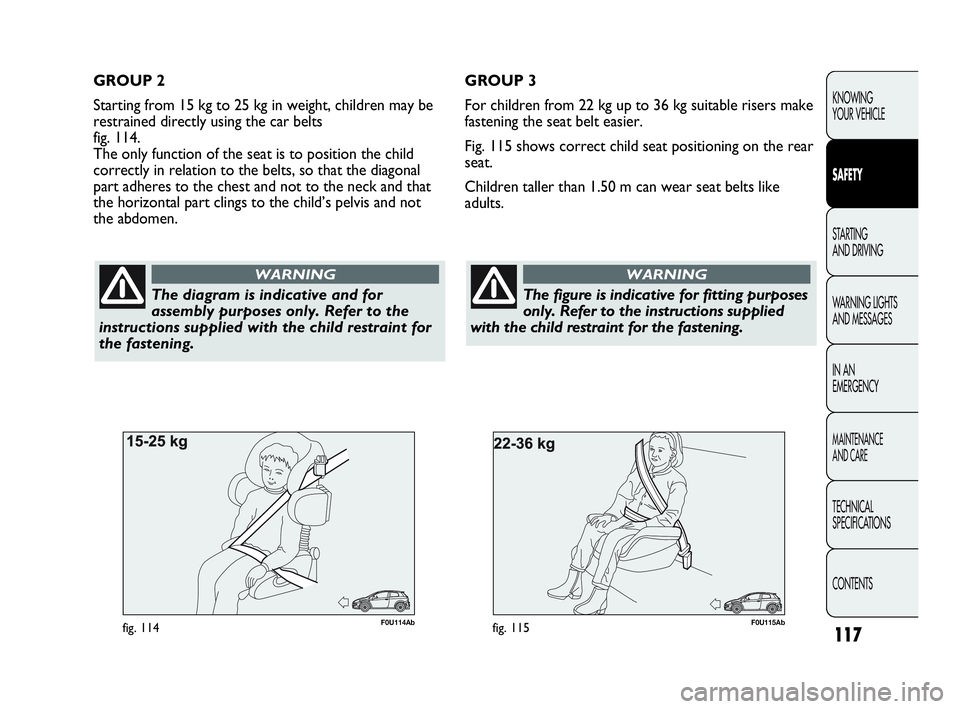

F0U114Abfig. 114
GROUP 2
Starting from 15 kg to 25 kg in weight, children may be
restrained directly using the car belts
fig. 114.
The only function of the seat is to position the child
correctly in relation to the belts, so that the diagonal
part adheres to the chest and not to the neck and that
the horizontal part clings to the child’s pelvis and not
the abdomen.GROUP 3
For children from 22 kg up to 36 kg suitable risers make
fastening the seat belt easier.
Fig. 115 shows correct child seat positioning on the rear
seat.
Children taller than 1.50 m can wear seat belts like
adults.
The figure is indicative for fitting purposes
only. Refer to the instructions supplied
with the child restraint for the fastening.
WARNING
109-130 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:39 Pagina 117

134
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U125Abfig. 125
USING THE MANUAL GEARBOX
To engage the gears, press the clutch pedal fully and put
the gear lever into one of the required positions (the
diagram is shown on the knob fig. 125).
To engage 6
thgear, operate the lever by pressing it
towards the right in order to avoid engaging 4thgear by
mistake. The same applies to the shift from 6thto 5th
gear.
IMPORTANT The car can only be put into reverse gear
when it has stopped moving completely.
To engage reverse R from neutral, proceed as follows:
raise sliding ring A-fig. 125 under the knob and at the
same time move the gear lever to the left and then
forwards. HANDBRAKE fig. 124
The handbrake lever is located to the left of the driver’s
seat. Pull the handbrake lever upwards until the car
cannot be moved. Four or five clicks are generally
enough when the car is on level ground while nine or
ten may be required if the car is on a steep slope and
laden.
IMPORTANT If this is not the case, contact an Abarth
Dealership to have the handbrake adjusted.
When the handbrake is engaged and the ignition key is
in
MARposition, the warning light xon the instrument
panel will turn on.
Proceed as follows to release the handbrake:
❒slightly lift the handbrake and press the release
button
A;
❒keep button Apressed and lower the lever. The
warning light
xon the instrument panel will turn off.
Press the brake pedal when carrying out this operation
to prevent the car from moving accidentally.
