Bulbs Figure ref. Type Power
Dipped/main beam headlights
Daytime running lights
Front side lights
Front fog lights (for versions/markets where available)
Front direction indicators
Side direction indicators
Rear direction indicators
Rear side lights
Brake lights
Third brake light (additional brake light)
Reversing lights
Rear fog lights
Number plate lights
Front courtesy light with spot lights
Boot light
Courtesy lightH4
W21W
W5W
H11
PY21W
WY5W
PY21W
LED
P21W
W2.3W
W16W
W16W
W5W
C10W
W5W
C5W D
A
A
–
B
A
B
–
B
B
–
–
A
C
A
C55 W/60 W
21 W
5 W
55 W
21 W
5 W
21 W
–
21 W
2.3 W
16 W
16 W
5 W
10 W
5 W
5 W
160
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

F0U138Abfig. 136F0U139Abfig. 137
IMPORTANT You can replace the front direction
indicator, main beam and dipped beam headlight bulbs
through the access flap (see “Direction indicators” in
this section).

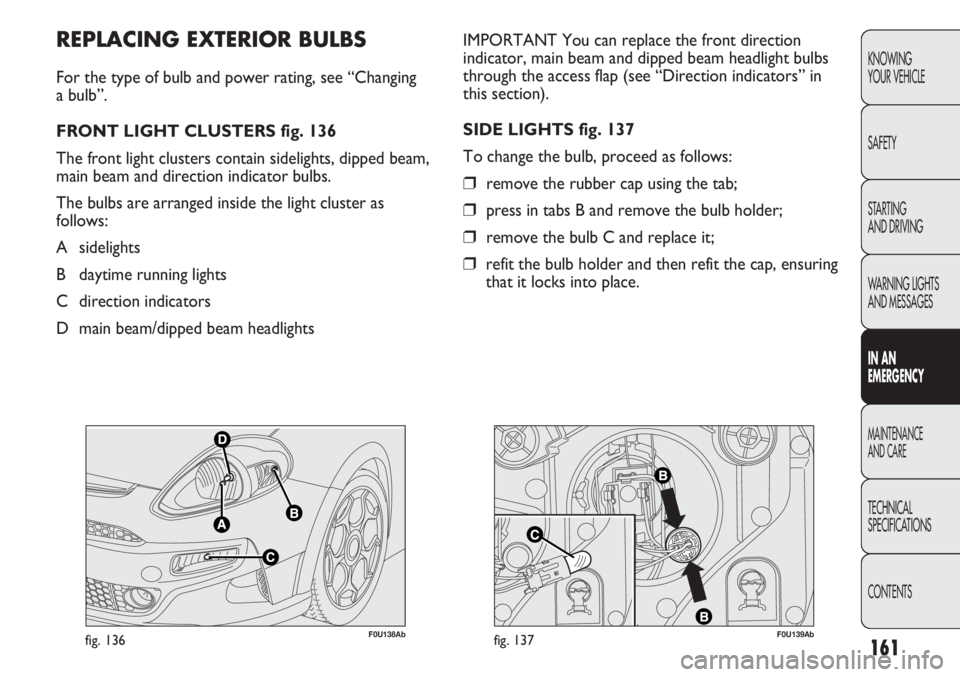

SIDE LIGHTS fig. 137
To change the bulb, proceed as follows:
❒remove the rubber cap using the tab;
❒press in tabs B and remove the bulb holder;
❒remove the bulb C and replace it;
❒refit the bulb holder and then refit the cap, ensuring
that it locks into place.
REPLACING EXTERIOR BULBS
For the type of bulb and power rating, see “Changing
a bulb”.
FRONT LIGHT CLUSTERS fig. 136
The front light clusters contain sidelights, dipped beam,
main beam and direction indicator bulbs.
The bulbs are arranged inside the light cluster as
follows:
A sidelights
B daytime running lights
C direction indicators
D main beam/dipped beam headlights
161
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

162
F0U140Abfig. 138

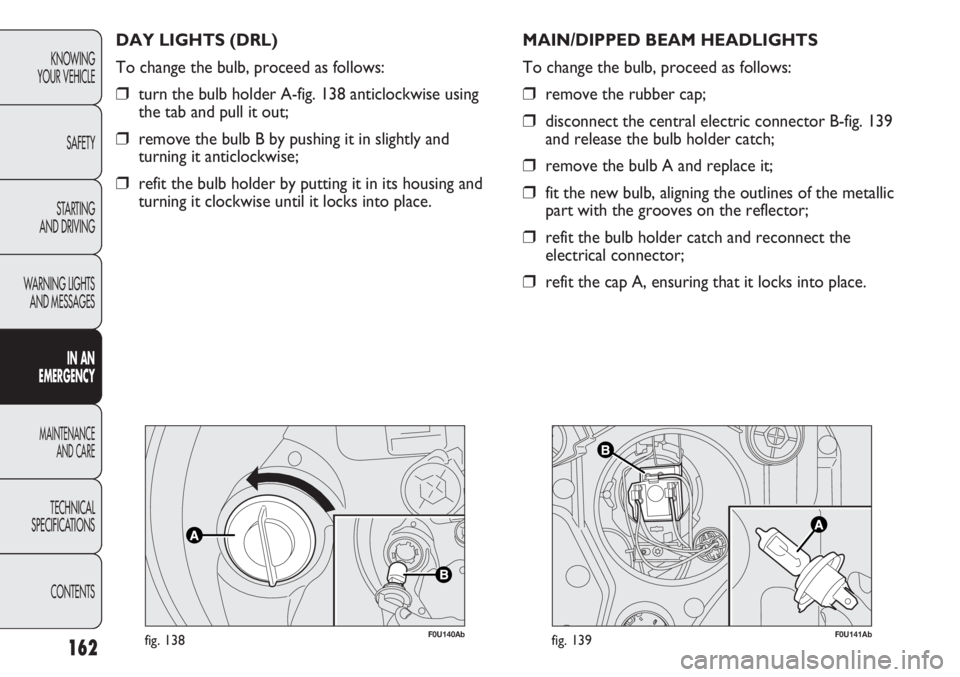

DAY LIGHTS (DRL)
