navigation system ACURA CSX 2006 Service Repair Manual

Î
Î(#'#
)
Without Navigation
Serial Number Display Mode
Eight digits of the serial number (example 12345678)

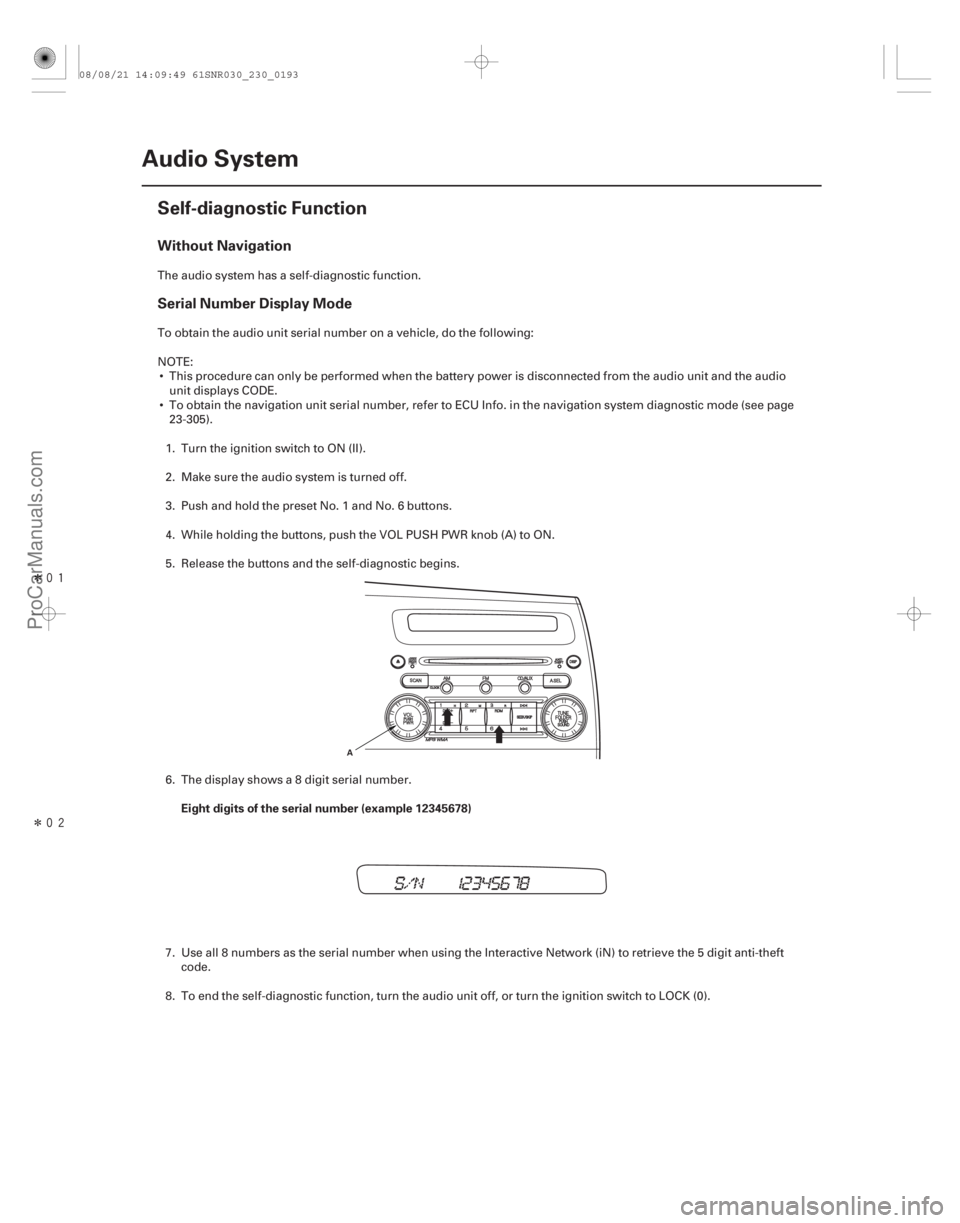

23-190Audio System
Self-diagnostic Function
A
The audio system has a self-diagnostic function.
To obtain the audio unit serial number on a vehicle, do the following:
NOTE:
 This procedure can only be performed when the battery power is disconnected from the audio unit and the audio unit displays CODE.
 To obtain the navigation unit serial number, refer to ECU Info. in the navigation system diagnostic mode (see page 23-305).
1. Turn the ignition switch to ON (II).
2. Make sure the audio system is turned off.
3. Push and hold the preset No. 1 and No. 6 buttons.
4. While holding the buttons, push the VOL PUSH PWR knob (A) to ON.
5. Release the buttons and the self-diagnostic begins.
6. The display shows a 8 digit serial number.
7. Use all 8 numbers as the serial number when using the Interactive Network (iN) to retrieve the 5 digit anti-theft code.
8. To end the self-diagnostic function, turn the audio unit off, or turn the ignition switch to LOCK (0).
08/08/21 14:09:49 61SNR030_230_0193
ProCarManuals.com
DYNOMITE -2009-

(#'
)

CD Error Codes (with navigation)Error Code Displayed Possible Cause Solution
CD Error Codes (without navigation) Error Code Displayed Possible Cause Solution
CD Error Codes Error Code Displayed Possible Cause Solution
USB Error Codes Error Code Displayed Possible Cause Solution

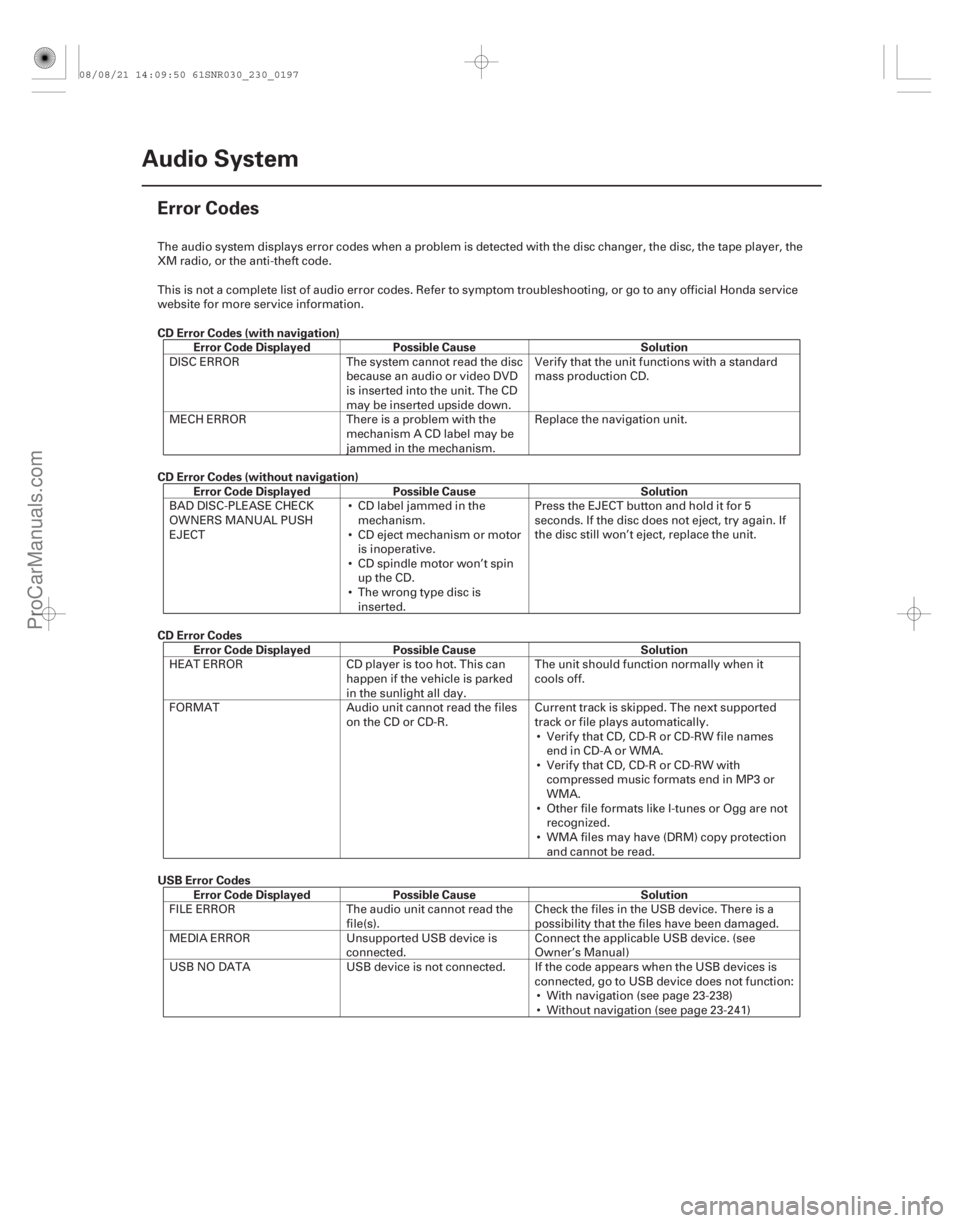

23-194Audio System
Error Codes
The audio system displays error codes when a problem is detected with the disc changer, the disc, the tape player, the
XM radio, or the anti-theft code.
This is not a complete list of audio error codes. Refer to symptom troubleshooting, or go to any official Honda service
website for more service information.
DISC ERROR The system cannot read the disc because an audio or video DVD
is inserted into the unit. The CD
may be inserted upside down. Verify that the unit functions with a standard
mass production CD.
MECH ERROR There is a problem with the mechanism A CD label may be
jammed in the mechanism. Replace the navigation unit.




BAD DISC-PLEASE CHECK
OWNERS MANUAL PUSH
EJECT
CDlabeljammedinthe
mechanism.
CD eject mechanism or motor
is inoperative.
CD spindle motor won’t spin
up the CD.
The wrong type disc is
inserted.Press the EJECT button and hold it for 5
seconds. If the disc does not eject, try again. If
the disc still won’t eject, replace the unit.




HEAT ERROR CD player is too hot. This can
happen if the vehicle is parked
in the sunlight all day. The unit should function normally when it
cools off.
FORMAT Audio unit cannot read the files on the CD or CD-R. Current track is skipped. The next supported
track or file plays automatically.
Verify that CD, CD-R or CD-RW file names
endinCD-AorWMA.
Verify that CD, CD-R or CD-RW with
compressed music formats end in MP3 or
WMA.
Other file formats like I-tunes or Ogg are not
recognized.
WMA files may have (DRM) copy protection
and cannot be read.


FILE ERROR The audio unit cannot read the
file(s). Check the files in the USB device. There is a
possibility that the files have been damaged.
MEDIA ERROR Unsupported USB device is connected. Connect the applicable USB device. (see
Owner’s Manual)
USB NO DATA USB device is not connected. If the code appears when the USB devices is connected, go to USB device does not function:With navigation (see page 23-238)
Without navigation (see page 23- 241)
08/08/21 14:09:50 61SNR030_230_0197
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Poor AM or FM radio reception or
interference (with navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-196
Audio System
Symptom Troubleshooting
A
B
NOTE: Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phones).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-255).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page
23-263).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-264), or replace the
rear window (see page 20-47) if the damaged
section is too long.
Go to step 10.
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:09:50 61SNR030_230_0199
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
Î
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO

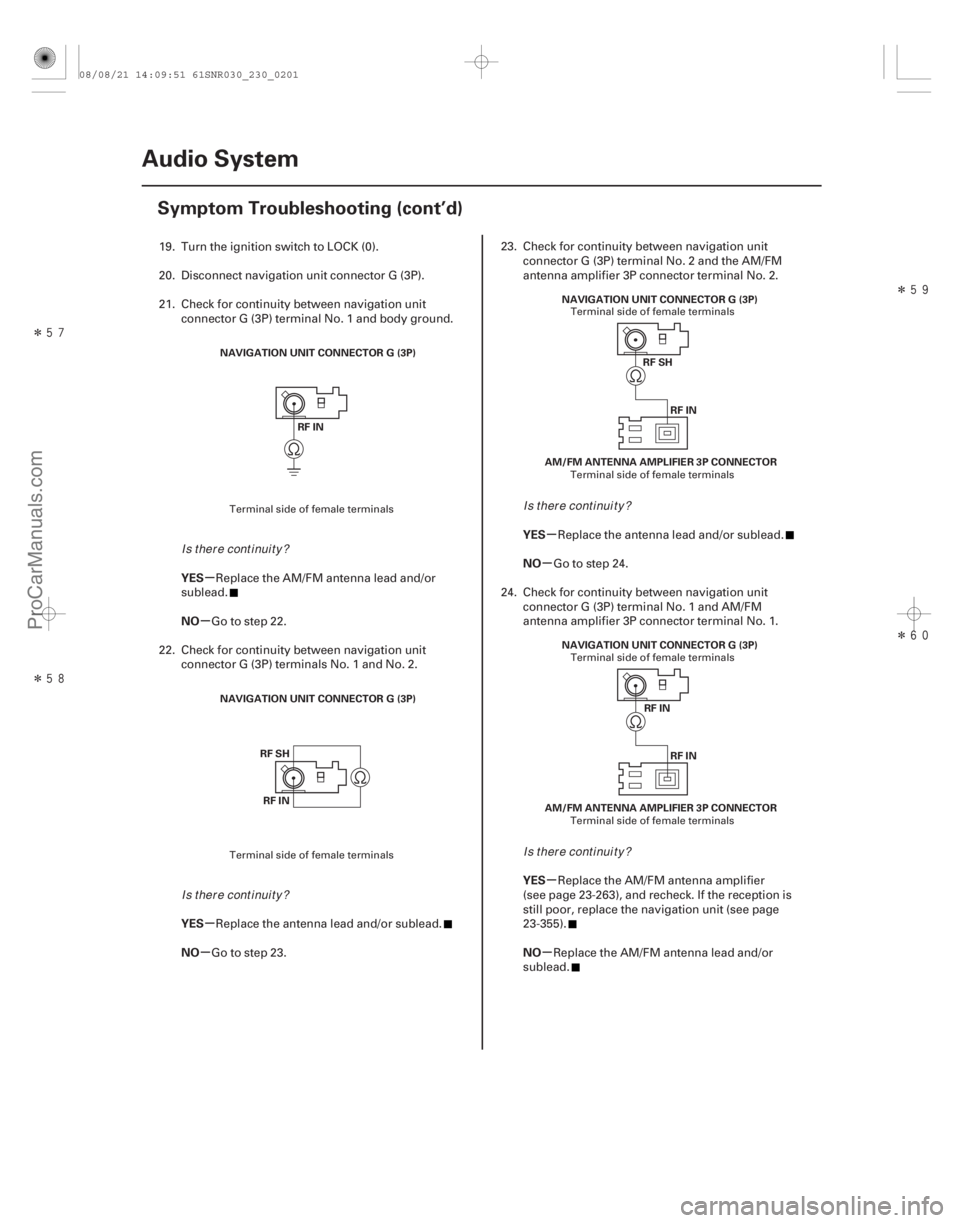

23-198Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR G (3P)
RF IN
NAVIGATION UNIT CONNECTOR G (3P) RF SHRF IN NAVIGATION UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR RF SH
RF IN
NAVIGATION UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR RF IN
RF IN
19. Turn the ignition switch to LOCK (0).
20. Disconnect navigation unit connector G (3P).
21. Check for continuity between navigation unitconnector G (3P) terminal No. 1 and body ground.
Replace the AM/FM antenna lead and/or
sublead.
Go to step 22.
22. Check for continuity between navigation unit connector G (3P) terminals No. 1 and No. 2.
Replace the antenna lead and/or sublead.
Go to step 23. 23. Check for continuity between navigation unit
connector G (3P) terminal No. 2 and the AM/FM
antenna amplifier 3P connector terminal No. 2.
Replace the antenna lead and/or sublead.
Go to step 24.
24. Check for continuity between navigation unit connector G (3P) terminal No. 1 and AM/FM
antenna amplifier 3P connector terminal No. 1.
Replace the AM/FM antenna amplifier
(see page 23-263), and recheck. If the reception is
still poor, replace the navigation unit (see page
23-355).
Replace the AM/FM antenna lead and/or
sublead.
Terminal side of female terminals
Terminal side of female terminals Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
Is there continuity?
Is there continuity? Is there continuity?
Is there continuity?
08/08/21 14:09:51 61SNR030_230_0201
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Poor AM or FM radio reception or
interference (without navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-199
A
B
NOTE: Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phones).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-255).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page
23-263).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-264), or replace the
rear window (see page 20-47) if the damaged
section is too long.
Go to step 10.
(cont’d)
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:09:52 61SNR030_230_0202
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
´
µ
µ
µ
µ
µ
µ µ
µ
Audio unit power switch will not turn on (No
information display and no sound)
(with navigation)
YES
NO
YES
NO
YES
NO YES
NO
23-202Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR A (24P)
ACC RADIO
(PUR) BBACKUP
(WHT)
NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if the navigation unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and No. 35 (7.5 A) fuse in the under-
dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the navigation unit (see page 23-355). Check that the navigation unit is properly
connected.
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
 Remove the PC card before removing the navigation unit.
Go to step 6.
Reconnect the connector, and recheck the
function. 6. Disconnect navigation unit connector A (24P)
7. Turn the ignition switch to ON (II).
8. Measure the voltage between body ground and
navigation unit connector A (24P) terminals No. 14
and No. 24 individually.
Go to step 9.
Repair open in the wire(s) between the No. 23
(10 A) fuse in the under-hood fuse/relay box and
the No. 35 (7.5 A) in the under-dash fuse/relay box
and the navigation unit.
9. Turn the ignition switch to LOCK (0).
10. Reconnect navigation unit connector A (24P).
Wire side of female terminals
Does t he nav i gat i on uni t d i spl ay oper at e pr oper l y , and d oes t he aud i o sound nor mal ?
Ar e t he f uses OK ?
I s i t connect ed pr oper l y ? I s t her e bat t er y v ol t age on bot h t er mi nal s?
08/08/21 14:09:53 61SNR030_230_0205
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ
µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO
Audio unit power switch will not turn on (No
information display and no sound)
(without navigation)
23-20323-203
NAVIGATION UNIT CONNECTOR A (24P)
RADIO GND (BLK)
11. Turn the ignition switch to ON (II).
12. Measure the voltage between navigation unitconnector A (24P) terminal No. 12 and body ground.
Replace the navigation unit (see page 23-355).
Repair open in the wire between navigation
unit connector A (24P) terminal No. 12 and body
ground (G 505) (see page 22-32). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if audio unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and the No. 35 (7.5 A) fuse in the
under-dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the audio unit (see page 23-256). Check that the audio unit is properly connected.
NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
Go to step 6.
Reconnect the connector, and recheck the
function.
(cont’d)
Wire side of female terminals
I s t her e l ess t han 0.1 V on bot h t er mi nal s? Does t he aud i o uni t oper at e pr oper l y , and d oes t he
aud i o sound nor mal ?
Ar e t he f uses OK ?I s i t connect ed pr oper l y ?
08/08/21 14:09:53 61SNR030_230_0206
ProCarManuals.com
DYNOMITE -2009-

Î(#'#
)
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ

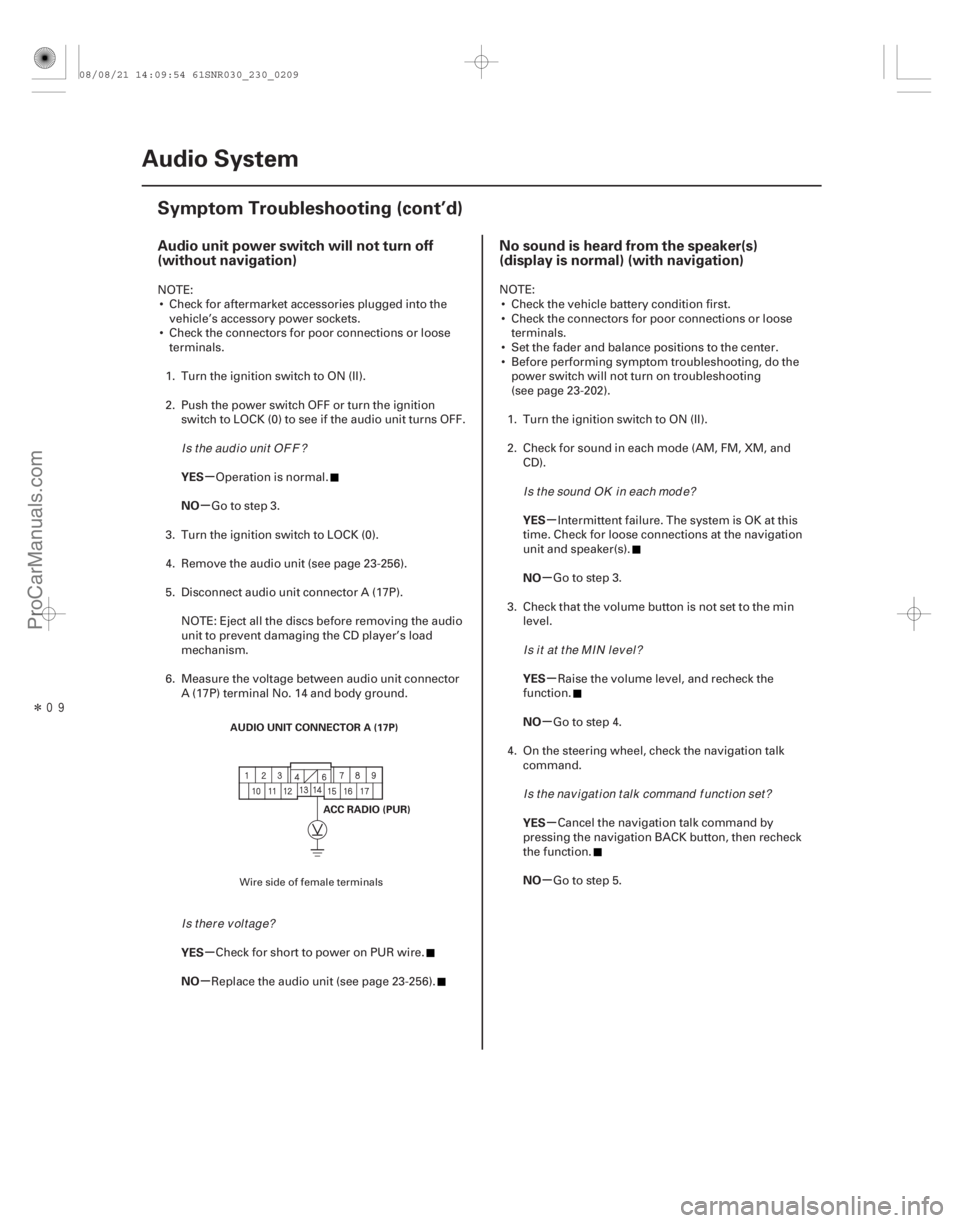

Audio unit power switch will not turn off
(without navigation) No sound is heard from the speaker(s)
(display is normal) (with navigation)
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
23-20623-206Audio System
Symptom Troubleshooting (cont’d)
AUDIO UNIT CONNECTOR A (17P)
ACC RADIO (PUR)
NOTE: Check for aftermarket accessories plugged into the vehicle’s accessory power sockets.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch OFF or turn the ignition switch to LOCK (0) to see if the audio unit turns OFF.
Operation is normal.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Remove the audio unit (see page 23-256).
5. Disconnect audio unit connector A (17P). NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
6. Measure the voltage between audio unit connector A (17P) terminal No. 14 and body ground.
Check for short to power on PUR wire.
Replace the audio unit (see page 23-256). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Set the fader and balance positions to the center.
 Before performing symptom troubleshooting, do the power switch will not turn on troubleshooting
(see page 23-202).
1. Turn the ignition switch to ON (II).
2. Check for sound in each mode (AM, FM, XM, and CD).
Intermittent failure. The system is OK at this
time. Check for loose connections at the navigation
unit and speaker(s).
Go to step 3.
3. Check that the volume button is not set to the min level.
Raise the volume level, and recheck the
function.
Go to step 4.
4. On the steering wheel, check the navigation talk command.
Cancel the navigation talk command by
pressing the navigation BACK button, then recheck
the function.
Go to step 5.
Wire side of female terminals
Is the aud io unit OF F ?
Is there voltage? I s t he sound OK i n each mod e?
Is it at the MIN level?I s t he nav i gat i on t al k command f unct i on set ?
08/08/21 14:09:54 61SNR030_230_0209
ProCarManuals.com
DYNOMITE -2009-

´
µ
´
µ
´
µ
´
µ
Î Î
´
µ
µ µ
µ
Speaker Terminal Wire color
YES
NO YES
NO
23-208Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR A (24P)
STEREO AMPLIFIER CONNECTOR A (20P)
BAUDIO
AMP
(LT GRN)
13. Check for continuity between body ground and the
following terminals of navigation unit connector A
(24P).
Driver’s door speaker,
Left tweeter A23 ( ) LT GRN
A22 ( ) PNK
Front passenger’s
door speaker,
Right tweeter A19 ( ) GRY
A18 ( ) BRN
Left rear speaker A11 ( ) YEL A10 ( ) BRN
Right rear speaker A7 ( ) BLU A6 ( ) ORN
Repair short to body ground in the wire(s)
between the navigation unit and the speaker(s).
Substitute a known-good navigation unit
(see page 23-355), and recheck. If the symptom/
indication goes away, replace the original
navigation unit. 14. Measure the voltage between stereo amplifier
connector A (20P) terminal No. 10 and body ground.
Go to step 15.
Repair open in the wire between the No. 17
(15 A) fuse in the under-hood fuse/relay box and
stereo amplifier connector A (20P) terminal
No. 10.
Wire side of female terminals Wire side of female terminals
Is there continuity?
Is there battery voltage?
08/08/21 14:10:45 61SNR030_230_0211
ProCarManuals.com
DYNOMITE -2009-

Î
Î

µ
µ µ
µ
Stereo amplifier connector Wire color
YES
NO Navigation
unit connector Stereo
amplifier
connector Wire color
YES
NO
23-212 Audio System
Symptom Troubleshooting (cont’d)
STEREO AMPLIFIER CONNECTOR B (14P)
STEREO AMPLIFIER CONNECTOR B (14P)NAVIGATION UNIT CONNECTOR A (24P)
27. Check for continuity between stereo amplifier
connector B (14P) and body ground according to
the table. Then check for continuity between the
same terminals listed in the table and stereo
amplifier connector B (14P) terminal No. 5 (the
harness shield).
B4 BLU
B11 PNK
Short in the wire between the stereo
amplifier and the navigation unit. Replace the
affected shielded harness.
Go to step 28. 28. Check for continuity between navigation unit
connector A (24P) and stereo amplifier connector B
(14P) according to the table.
A16 B11 PNK
A19 B4 BLU
Go to step 29.
Open in the wire between the navigation unit
and the stereo amplifier. Replace the affected
shielded harness.
Wire side of female terminals
Wire side of female terminalsWire side of female terminals
Is there continuity?
Is there continuity?
08/08/21 14:10:47 61SNR030_230_0215
ProCarManuals.com
DYNOMITE -2009-
