Audio remote switch does not work properly
(with navigation)
23-23023-230Audio System
Symptom Troubleshooting (cont’d)
5. Insert the skip test CD (T/N: 07AAZ-SDBA300)
(ABEX-TCD-721). Play tracks 2 to 11 and note the
track number(s) where the CD starts skipping. Do
the same test on a known-good vehicle.
Operation is normal.
Go to step 6.
6. Insert the skip test CD (T/N: 07AAZ-SDBA200) (ABEX-TCD-725B), and play tracks 7 to 11 and
tracks 13 to 15 and note the track number(s) where
the CD starts skipping. Perform the same test on a
known-good vehicle.
Operation is normal.
 With navigation: Replace the navigation unit (see page 23-355).
 Without navigation: Replace the audio unit (see page 23-256). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Check the audio unit operation.
Go to step 2.
Replace the navigation unit (see page 23-355).
2. Test the audio remote switch (see page 23-262).
Go to step 3.
Replace the audio remote switch (see page
23-263).
3. Remove the navigation unit (see page 23-355).
Does t he CD sk i p on t he same t r ack number ( s) as t he k now n-good v ehi cl e?
DoestheCDskiponsametrack number(s)asthek now n-good v ehi cl e? Is the audio unit operation OK ?
Is the audio remote switch OK ?
08/08/21 14:10:51 61SNR030_230_0233
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
)
µ´
µ
µ
µ
µ
µ
µ
Audio remote switch does not work properly
(without navigation)
YES
NO
YES
NO AUDIO REMOTE SWITCH TABLE
YES
NO
23-232Audio System
Symptom Troubleshooting (cont’d)
AUDIO UNIT CONNECTOR B (20P)
AUDIO REMOTE
SW (PNK)
AUDIO REMOTE
GND (BRN)
NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Check the audio unit operation.
Go to step 2.
Replace the audio unit (see page 23-256).
2. Test the audio remote switch (see page 23-262).
Go to step 3.
Replace the audio remote switch (see page
23-263).
3. Remove the audio unit (see page 23-256). 4. Measure the resistance between audio unit
connector B (20P) terminals No. 6 and No. 7 as
specified in the table.
Go to step 5.
Repair open or high resistance in the circuit
between the audio unit and the audio remote
switch. If the wires are OK, replace the cable reel
(see page 24-200).
Button held down VOL DOWNVOLUP CH( ) CH( ) MODE No
button
pressed
Resistance about 100about
370 about
840 about
2.0 K about
6.0 K about
10 k
Wire side of female terminals
Is the audio unit operation OK ?
Is the audio remote switch OK ? IstheresistanceOK?
08/08/21 14:10:51 61SNR030_230_0235
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
Audio disc cannot be inserted and/or ejected
(with navigation)
23-23323-233
AUDIO UNIT CONNECTOR B (20P)
AUDIO REMOTE SW (PNK)
AUDIO REMOTE GND (BRN)
5. Check for continuity between audio unit connector
B (20P) terminals No. 6 and No. 7 and body ground
individually.
Repair short to body ground in the circuit
between audio unit and the audio remote switch. If
the wires are OK, replace the cable reel (see page
24-200).
Replace the audio unit (see page 23-256). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Disc labels should not be used in the navigation unit or audio unit. They may damage the player
mechanism.
 Make sure the disc is compatible with the system (see the owner’s manual for more information).
1. Press the OPEN/CLOSE button to open the navigation display.
2. Try inserting an audio CD.
The system is OK at this time.
Go to step 3.
3. Press the CD eject button.
The system is OK at this time.
Replace the navigation unit (see page 23-355).
Wire side of female terminals
I s t her e cont i nui t y ? Does t he pl ay er accept t he CD?
Does the player eject the CD?
08/08/21 14:10:52 61SNR030_230_0236
ProCarManuals.com
DYNOMITE -2009-

(#'#
)
PC card will not play/card icon on audio
screen cannot be selected (with navigation)
23-234Audio System
Symptom Troubleshooting (cont’d)
Unfortunately there are no error messages, and no
diagnostics for the PC card. There are many reasons
why a card won’t play audio files in the audio unit.
 The card may not be fully inserted into the slot. Eject the card, and inspect for warping or damage to the
edge connector. N ever use excessive force to insert a
card. This can result in damage to the pins in the rear
of the slot.
 The client’s card may contain audio files that are not recognized by the system. Only MP3, and WMA
music files are played.
 The flash card type may not be accepted by the system. Only Compact Flash and ATA cards have
been tested.
 The card’s PCMCIA adaptor may be preventing a known-good card from playing. New PCMCIA
adaptors are constantly being released, and have not
been tested.
 The card’s capacity may exceed 1 GB. Only cards with capacities of up to 1 GB (1000 MB) have been
tested.
 There may not be any files on the card. Some cards have write protection, make sure it is turned off
before putting files on the card.
 Although flash memory chips are reliable, occasionally they develop bad sectors or other
formatting errors that prevents them from playing.
The client should re-format the card using the FAT, or
FAT32 format.  The card may have been damaged by heat. Suggest
that the client remove their card when exiting the
vehicle.
 The client may have formatted the card using the format NTFS. Only the formats FAT, and FAT32 are
accepted by the system.
 Hard Disc Drive (HDD) cards may not work properly in the system and can overheat and quit functioning,
particularly in a hot vehicle. They are not
recommended.
 The filing structure of the card may exceed the specification of 8 folder levels deep, 99 folders
maximum, and 999 total tracks maximum. If any of
these limitations is exceeded, the system may not
properly display or play the tracks.
NOTE: A delay when first inserting a card is normal.
The system is reading the File Tag information for
album names, artist, and song titles and there is no
hour glass, The delay length depends on the number of
tracks, and the complexity of the folder structure.
See the audio section glossary for an explanation of the
terms used above.
08/08/21 14:10:52 61SNR030_230_0237
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ
µ
µ
µ
µ
Navigation
unit connector USB adapter
unit connector Wire color
YES
NO YES
NO
YES
NO
YES
NO
USB input sound is low or cannot be heard
(without navigation)
23-23623-236Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR E (14P)
USB ADAPTER UNIT CONNECTOR A (14P)
14. Check for continuity between navigation unit connector E (14P) and USB adapter unit connector
A (14P) according to the table.
E5 A5 WHT
E6 A6 RED
E13 A13 BLK
E14 A14 GRN
Substitute a known-good USB adapter unit
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original USB adapter unit. If
the symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the USB adapter unit. Replace affected
shielded harness. NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Do the speaker check mode with the self-diagnostic mode.
Go to step 3.
Go to no sound is heard from speaker(s).
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that equipped with the USB adapter and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. On the client’s vehicle, connect the client’s USB device to the USB adapter.
6. Turn the ignition switch to ON (II), and turn on the audio unit.
7. Check if the USB device can be operated with the audio unit (Folders or Files UP/DOWN, etc.).
Go to step 8.
If the sound is normal, the USB device is OK
at this time. If the USB device cannot be operated,
go to USB audio device does not work.
8. Turn the ignition switch to LOCK (0).
9. Disconnect audio unit connector E (14P).
10. Disconnect USB adapter unit connector A (14P).
Wire side of female terminals
Wire side of female terminals
Is there continuity? Do al l speak er s mak e a sound ?
Is the USB device working properly?
Can y ou oper at e t he U SB d ev i ce, but t her e i s nosound hear d ?
08/08/21 14:10:52 61SNR030_230_0239
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
USB device does not function (with
navigation)
YES
NO
YES
NO USB adapter unit
connector USB adapter
connector
YES
NO
YES
NO
YES
NO
23-238 Audio System
Symptom Troubleshooting (cont’d)
USB ADAPTER UNIT CONNECTOR B (5P)
USB ADAPTER 5P CONNECTOR
NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Check the USB device requirement: – Mass-storage class ready digital audio player with USB 2.0 port
– More than 256 MB of RAM
– Supports MP3, WMA, and AAC (encoded with the i- Tunes) files, DRM files are not supported
1. Turn the ignition switch to ON (II) and turn on the navigation unit.
2. Push the AUX button to select USB mode.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0).
4. Connect the client’s USB device to a known-good vehicle that is equipped with the USB adapter and
check the USB device operation.
Go to step 5.
USB device is faulty. Also check the USB
cable and USB adapter connector condition.
5. Disconnect USB adapter unit connector B (5P). 6. Check for continuity between terminals of USB
adapter connector B (5P) and the USB adapter 5P
connector according to the table.
B1 1
B2 2
B3 3
B4 4
Replace the USB adapter unit (see page
23-258). Open in the wire(s) between the USB adapter
unit and the USB adapter. Replace the affected
shielded harness.
7. Check the XM operation on the navigation display.
Go to step 8.
Go to XM radio display is blank and no station
information is displayed troubleshooting.
8. Turn the ignition switch to LOCK (0).
9. Check that the navigation unit connectors and the USB adapter unit connectors properly connected.
Go to step 10.
Connect the connectors, and recheck.
Terminal side of female terminals
Terminal side of male terminals
Is USB NO DAT A displayed?
Is the USB device working properly? Is there continuity?
Ar e t he sy st em w or k i ng pr oper l y on t he nav i gat i onscr een?
I s t he connect or s pr oper l y connect ed ?
08/08/21 14:14:11 61SNR030_230_0241
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
YES
NO Navigation
unit connector USB adapter
unit connector Wire color
YES
NO
23-240 Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR E (14P)
SYS ACC (LT BLU) NAVIGATION UNIT CONNECTOR E (14P)
USB ADAPTER UNIT CONNECTOR A (14P)
16. Turn the ignition switch to ON (II).
17. Measure the voltage between body ground and navigation unit connector E (14P) terminal No. 2.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If 10 V or more are
present, replace the original navigation unit.
Go to step 18.
18. Turn the ignition switch to LOCK (0).
19. Disconnect navigation unit connector E (14P) and USB adapter unit connector A (14P). 20. Check for continuity between terminals of
navigation unit connector E (14P) and USB adapter
unit connector A (14P) according to the table.
E9 A9 BLU
E10 A10 PNK
Substitute a known-good USB adapter unit
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original USB adapter unit. If
the symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the USB adapter unit. Replace the affected
shielded harness.
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is t her e 10 V or mor e pr esent ? Is there continuity?
08/08/21 14:14:12 61SNR030_230_0243
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
Î
µ
´
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO
23-246Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
GA-NET
GND (BLK)
XM RECEIVER CONNECTOR A (14P) SYS ACC (LT BLU) XM RECEIVER CONNECTOR A (14P)
SYS ACC (LT BLU)
NAVIGATION UNIT CONNECTOR E (14P) GA-NET BUS
(WHT)
GA-NET BUS
(BLK)
4. Turn the ignition switch to ON (II).
5. Measure the voltage between XM receiver
connector A (14P) terminal No. 11 and body ground.
Go to step 6.
Repair open in the wire between the XM
receiver and the navigation unit.
6. Turn the ignition switch to LOCK (0).
7. Measure the voltage between XM receiver connector A (14P) terminal No. 2 and body ground.
Go to step 8.
Substitute known-good XM receiver
(see page 23-258), and recheck. If 10 V or more are
present, replace the original XM receiver.
8. Turn the ignition switch to ON (II). 9. Measure the voltage between XM receiver
connector A (14P) terminal No. 2 and body ground.
Go to step 10.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If 0.5 V or less are
present, replace the original navigation unit.
10. Turn the ignition switch to LOCK (0).
11. Disconnect navigation unit connector E (14P), USB adapter unit connector A (14P), and XM receiver
connector A (14P).
12. Check for continuity between navigation unit connector E (14P) terminals No. 9 and No. 10 and
body ground individually.
Go to step 13.
Short to body ground in the wire between the
XM receiver and the navigation unit. Replace the
affected shielded harness.
Wire side of female terminals
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
Is t her e l ess t han 0.1 V ? Is t her e 10 V or mor e pr esent ? Is t her e l ess t han 0.5 V ?
Is there continuity?
08/08/21 14:14:14 61SNR030_230_0249
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'#
)
´
µ
µ
µ
µ µ
µ
µ
µ
XM radio preset memory is lost (with
navigation)
YES
NO
YES
NO YES
NO
YES
NO

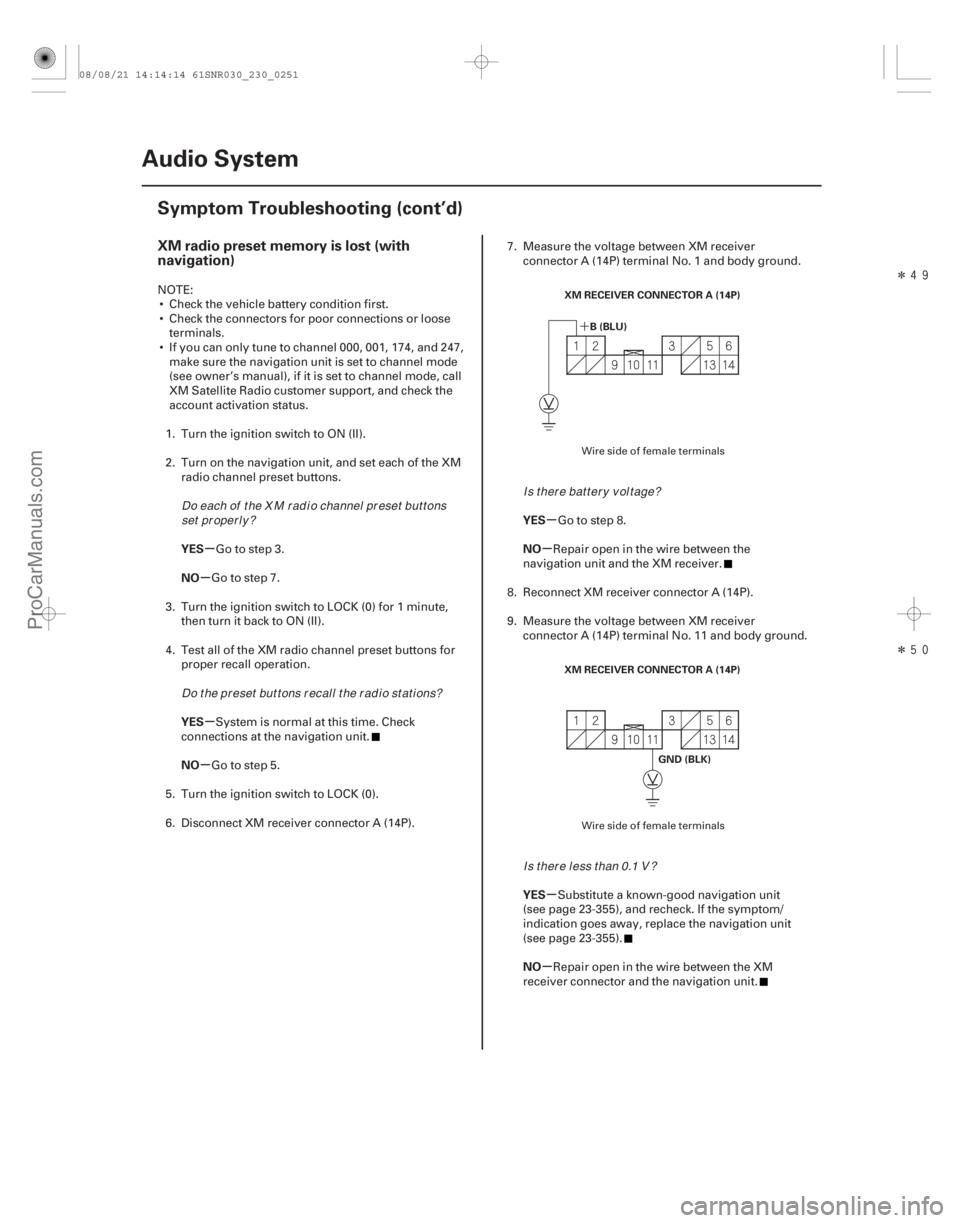

23-248Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
B(BLU)
XM RECEIVER CONNECTOR A (14P) GND (BLK)NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 If you can only tune to channel 000, 001, 174, and 247, make sure the navigation unit is set to channel mode
(see owner’s manual), if it is set to channel mode, call
XM Satellite Radio customer support, and check the
account activation status.
1. Turn the ignition switch to ON (II).
2. Turn on the navigation unit, and set each of the XM radio channel preset buttons.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0) for 1 minute, then turn it back to ON (II).
4. Test all of the XM radio channel preset buttons for proper recall operation.
System is normal at this time. Check
connections at the navigation unit.
Go to step 5.
5. Turn the ignition switch to LOCK (0).
6. Disconnect XM receiver connector A (14P). 7. Measure the voltage between XM receiver
connector A (14P) terminal No. 1 and body ground.
Go to step 8.
Repair open in the wire between the
navigation unit and the XM receiver.
8. Reconnect XM receiver connector A (14P).
9. Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.
Substitute a known-good navigation unit
(see page 23-355), and recheck. If the symptom/
indication goes away, replace the navigation unit
(see page 23-355).
Repair open in the wire between the XM
receiver connector and the navigation unit.
Wire side of female terminals
Wire side of female terminals
Do each of t he X M r ad i o channel pr eset but t ons set pr oper l y ?
Do t he pr eset but t ons r ecal l t he r ad i o st at i ons? Is there battery voltage?
Is t her e l ess t han 0.1 V ?
08/08/21 14:14:14 61SNR030_230_0251
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
From terminal To terminals
YES
NO Navigation
unit connector XM receiver
connector Wire color
YES
NO
23-250 Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
NAVIGATION UNIT CONNECTOR E (14P)
XM RECEIVER CONNECTOR A (14P)
7. Check for continuity between terminals of XMreceiver connector A (14P) according to the table.
A4 (GRY) A5 (WHT), A6 (RED), A13 (BLK), A14 (GRN)
A5 (WHT) A6 (RED), A13 (BLK), A14 (GRN)
A6 (RED) A13 (BLK), A14 (GRN)
A13 (BLK) A14 (GRN)
Short in the wires between the navigation
unit and the XM receiver. Replace the affected
shielded harness.
Go to step 8. 8. Check for continuity between navigation unit
connector E (14P) and XM receiver connector A
(14P) according to the table.
E5 A5 WHT
E6 A6 RED
E13 A13 BLK
E14 A14 GRN
Substitute a known-good XM receiver
(see page 23-258), then reconnect all of the
connectors and recheck. If the symptom/indication
goes away, replace the original XM receiver. If the
symptom/indication is still present, replace the
navigation unit (see page 23-355).
Open in the wire(s) between the navigation
unit and the XM receiver. Replace the affected
shielded harness.
Wire side of female terminals Wire side of female terminals
Wire side of female terminals
I s t her e cont i nui t y bet w een any of t he t er mi nal s? Is there continuity?
08/08/21 14:14:15 61SNR030_230_0253
ProCarManuals.com
DYNOMITE -2009-
