Navigation Unit Removal/Installation
A B B
C
SRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE:
 Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Before replacing the navigation unit, make sure to remove the client’s navigation DVD, and their audio
CD, or PC card. Remanufactured navigation units do
not come with a navigation DVD. Re-install the client’s
navigation DVD, audio CD, and audio PC card into the
new Remanufactured unit. If the navigation display
won’t open, manually remove the navigation DVD,
audio CD, and PC card (see page 23-154).
 If you are replacing the navigation unit, write down the audio presets (if possible), then enter then into
the new navigation unit.
1. Make sure you have the 4-digit anti-theft code for the navigation system.
2. Eject the DVD from the original navigation unit. To avoid scratching or damaging the DVD, temporarily
place the DVD in a jewel case.
3. Remove the meter inner visor (see page 20-100). 4. Remove the center pocket hole lid and bolts, then
pull out the center panel (A).
5. Disconnect the connectors (B) and the air hose (C), then remove the center panel.
(cont’d)
08/08/21 14:08:39 61SNR030_230_0158
ProCarManuals.com
DYNOMITE -2009-



(#'#

) Position Resistance
23-15623-156
Navigation System
Navigation Unit Removal/
Installation (cont’d)
Voice Control Switch Test
A
BC
6. Remove the screws, brackets (A), and the
navigation unit (B) from the center panel (C).
7. Install the navigation unit in the reverse order of removal, and make sure all connectors are secure.
8. Turn the ignition switch to ON (II), then reinstall the client’s original DVD, verifying that the DVD is free
of scratches or smudges.
9. Check any official Honda service website for more service information about the navigation system.
NOTE: Simply transferring the DVD from the
original navigation unit to the new navigation unit
does not assure the correct software for the vehicle
will be loaded into the new navigation unit. Doing
the DVD transfer without doing software patches
may cause the new navigation unit to appear to be
malfunctioning.
10. Enter the new navigation anti-theft code.
11. Park the vehicle outside, and do the GPS initialization (see page 23-93).
12. Give the new navigation anti-theft code to the client. 1. Remove the voice control switch (see page 23-157).
2. Measure the resistance between terminals No. 2
andNo.4ineachswitchpositionaccordingtothe
table.
No button pressed About 10 k TALK About 2.9 k
BACK About 680
3. If the resistance is not as specified, replace the voice control switch (see page 23-157).
08/08/21 14:08:39 61SNR030_230_0159
ProCarManuals.com
DYNOMITE -2009-



(#'#

) Position Resistance
23-15623-156
Navigation System
Navigation Unit Removal/
Installation (cont’d)
Voice Control Switch Test
A
BC
6. Remove the screws, brackets (A), and the
navigation unit (B) from the center panel (C).
7. Install the navigation unit in the reverse order of removal, and make sure all connectors are secure.
8. Turn the ignition switch to ON (II), then reinstall the client’s original DVD, verifying that the DVD is free
of scratches or smudges.
9. Check any official Honda service website for more service information about the navigation system.
NOTE: Simply transferring the DVD from the
original navigation unit to the new navigation unit
does not assure the correct software for the vehicle
will be loaded into the new navigation unit. Doing
the DVD transfer without doing software patches
may cause the new navigation unit to appear to be
malfunctioning.
10. Enter the new navigation anti-theft code.
11. Park the vehicle outside, and do the GPS initialization (see page 23-93).
12. Give the new navigation anti-theft code to the client. 1. Remove the voice control switch (see page 23-157).
2. Measure the resistance between terminals No. 2
andNo.4ineachswitchpositionaccordingtothe
table.
No button pressed About 10 k TALK About 2.9 k
BACK About 680
3. If the resistance is not as specified, replace the voice control switch (see page 23-157).
08/08/21 14:08:39 61SNR030_230_0159
ProCarManuals.com
DYNOMITE -2009-


(#'#


 )
23-158Navigation System
GPS Antenna Removal/Installation
A
B
1. Remove the navigation unit (see page 23-155).
2. Remove the instrument panel (see page 20-98).
3. Remove the wire harness clip (A), screws, and GPS
antenna (B).
4. Install the antenna in the reverse order of removal.
08/08/21 14:08:40 61SNR030_230_0161
ProCarManuals.com
DYNOMITE -2009-

(#'/)
Audio, Navigation, andTelematics
Audio System
Navigation System HandsFreeLink System
Audio, Navigation, and Telematics (’09 model)
....................... .......................
Special Tools . 23-160
.................................
................................. .............
................... .....
..........................
..................
........................
........................ ....................
........................ .........
....................
....................
................................... ....................
....................
....................
...............................
.................................
.................................
.............
................... .....
..........................
..................
........................
........................ ....................
........................ .........
....................
....................
................................... ....................
....................
....................
...............................
Component Location
Index . 23-161
Symptom Troubleshooting Index . 23-162
System Description . 23-164
Circuit Diagram . 23-184
Self-diagnostic Function . 23-190
Error Codes . 23-194
Symptom Troubleshooting . 23-196
Sound Quality Diagnosis . 23-251
Audio Unit Removal/ Installation . 23-256
XM Receiver Removal/ Installation . 23-258
USB Adapter Unit Replacement . 23-258
Stereo Amplifier Removal/ Installation . 23-259
Speaker Replacement . 23-259
Auxiliary Jack Assembly Replacement . 23-261
USB Adapter Replacement . 23-262
Audio Remote Switch Test . 23-262
Audio Remote Switch Replacement . 23-263
AM/FM Antenna Amplifier Replacement . 23-263
XM Antenna Replacement . 23-264
AM/FM Antenna Repair . 23-264
.......................................................
.................................
......................
Component Location
Index . 23-265
General Troubleshooting Information . 23-266 .................................
.................................
.............
................... ...
.........
.............. .......
........................ ..
....................
....................
........................
.................................
.................................
.............
................... ...
.........
.............. .......
........................ ..
....................
....................
........................
DTC Troubleshooting
Index . 23-275
Symptom Troubleshooting Index . 23-276
System Description . 23-279
Circuit Diagram . 23-296
System Diagnostic Mode . 23-297
DTC Troubleshooting . 23-320
Symptom Troubleshooting . 23-338
CD, DVD, and PC Card Removal/Installation . 23-354
Navigation Unit Removal/ Installation . 23-355
Voice Control Switch Test . 23-357
Voice Control Switch Replacement . 23-357
HFL-Navigation Microphone Replacement . 23-358
GPS Antenna Removal/ Installation . 23-358
................................. ......................
.................................
................................. .............
..............
................... .........
..............
...................
....................
.................................
......................
.................................
................................. .............
..............
................... .........
..............
...................
....................
Component Location
Index . 23-359
General Troubleshooting Information . 23-360
DTC Troubleshooting Index . 23-370
Symptom Troubleshooting Index . 23-371
System Description . 23-372
HFL System Troubleshooting . 23-373
Circuit Diagram . 23-374
DTC Troubleshooting . 23-376
Symptom Troubleshooting . 23-382
HFL Switch Test . 23-387
Control Unit Input Test/ Replacement . 23-388
08/08/21 14:08:40 61SNR030_230_0162
ProCarManuals.com
DYNOMITE -2009-

Î
(#'
)
23-161
Audio System
Component Location Index

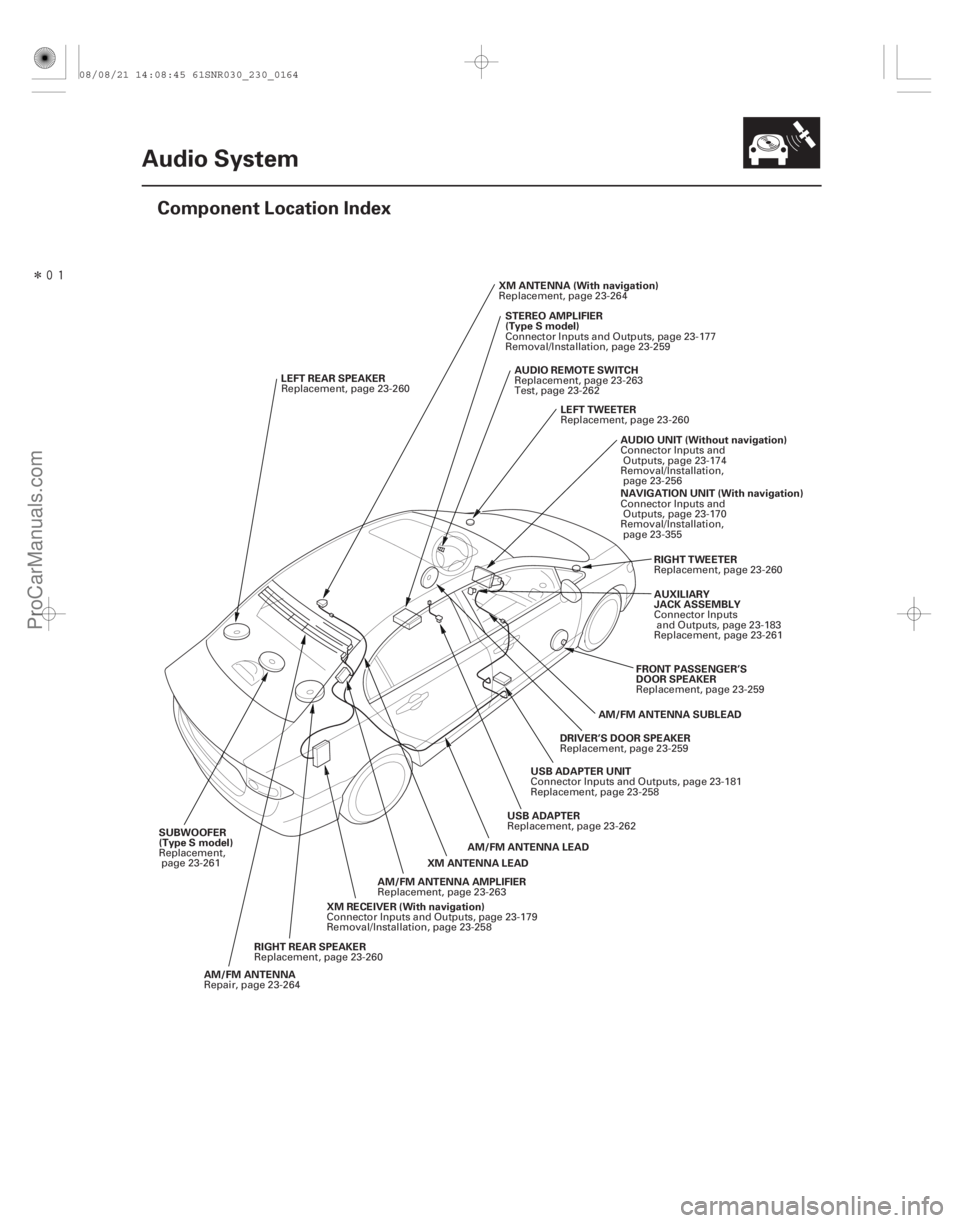

RIGHT TWEETER
AUXILIARY
JACK ASSEMBLY
AUDIO UNIT (Without navigation)
LEFT TWEETER
AUDIO REMOTE SWITCH
LEFT REAR SPEAKER
FRONT PASSENGER’S
DOOR SPEAKER
AM/FM ANTENNA SUBLEAD
DRIVER’S DOOR SPEAKER
AM/FM ANTENNA LEAD
AM/FM ANTENNA AMPLIFIER
RIGHT REAR SPEAKER
AM/FM ANTENNA NAVIGATION UNIT (With navigation)
STEREO AMPLIFIER
(Type S model)
XM ANTENNA (With navigation)
XM ANTENNA LEAD
XM RECEIVER (With navigation)
SUBWOOFER
(Type S model)
USB ADAPTERUSB ADAPTER UNIT Replacement, page 23-260
Connector Inputs
and Outputs, page 23-183
Replacement, page 23-261
Connector Inputs and
Outputs, page 23-174
Removal/Installation, page 23-256
Replacement, page 23-260
Replacement, page 23-263
Test, page 23-262
Replacement, page 23-260
Replacement, page 23-259
Replacement, page 23-259
Replacement, page 23-263
Replacement, page 23-260
Repair, page 23-264 Connector Inputs and
Outputs, page 23-170
Removal/Installation, page 23-355
Connector Inputs and Outputs, page 23-177
Removal/Installation, page 23-259
Replacement, page 23-264
Connector Inputs and Outputs, page 23-179
Removal/Installation, page 23-258
Replacement,
page 23-261 Replacement, page 23-262Connector Inputs and Outputs, page 23-181
Replacement, page 23-258
08/08/21 14:08:45 61SNR030_230_0164
ProCarManuals.com
DYNOMITE -2009-

(#'
)

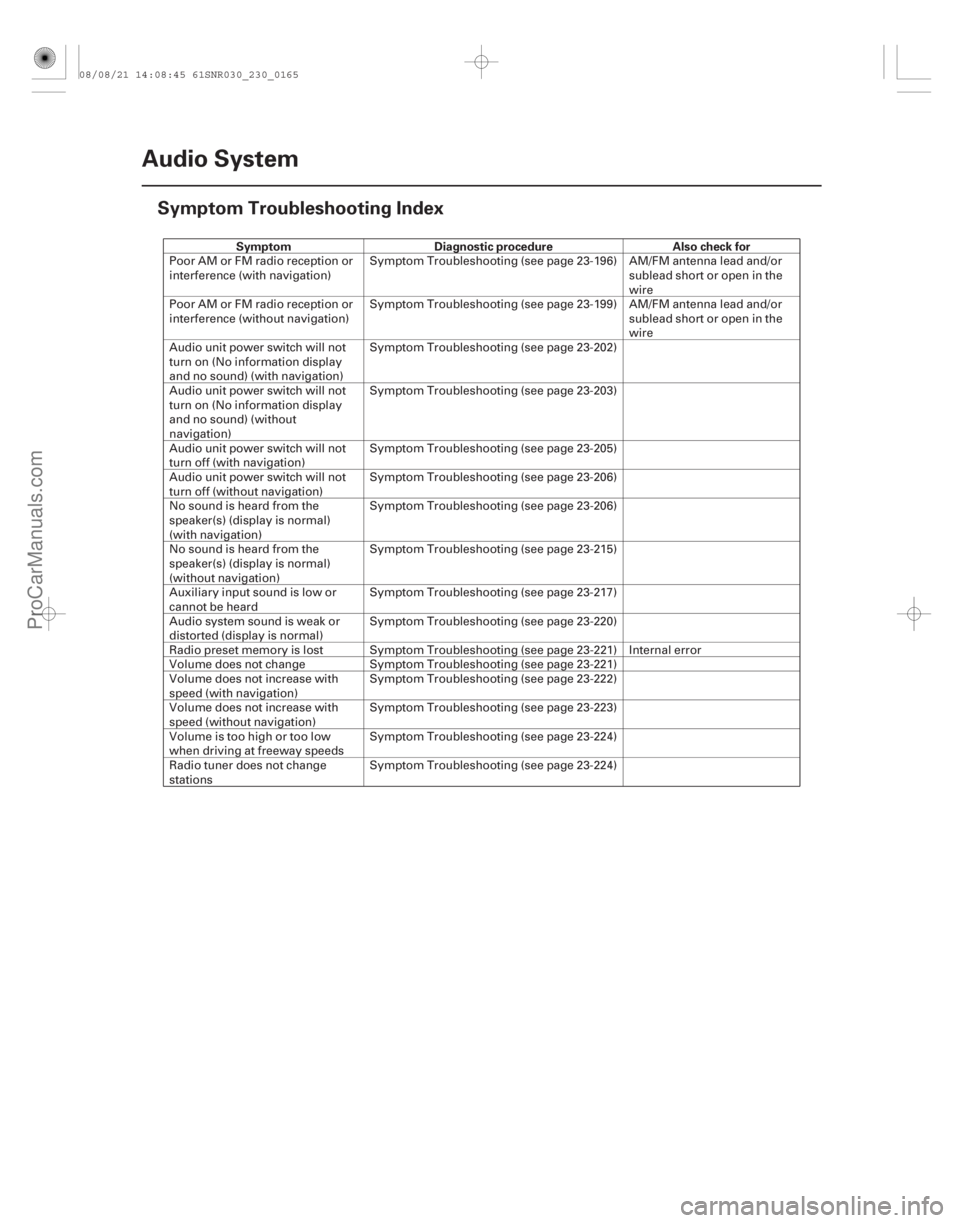

Symptom Diagnostic procedure Also check for
23-162
Audio System
Symptom Troubleshooting Index
Poor AM or FM radio reception or
interference (with navigation)
Symptom Troubleshooting (see page 23-
196) AM/FM antenna lead and/or
sublead short or open in the
wire
Poor AM or FM radio reception or
interference (without navigation) Symptom Troubleshooting (see page 23-
199) AM/FM antenna lead and/or
sublead short or open in the
wire
Audio unit power switch will not
turn on (No information display
and no sound) (with navigation) Symptom Troubleshooting (see page 23-
202)
Audio unit power switch will not
turn on (No information display
and no sound) (without
navigation) Symptom Troubleshooting (see page 23-
203)
Audio unit power switch will not
turn off (with navigation) Symptom Troubleshooting (see page 23-
205)
Audio unit power switch will not
turn off (without navigation) Symptom Troubleshooting (see page 23-
206)
No sound is heard from the
speaker(s) (display is normal)
(with navigation) Symptom Troubleshooting (see page 23-
206)
No sound is heard from the
speaker(s) (display is normal)
(without navigation) Symptom Troubleshooting (see page 23-
215)
Auxiliary i nput sound is low or
cannot be heard Symptom Troubleshooting (see page 23-
217)
Audio system sound is weak or
distorted (display is normal) Symptom Troubleshooting (see page 23-
220)
Radio preset memory is lost Symptom Troubleshooting (see page 23-221) Internal error
Volume does not change Symptom Troubleshooting (see page 23- 221)
Volume does not increase with
speed (with navigation) Symptom Troubleshooting (see page 23-
222)
Volume does not increase with
speed (without navigation) Symptom Troubleshooting (see page 23-
223)
Volume is too high or too low
when driving at freeway speeds Symptom Troubleshooting (see page 23-
224)
Radio tuner does not change
stations Symptom Troubleshooting (see page 23-
224)
08/08/21 14:08:45 61SNR030_230_0165
ProCarManuals.com
DYNOMITE -2009-

(#'



)
Overview
Speed-sensitive volume compensation (SVC)
23-164Audio System
System Description

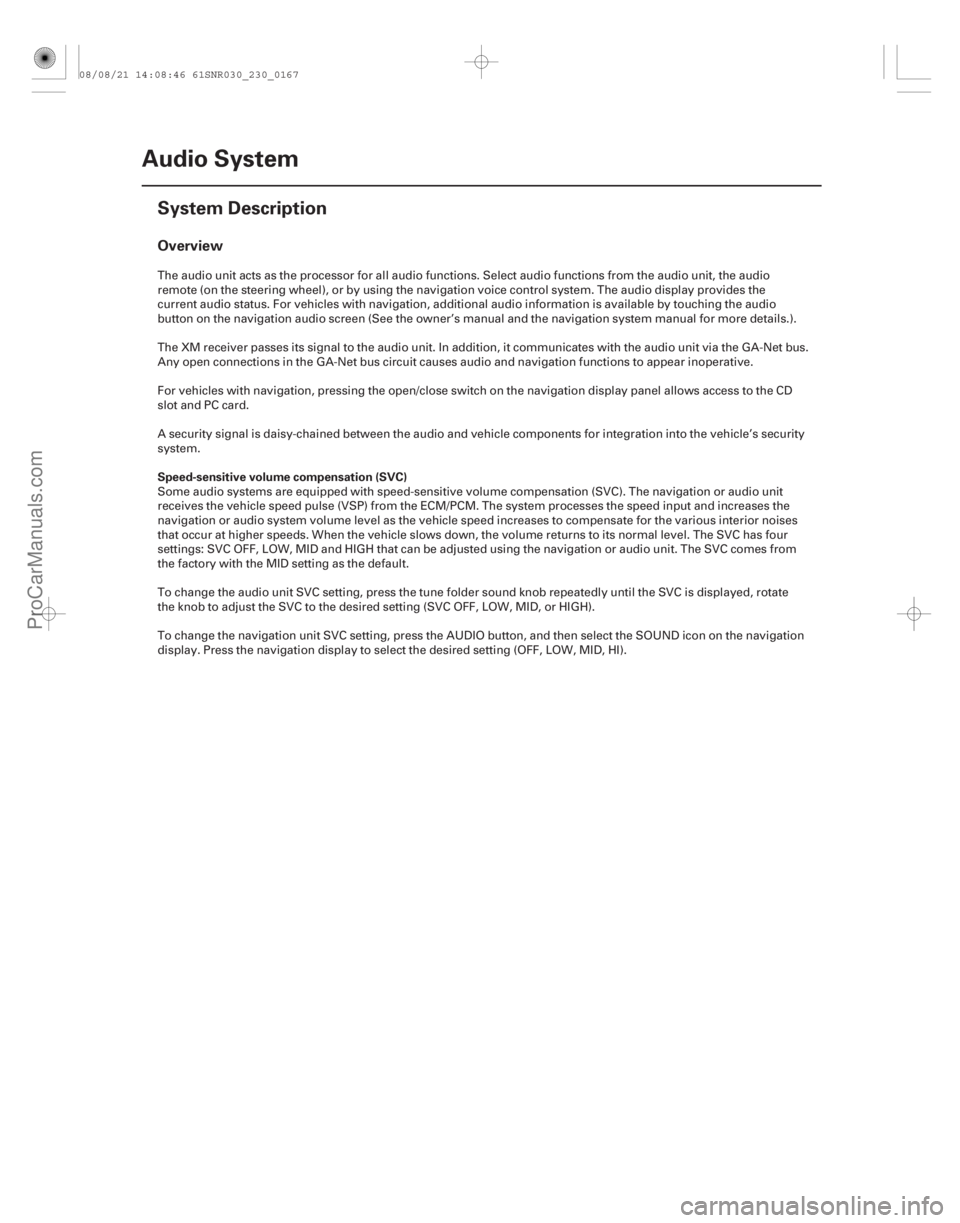

The audio unit acts as the processor for all audio functions. Select audio functions from the audio unit, the audio
remote (on the steering wheel), or by using the navigation voice control system. The audio display provides the
current audio status. For vehicles with navigation, additional audio information is available by touching the audio
button on the navigation audio screen (See the owner’s manual and the navigation system manual for more details.).
The XM receiver passes its signal to the audio unit. In addition, it communicates with the audio unit via the GA-Net bus.
Any open connections in the GA-Net bus circuit causes audio and navigation functions to appear inoperative.
For vehicles with navigation, pressing the open/close switch on the navigation display panel allows access to the CD
slot and PC card.
A security signal is daisy-chained between the audio and vehicle components for integration into the vehicle’s security
system.
Some audio systems are equipped with speed-sensitive volume compensation (SVC). The navigation or audio unit
receives the vehicle speed pulse (VSP) from the ECM/PCM. The system processes the speed input and increases the
navigation or audio system volume level as the vehicle speed increases to compensate for the various interior noises
that occur at higher speeds. When the vehicle slows down, the volume returns to its normal level. The SVC has four
settings: SVC OFF, LOW, MID and HIGH that can be adjusted using the navigation or audio unit. The SVC comes from
the factory with the MID setting as the default.
To change the audio unit SVC setting, press the tune folder sound knob repeatedly until the SVC is displayed, rotate
the knob to adjust the SVC to the desired setting (SVC OFF, LOW, MID, or HIGH).
To change the navigation unit SVC setting, press the AUDIO button, and then select the SOUND icon on the navigation
display. Press the navigation display to select the desired setting (OFF, LOW, MID, HI).
08/08/21 14:08:46 61SNR030_230_0167
ProCarManuals.com
DYNOMITE -2009-

Î
Contents Audio output
Left front CH Right front CH Right rear CH Left rear CH Subwoofer CH
USB Adapter
GA-Net Bus Configuration
23-165
Navigation unit
or audio unit
Accessory
(CD changer etc.)
XM Receiver
USB Adapter
(With navigation)
The navigation system allows voice control of the audio, XM, PC card, and CD player. Voice control commands are
communicated on the GA-Net (audio unit). When using the navigation TALK/BACK button, the audio is muted on all
speakers and you get navigation sound on the front channels. When using the navigation or route guidance (RG), the
front speakers give the navigation sound and the rear speakers continue to play. For more information, see the
navigation section. The outline of the interruption function is shown in this table.
Navigation TALK/BACK Buttons Navigation voice
output Navigation voice
output Muted Muted Muted
Route guidance Navigation voice outputNavigation voice
output Audio Audio Audio
The audio unit can play digital music from portable audio players, USB drive, etc. When the device is plugged into the
USB adapter. The audio unit uses the GA-NET to allow you to control the device from the audio unit when searching
and playing the files. Not all players and player functions work with the USB adapter. Please see the owner’s manual
for more information.
The GA-Net bus passes audio and navigation commands throughout the navigation and audio components.
These commands include navigation touch screen and hard button signals, audio/XM selections by voice, and XM
station and music title names. Because the entire bus is daisy chained between components (see diagram), any open
or short in the GA-Net bus harness will cause any or all of these functions to become inoperative. Naturally the
addition of any audio accessory must maintain the continuity of the GA-Net bus by installing the Y cable included with
the accessory kit.
(cont’d)
08/08/21 14:08:46 61SNR030_230_0168
ProCarManuals.com
DYNOMITE -2009-

ÎWith navigation
23-166Audio System
System Description (cont’d)
Reverse signal
GPS antenna
AM/FM antenna Speakers
Navigation unit
Navi DVD
Navigation/Audio Display Screen
CLOCK
(Set by GPS)Color
signal
XM antenna
(satellite &
terrestrial)
Auxiliary jack
assembly
Audio remote
switches
(steering wheel)
Illumination
Signal
(lighted buttons)
AM/FM
receiverCD Player
(CD, MP3, WMA)
Audio
processor
PC Card Slot (for playing audio
MP3, and WMA audio files) Navi
processor
(ECU)
GPS
receiver
Yaw rate sensor
(senses turning)
DVD player
(navi maps)
GA-net
Audio
Section
Navigaion
Section
Illumination
(Night/Day
display mode)
ECM/PCM
(vehicle speed pulses) Voice control switch
USB Adapter unit
XM Receiver HandsFreeLink
control unitMicrophone
HFL TALK/BACK
buttons
Navigation
TALK/BACK
buttons
Stereo Amplifier
(Type S model)
Climate
control unit
08/08/21 14:08:46 61SNR030_230_0169
ProCarManuals.com
DYNOMITE -2009-
