navigation system ACURA CSX 2006 Service Repair Manual

´µ
Î
Navigation Unit Inputs and Outputs for Connector C (8P)
Navigation Unit Connector C (8P)TerminalNumber Wire Color Terminal Name Description Voltage (about) Symptom
23-293
1 WHT B BACK UP Continuous power
sourceBattery voltage If open: Display picture goes out (display back light
still on). NOTE: System will reboot to enter code
screen.
If short to ground: Blows fuse No. 23 (10 A) in the
under-dash fuse/relay box.
4 BLK GND Ground for navigation unit0 V If open: No effect on system.
If short to ground: No effect on system.
7 BRN BACK LT Reverse signal of select laver from
Multiplex
integrated Control
unit (A/T) or
backup light switch
(M/T)In reverse,
battery voltage:
Otherwise0V
If open: Navigation never sees the reverse signal
and back-up camera does not come on when in
reverse. Diagnostic screen Car Status, Back = 0.
If short to ground: Blows fuse No. 10 (7.5 A) in the
under-dash fuse/relay box.
(cont’d)
Wire side of female terminals
08/08/21 14:15:46 61SNR030_230_0296
ProCarManuals.com
DYNOMITE -2009-

µµ
´µ
Î
Navigation Unit Inputs and Outputs for Connector D (12P)
Navigation Unit Connector D (12P) TerminalNumber Wire Color Terminal Name Description Voltage (about) Symptom
23-294Navigation System
System Description (cont’d)
1 GRN NAVI GUIDE Steering wheel
switch output45V
(navigation TALK
button pressed)
2.5 3 V
(navigation
BACK button
pressed)If open: Steering wheel navigation TALK, and
navigation BACK switch/buttons do not work.
If short to ground: Steering wheel navigation TALK,
and navigation BACK switch/buttons do not work.
5 YEL AC SI A/C input signal 0-battery voltage pulsesIf open: voice control does not work.
If short to ground: Voice control does not work.
6 RED AC SO A/C output signal 0-battery voltage pulsesIf open: A/C voice control does not work.
If short to ground: A/C voice control does not work.
7 BRN MIC GND Ground for microphone signal0 V If open: No microphone signal shown in
diagnostics: Navi System Link and Functional Set
up Mic Level.
If short to ground: No effect on voice recognition.
8 YEL MIC SIG Microphone output signal positive45V(with
navigation TALK
button pressed)If open: No microphone signal shown in diagnostic
screens: Navi System Link and Functional Setup
Mic Level.
If short to ground: No microphone signal shown in
diagnostic screens: Navi System Link and
Functional Setup Mic Level.
9 GRY MIC SHIELD Shield for terminal No.7,80 V If open: No effect on voice recognition.
If short to ground: No effect on voice recognition.
12 BLU AC CK Time set sync signal0-battery voltage
pulsesIf open: A/C voice control does not work.
If short to ground: A/C voice control does not work.
: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
Wire side of female terminals
08/08/21 14:15:46 61SNR030_230_0297
ProCarManuals.com
DYNOMITE -2009-

•••
•••
Î
Navigation Unit Inputs and Outputs for Connector H (2P)
Navigation Unit Connector H (2P)TerminalNumber Wire Color Terminal Name Description Voltage (about) Symptom
23-295
1
GPSGPS signal
(5 V in, GPS signal
out) 5 V
If open: GPS icon on screen is white, system links
screen ANT shows NG.
If short to ground: GPS icon on screen is white,
system links screen ANT shows NG.
2 GPS SHShield for terminal
No. 1 0 V
If open: GPS icon on screen is white, system links
screen ANT shows NG.
If short to ground: No effect on system.
Terminal side of female terminals
08/08/21 14:15:46 61SNR030_230_0298
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
´µ
´ ´
µ
´
µ ´
´µ´
µ´
´
µ ´
µ
23-296Navigation System
Circuit Diagram
A10 A9
BRN10
BRN
3 CABLE REEL
A5 A29
D1 CABLE REEL GRN
RED/BLK
BACKTALK
5
GRY
GPS
H1
H2
VSP BLU
A15
PNK BLU NAVIGATION UNIT
HFL-VOICE CONTROL SWITCH
8
GRN 680
10 k
2.2 k
GPS
ANTENNA
No. 14 (7.5 A) FUSE
(In the under-dash
fuse/relay box) DASH LIGHTS
BRIGHTNESS
CONTROLLER
AUDIO
REMOTE
GND VSP
GPS
XM
RECEIVER A3BRN K-LINE
MICU
A14
PUR
Q14 Q4
GRNA4
A3
LT BLU
Q8 Q1
WHT
WHT
UNDER-DASH FUSE/RELAY BOX A1
A13
A24 C1
C7
WHT B
BACK UP
BACK
LT
B
BACK UP
SCTY
RADIO
ACC
RADIO
G2 RED
GRY
ILL
ILL
RED
ORN ACC HOT in ACC (I)
and ON (II)
ACC
BAT
IGNITION
SWITCH
C2
WHT
BRN
No. 23
(10 A)
UNDER-HOOD FUSE/RELAY BOX
BATTERY
H1
D4 No. 2
(IG)
(50 A)
E15
No. 35
(7.5 A) No.14(7.5A)FUSE
(In the under-dash
fuse/relay box)
DASH LIGHTS
BRIGHTNESS
CONTROLLER
GPS
SH
GA-NET
BUS
GA-NET
BUS
GA-NET
BUS SH *:
The shielded wires have a heat-shrunk tube
insulating the outside of the wire. The color
of the insulating tube, typically black or dark gray,
may not match the color of the wire listed on the
schematic.
:GA-NET
:Shielding
28 27
D9
RED
D7 D8
GRN
MIC
GND MIC
SIG MIC
SIG
MIC
GND
MIC
SH MIC MIC
21
GRY BRN YEL
14 13
12
MIC SH MIC MIC
GRY
B10 8
HFL/NAVI
COMM SH
GRY GRY
B24 RED 7
21 20
GRN
B11
B23
BLK HFL/NAVI
COMM1
HFL/NAVI
COMM2
HFL/NAVI
COMM3
B12 WHT 6
HFL/NAVI
COMM4
HFL
SWITCH
A10 A9
BRNE3
E10
PNK BLU E9
USB
ADAPTER
UNIT A3BRN
GA-NET
BUS
GA-NET
BUS
GA-NET
BUS SH GA-NET
BUS
GA-NET
BUS
GA-NET
BUS SH
PNK BLU
A12
G504
G505 BLK
BLK
GND RADIO
GNDHFL/NAVI
COMM1
HFL/NAVI
COMM2
HFL/NAVI
COMM3
HFL/NAVI
COMM4 HFL/NAVI
COMM SH
NAVI
GUIDE
No. 1 (BAT) (100 A)
ECM/PCM
(VEHICLE
SPEED SIGNAL)
YEL AC
SI
RED AC
SO
CLIMATE
CONTROL
UNIT
BLUAC
CLK
D5
D6
D12
C4 ORN
MOONROOF
SWITCH MIC
ADPTHFL-NAVIGATION
MICROPHONE
3
* *
*
**
*
*
08/08/21 14:15:47 61SNR030_230_0299
ProCarManuals.com
DYNOMITE -2009-

Î
Î
(#'#
)
Start-up procedure and Diagnostic Menu System Links
23-297
System Diagnostic Mode
Return System LinksHelp
Exit Diag
ReturnReturn
Navi.ECUSelect Diagnosis Items Self- Diagnosis Mode
Detail Information & Setting
(Navi will check internal function. connections, etc.
Perform this test with vehicle stopped and engine running.)
(Individual Diagnostic screens to confirma specific diagnostic screen.)
XM
Error
History
Yaw
Sensor Car Status
ECU Info. Hard Key
DVD Mic
HFL
Press any icon if you want to see details. GPS Ant. R. Camera
Display Radio
A/C
Start the vehicle, and at the disclaimer screen use the
navigation display hard buttons as described below:
Make sure the battery is in good condition, then press
and hold the three buttons MAP/GUIDE, MENU, and
CANCEL, for about 3 seconds. The display screen goes
directly to the Select Diagnosis Items menu shown
below.
 Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
 Detail Information & Setting (allows you to manually diagnose the navigation system) 1. By selecting Self-Diagnosis Mode from the
navigation screen main menu. The message at the
bottom of the screen flashes indicating the
diagnostic is running. Make sure you enter the
audio anti-theft code.
NOTE: The system cannot complete a full diagnosis unless the engine is running.
 DTC 2703 can be stored when the ignition switch is at ACCESSORY (I). With the ignition switch is
in ACCESSORY (I), the climate control unit is
turned off and the navigation unit loses
communication and stores DTCs. Therefore,
there is a possibility that the system is normal
even DTC 2703 is stored. Check system links with
the engine running, and if it shows normal, the
system is OK at this time.
2. Select the icon you want to diagnose. Push in the select the icon to see the details of that diagnostic
function.
(cont’d)
08/08/21 14:15:48 61SNR030_230_0300
ProCarManuals.com
DYNOMITE -2009-

Icon
Colors Description
23-298Navigation System
System Diagnostic Mode (cont’d)
The System Links function runs automatically and
displays a flashing message at the bottom of the
screen reminding you to have the engine running
for the test. The diagnostic tests the following:
 Most of the wires connecting the navigation components shown in the block diagram.
 The results from the various components shown in the block diagram.
 The microphone is tested by listening to the bong sound produced by the navigation unit from the
speakers when the diagnostic is started. This
requires that the audio system be operating
normally.
When the diagnostic finishes, the icons turn
different colors based on their test status. The color
definitions are shown below and can also be seen
by selecting Help on the System Links screen.
The indication on the screen may not change until
you exit and reenter the Self-Diagnosis mode. In
some cases, you may have to restart the engine for
the indication to change. After you repair the
affected component or harness, repeat this
diagnostic. Explanation of each icon
Each icon color is explained in the table below.
Green The system ran a diagnosis and the results are OK.
Red Errors that require replacement of hardware or harness. Examples
are connection error or memory
diagnosis errors. Troubleshooting
for DTCs.
Yellow Errors that doesn’t require hardware replacement, such as an
open display cover, an incorrect
DVD, leaving the vehicle in
ACCESSORY (I), or because of a
missing accessory, like the
rearview camera.
White The diagnosis is running. The screen functions are locked out
while the diagnosis is runs.
Gray The system cannot automatically check this function. You have to
select the diagnosis item and
manually do additional testing,
like checking the navigation
buttons in the Hard Key test.
When you complete the Hard Key
test and return to the System
Links menu, the gray icon turns
green.
NOTE: By selecting the HELP icon, you can see a
description for each color.
08/08/21 14:16:38 61SNR030_230_0301
ProCarManuals.com
DYNOMITE -2009-

••••••
••• •••
••• •••
••• ••• •••
••• •••
••• •••

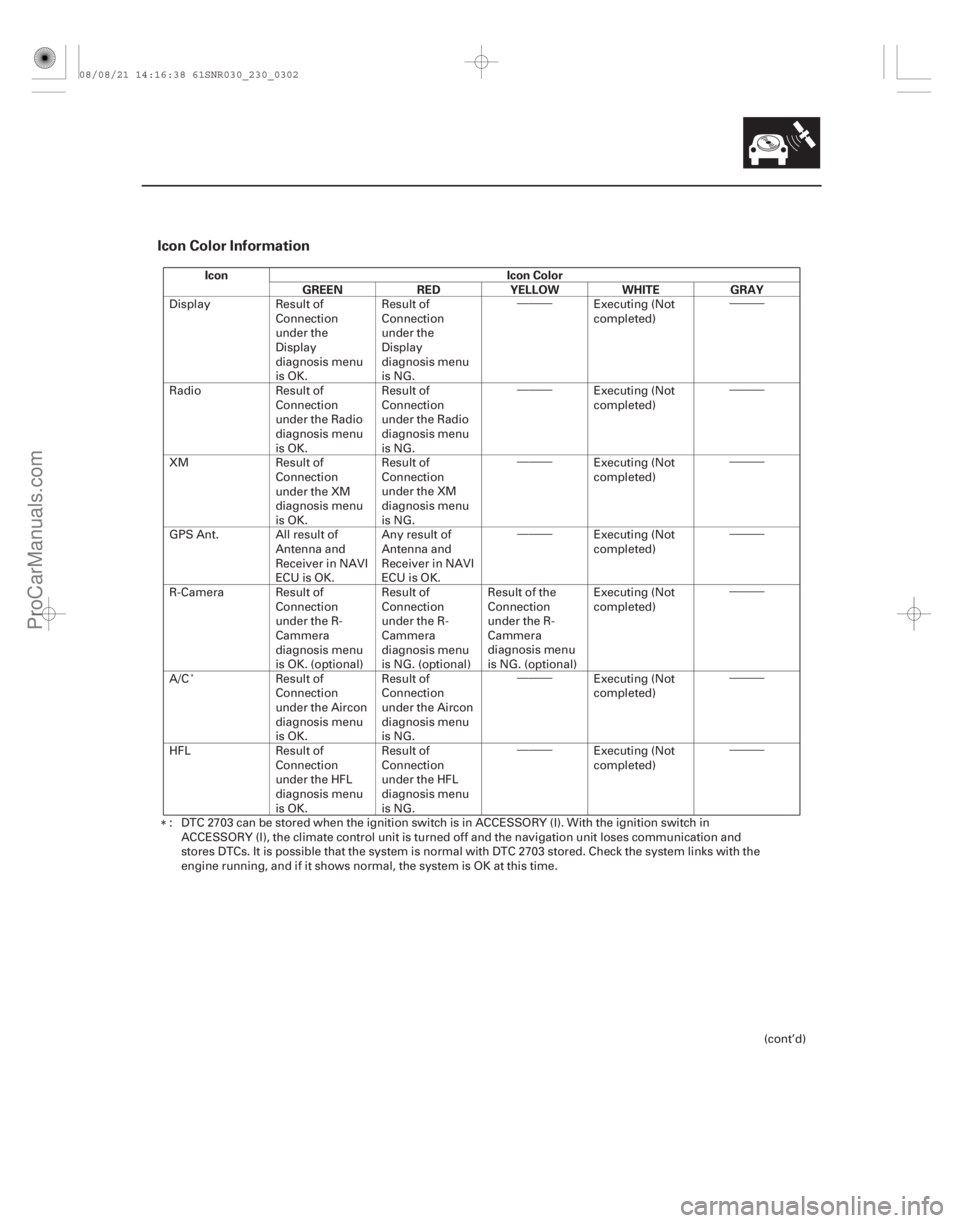

Icon Color Information
Icon Icon Color
GREEN REDYELLOW WHITEGRAY
23-299
DisplayResult of
Connection
under the
Display
diagnosis menu
is OK. Result of
Connection
under the
Display
diagnosis menu
is NG. Executing (Not
completed)
Radio Result of
Connection
under the Radio
diagnosis menu
is OK. Result of
Connection
under the Radio
diagnosis menu
is NG. Executing (Not
completed)
XM Result of
Connection
under the XM
diagnosis menu
is OK. Result of
Connection
under the XM
diagnosis menu
is NG. Executing (Not
completed)
GPS Ant. All result of Antenna and
Receiver in NAVI
ECU is OK.Any result of
Antenna and
Receiver in NAVI
ECU is OK. Executing (Not
completed)
R-Camera Result of Connection
under the R-
Cammera
diagnosis menu
is OK. (optional)Result of
Connection
under the R-
Cammera
diagnosis menu
is NG. (optional)Result of the
Connection
under the R-
Cammera
diagnosis menu
is NG. (optional)Executing (Not
completed)
A/C Result of
Connection
under the Aircon
diagnosis menu
is OK. Result of
Connection
under the Aircon
diagnosis menu
is NG. Executing (Not
completed)
HFL Result of
Connection
under the HFL
diagnosis menu
is OK. Result of
Connection
under the HFL
diagnosis menu
is NG. Executing (Not
completed)
: DTC 2703 can be stored when the ignition switch is in ACCESSORY (I). With the ignition switch in ACCESSORY (I), the climate control unit is turned off and the navigation unit loses communication and
stores DTCs. It is possible that the system is normal with DTC 2703 stored. Check the system links with the
engine running, and if it shows normal, the system is OK at this time.
(cont’d)
08/08/21 14:16:38 61SNR030_230_0302
ProCarManuals.com
DYNOMITE -2009-

••••••
•••
••• •••
••• ••• ••• •••
•••
••• ••• ••• •••
Icon Icon Color
GREEN RED YELLOW WHITE GRAY
23-300Navigation System
System Diagnostic Mode (cont’d)
Mic
The microphone
detects the
sound ‘‘Pi-Pi-
Pon’’ at the
system link
menu. The microphone
could not detects
the sound ‘‘Pi-Pi-
Pon’’ at the
system link
menu. Executing (Not
completed)
ECU Info. Both V-RAM or D-RAM is OK,
and all Program
Flash, Serial No.,
Model is
available, and
the DVD lid is
closed.Either the
V-RAM or D-
RAM is NG, or
any of the
Program Flash,
Serial No.,
Model is
unavailable.DVD lid is
opened
Executing (Not
completed)
Hard Key All buttons are pressed and are
detected under
Hard key menu.All buttons are
not pressed or
pressed but not
detected under
Hard key menu,
or exit from Hard
key menu
without the
button not
detected. Until changing to
Hard key menu.
Error History Hard Error or
Soft Error is
detected under
Error History
menu. Executing (Not
completed)
Hard Error or
Soft Error is not
detected under
Error History
menu.
DVD DVD mechanism
is normal and
the proper DVD
is installed. Improper DVD is
installed, or DVD
is not installed,
or can not
identify software
version from the
DVD or internal
mechanism
failure.Executing (Not
completed)
Yaw Sensor Result of the Yaw Sensor
diagnosis menu
is OK.Result of the
Yaw Sensor
diagnosis menu
is NG.Result of the
Zero Point
Output under the
Yaw Sensor
diagnosis menu
is NO CHECK.Executing (Not
completed)
Car Status Check these
systems
manually.
08/08/21 14:16:39 61SNR030_230_0303
ProCarManuals.com
DYNOMITE -2009-

µ
Î
Î
Factory diagnostic screen In Line DiagDetailed Information & Settings
23-301
In Line Diag
123
456
789
0 Return
Navi ECU
Display XXXXCorrect PIN
GPS Antenna
RR Camera RadioXM
HFL A/C
Exit Diag
Start Diag
BACK
Delete Done
KA
Select Diagnosis Items
Self- Diagnosis Mode
Detail Information & Setting
(Navi will check internal function. connections, etc.
Perform this test with vehicle stopped and engine running.)
(Individual Diagnostic screens to confirma specific diagnostic screen.)
NOTE: If the vehicle left the factory in the factory
diagnostic mode, or if the navigation unit is replaced
you will see this screen every time you turn on the
ignition.
When a navigation unit is powered up for the first time
at the factory or after replacement with a new or
remanufactured navigation unit, the factory diagnosis
screen (In Line Diag) appears. Normally the factory
does the steps necessary to verify proper operation and
terminate the factory diagnostic.
Until the proper confirmation sequence is done, the
screen appears every time the vehicle is started.
Follow the steps below to prevent the screen from
showingupinthefuture:
 Press and hold the buttons (MENU, MAP/GUIDE, and CANCEL) for about 3 seconds. The Select Diagnosis
items screen appears.
 Press and hold the MAP/GUIDE button for 5 10 seconds. A screen with a Complete button,
appears.
 Press complete, then Return, and then shut the key off for 5 seconds. Do not disconnect the battery
during this period as the unit is saving the setting to
the SRAM memory. The In Line Diag should not
appear again.
 Restart the vehicle, and confirm normal operation by completing the TQI of the Navigation System Service
Bulletin. These section allows you to run a specific diagnostic
and allows additional setting choices for some screens
that are not shown when selecting an icon from the
System Links screen.
When you select the menu item Detail Information &
Setting menu, the main diagnosis menu is displayed.
(cont’d)
08/08/21 14:16:39 61SNR030_230_0304
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
Î

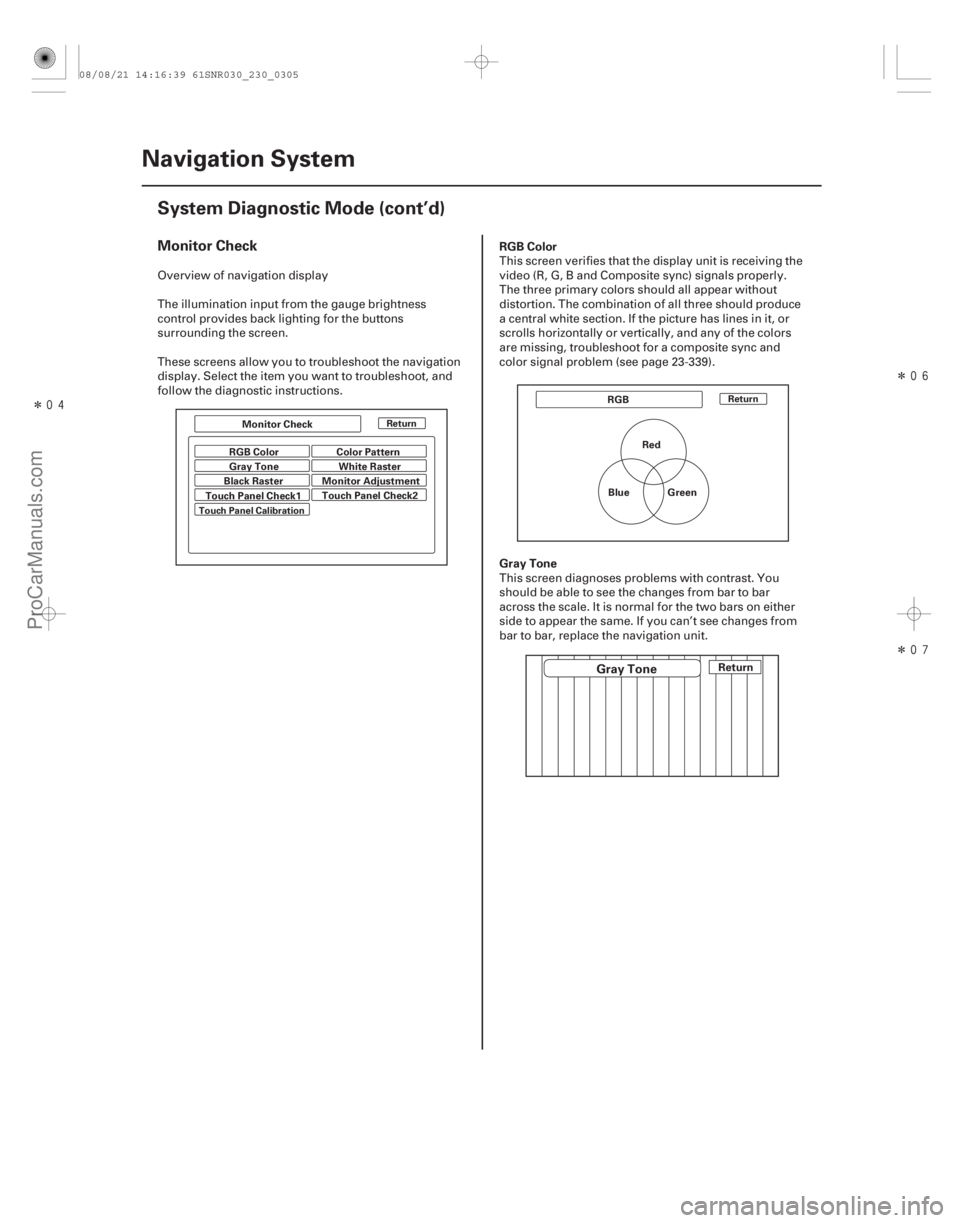

Monitor CheckRGB Color
Gray Tone
23-302Navigation System
System Diagnostic Mode (cont’d)
Return
Touch Panel Calibration ReturnMonitor Check
RGB Color
Gray Tone Color Pattern
White Raster
Monitor Adjustment
Black Raster
Touch Panel Check1 Touch Panel Check2 RGB
Red
Green
Blue
Gray ToneReturn
Overview of navigation display
The illumination input from the gauge brightness
control provides back lighting for the buttons
surrounding the screen.
These screens allow you to troubleshoot the navigation
display. Select the item you want to troubleshoot, and
follow the diagnostic instructions. This screen verifies that the display unit is receiving the
video (R, G, B and Composite sync) signals properly.
The three primary colors should all appear without
distortion. The combination of all three should produce
a central white section. If the picture has lines in it, or
scrolls horizontally or vertically, and any of the colors
are missing, troubleshoot for a composite sync and
color signal problem (see page 23-339).
This screen diagnoses problems with contrast. You
should be able to see the changes from bar to bar
across the scale. It is normal for the two bars on either
side to appear the same. If you can’t see changes from
bar to bar, replace the navigation unit.
08/08/21 14:16:39 61SNR030_230_0305
ProCarManuals.com
DYNOMITE -2009-
