Display day/night mode does not work or
does not work properly System locks up or freezes constantly
YES
NO
YES
NO YES
NO
23-12823-128Navigation System
Symptom Troubleshooting (cont’d)
NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connection or loose terminals.
 Before troubleshooting, get the navigation system anti-theft code.
 After troubleshooting, enter the navigation system anti-theft code.
 Full brightness on the instrument panel brightness control with the head lights turned on causes the
system to stay in the day mode, even when the lights
are on.
1. Make sure the instrument panel brightness control is not on full brightness. Turn the headlights on and
adjust the dash brightness to the middle range.
2. Change the day/night mode under Set-up to AUTO, and recheck.
The system is OK at this time.
Go to step 3.
3. Go into the Diagnostic Menu and use the Car Status test to check for an ILL signal (see page 23-141).
Replace the navigation unit (see page 23-155).
Check the ILL circuit between the
navigation unit and the No. 14 (7.5 A) fuse in the
under-dash fuse/relay box. NOTE:
 Check the vehicle battery condition first.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about the navigation system.
1. Start the engine and turn the ignition switch to LOCK (0), then turn the ignition switch to ON (II).
The system is OK at this time.
Check the DVD for scratches or damage, and
the navigation unit for water damage. If OK, go into
the Diagnostic Menu and do all of the Unit Check
tests (see page 23-139). Also check for low battery
charge or poor charging system performance.
Does t he d i spl ay change t o d ay and ni ght mod es w hen t ur ni ng t he head l i ght s on and of f ?
I s t he I LL si gnal OK ? Does the system reboot?
08/08/21 14:07:28 61SNR030_230_0131
ProCarManuals.com
DYNOMITE -2009-

Î
Î

(#'#
)
´
µ
µ µ
µ

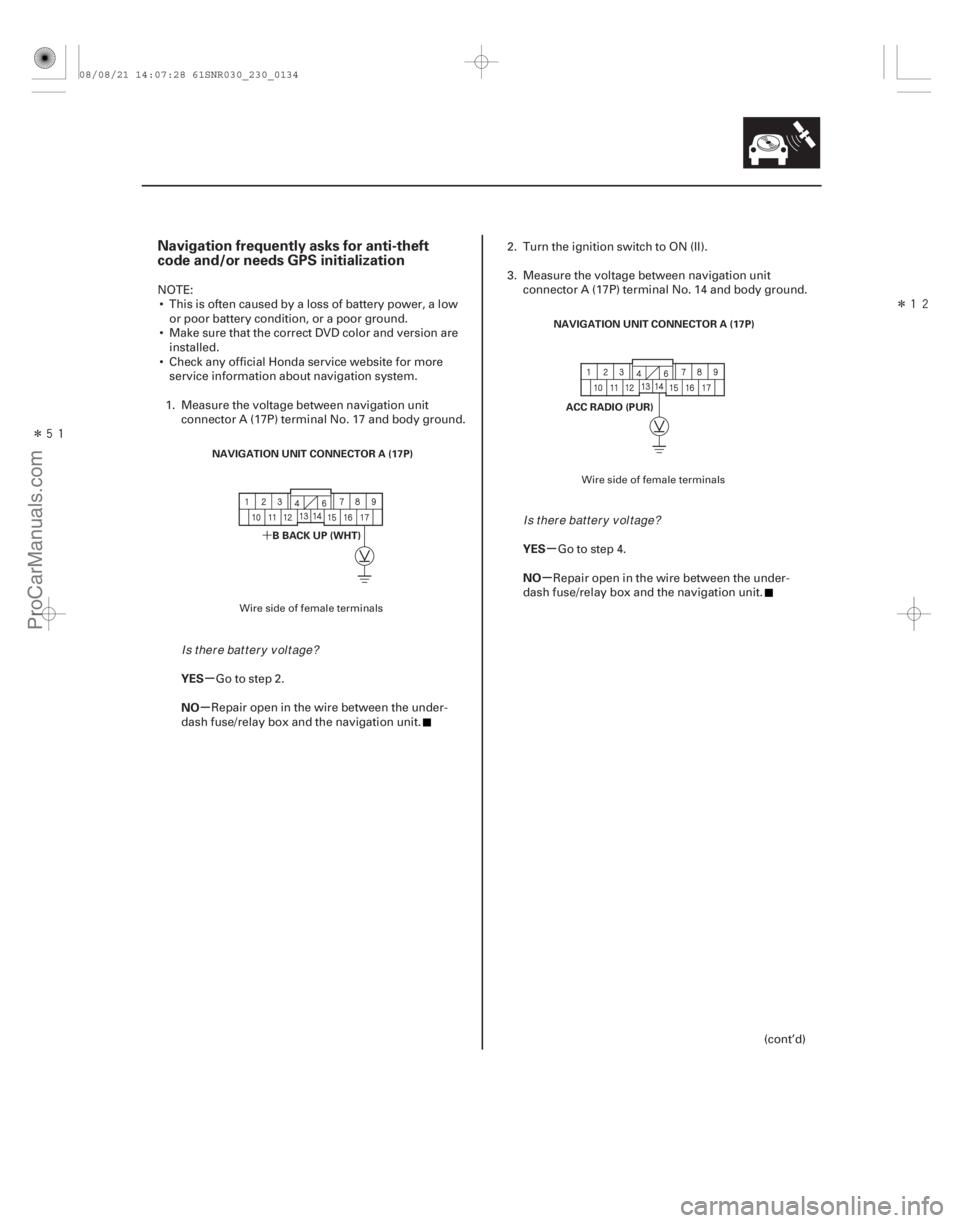

Navigation frequently asks for anti-theft
code and/or needs GPS initialization
YES
NO YES
NO
23-131
NAVIGATION UNIT CONNECTOR A (17P)
BBACKUP(WHT) NAVIGATION UNIT CONNECTOR A (17P)
ACC RADIO (PUR)
NOTE: This is often caused by a loss of battery power, a low or poor battery condition, or a poor ground.
 Make sure that the correct DVD color and version are installed.
 Check any official Honda service website for more service information about navigation system.
1. Measure the voltage between navigation unit connector A (17P) terminal No. 17 and body ground.
Go to step 2.
Repair open in the wire between the under-
dash fuse/relay box and the navigation unit. 2. Turn the ignition switch to ON (II).
3. Measure the voltage between navigation unit
connector A (17P) terminal No. 14 and body ground.
Go to step 4.
Repair open in the wire between the under-
dash fuse/relay box and the navigation unit.
(cont’d)
Wire side of female terminals Wire side of female terminals
Is there battery voltage?
Is there battery voltage?
08/08/21 14:07:28 61SNR030_230_0134
ProCarManuals.com
DYNOMITE -2009-

´µ ´µ
Î
Î
Î
Î
´
µ
´
µ
´µ

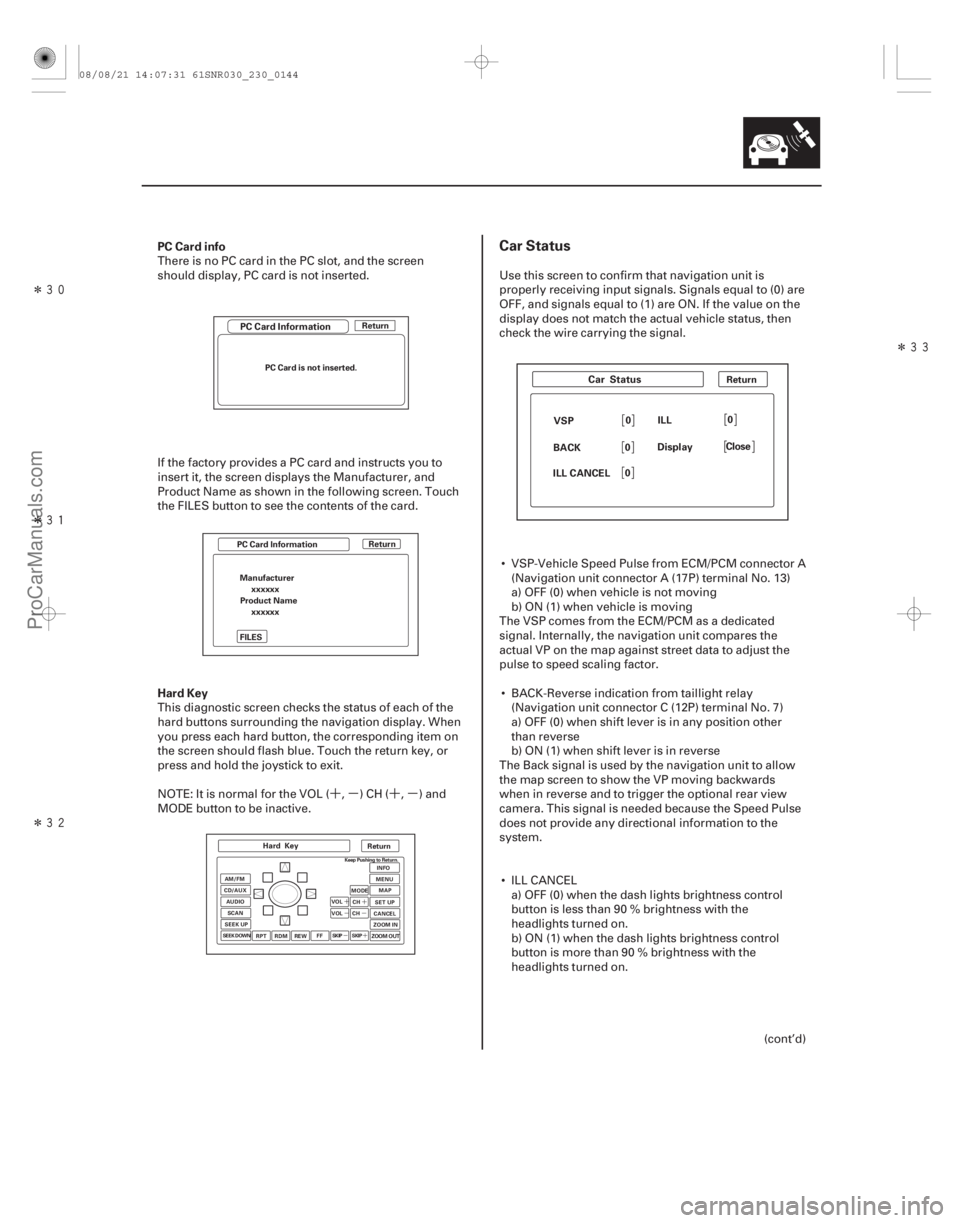

PC Card info
Hard KeyCar Status
23-141
PC Card Information
ReturnReturn
PC Card is not inserted.
PC Card Information Return
Manufacturer xxxxxx
Product Name xxxxxx
FILES
Hard KeyReturn
ZOOM OUT ZOOM IN
CANCEL SET UP MAP
MENU INFO
MODE CH
CH
VOL
VOL
FF
REW
RPT RDM
SEEK UP SCAN
AUDIO
CD/AUX AM/FMSKIP
SKIP
SEEK DOWN Keep Pushing to Return.
Car Status
0
VSP 0
ILL
0
BACK Close
Display
0
ILL CANCEL
There is no PC card in the PC slot, and the screen
should display, PC card is not inserted.
If the factory provides a PC card and instructs you to
insert it, the screen displays the Manufacturer, and
Product Name as shown in the following screen. Touch
the FILES button to see the contents of the card.
This diagnostic screen checks the status of each of the
hard buttons surrounding the navigation display. When
you press each hard button, the corresponding item on
the screen should flash blue. Touch the return key, or
press and hold the joystick to exit.
NOTE: It is normal for the VOL ( , ) CH ( , ) and
MODEbuttontobeinactive. Use this screen to confirm that navigation unit is
properly receiving input signals. Signals equal to (0) are
OFF, and signals equal to (1) are ON. If the value on the
display does not match the actual vehicle status, then
check the wire carrying the signal.
 VSP-Vehicle Speed Pulse from ECM/PCM connector A (Navigation unit connector A (17P) terminal No. 13)
a) OFF (0) when vehicle is not moving
b) ON (1) when vehicle is moving
The VSP comes from the ECM/PCM as a dedicated
signal. Internally, the navigation unit compares the
actual VP on the map against street data to adjust the
pulse to speed scaling factor.
 BACK-Reverse indication from taillight relay (Navigation unit connector C (12P) terminal No. 7)
a) OFF (0) when shift lever is in any position other
than reverse
b) ON (1) when shift lever is in reverse
The Back signal is used by the navigation unit to allow
the map screen to show the VP moving backwards
when in reverse and to trigger the optional rear view
camera. This signal is needed because the Speed Pulse
does not provide any directional information to the
system.
ILLCANCEL a) OFF (0) when the dash lights brightness control
button is less than 90 % brightness with the
headlights turned on.
b) ON (1) when the dash lights brightness control
button is more than 90 % brightness with the
headlights turned on.
(cont’d)
08/08/21 14:07:31 61SNR030_230_0144
ProCarManuals.com
DYNOMITE -2009-

µµ
´
µ
´
´
´ µ
´
µ
´
´ µ
µ
´
µ
´
´
µ
´
µ
´
´
Î

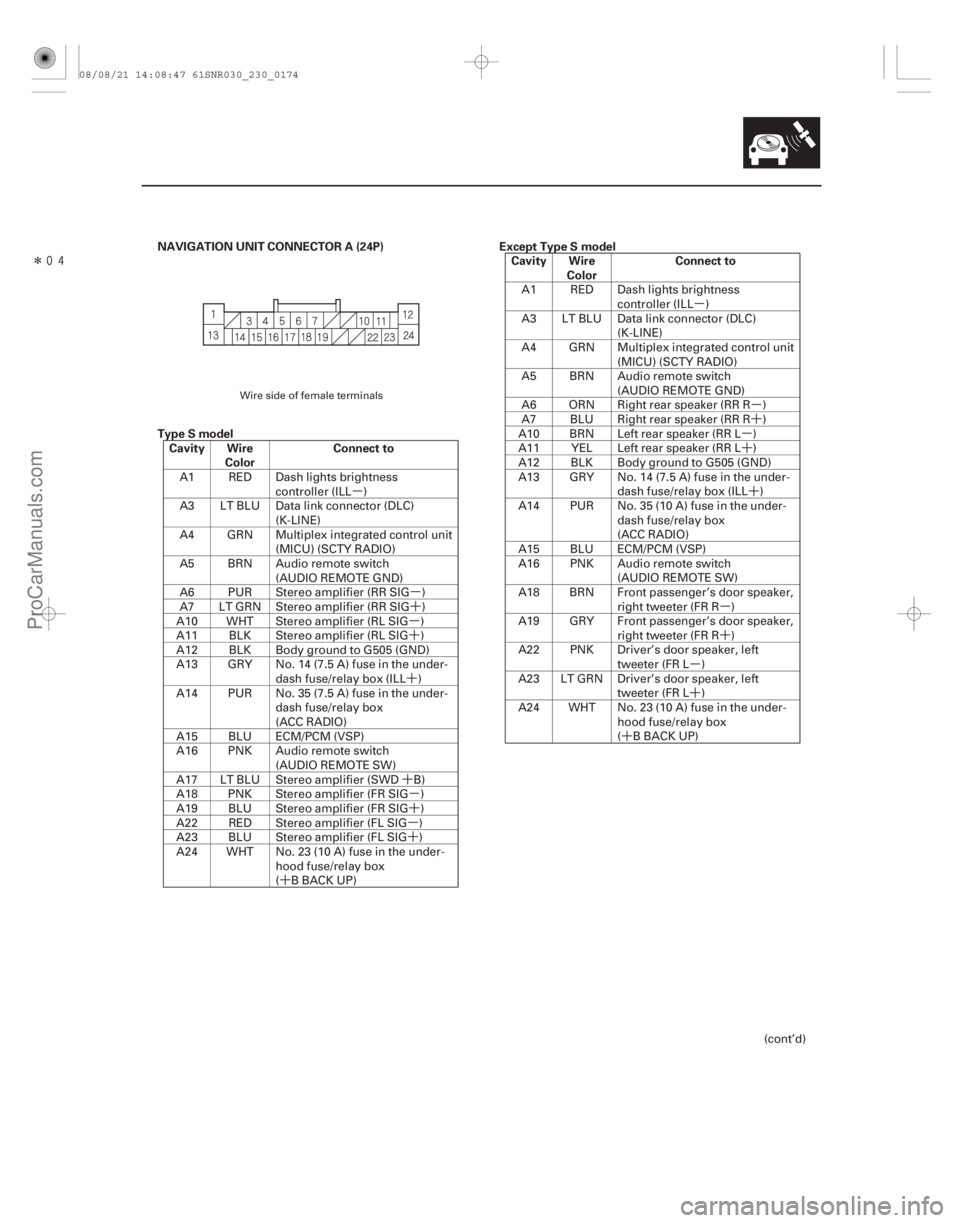

NAVIGATION UNIT CONNECTOR A (24P)
Type S model
Cavity Wire Color Connect to Except Type S model
Cavity Wire Color Connect to
23-171
A1 RED Dash lights brightness
controller (ILL )
A3 LT BLU Data link connector (DLC) (K-LINE)
A4 GRN Multiplex integrated control unit (MICU) (SCTY RADIO)
A5 BRN Audio remote switch (AUDIO REMOTE GND)
A6 PUR Stereo amplifier (RR SIG )
A7 LT GRN Stereo amplifier (RR SIG )
A10 WHT Stereo amplifier (RL SIG )
A11 BLK Stereo amplifier (RL SIG )
A12 BLK Body ground to G505 (GND)
A13 GRY No. 14 (7.5 A) fuse in the under- dash fuse/relay box (ILL )
A14 PUR No. 35 (7.5 A) fuse in the under- dash fuse/relay box
(ACC RADIO)
A15 BLU ECM/PCM (VSP)
A16 PNK Audio remote switch (AUDIO REMOTE SW)
A17 LT BLU Stereo amplifier (SWD B)
A18 PNK Stereo amplifier (FR SIG )
A19 BLU Stereo amplifier (FR SIG )
A22 RED Stereo amplifier (FL SIG )
A23 BLU Stereo amplifier (FL SIG )
A24 WHT No. 23 (10 A) fuse in the under- hood fuse/relay box
( B BACK UP) A1 RED Dash lights brightness
controller (ILL )
A3 LT BLU Data link connector (DLC) (K-LINE)
A4 GRN Multiplex integrated control unit (MICU) (SCTY RADIO)
A5 BRN Audio remote switch (AUDIO REMOTE GND)
A6 ORN Right rear speaker (RR R )
A7 BLU Right rear speaker (RR R )
A10 BRN Left rear speaker (RR L )
A11 YEL Left rear speaker (RR L )
A12 BLK Body ground to G505 (GND)
A13 GRY No. 14 (7.5 A) fuse in the under- dash fuse/relay box (ILL )
A14 PUR No. 35 (10 A) fuse in the under- dash fuse/relay box
(ACC RADIO)
A15 BLU ECM/PCM (VSP)
A16 PNK Audio remote switch (AUDIO REMOTE SW)
A18 BRN Front passenger’s door speaker, right tweeter (FR R )
A19 GRY Front passenger’s door speaker, right tweeter (FR R )
A22 PNK Driver’s door speaker, left tweeter (FR L )
A23 LT GRN Driver’s door speaker, left tweeter (FR L )
A24 WHT No. 23 (10 A) fuse in the under- hood fuse/relay box
( B BACK UP)
(cont’d)
Wire side of female terminals
08/08/21 14:08:47 61SNR030_230_0174
ProCarManuals.com
DYNOMITE -2009-

µµ
µ
µµ µ
´
´ ´
´´ ´
´
Î Î


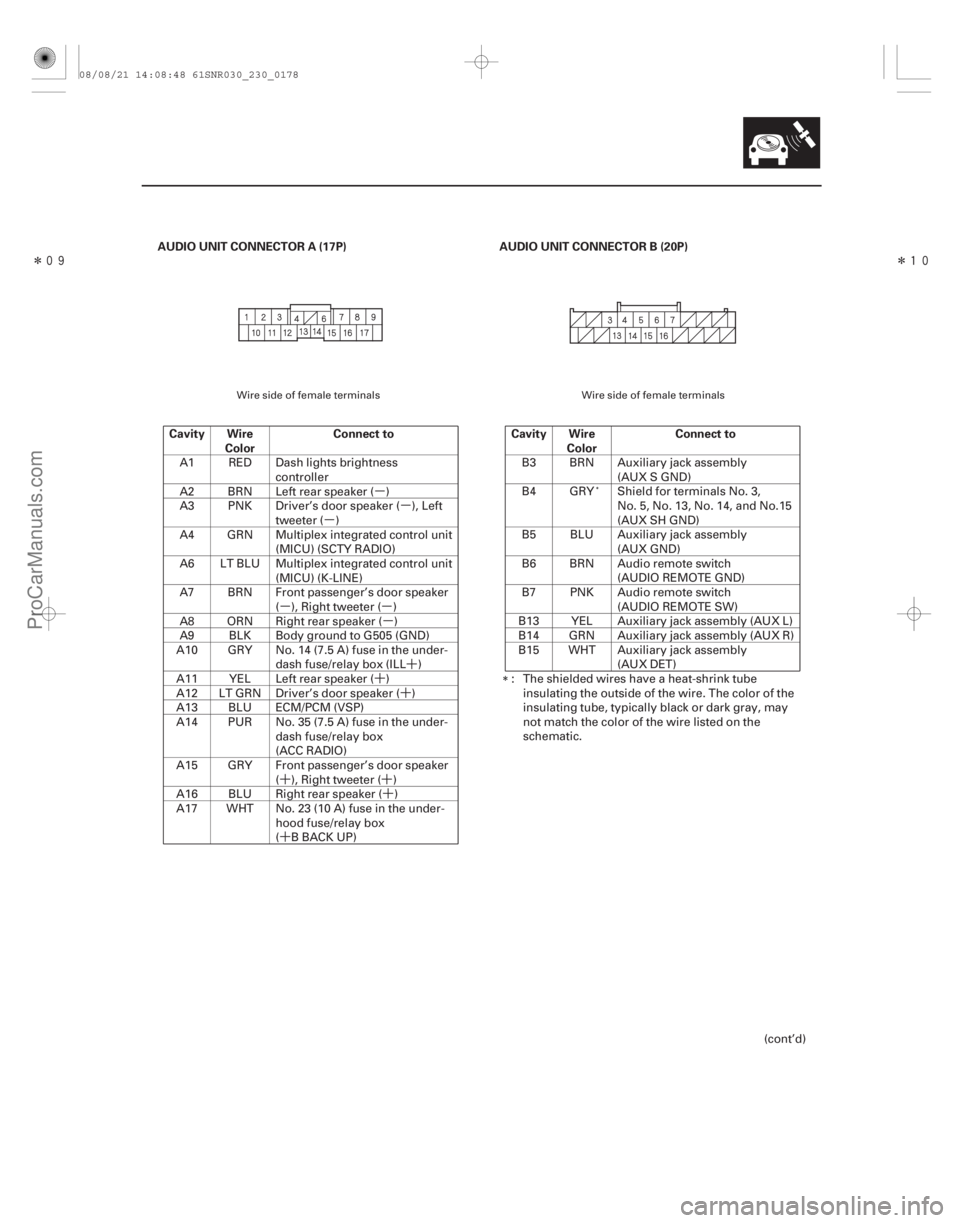

AUDIO UNIT CONNECTOR A (17P)
Cavity Wire Color Connect to AUDIO UNIT CONNECTOR B (20P)
Cavity Wire Color Connect to
23-175
A1 RED Dash lights brightness
controller
A2 BRN Left rear speaker ( )
A3 PNK Driver’s door speaker ( ), Left tweeter ( )
A4 GRN Multiplex integrated control unit (MICU) (SCTY RADIO)
A6 LT BLU Multiplex integrated control unit (MICU) (K-LINE)
A7 BRN Front passenger’s door speaker ( ), Right tweeter ( )
A8 ORN Right rear speaker ( )
A9 BLK Body ground to G505 (GND)
A10 GRY No. 14 (7.5 A) fuse in the under- dash fuse/relay box (ILL )
A11 YEL Left rear speaker ( )
A12 LT GRN Driver’s door speaker ( )
A13 BLU ECM/PCM (VSP)
A14 PUR No. 35 (7.5 A) fuse in the under- dash fuse/relay box
(ACC RADIO)
A15 GRY Front passenger’s door speaker ( ), Right tweeter ( )
A16 BLU Right rear speaker ( )
A17 WHT No. 23 (10 A) fuse in the under- hood fuse/relay box
( B BACK UP) B3 BRN Auxiliary jack assembly
(AUX S GND)
B4 GRY Shield for terminals No. 3, No.5,No.13,No.14,andNo.15
(AUX SH GND)
B5 BLU Auxiliary jack assembly (AUX GND)
B6 BRN Audio remote switch (AUDIO REMOTE GND)
B7 PNK Audio remote switch (AUDIO REMOTE SW)
B13 YEL Auxiliary jack assembly (AUX L)
B14 GRN Auxiliary jack assembly (AUX R)
B15 WHT Auxiliary jack assembly (AUX DET)
: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may
not match the color of the wire listed on the
schematic.
(cont’d)
Wire side of female terminals Wire side of female terminals
08/08/21 14:08:48 61SNR030_230_0178
ProCarManuals.com
DYNOMITE -2009-

Î(#'#
)
µ´
µ
´
´
´
With Navigation
23-184Audio System
Circuit Diagram
3
G2 21 G1
SCTY
RADIO
K-LINE
PUR
PUR
UNDER-DASH FUSE/RELAY BOX
AM/FM ANTENNA
UNDER-HOOD FUSE/RELAY BOX
() ()AM/FM ANTENNA LEAD
AM/FM ANTENNA SUBLEAD
G3
ILL A1
RED RADIO ACC
SCTY
RADIO
K-LINE Q8 Q4 Q1 Q14
LT BLU A3 A4 GRN WHT
A24
VSP
ECM/PCM
BLU A14
PUR
MICU
ACC HOT in ACC (I) and ON (II)
ORN RED
WHT
ACC
BAT
IGNITION SWITCH
No. 23 (10 A)
No. 2 (IG) (50 A)
BATTERY
No. 1 (BAT) (100 A)
A13 A15
ILL
NAVIGATION UNIT
GRY
ANT B
10 k
1.2 k
470
270
100
CH
( DOWN VOL VOL UP
( MODEBRN
A5
BRN
3.9 k
)
) CH
RED/BLK GRN/RED A16
PNK
GRN SW REMOTE AUDIO
AUDIO
REMOTE
GND
9 4 3
10
AUDIO REMOTE SWITCH
BLK
G505
GND RADIO
A12
No.14(7.5A)FUSE
(In the under-dash
fuse/relay box)
DASH LIGHTS
BRIGHTNESS
CONTROLLER AM/FM
ANTENNA
AMPLIFIER
No.14(7.5A)FUSE
(In the under-dash
fuse/relay box) CABLE
REEL CABLE
REEL
DASH LIGHTS
BRIGHTNESS
CONTROLLER STEREO
AMPLIFIER
LT GRN
STEREO
AMPLIFIER No. 17
(15 A)
D1
D4 C2
G2 No. 35
(7.5 A)
(Type S model)
VSPA29 (Type S model)
RADIO B
BRN
HFL-VOICE
CONTROL
SWITCH
J3
RF
SHRF
IN
2
1
08/08/21 14:09:45 61SNR030_230_0187
ProCarManuals.com
DYNOMITE -2009-

Î
µ
´
´µ
´µ
µ
´
´µ ´µ
´µ
´µ ´
´µ ´µ´µ
´µ µ
´
´µ
´µ
µ
´
´µ
´µ
µ
´
´
´
23-185
LT BLU
3
2
1
4
5
AUXILIARY JACK ASSEMBLY
R AUX
L
AUX AUXDET S GND AUX
AUX
GND AUX
GND SH
GRY*
GND
AUX AUX
S GND
BLU BRN
DET
AUX
WHT
AUX
L
YEL
AUX
R
GRN R RR
RR
R
L RR RR
L
R
FR FR
R
L
FR
YEL
PNK PNK
LT GRN LT GRN PNK
LT GRN
GRY
GRY
GRY BRN
BRN BRN
A6
A7
A11
A10
BRN
GRY
A18
A19
A23
A22
BLU ORN
FR
L
DRIVER’S
DOOR SPEAKER LEFT
TWEETER
FRONT
PASSENGER’S
DOOR SPEAKER LEFT
REAR SPEAKER
RIGHT
TWEETER RIGHT
REAR SPEAKER
STEREO AMPLIFIER
FL
GND SH FR
GND SH
RR
GND SH
RL
GND SH
SIG
FL FL SIG SIG FR FR
SIG SIG
RR RR
SIG
SIG
RL RL
SIG B7
B
B1 B8 B2 B4
B11 B5 B3B10
B9 B6 B13 B12
A6
A7
A11 A10
A18
A19
A23 A22 LT GRN
BRN*
BLU RED
BLUPNKGRY*
BLKWHT GRN*
PURYEL*
(Type S model)
SIG
FL FLSIG SIG FR FR
SIG SIG
RL RL
SIG SIG RR RR
SIG SUBWOOFER
WOOFER
WOOFER
RR R
SPKR SPKR RR R
SPKR RR L RR L SPKR
TW
FR R
FR R
TW
SPKR FR R FR R
SPKR
TW
FR L FR L
TW
SPKR
FR L
FR L
SPKR
AMP B
AUDIO RADIO ACCDRIVER’S
DOOR SPEAKER
LEFT
TWEETER RIGHT
TWEETERLEFT
REAR SPEAKER RIGHT
REAR SPEAKER
GRN REDA15
A5
A7 A17 ORN
BLU
GRY
BRN
A18
A8
A11
A1 BLU
PNK
GRY BRN
A12
A2
RED GRN
A14
A4
A3 A13 PNK
LT GRN
MICU
PUR A9
No. 17 (15 A) FUSE
(In the under-hood
fuse/relay box)
LT GRNA10
A20
BLK
G601
LT BLU
A17 GND P
SWD
B
SWD
NAVIGATION UNIT
(Except Type S model)
*: The shielded wires have a heat-shrunk tube
insulating the outside of the wire. The color
of the insulating tube, typically black or dark gray,
may not match the color of the wire listed on the
schematic.
FRONT
PASSENGER’S
DOOR SPEAKER
B14 B13 B15 B3 B1 B2 1
2
21
1
2
2
1
1
2
2
1
21
1
2
21
1
2
21
12 2 1: Shielding
2
1
(cont’d)
08/08/21 14:09:46 61SNR030_230_0188
ProCarManuals.com
DYNOMITE -2009-

Î(#'#
)
µ´
µ
´
´
´
Without Navigation
23-188Audio System
Circuit Diagram (cont’d)
3
G2 21 G1
SCTY
RADIO
K-LINE UNDER-DASH FUSE/RELAY BOX
AM/FM ANTENNA
UNDER-HOOD FUSE/RELAY BOX
() ()AM/FM ANTENNA LEAD
AM/FM ANTENNA SUBLEAD
G3
ILL A1
RED RADIO ACC
SCTY
RADIO
K-LINE Q8 Q4 Q1 Q14
LT BLU A6 A4 GRN
WHT
A17
VSP
ECM/PCM
BLU A14
PUR
MICU
ACC HOT in ACC (I) and ON (II)
ORN RED
WHT
ACC
BAT
IGNITION SWITCH
No. 23 (10 A)
No. 2 (IG) (50 A)
BATTERY
No. 1 (BAT) (100 A)
A10 A13
ILL GRY
ANT B
10 k
1.2 k
470
270
100
CH
( DOWN VOL VOL UP
( MODEBRN
B6
BRN
3.9 k
)
) CH
RED/BLK GRN/RED B7
PNK
GRN SW REMOTE
AUDIO
AUDIO
REMOTE
GND
9 4 3
10
AUDIO REMOTE SWITCH
BLK
G505
GND RADIO
A9
No.14(7.5A)FUSE
(In the under-dash
fuse/relay box)
DASH LIGHTS
BRIGHTNESS
CONTROLLER AM/FM
ANTENNA
AMPLIFIER
No.14(7.5A)FUSE
(In the under-dash
fuse/relay box) CABLE
REEL CABLE
REEL
DASH LIGHTS
BRIGHTNESS
CONTROLLER
D1
D4
C2
G2 No. 35
(7.5 A)
VSP A29
RADIOB
RF
SHRF
IN
AUDIO UNIT
08/08/21 14:09:48 61SNR030_230_0191
ProCarManuals.com
DYNOMITE -2009-

µµµ
XM Error Codes
Error Code Displayed Possible Cause Solution
Audio Unit Error Codes Error Code Displayed Possible Cause Solution
23-195
LOADING XM radio is acquiring audio or
program information. Wait until the radio receives the information.
(XM) OFF AIR XM channel not in service. Try another XM channel.
(XM) NO SIGNAL Loss of signal. Both terrestrial and satellite antennas have lost
signal. Park the vehicle outside with a clear
view of the southern horizon.
(XM) UPDATING XM radio is receiving
information update from the
network. This message disappears once the update
finishes.
(XM) CHECK ANTENNA XM antenna error. Repair open or short in the satellite antenna.
Substitute the XM antenna with a known-good
one, and recheck. If the error is gone, replace
the original XM antenna. If the error is still
present, replace the antenna lead.
(XM) ANTENNA ERROR
No signal from XM. Check a known-good vehicle with XM radio. If
the known-good vehicle has the same
symptoms, contact XM Satellite Radio at
800-852-9696.
CODE ERROR 1 Anti-theft code mismatch
(1 try). Enter the correct anti-theft code.
CODE ERROR E Anti-theft code mismatch
(10 try). Remove the No. 23 (10 A) fuse in the under-
hood fuse/relay box, then reinsert it. You will
have 10 more tries to enter the correct anti-
theft code.
NOTE: Do XM error codes checks with the vehicle parked outside with a clear view of the southern horizon.
st
th
08/08/21 14:09:50 61SNR030_230_0198
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
´
µ
µ
µ
µ
µ
µ µ
µ
Audio unit power switch will not turn on (No
information display and no sound)
(with navigation)
YES
NO
YES
NO
YES
NO YES
NO
23-202Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR A (24P)
ACC RADIO
(PUR) BBACKUP
(WHT)
NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if the navigation unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and No. 35 (7.5 A) fuse in the under-
dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the navigation unit (see page 23-355). Check that the navigation unit is properly
connected.
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
 Remove the PC card before removing the navigation unit.
Go to step 6.
Reconnect the connector, and recheck the
function. 6. Disconnect navigation unit connector A (24P)
7. Turn the ignition switch to ON (II).
8. Measure the voltage between body ground and
navigation unit connector A (24P) terminals No. 14
and No. 24 individually.
Go to step 9.
Repair open in the wire(s) between the No. 23
(10 A) fuse in the under-hood fuse/relay box and
the No. 35 (7.5 A) in the under-dash fuse/relay box
and the navigation unit.
9. Turn the ignition switch to LOCK (0).
10. Reconnect navigation unit connector A (24P).
Wire side of female terminals
Does t he nav i gat i on uni t d i spl ay oper at e pr oper l y , and d oes t he aud i o sound nor mal ?
Ar e t he f uses OK ?
I s i t connect ed pr oper l y ? I s t her e bat t er y v ol t age on bot h t er mi nal s?
08/08/21 14:09:53 61SNR030_230_0205
ProCarManuals.com
DYNOMITE -2009-
