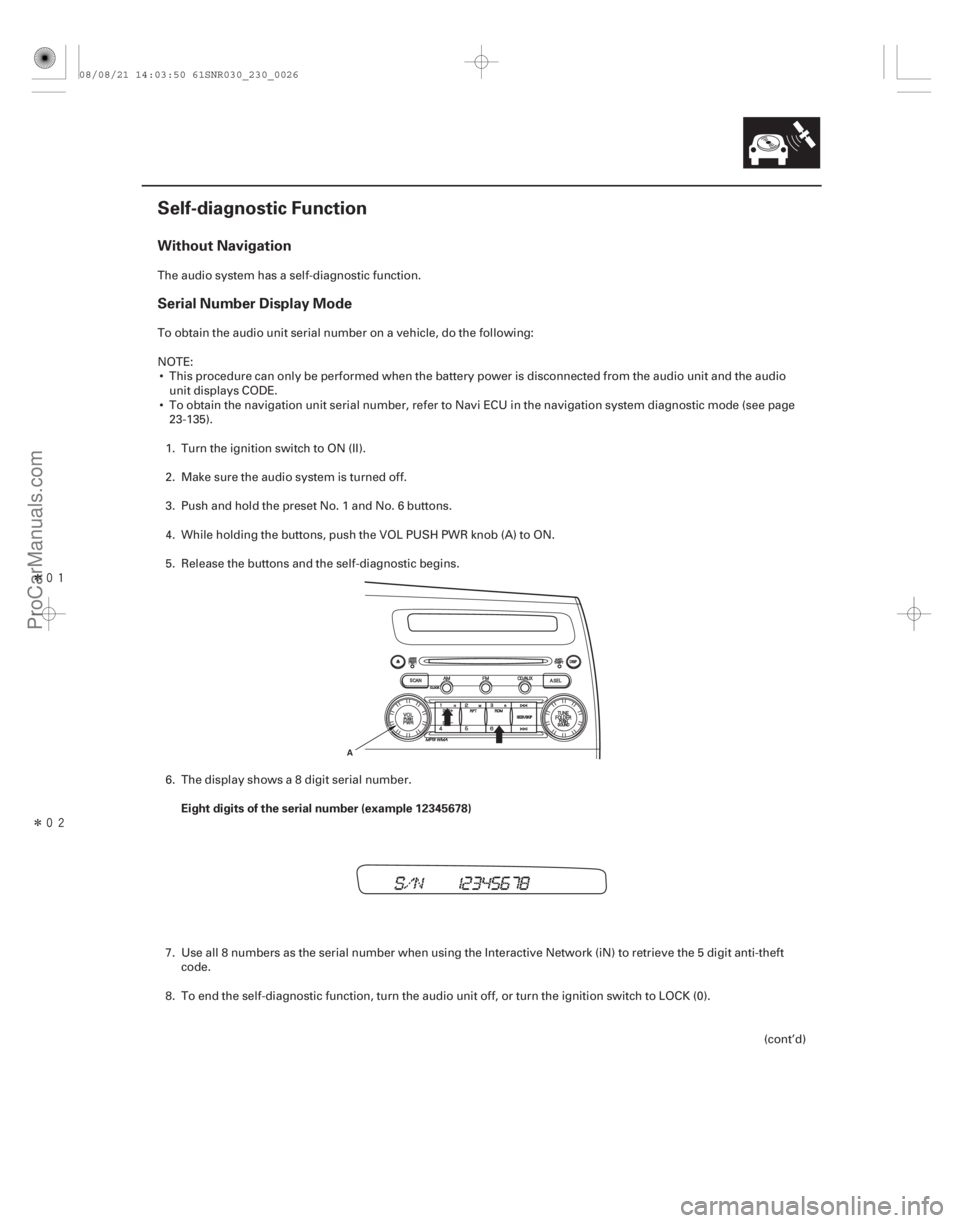

Serial Number Display Mode
Eight digits of the serial number (example 12345678)
23-23
Self-diagnostic Function
A
The audio system has a self-diagnostic function.
To obtain the audio unit serial number on a vehicle, do the following:
NOTE: This procedure can only be performed when the battery power is disconnected from the audio unit and the audio unit displays CODE.
 To obtain the navigation unit serial number, refer to Navi ECU in the navigation system diagnostic mode (see page 23-135).
1. Turn the ignition switch to ON (II).
2. Make sure the audio system is turned off.
3. Push and hold the preset No. 1 and No. 6 buttons.
4. While holding the buttons, push the VOL PUSH PWR knob (A) to ON.
5. Release the buttons and the self-diagnostic begins.
6. The display shows a 8 digit serial number.
7. Use all 8 numbers as the serial number when using the Interactive Network (iN) to retrieve the 5 digit anti-theft code.
8. To end the self-diagnostic function, turn the audio unit off, or turn the ignition switch to LOCK (0).
(cont’d)
08/08/21 14:03:50 61SNR030_230_0026
ProCarManuals.com
DYNOMITE -2009-

(#'
)

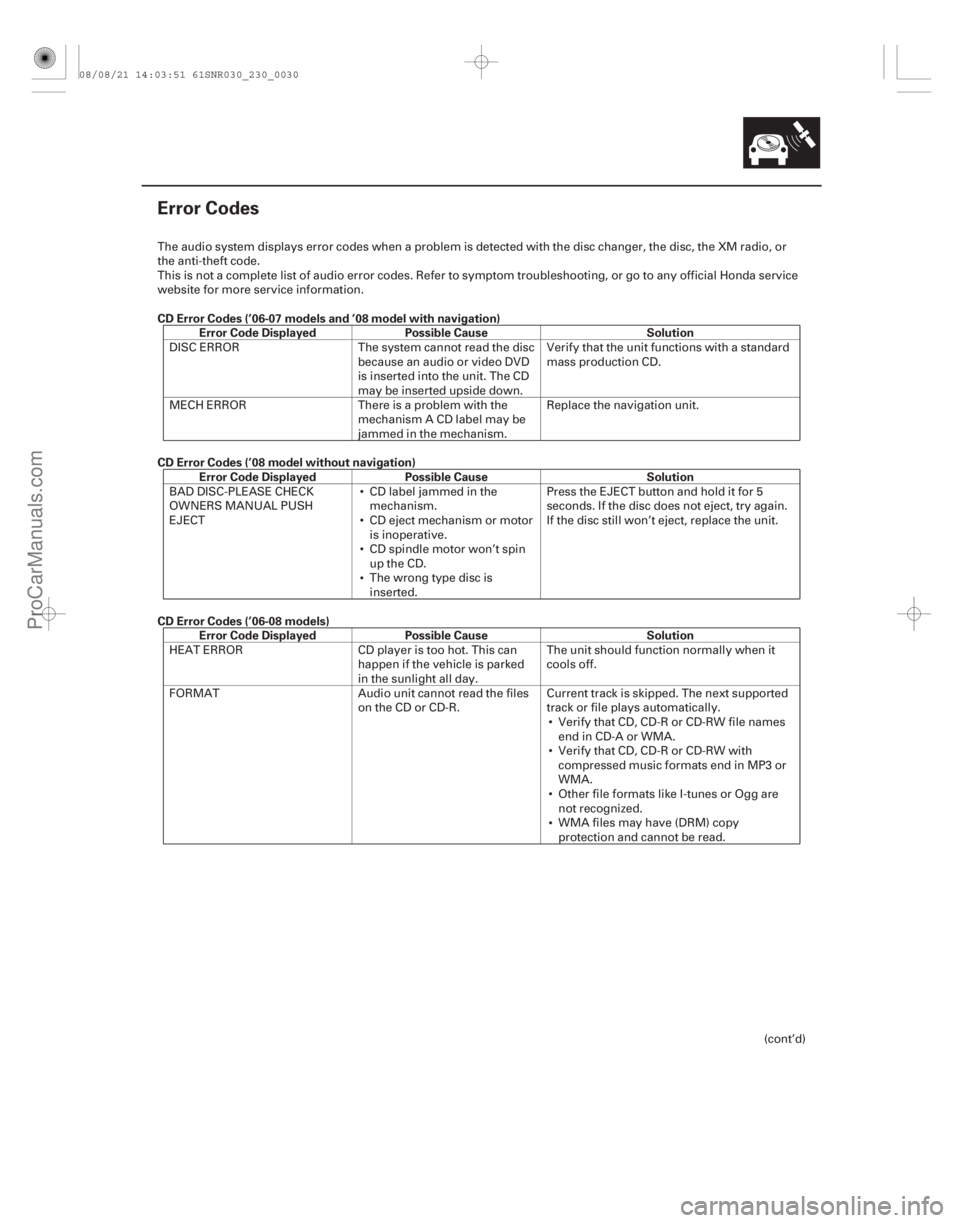

CD Error Codes (’06-07 models and ’08 model with navigation)Error Code Displayed Possible Cause Solution
CD Error Codes (’08 model without navigation) Error Code Displayed Possible Cause Solution
CD Error Codes (’06-08 models) Error Code Displayed Possible Cause Solution
23-27
Error Codes
The audio system displays error codes when a problem is detected with the disc changer, the disc, the XM radio, or
the anti-theft code.
This is not a complete list of audio error codes. Refer to symptom troubleshooting, or go to any official Honda service
website for more service information.
DISC ERROR The system cannot read the disc because an audio or video DVD
is inserted into the unit. The CD
may be inserted upside down.Verify that the unit functions with a standard
mass production CD.
MECH ERROR There is a problem with the mechanism A CD label may be
jammed in the mechanism.Replace the navigation unit.




BAD DISC-PLEASE CHECK
OWNERS MANUAL PUSH
EJECT
CDlabeljammedinthe
mechanism.
CD eject mechanism or motor
is inoperative.
CD spindle motor won’t spin
up the CD.
The wrong type disc is
inserted.Press the EJECT button and hold it for 5
seconds. If the disc does not eject, try again.
If the disc still won’t eject, replace the unit.




HEAT ERROR CD player is too hot. This can
happen if the vehicle is parked
in the sunlight all day.The unit should function normally when it
cools off.
FORMAT Audio unit cannot read the files on the CD or CD-R.Current track is skipped. The next supported
track or file plays automatically.
Verify that CD, CD-R or CD-RW file names
endinCD-AorWMA.
Verify that CD, CD-R or CD-RW with
compressed music formats end in MP3 or
WMA.
Other file formats like I-tunes or Ogg are
not recognized.
WMA files may have (DRM) copy
protection and cannot be read.
(cont’d)
08/08/21 14:03:51 61SNR030_230_0030
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Poor AM or FM radio reception or
interference (with navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-29
Symptom Troubleshooting
A
B
NOTE:
 Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phone).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-78).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page 23-87).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-87), or replace the rear
window (see page 20-47).
Go to step 10.
(cont’d)
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:04:37 61SNR030_230_0032
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
Î
´´
´ ´
µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO

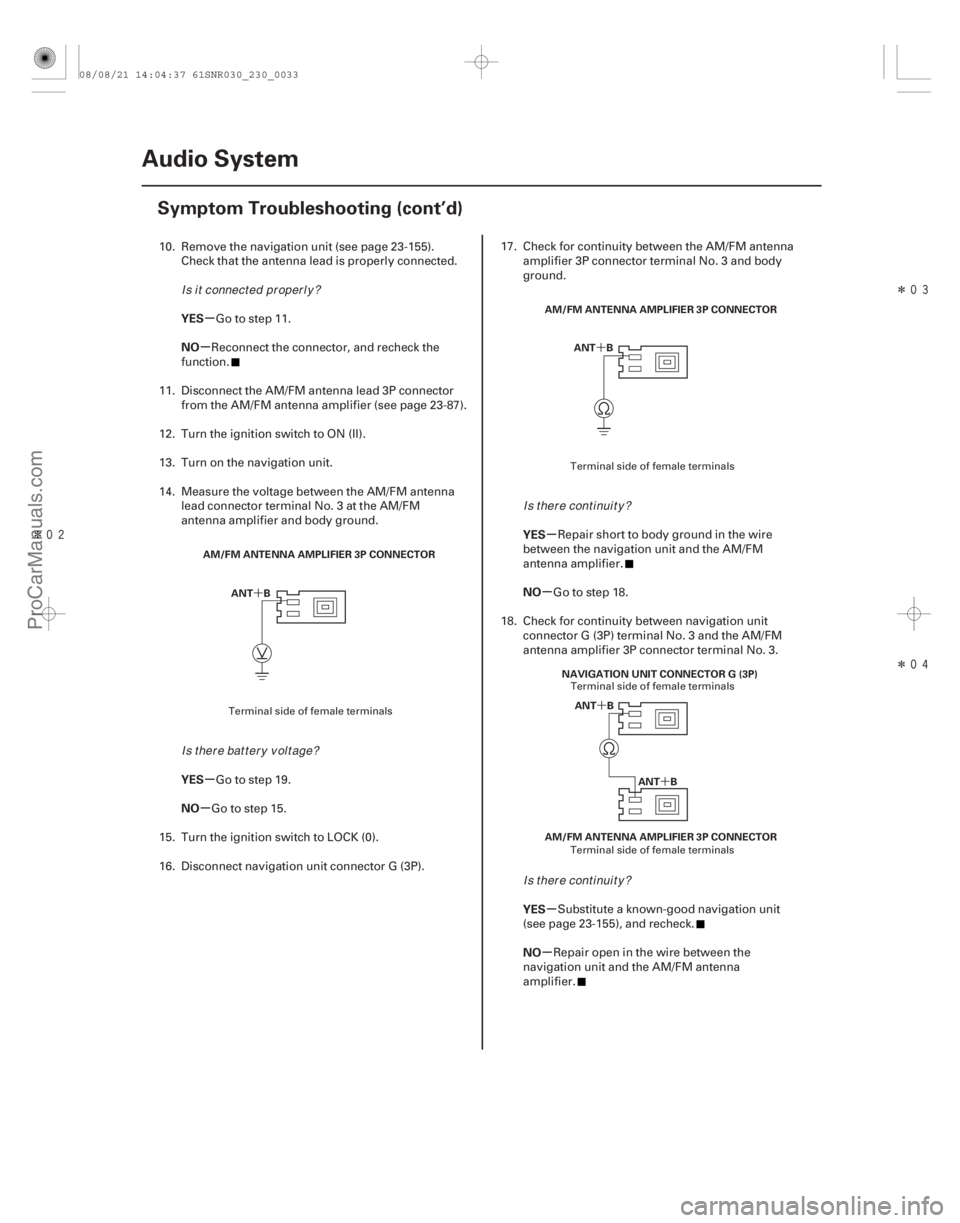

23-30Audio System
Symptom Troubleshooting (cont’d)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR
ANT B AM/FM ANTENNA AMPLIFIER 3P CONNECTOR
ANT B
NAVIGATION UNIT CONNECTOR G (3P)
AM/FM ANTENNA AMPLIFIER 3P CONNECTOR ANT B
ANT B
10. Remove the navigation unit (see page 23-155).Check that the antenna lead is properly connected.
Go to step 11.
Reconnect the connector, and recheck the
function.
11. Disconnect the AM/FM antenna lead 3P connector from the AM/FM antenna amplifier (see page 23-87).
12. Turn the ignition switch to ON (II).
13. Turn on the navigation unit.
14. Measure the voltage between the AM/FM antenna lead connector terminal No. 3 at the AM/FM
antenna amplifier and body ground.
Go to step 19.
Go to step 15.
15. Turn the ignition switch to LOCK (0).
16. Disconnect navigation unit connector G (3P). 17. Check for continuity between the AM/FM antenna
amplifier 3P connector terminal No. 3 and body
ground.
Repair short to body ground in the wire
between the navigation unit and the AM/FM
antenna amplifier.
Go to step 18.
18. Check for continuity between navigation unit connector G (3P) terminal No. 3 and the AM/FM
antenna amplifier 3P connector terminal No. 3.
Substitute a known-good navigation unit
(see page 23-155), and recheck.
Repair open in the wire between the
navigation unit and the AM/FM antenna
amplifier.
Terminal side of female terminals Terminal side of female terminals
Terminal side of female terminals
Terminal side of female terminals
I s i t connect ed pr oper l y ?
Is there battery voltage? Is there continuity?
Is there continuity?
08/08/21 14:04:37 61SNR030_230_0033
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ
µ
µ
µ
µ µ
µ
µ
µ
Poor AM or FM radio reception or
interference (without navigation)
YES
NO
YES
NO
YES
NO YES
NO
YES
NO
23-32
Audio System
Symptom Troubleshooting (cont’d)
AA
B
NOTE:
 Check the vehicle battery condition first.
 Check for aftermarket accessories plugged into the vehicle accessory power sockets (including cell
phone).
 Check the connectors for poor connections or loose terminals.
 Check the radio reception in an open area. Compare it to a known-good vehicle when ever possible.Poor
reception/interference can be caused by the
following:
– The radio station is far away.
– Atmospheric conditions are unfavorable.
– Tall buildings, mountains, or high-voltage power lines are nearby.
– Aftermarket metallic wi ndow tint.
1. Turn the ignition switch to ON (II).
2. Do the seek stop test (see page 23-78).
Multipath interference or weak station.
Operation is normal. Go to step 3.
3. Check if the radio reception/interference is the same in several locations.
Go to step 4.
Multipath interference or weak station.
Operation is normal.
4. Start the engine.
5. Check the reception/interference.
Check the antenna and radio grounds. If OK,
check the charging system and the ignition
system. Go to step 6.
6. Turn the ignition switch to LOCK (0). 7. Remove the right side C-pillar trim (see page 20-75).
8. Check the connections from the AM/FM antenna
amplifier to the window antenna.
Repair the connections, or substitute a
known-good AM/FM antenna amplifier and retest.
If the symptom/condition goes away, replace the
original AM/FM antenna amplifier (see page 23-87).
Go to step 9.
9. With the help of an assistant inside the vehicle, have the assistant shine a flashlight (A) along each
antenna wire (B). Check from the outside of the
vehicle for any breaks or openings in the antenna
wires (the light shines through).
Repair the window antenna. Go to AM/FM
antenna repair (see page 23-87), or replace the rear
window (see page 20-47).
Go to step 10.
I s t he t est v ehi cl e w i t hi n 10 % of t he k now n-goodvehicle?
Is t he r ecept i on/ i nt er f er ence t he same?
I s t her e noi se ( st at i c or w hi ne) onl y w i t h t heengi ne r unni ng? Ar e t her e any l oose or d amaged connect i ons?
Ar e t her e any br eak s or cut s i n t he ant enna?
08/08/21 14:04:38 61SNR030_230_0035
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
´
µ
µ
µ
µ
µ
µ µ
µ
Audio unit power switch will not turn on (No
information display and no sound) (with
navigation)
YES
NO
YES
NO
YES
NO YES
NO
23-35
NAVIGATION UNIT CONNECTOR A (17P)
BBACKUP(WHT)
ACC RADIO (PUR)NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if the navigation unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and No. 35 (7.5 A) fuse in the under-
dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the navigation unit (see page 23-155). Check that the navigation unit is properly
connected.
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
 Remove the PC card before removing the navigation unit.
Go to step 6.
Reconnect the connector, and recheck the
function.
6. Disconnect navigation unit connector A (17P)
7. Turn the ignition switch to ON (II). 8. Measure the voltage between body ground and
navigation unit connector A (17P) terminals No. 14
and No. 17 individually.
Go to step 9.
Repair open in the wire(s) between the No. 23
(10 A) fuse in the under-hood fuse/relay box and
the No. 35 (7.5 A) in the under-dash fuse/relay box
and the navigation unit.
9. Turn the ignition switch to LOCK (0).
10. Reconnect navigation unit connector A (17P).
(cont’d)
Wire side of female terminals
Does t he nav i gat i on uni t d i spl ay oper at e pr oper l y ,and d oes t he aud i o sound nor mal ?
Ar e t he f uses OK ?
I s i t connect ed pr oper l y ? I s t her e bat t er y v ol t age on bot h t er mi nal s?
08/08/21 14:04:39 61SNR030_230_0038
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#
)
µ
µ µ
µ
µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
YES
NO

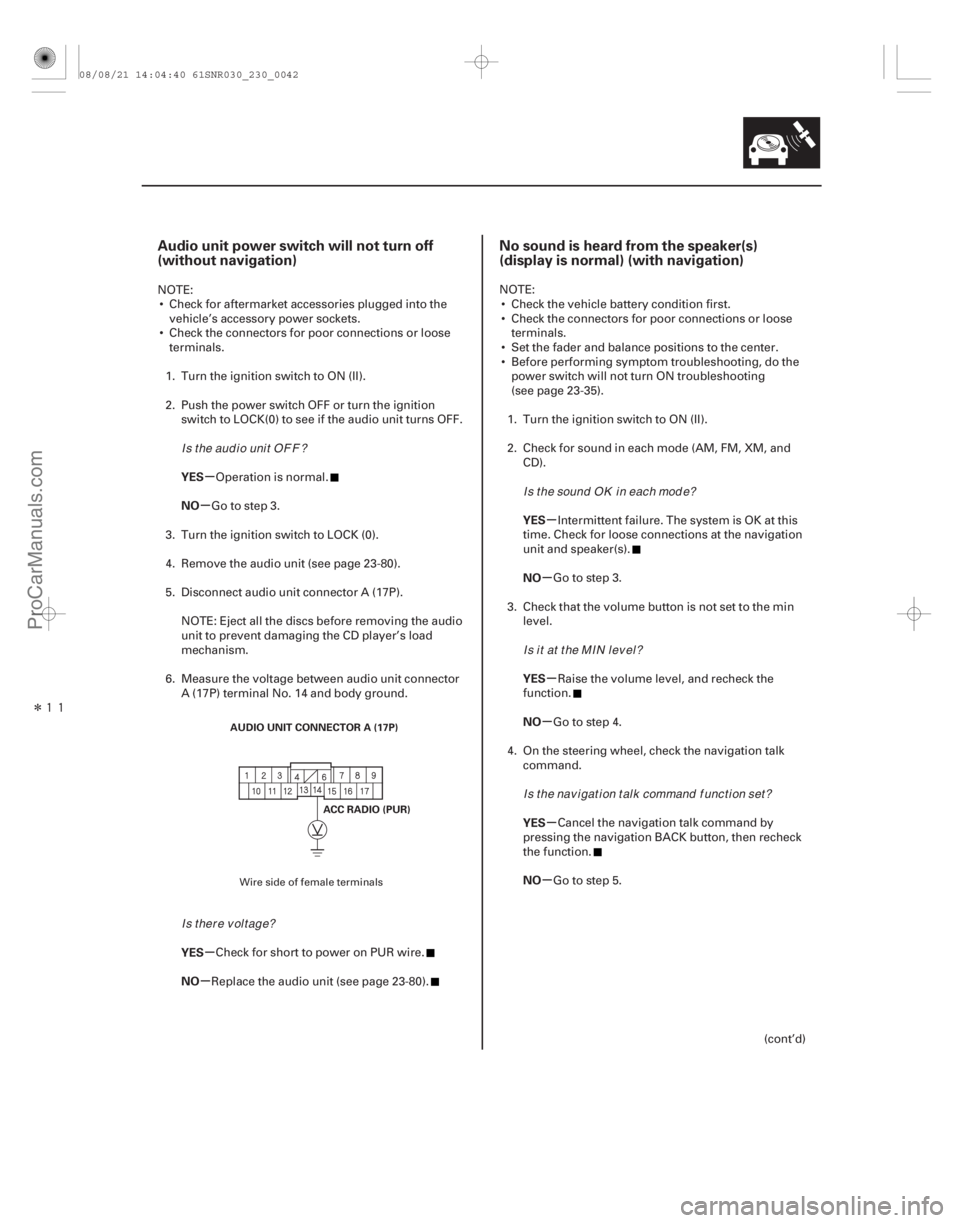

Audio unit power switch will not turn on (No
information display and no sound) (without
navigation)
23-3623-36Audio System
Symptom Troubleshooting (cont’d)
RADIO GND (BLK)
NAVIGATION UNIT CONNECTOR A (17P)
11. Turn the ignition switch to ON (II).
12. Measure the voltage between navigation unit
connector A (17P) terminal No. 9 and body ground.
Replace the navigation unit (see page 23-155).
Repair open in the wire between navigation
unit connector A (17P) terminal No. 19 and body
ground (G 505). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch ON to see if audio unit turns ON.
Intermittent failure, the system is OK at this
time.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Check the No. 23 (10 A) fuse in the under-hood fuse/relay box and the No. 35 (7.5 A) fuse in the
under-dash fuse/relay box.
Go to step 5.
Replace the fuse(s), and recheck.
5. Remove the audio unit (see page 23-80). Check that the audio unit is properly connected.
NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
Go to step 6.
Reconnect the connector, and recheck the
function.
Wire side of female terminals
I s t her e l ess t han 0.1 V on bot h t er mi nal s? Does t he aud i o uni t oper at e pr oper l y , and d oes t he
aud i o sound nor mal ?
Ar e t he f uses OK ?I s i t connect ed pr oper l y ?
08/08/21 14:04:40 61SNR030_230_0039
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#
)
µ
µµ µ

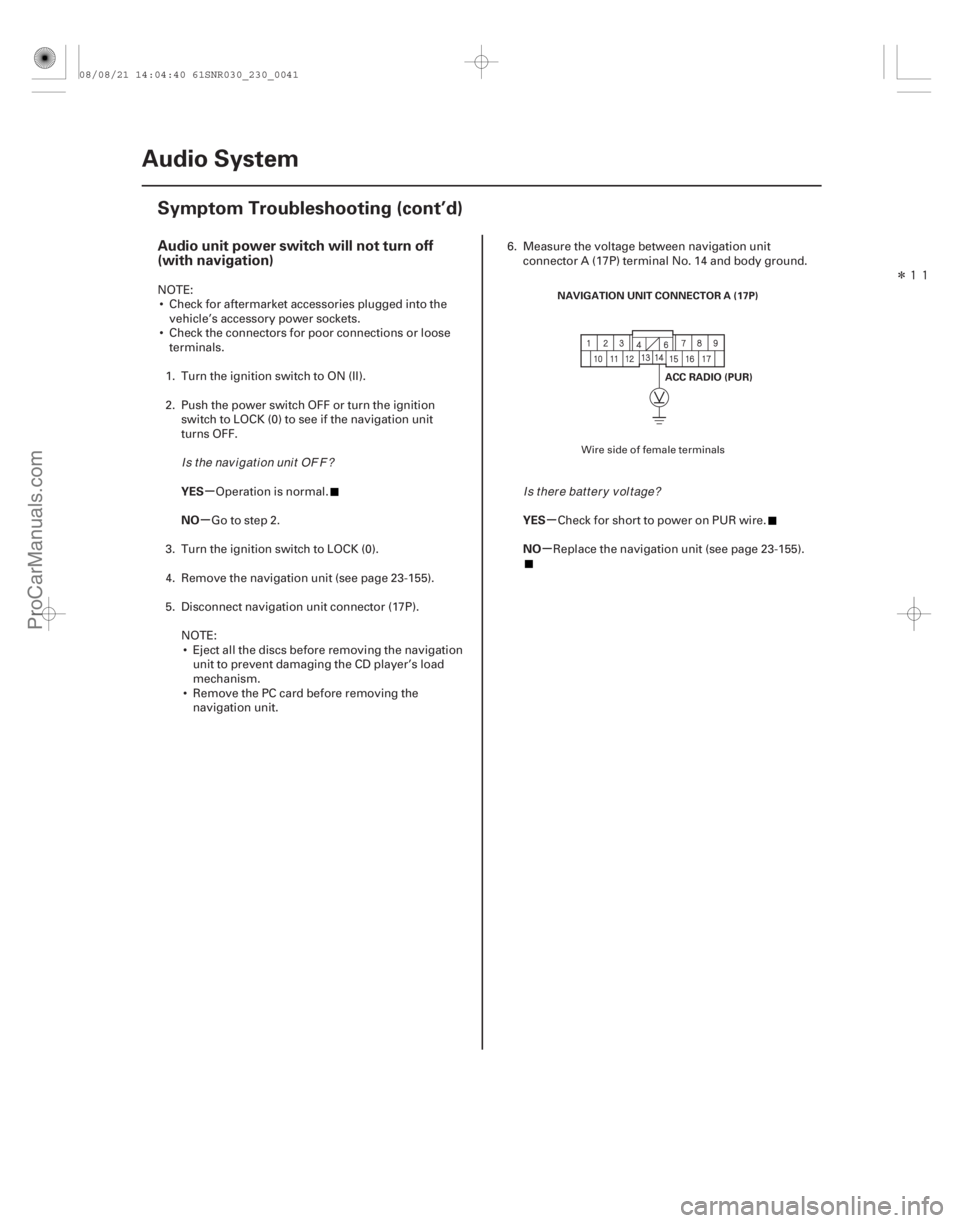

Audio unit power switch will not turn off
(with navigation)
YES
NO YESNO
23-38Audio System
Symptom Troubleshooting (cont’d)
ACC RADIO (PUR)
NAVIGATION UNIT CONNECTOR A (17P)
NOTE:
 Check for aftermarket accessories plugged into the vehicle’s accessory power sockets.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch OFF or turn the ignition switch to LOCK (0) to see if the navigation unit
turns OFF.
Operation is normal.
Go to step 2.
3. Turn the ignition switch to LOCK (0).
4. Remove the navigation unit (see page 23-155).
5. Disconnect navigation unit connector (17P). NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
 Remove the PC card before removing the navigation unit. 6. Measure the voltage between navigation unit
connector A (17P) terminal No. 14 and body ground.
Check for short to power on PUR wire.
Replace the navigation unit (see page 23-155).
Wire side of female terminals
I s t he nav i gat i on uni t OF F ? Is there battery voltage?
08/08/21 14:04:40 61SNR030_230_0041
ProCarManuals.com
DYNOMITE -2009-

Î

(#'#
)
(#'#
)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
Audio unit power switch will not turn off
(without navigation) No sound is heard from the speaker(s)
(display is normal) (with navigation)
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
23-3923-39
AUDIO UNIT CONNECTOR A (17P)
ACC RADIO (PUR)
NOTE: Check for aftermarket accessories plugged into the vehicle’s accessory power sockets.
 Check the connectors for poor connections or loose terminals.
1. Turn the ignition switch to ON (II).
2. Push the power switch OFF or turn the ignition switch to LOCK(0) to see if the audio unit turns OFF.
Operation is normal.
Go to step 3.
3. Turn the ignition switch to LOCK (0).
4. Remove the audio unit (see page 23-80).
5. Disconnect audio unit connector A (17P). NOTE: Eject all the discs before removing the audio
unit to prevent damaging the CD player’s load
mechanism.
6. Measure the voltage between audio unit connector A (17P) terminal No. 14 and body ground.
Check for short to power on PUR wire.
Replace the audio unit (see page 23-80). NOTE:
 Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 Set the fader and balance positions to the center.
 Before performing symptom troubleshooting, do the power switch will not turn ON troubleshooting
(see page 23-35).
1. Turn the ignition switch to ON (II).
2. Check for sound in each mode (AM, FM, XM, and CD).
Intermittent failure. The system is OK at this
time. Check for loose connections at the navigation
unit and speaker(s).
Go to step 3.
3. Check that the volume button is not set to the min level.
Raise the volume level, and recheck the
function.
Go to step 4.
4. On the steering wheel, check the navigation talk command.
Cancel the navigation talk command by
pressing the navigation BACK button, then recheck
the function.
Go to step 5.
(cont’d)
Wire side of female terminals
Is the aud io unit OF F ?
Is there voltage? I s t he sound OK i n each mod e?
Is it at the MIN level?I s t he nav i gat i on t al k command f unct i on set ?
08/08/21 14:04:40 61SNR030_230_0042
ProCarManuals.com
DYNOMITE -2009-

´
µ ´
µ
´
µ ´
µ
Î

µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO
YES
NO
Speaker Terminal Wire color
YES
NO

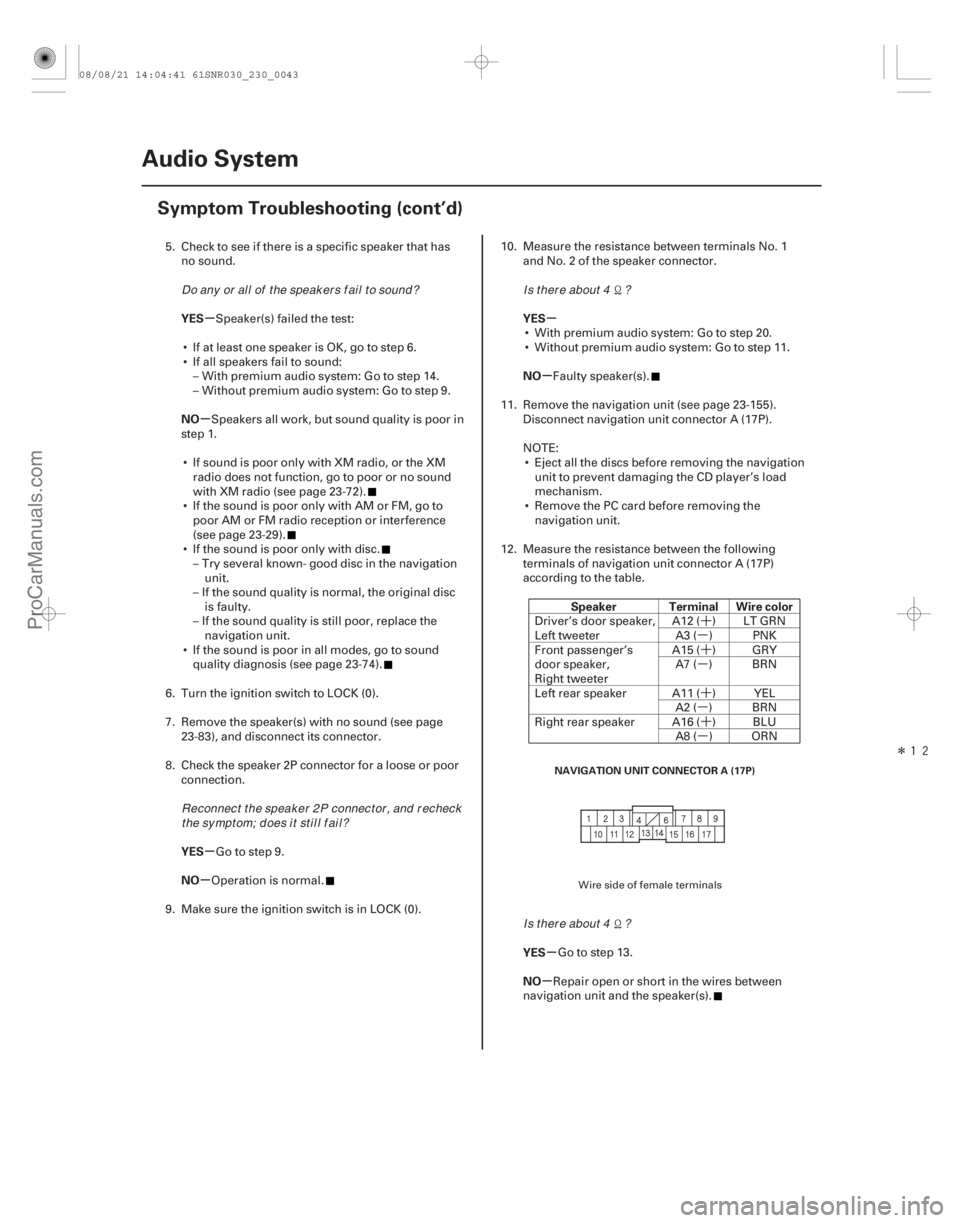

23-40 Audio System
Symptom Troubleshooting (cont’d)
NAVIGATION UNIT CONNECTOR A (17P)
5. Check to see if there is a specific speaker that has
no sound.
Speaker(s) failed the test:
 If at least one speaker is OK, go to step 6.
 If all speakers fail to sound: – With premium audio system: Go to step 14.
– Without premium audio system: Go to step 9.
Speakers all work, but sound quality is poor in
step 1.
 If sound is poor only with XM radio, or the XM radio does not function, go to poor or no sound
with XM radio (see page 23-72).
 If the sound is poor only with AM or FM, go to poor AM or FM radio reception or interference
(see page 23-29).
 If the sound is poor only with disc. – Try several known- good disc in the navigation
unit.
– If the sound quality is normal, the original disc is faulty.
– If the sound quality is still poor, replace the navigation unit.
 If the sound is poor in all modes, go to sound quality diagnosis (see page 23-74).
6. Turn the ignition switch to LOCK (0).
7. Remove the speaker(s) with no sound (see page 23-83), and disconnect its connector.
8. Check the speaker 2P connector for a loose or poor connection.
Go to step 9.
Operation is normal.
9. Make sure the ignition switch is in LOCK (0). 10. Measure the resistance between terminals No. 1
and No. 2 of the speaker connector.
 With premium audio system: Go to step 20.
 Without premium audio system: Go to step 11. Faulty speaker(s).
11. Remove the navigation unit (see page 23-155). Disconnect navigation unit connector A (17P).
NOTE: Eject all the discs before removing the navigation unit to prevent damaging the CD player’s load
mechanism.
 Remove the PC card before removing the navigation unit.
12. Measure the resistance between the following terminals of navigation unit connector A (17P)
accordingtothetable.
Driver’s door speaker,
Left tweeter A12 ( ) LT GRN
A3 ( ) PNK
Front passenger’s
door speaker,
Right tweeter A15 ( ) GRY
A7 ( ) BRN
Left rear speaker A11 ( ) YEL A2 ( ) BRN
Right rear speaker A16 ( ) BLU A8 ( ) ORN
Go to step 13.
Repair open or short in the wires between
navigation unit and the speaker(s).
Wire side of female terminals
Do any or al l of t he speak er s f ai l t o sound ?
Reconnect t he speak er 2P connect or , and r echeckthe symptom; does it still f ail? Is t her e about 4 ?
Is t her e about 4 ?
08/08/21 14:04:41 61SNR030_230_0043
ProCarManuals.com
DYNOMITE -2009-
