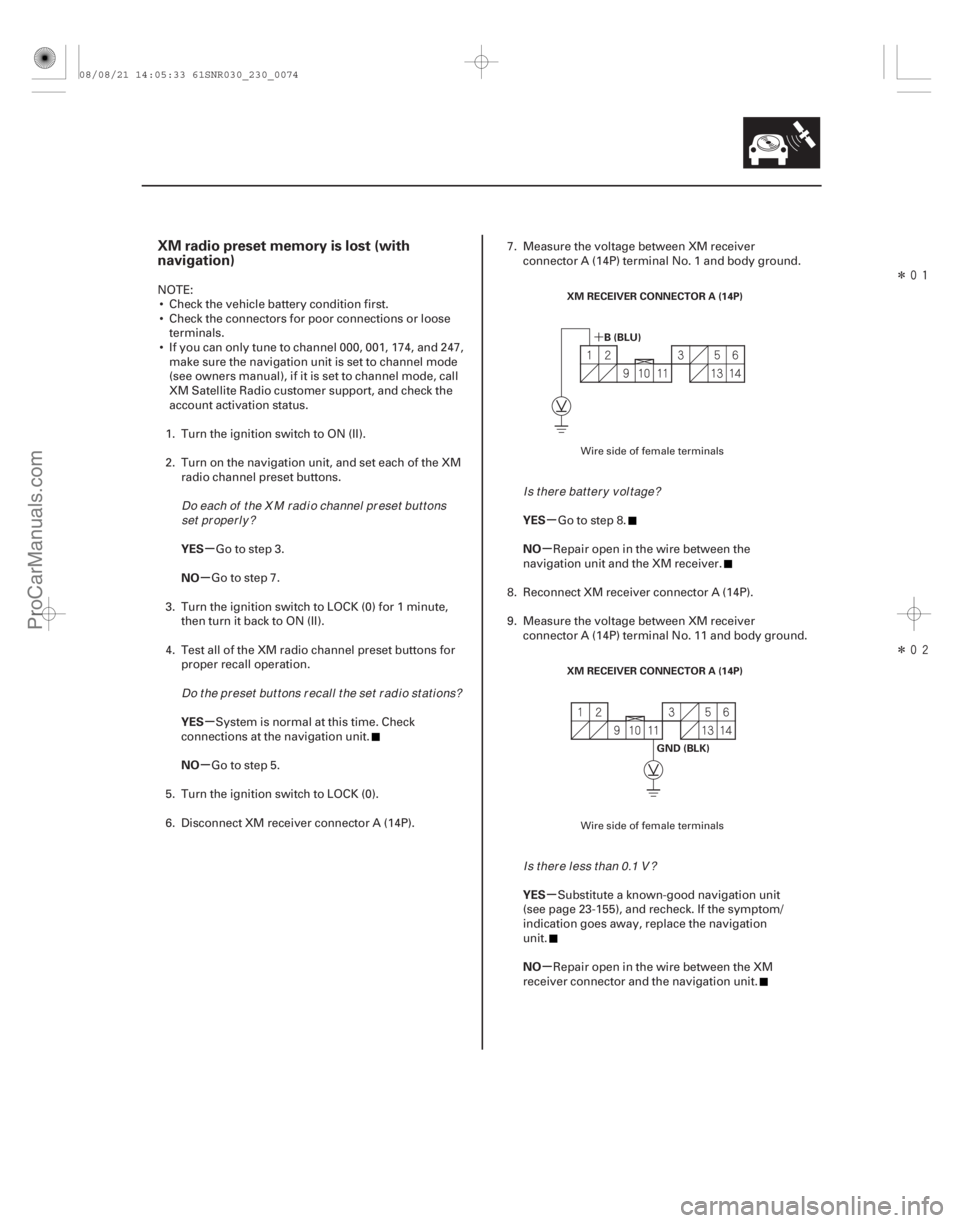

XM radio preset memory is lost (with
navigation)
YES
NO
YES
NO YES
NO
YES
NO
23-71
XM RECEIVER CONNECTOR A (14P)
B(BLU)
XM RECEIVER CONNECTOR A (14P) GND (BLK)NOTE: Check the vehicle battery condition first.
 Check the connectors for poor connections or loose terminals.
 If you can only tune to channel 000, 001, 174, and 247, make sure the navigation unit is set to channel mode
(see owners manual), if it is set to channel mode, call
XM Satellite Radio customer support, and check the
account activation status.
1. Turn the ignition switch to ON (II).
2. Turn on the navigation unit, and set each of the XM radio channel preset buttons.
Go to step 3.
Go to step 7.
3. Turn the ignition switch to LOCK (0) for 1 minute, then turn it back to ON (II).
4. Test all of the XM radio channel preset buttons for proper recall operation.
System is normal at this time. Check
connections at the navigation unit.
Go to step 5.
5. Turn the ignition switch to LOCK (0).
6. Disconnect XM receiver connector A (14P). 7. Measure the voltage between XM receiver
connector A (14P) terminal No. 1 and body ground.
Go to step 8.
Repair open in the wire between the
navigation unit and the XM receiver.
8. Reconnect XM receiver connector A (14P).
9. Measure the voltage between XM receiver connector A (14P) terminal No. 11 and body ground.
Substitute a known-good navigation unit
(see page 23-155), and recheck. If the symptom/
indication goes away, replace the navigation
unit.
Repair open in the wire between the XM
receiver connector and the navigation unit.
Wire side of female terminals
Wire side of female terminals
Do each of t he X M r ad i o channel pr eset but t ons set pr oper l y ?
Do the preset buttons recall the set radio stations? Is there battery voltage?
Is t her e l ess t han 0.1 V ?
08/08/21 14:05:33 61SNR030_230_0074
ProCarManuals.com
DYNOMITE -2009-

Î
(#'#
)
µ
µ µ
µ

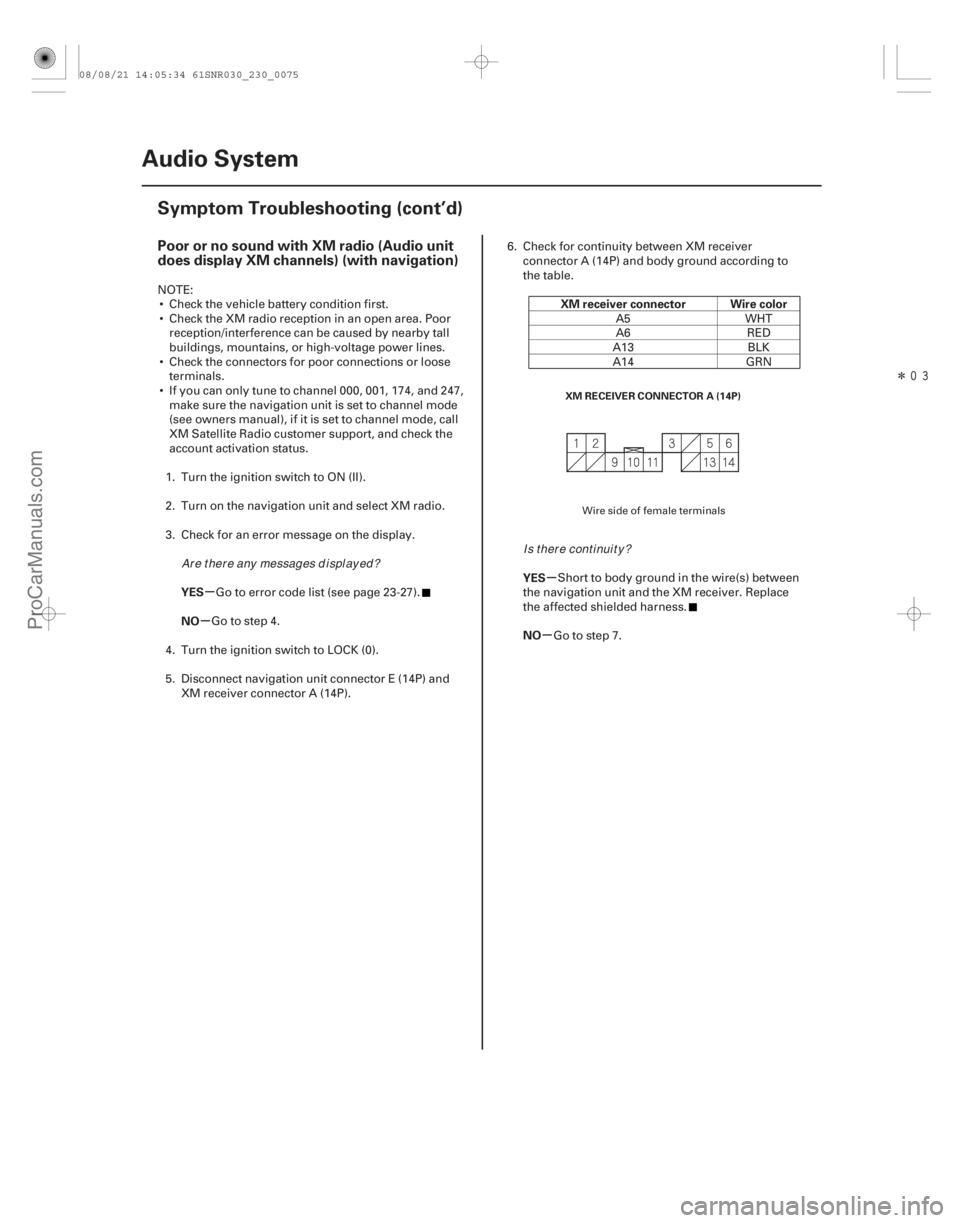

Poor or no sound with XM radio (Audio unit
does display XM channels) (with navigation)
YES
NO XM receiver connector Wire color
YES
NO
23-72 Audio System
Symptom Troubleshooting (cont’d)
XM RECEIVER CONNECTOR A (14P)
NOTE:
 Check the vehicle battery condition first.
 Check the XM radio reception in an open area. Poor reception/interference can be caused by nearby tall
buildings, mountains, or high-voltage power lines.
 Check the connectors for poor connections or loose terminals.
 If you can only tune to channel 000, 001, 174, and 247, make sure the navigation unit is set to channel mode
(see owners manual), if it is set to channel mode, call
XM Satellite Radio customer support, and check the
account activation status.
1. Turn the ignition switch to ON (II).
2. Turn on the navigation unit and select XM radio.
3. Check for an error message on the display.
Go to error code list (see page 23-27).
Go to step 4.
4. Turn the ignition switch to LOCK (0).
5. Disconnect navigation unit connector E (14P) and XM receiver connector A (14P). 6. Check for continuity between XM receiver
connector A (14P) and body ground according to
the table.
A5 WHT
A6 RED
A13 BLK
A14 GRN
Short to body ground in the wire(s) between
the navigation unit and the XM receiver. Replace
the affected shielded harness.
Go to step 7.
Wire side of female terminals
Ar e t her e any messages d i spl ay ed ? Is there continuity?
08/08/21 14:05:34 61SNR030_230_0075
ProCarManuals.com
DYNOMITE -2009-

(#'
)
(#'
) Special Tools Required Special Tools Required
Left/Right Channel IDPhase Test
23-7423-74Audio System
Sound Quality Diagnosis
Diagnostics CD 07AAZ-SDBA100
Use the following tests to check sound quality.
NOTE: Before beginning the following tests, write down
the client’s bass, treble, fader and balance settings, and
then set them to their center positions for testing.
Do this test to confirm proper channel routing.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 1 (left, both, right channel ID) at a normal, or slightly higher than normal, volume
level.
3. The voice should be audible only from the channel or channels when indicated.
 If the channel ID is correct for each side, go to the phase test.
 If the channel ID is not correct, check for; – Shorted speaker wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit Diagnostics CD 07AAZ-SDBA100
Do this test to confirm proper speaker phasing.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 2 (phase) at a normal, or slightly higher than normal, volume level.
3. The voice should sound centered and focused when it is in-phase.
4. The voice should sound diffused, and have less bass when it is out of phase.
 If the voice changes from in-phase to out of phase as indicated by the prompt, the phasing is
correct. Go to electrical noise test.
 If the voice always sounds out of phase, phasing is not correct. Check for;
– Crossed speaker wires
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
08/08/21 14:05:34 61SNR030_230_0077
ProCarManuals.com
DYNOMITE -2009-

(#'
)
Special Tools Required
Electrical Noise Test
23-75
Diagnostics CD 07AAZ-SDBA100
Do this test to check for electrical noise being induced
into the audio system.
NOTE: Electrical noise may be caused by outside
sources that cannot be handled by the audio system.
Make sure you remove any cell phones and/or turn off
any aftermarket device before beginning this test.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 4 (digital zero) at a normal, or slightly higher than normal, volume level.
3. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
4. Play track No. 5 (near digital zero) at a normal, or slightly higher than normal, volume level.
5. Operate any electrical device that may create electrical noise in the audio system, including
starting the engine.
6. Play track No. 6 (SNR) at a normal, or slightly higher than normal, volume level. 7. Operate any electrical device that may create
electrical noise in the audio system, including
starting the engine.
 If no abnormal noise is heard, go to individual speaker test.
 If the noise is present only during the SNR track, replace the navigation unit or audio unit.
 If the noise is heard during the digital zero or near digital zero track, check for;
– Poor ground for the audio unit, amplifier, engine or battery cable
– Pinched or shorted speaker or amplifier wire
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit
– Other faulty components causing excessive electrical noise (ignition coils, alternator, door
lock actuators, etc.). Disconnect any suspect
components, and then replay the tracks that
were originally noisy. If the noise is gone,
check the component’s circuit and the
component.
08/08/21 14:05:34 61SNR030_230_0078
ProCarManuals.com
DYNOMITE -2009-

(#'
)

(#'
) Special Tools Required Special Tools Required
Individual Speaker TestSound Balance Test
23-7623-76Audio System
Sound Quality Diagnosis (cont’d)
Diagnostics CD 07AAZ-SDBA100
Do this test to identify a faulty speaker.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Play track No. 30 (steady 300 Hz tone) at a normal, or slightly higher than normal, volume level.
3. Listen to each speaker for poor sound compared to the other speakers. Use the audio unit’s fader and
balance settings to help isolate the channel with the
problem.
 If the sound quality produced by a specific speaker is poor, substitute it with a known-good
speaker. If the poor sound quality continues, go
to the sound balance test.
 If the sound quality is OK, go to the sound balance test. Diagnostics CD 07AAZ-SDBA100
Perform this test to identify a faulty channel or speaker.
1. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit.
2. Confirm the bass and treble are set to the center positions.
3. Play track No. 3 (pink noise) at a normal, or slightly higher then normal, volume level.
4. A static type sound should be heard through all speakers.
5. Insert the diagnostics CD (T/N: 07AAZ-SDBA100) into the navigation unit or audio unit of a known-
good vehicle.
6. Set the bass and treble to the center position.
7. Play track No. 3 (pink noise) all the same level as wasplayedinstep3.
8. Compare the sounds made by the two vehicles.  If the noise sounds made by the two vehicles arevery similar, go to the Frequency Sweep Test
(see page 23-77).
 If the sound does not have as much bass, check the subwoofer and circuit.
 If the sound does not have enough hiss, check the tweeters and their circuits.
08/08/21 14:05:34 61SNR030_230_0079
ProCarManuals.com
DYNOMITE -2009-

´
´
´
´
(#'
)
Seek Stop Test
23-7823-78 Audio System
Sound Quality Diagnosis (cont’d)
8. Compare the client’s vehicle’s sound quality results
to the known-good vehicle’s results.
 If the sound quality in the customer’s vehicle is comparable to the sound quality in the known-
good vehicle, then the client’s vehicle is
operating as designed.
 If the sound quality is not comparable, check these items in order.
– Loose or improperly installed speakers or other hardware that may become excited by
the vibrations generated by the speakers
– Poor power or ground to the stereo amplifier (Type S model)
– Damaged speaker(s)
– Faulty amplifier (Type S model)
– Faulty navigation unit
– Faulty audio unit Do this test to check the performance of the audio unit’s
AM and FM reception. Refer to symptom
troubleshooting: audio sound weak or distorted, or no
sound is heard from speakers (display is normal)
(see page 23-39) before continuing with this test.
NOTE:
 Window tint, aftermarket theft-recovery devices and other aftermarket accessories may reduce radio
reception.
 Changes in cloud cover and other atmosphere conditions will affect the ab ility of the navigation unit
or audio unit to receive radio signals.
1. Park the client’s vehicle in an open area away from buildings or other obstructions.
2. Park a known-good vehicle (same year, model, and trim level) next to the client’s vehicle, facing the
same direction.
3. Start the engine in the client’s vehicle, and turn on the radio.
4. Set the FM receiver to 87.7 MHz.
5. Press the Seek button and record the first station that the navigation unit or audio unit locks onto.
6. Press the Seek button repeatedly, and write down each station that the navigation unit or audio
unit locks onto until the station recorded in step 5 is
reached again.
7. Set the AM receiver to 530 kHz.
8. Press the Seek button, and record the first station that the navigation unit or audio unit locks
on to.
9. Press the Seek button repeatedly, and write down each station that the navigation unit or audio
unit locks onto until the station recorded in step 8 is
reached again.
08/08/21 14:05:35 61SNR030_230_0081
ProCarManuals.com
DYNOMITE -2009-



(#'#






 )
Without navigation 6 CD type
23-80 Audio System
Audio Unit Removal/Installation
A
B
C
B
A
BSRS components are located in this area. Review the
SRS component location (see page 24-11).
Also review the precautions and procedures (see page
24-13) in the SRS section before doing repairs or
service.
NOTE: Put on gloves to protect your hands.
 Take care not to scratch the dashboard and related parts.
 Lay a workshop towel under the parts when working on them to protect the face panel from scratches or
other damage.
 Do not work in a dusty or dirty place.
 Discharge static electricity from your body before and during the work.
 Do not touch the circuit board(s) with your bare hands.
 Do not work with dirty hands.
 Be careful not to fold the flat plate cable.
 Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it,
wipe it off thoroughly.)
 Eject all the discs before removing the audio unit to prevent damaging the CD player’s load mechanism.
 If you are replacing the audio unit, write down the sudio presets (if possible), and enter them into the
new audio unit.
1. Remove the meter inner visor (see page 20-100). 2. Remove the center pocket hole lid and the bolts,
then pull out the center panel (A).
3. Disconnect the connectors (B), and the air hose (C) then remove the center panel.
4. Remove the screws, and the audio unit (A) from the center panel display (B).
08/08/21 14:05:35 61SNR030_230_0083
ProCarManuals.com
DYNOMITE -2009-


Î
(#'#




 )
’08 model with navigation
23-8223-82 Audio System
Audio Unit Removal/Installation
(cont’d)
XM Receiver Removal/Installation
A
A
A B
A
C A
A
B

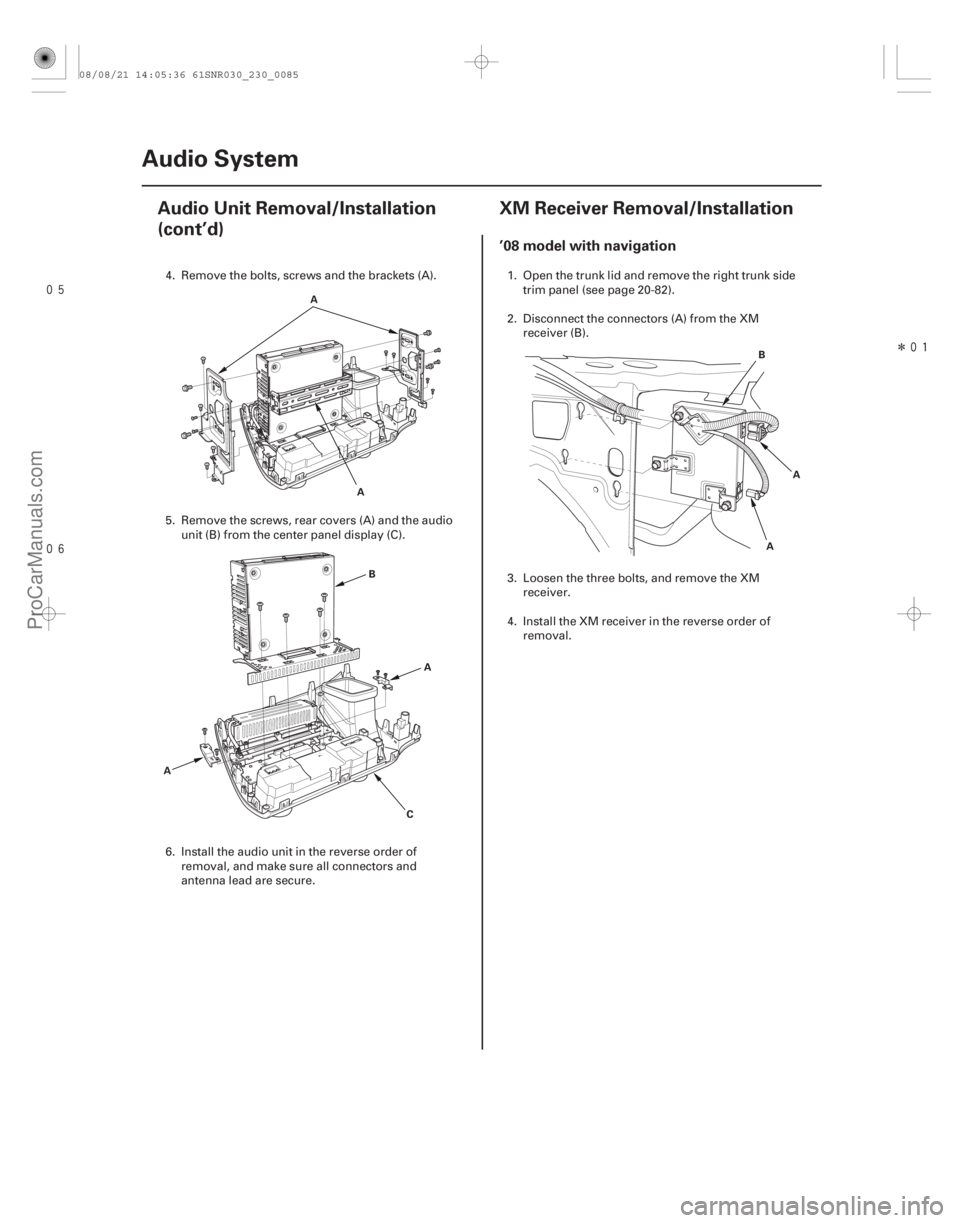

4. Remove the bolts, screws and the brackets (A).
5. Remove the screws, rear covers (A) and the audio
unit (B) from the center panel display (C).
6. Install the audio unit in the reverse order of removal, and make sure all connectors and
antenna lead are secure. 1. Open the trunk lid and remove the right trunk side
trim panel (see page 20-82).
2. Disconnect the connectors (A) from the XM receiver (B).
3. Loosen the three bolts, and remove the XM receiver.
4. Install the XM receiver in the reverse order of removal.
08/08/21 14:05:36 61SNR030_230_0085
ProCarManuals.com
DYNOMITE -2009-


Î
(#'#




 )
’08 model with navigation
23-8223-82 Audio System
Audio Unit Removal/Installation
(cont’d)
XM Receiver Removal/Installation
A
A
A B
A
C A
A
B
4. Remove the bolts, screws and the brackets (A).
5. Remove the screws, rear covers (A) and the audio
unit (B) from the center panel display (C).
6. Install the audio unit in the reverse order of removal, and make sure all connectors and
antenna lead are secure. 1. Open the trunk lid and remove the right trunk side
trim panel (see page 20-82).
2. Disconnect the connectors (A) from the XM receiver (B).
3. Loosen the three bolts, and remove the XM receiver.
4. Install the XM receiver in the reverse order of removal.
08/08/21 14:05:36 61SNR030_230_0085
ProCarManuals.com
DYNOMITE -2009-


(#'#



 )
’08 model with navigation
23-88Audio System
XM Antenna Replacement
A
B
C
1. Remove the headliner (see page 20-84).
2. Remove the nut (A) from the XM antenna (B).
3. Disconnect the connector (C) and remove the XM antenna.
4. Install the antenna in the reverse order of removal.
08/08/21 14:06:23 61SNR030_230_0091
ProCarManuals.com
DYNOMITE -2009-
