Page 11 of 234
10Quick Reference Guide

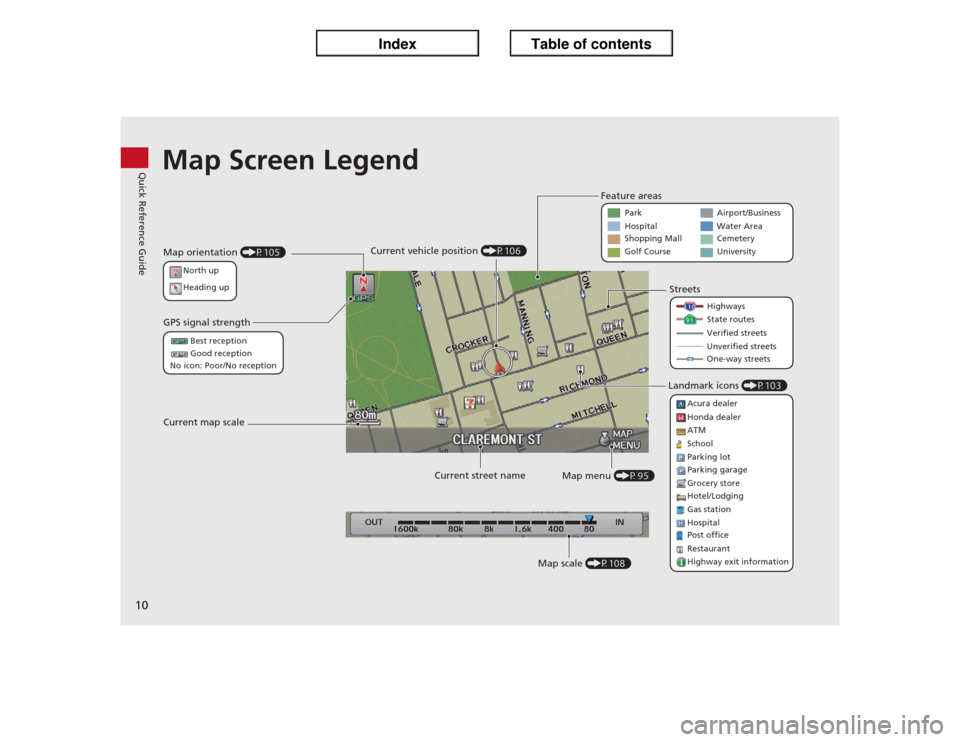

Map Screen LegendMap orientation (P105)
GPS signal strength
North up
Heading up
Best reception
Good reception
No icon: Poor/No reception
Current map scale
Current street name
Map menu (P95)
Map scale (P108) Current vehicle position (P106)Feature areas
Streets
Landmark icons (P103)
Park
Hospital
Shopping Mall
Golf CourseAirport/Business
Water Area
Cemetery
University
Highways
State routes
Verified streets
Unverified streets
One-way streets
Acura dealer
Honda dealer
ATM
School
Parking lot
Parking garage
Grocery store
Hotel/Lodging
Gas station
Hospital
Post office
Restaurant
Highway exit information
Page 12 of 234
11Quick Reference Guide
During Route GuidanceDuring route guidance, route information is displayed on the map screen and guidance screen.
Press the MAP/GUIDE button to toggle between the map and guidance screen.Map Screen
Guidance ScreenOff-road tracking
(P93)
Destination direction
indicator
Direction “as the crow flies”Next guidance
indicator
Distance to the next
guidance point.
Distance to destination
Distance of the actual
route.
Estimated time to
destination
Waypoint (P112)Destination icon
(P89) Calculated route
(unverified roads)
(P91) Calculated route
(P90)
Street name of
guidance point Route guidance list scroll bar
Rotate i to scroll the list of
guidance points.
Route progress barDistance to
guidance point
No entry icon Estimated time to
destination Distance to destination Destination direction
indicator
Map MenuContains map or routing options.Day or Night ModePress the a (Display mode) button
to manually switch between day and
night mode.
Day mode Night mode
Page 13 of 234
12Quick Reference Guide
Navigation—Home Addresses and Going HomeThe “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying d “Go
Home.” You can store two home addresses as Home Address 1 and Home Address 2. (P41)Storing Your Home AddressaPress the INFO button.bRotate i to select Set up. Press u.cRotate i to select Personal
Information. Press u.
dRotate i to select Home Address 1.
Press u.eRotate i to select Edit Name. Press
u.
fEnter a name.gRotate i to select Edit Address.
Press u.
hRotate i to select Address. Press u.
iEnter an address.
jRotate i to select Edit Phone No.
Press u.kEnter a phone number.lMove r to select OK.
Going HomeaPress the DEST/ROUTE
button.bRotate i to select Go Home 1. Press
u.
Alternatively, you can say d “Go
Home” from any screen. Your home
address is displayed on the Calculate
Route screen.cRotate i to select OK. Press u. zThe following voice commands are
available: say d “Go Home,” d “Go
Home 1,” d “Go Home 2.”
zIf you have two home addresses stored,
saying d “Go Home” will select Home
Address 1.
Page 14 of 234
13Quick Reference Guide
Navigation—Entering a DestinationEnter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You
can also perform these steps using d voice control.aPress the DEST/ROUTE
button.bRotate i to select Address. Press u.cRotate i to select Street. Press u.dEnter the name of your destination
street.
eRotate i to select your destination
street from the list. Press u.fEnter the street number. Move r to
select OK when finished.gIf there is more than one city with the
specified street, a list of cities is
displayed. Rotate i to select the
desired city from the list. Press u.
hRotate i to select OK. Press u.
Route guidance to the destination
begins.
zView Routes: Choose one of three
routes.
zRoute Pref.: Choose MAX or MIN for
the three settings.
Page 15 of 234
14Quick Reference Guide
Navigation—Changing Route or DestinationYou can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guidance.Adding a Waypoint
(“Pit Stop”)You can add up to four waypoints along
your route. (P112)aPress the DEST/ROUTE button.
bRotate i to select Waypoint. Press
u.cRotate i to select location and
search method. Press u.
zSEARCH AROUND: Search around a
location.
zSEARCH ALONG: Search between two
locations.dSelect the icon category and location
to add to the Destination List when
prompted.
eMove r to select OK.
Changing Your
DestinationThere are four methods you can use to
specify a new destination during route
guidance.
zSay d “Find Nearest…” (P117)
Searches for the nearest place/landmark
on the map screen (e.g., d “Find
nearest gas station”).
zSay d “Go Home” (P12)
Routes to your home address.
zSelecting an icon on the map (P118)
Scroll the map to position the cursor over
a place/landmark icon or a new area on
the map. Press u twice.
zEntering a new destination (P119)
Press the DEST/ROUTE button. Move y
to select Dest.MENU1/2 and enter a new
destination.
Canceling Your Route
From the map screen:aPress the DEST/ROUTE button.bRotate i to select Cancel Route.
Press u.aPress u to select MAP MENU.bRotate i to select Cancel Route.
Press u.
Page 16 of 234
15Quick Reference Guide
Troubleshooting
For more Information
(P193)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on your actual road
speed and traffic conditions to give you a better estimate
of arrival time.
Why does my clock frequently change the time forward
and backward by one hour?
The clock setting is automatically updated based on your
GPS location. If you normally drive between two time
zones, the clock may keep adjusting the time. You can
turn this feature off.
2Clock Adjustment
P. 55
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in with
a major metro area. In rural “unverified” areas or new
subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1.Press the INFO button. Rotate i to select Set up and
press u. Check that Volume is not set to OFF.
2.Move y to select Other, rotate i to select Basic
Settings, and press u. Set Voice Recognition Tutor
to ON if you want the system to provide confirmations
and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press and hold the VOL 9 (Volume/Power) button for two
seconds; the system should reactivate.
2System Initialisation
P. 206
Page 17 of 234
16
How to Use This ManualThis section explains different methods on how you can easily find information in this manual.
ContentsContents
More Detailed
Contents
Go to the
Next Page
Searching the Table of Contents (P1)Two types of Tables of Contents help
you find your desired information.
First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Address Book).
Then, go to that chapter to view a more
specific table of contents.Searching the Index
(P229)
Menu items displayed on the
navigation screen (e.g., Address Book)
can be found individually in the Index.This more detailed table of contents
shows you exactly what information is
listed by section and title.
The Index consists of main
terms and sub-entries. The
sub-entries help you get to
the desired page depending
on what you are looking
for. Table of Contents Chapter Contents
Navigation Screen Index
Page 18 of 234
17
DEST/ROUTE button

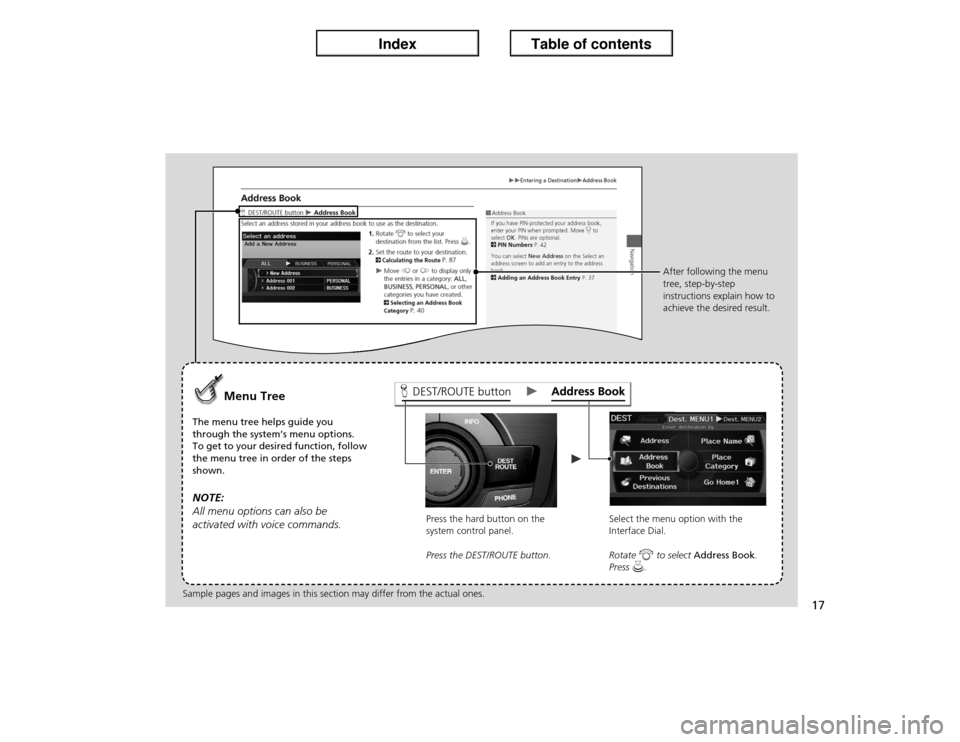

Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.NOTE:
All menu options can also be
activated with voice commands.
Press the hard button on the
system control panel.
Press the DEST/ROUTE button.Select the menu option with the
Interface Dial.
Rotate i to select Address Book.
Press u.After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
Sample pages and images in this section may differ from the actual ones.
Page 19 of 234
18
NOTE
Page 20 of 234
19
System Setup
This section describes the start-up procedure and the navigation and
setup functions.
Start-up................................................... 20
Voice Control System............................. 22
Command Input .................................... 22
Voice Recognition .................................. 23
Interface Settings................................... 24
Display and Volume Settings .................. 24
Interface Dial Feedback .......................... 25
Basic Settings ......................................... 26
Colour ................................................... 27
Language............................................... 31
Wallpapers Setting ................................. 32
Personal Information.............................. 36
Address Book ......................................... 37
Home Addresses .................................... 41PIN Numbers ...........................................42
Previous Destinations ..............................43
Music Search Setup.................................44
Song By Voice™ (SBV) ............................45
Phonetic Modification .............................46
Routing & Guidance................................48
Rerouting................................................49
Unverified Area Routing ..........................50
Edit Avoid Area .......................................52
Edit Waypoint Search Area ......................54
Clock Adjustment....................................55
Adjust Time ............................................56
Resetting the Clock Settings ....................56Vehicle..................................................... 57
Off-road Tracking ................................... 58
Correct Vehicle Position ......................... 59
Data Reset............................................... 60
Reset Factory Default Settings ................ 60
Clear Personal Data ................................ 61
