Acura Integra 2000 Sedan Workshop Manual

Additiona
l Informatio n Abou t You r SR S

Additiona l Safet y Precaution sDo not attempt to deactivate your
airbags. Together, airbags and
seat belts provide the best
protection in a moderate to severe
frontal collision.
Do not tamper with SRS
components or wiring for any
reason. Tampering could cause
the airbags to deploy, possibly causing very serious injury.
See page 125 for further information
and precautions relating to your SRS.

Driver an d Passenge r Safet y

Carbo
n Monoxid e Hazar d

Your car's exhaust contains carbon monoxide gas. You should have no
problem with carbon monoxide
entering the car in normal driving if
you maintain your car properly.
Have the exhaust system inspected
for leaks whenever: The car is raised for an oil change.
You notice a change in the sound
of the exhaust.
The car was in an accident that
may have damaged the underside.


High levels of carbon monoxide can
collect rapidly in enclosed areas, such a
s a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the trunk lid open, air flow can
pull exhaust gas into your car's
interior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows
and set the climate control system as
shown below.
If you must sit in your parked car,
even in an unconfined area, with the
engine running, adjust the heating
and cooling system as follows: 1. Select the Fresh Air mode. 2. Select the mode.
3. Turn the fan on high speed.
4. Set the temperature control to a comfortable setting.

Drive r an d Passenge r Safet y

Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.

Safet
y Label s

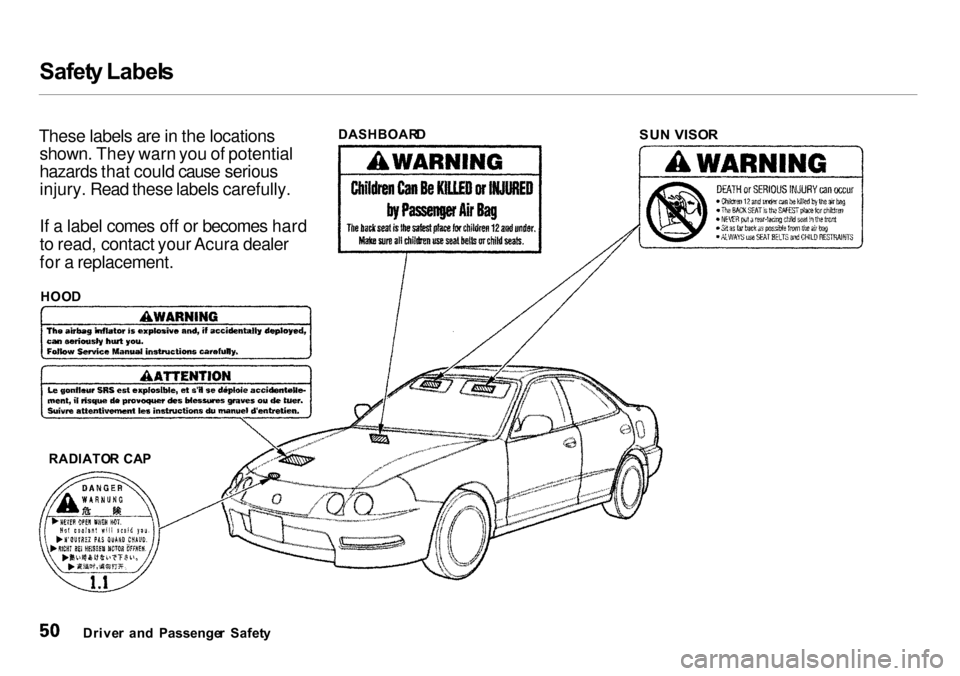

These labels are in the locations shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Acura dealer
for a replacement.
Driver an d Passenge r Safet y DASHBOAR
D

SUN VISO R

HOO D
RADIATO R CA P

Instrument
s an d Control s
This section gives information about the controls and displays that
contribute to the daily operation of

your Acura. All the essential controls
are within easy reach.
Control Locations............................ 52

Indicator Lights................................ 53

Gauges.............................................. 57

Speedometer................................ 57

Tachometer.................................. 57
Odometer...................................... 57

Trip Meter.................................... 57

Fuel Gauge................................... 58

Temperature Gauge....................
58

Maintenance Require
d

Indicator.................................... 59

Controls Near the Steering
Wheel........................................ 60

Headlights.................................... 61
Instrument Panel Brightness.....

62

Turn S
ignals.................................

62

Windshield Wipers.

..................... 63

Windshield Washers..................
. 63

Hazard Warning...........................
64

Rear Windo
w Defogger.............. 64

Steering Wheel Adjustment....... 65

Steering Wheel Controls................ 66
Cruise Control.............................. 66
Keys and Locks................................ 69
Keys............................................... 69

Immobilizer System..................... 69
Ignition Switch............................. 70

Power Door Locks....................... 72
Childproof Door Locks............... 73

Trunk............................................ 73

Glove Box..................................... 75

Seat Adjustments............................. 75
Driver's Seat Height
Adjustment............................... 76

Driver's Lumbar Support............ 76

Head Restraints........................... 77

Folding Rear Seat............................ 77

Power Windows............................... 79

Moonroof.......................................... 80

Mirrors.............................................. 81
Adjusting the Power Mirrors..... 81

Parking Brake.................................. 82

Digital Clock..................................... 83

Beverage Holder.............................. 84 Console Compartment.................... 85
Cigarette Lighter............................. 85
Ashtrays............................................ 86
Interior Lights.................................. 87
Instrument s an d Control s

Contro
l Location s

Instrument s an d Control s
HOO
D RELEAS E
HANDL E

(P. 120 )

TRUN
K RELEAS E
HANDL E
(P. 73)
FUE
L FIL L

DOO R RELEAS E

(P. 119 )
POWE
R WINDO W
SWITCHE S
(P. 79)

AUDIO SYSTE M

(P. 98)

HEATING
/

COOLIN G
CONTROL S
(P. 90)
DIGITA
L CLOC K
(P. 83)
MIRRO
R
CONTROL S
(P. 81)

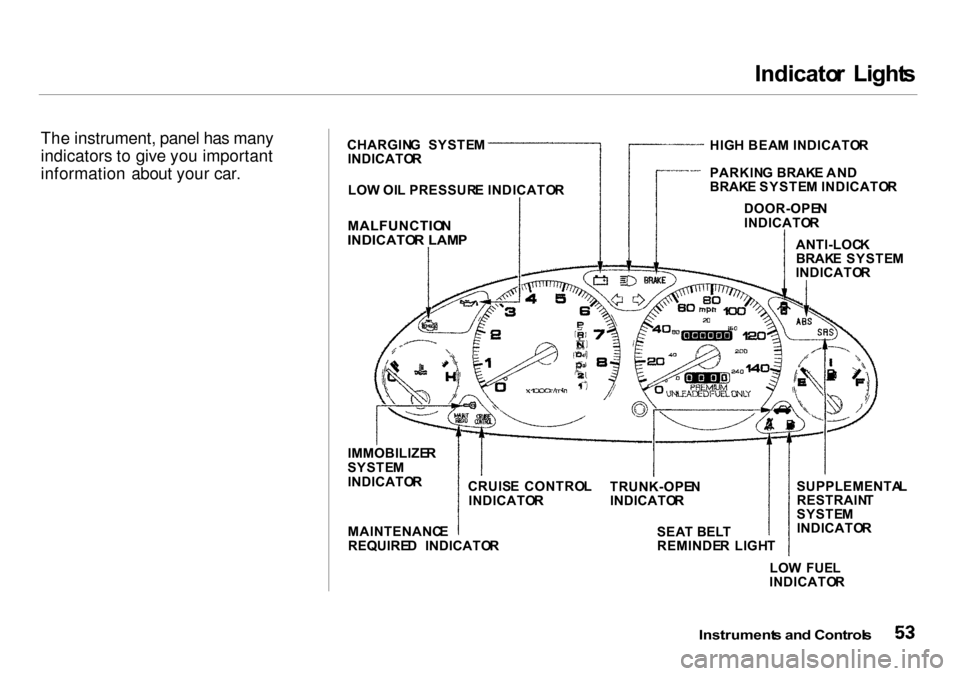

Indicato
r Light s
The instrument, panel has many
indicators to give you important
information about your car.

Instruments an d Control s

LO
W FUE L
INDICATO R
MAINTENANC
E
REQUIRE D INDICATO R
CRUIS
E CONTRO L
INDICATO R
IMMOBILIZE
R
SYSTE M
INDICATO R
TRUNK-OPEN
INDICATO R
SEA T BEL T
REMINDE R LIGH TSUPPLEMENTA
L
RESTRAIN T
SYSTE M
INDICATO R
HIG
H BEA M INDICATO R
CHARGIN
G SYSTE M
INDICATO R
LO W OI L PRESSUR E INDICATO R

MALFUNCTIO N
INDICATO R LAM P
PARKIN
G BRAK E AN D
BRAK E SYSTE M INDICATO R
DOOR-OPE N
INDICATO R
ANTI-LOC K
BRAK E SYSTE M
INDICATO R

Indicato
r Light s

Sea t Bel t Reminde r Ligh t
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by fastening the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not fasten your seat belt,
the beeper will stop after a few seconds but the light stays on until
you do. Both the light and the beeper
stay off if you fasten your seat belt
before turning on the ignition. Chargin
g Syste m
Indicato r
If this light comes on when the
engine is running, the battery is not
being charged. For complete
information, see page 232 .
Low Oi l Pressur e
Indicato r
The engine can be severely damaged
if this light flashes or stays on when the engine is running. For complete

information, see page 231.
Parkin
g Brak e an d
Brak e Syste m Indicato r
This light has two functions:
1. It lights as a reminder that you have not released the parking
brake. Driving with the parking
brake applied can damage thebrakes and tires, and cause the
Anti-lock brake system to turn off (see page 142).
2. If it remains lit after you release the parking brake while the engine
is running, or comes on while
driving, it can indicate a problem
in the brake system. For complete
information, see page 234.
Instrument s an d Control s
BRAK
E

Indicato
r Light s

Supplementa l Restrain t
Syste m Indicato r
This indicator lights when you turn
the ignition switch ON (II). If it comes on at any other time, it
indicates a problem in the supplemental restraint system. For
complete information, see page 45.
Anti-lock Brak e Syste m
(ABS ) Indicato r
This light normally comes on for a
few seconds when you turn the ignition switch ON (II), and when
the ignition switch is turned to START (III). If this light comes on at
any other time, there is a problem in the ABS. If this happens, take the
car to your dealer to have it checked.
With the light on, your car still has normal braking ability but no anti-
lock. For complete information, see

page 144.
Lo
w Fue l Indicato r
This light comes on as a reminder
that you must refuel soon. Immobilize r Syste m
Indicato r
This indicator comes on for a few
seconds when you turn the ignition
switch ON (II). It will then go off if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page 69 ).
This indicator also blinks several
times when you turn the ignition switch from ON (II) to ACCESSORY
(I) or LOCK (0).
Malfunctio
n Indicato r

Lam p

See page 233.

Trunk-ope n Indicato r

This light comes on if the trunk lid is
not closed tightly.
Door-ope n Indicato r
This light comes on if a door is not
closed tightly.

Instrument s an d Control s

S

R
S

A
B S

Indicato
r Light s
Tur n Signa l an d
Hazar d Warnin g
Indicator s
The left or right turn signal light blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one of the turn signal bulbs is burned out
(see page 203). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
When you turn on the Hazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should flash. Hig
h Bea m Indicato r
This light comes on with the high
beam headlights. See page 61 for
information on the headlight

controls.
Cruis
e Contro l Indicato r
This lights when you set the cruise
control. See page 66 for information
on operating the cruise control.
Instrument s an d Control s
CRUIS
E

CONTRO L

Gauge
s

Speedometer

This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h). Tachomete
r
The tachometer shows the engine
speed in revolutions per minute (rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone. Odomete
r
The odometer shows the total
number of miles your car has been
driven. It is illegal under U.S. federal
law to disconnect, reset, or alter the
odometer with the intent to change
the number of miles indicated.

Tri p Mete r

This meter shows the number of
miles driven since you last reset it.
To reset it, push the trip meter reset button.

Instrument s an d Control s

TRI
P METE R
RESE T BUTTO N

TRIP METE R
ODOMETE R
SPEEDOMETE
R

FUE
L GAUG E
TACHOMETE R
TEMPERATUR E
GAUG E
