ACURA INTEGRA 2023 Owners Manual

659
uuCleaning uExterior Care
Continued
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
• Do not spray water directly onto the ca mera or the area around it. Water may
enter the lens and cause th e camera to malfunction.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the fuel fill door directly. A
high-pressure spray ma y cause it to open.
Do not spray water onto the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position. 2 Changing the Wiper Blade P. 639
Air Intake Vents
23 ACURA INTEGRA-313S56000_03.book 659 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuCleaning uExterior Care
660
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
23 ACURA INTEGRA-313S56000_03.book 660 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

661
uuCleaning uExterior Care
Maintenance

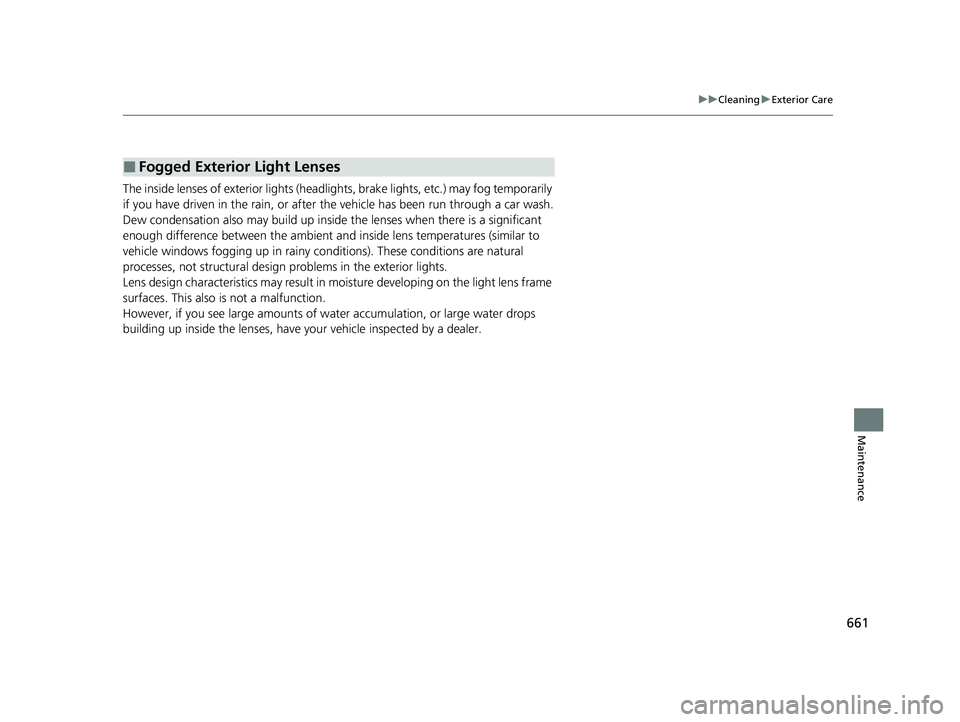

The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
23 ACURA INTEGRA-313S56000_03.book 661 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

662
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any access ories over areas marked SRS AIRBAG, on the sides or
backs of the front seats, on the sides of the rear seats, on front or side pillars, or
near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 705
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Acura Genuine accessori es are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.
23 ACURA INTEGRA-313S56000_03.book 662 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

663
uuAccessories and Modifications uModifications
Maintenance

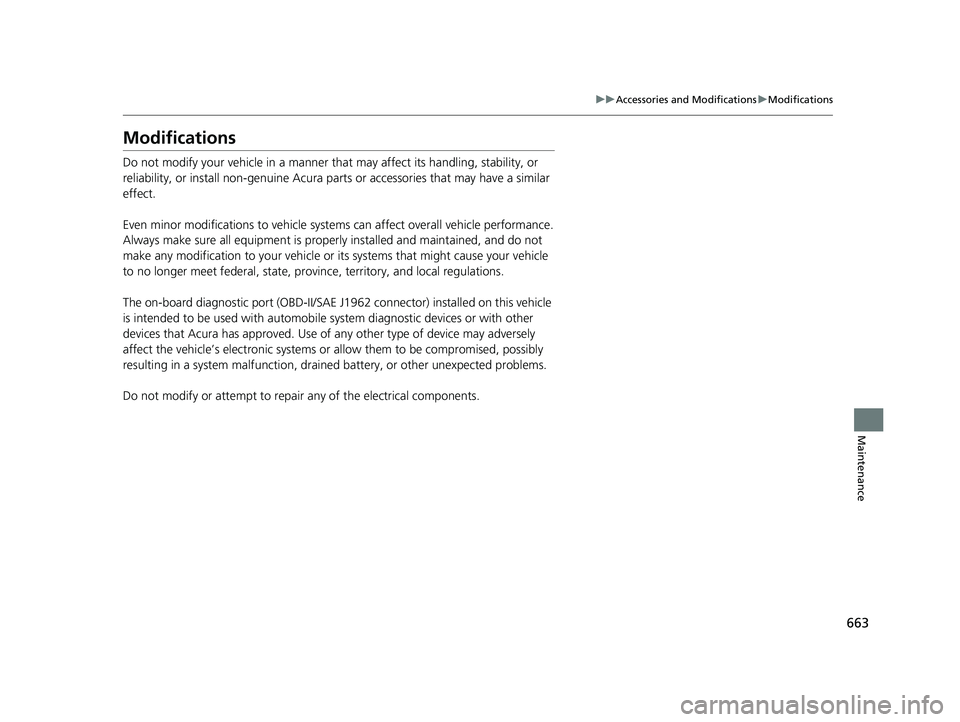

Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
23 ACURA INTEGRA-313S56000_03.book 663 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

664
23 ACURA INTEGRA-313S56000_03.book 664 ページ ２０２２年３月１８日　金曜日　午前１１時４７分This page intentionally left blank.

665
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 666
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 667
Changing a Flat Tire ......................... 682
Engine Does Not Start Checking the Engine ........................ 689
If the Keyless Remote Battery is Weak .. 691Emergency Engine Start ................... 692
Emergency Engine Stop ................... 693
If the Battery Is Dead
Jump Starting Procedure .................. 694
Shift Lever Does Not Move .............. 696Overheating
How to Handle Overheating............. 697
Indicator, Coming On/Blinking If the Engine oil pressure low Warning Appears ......................................... 699
If the Charging System Indicator Comes On ................................................. 700
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 700
If the Brake System Indicator (Red) Comes On or Blinks ................................... 701
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .. 703
If the Electric Power Steering (EPS) System Indicator Comes On......................... 702
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 704
Fuses
Fuse Locations ................................. 705
Inspecting and Changing Fuses ........ 709
Emergency Towing ........................... 711
If You Cannot Unlock the Fuel Fill Door.. 712If You Cannot Open the Hatch ........ 713
Refueling ........................................... 714
23 ACURA INTEGRA-313S56000_03.book 665 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

666
Handling the Unexpected

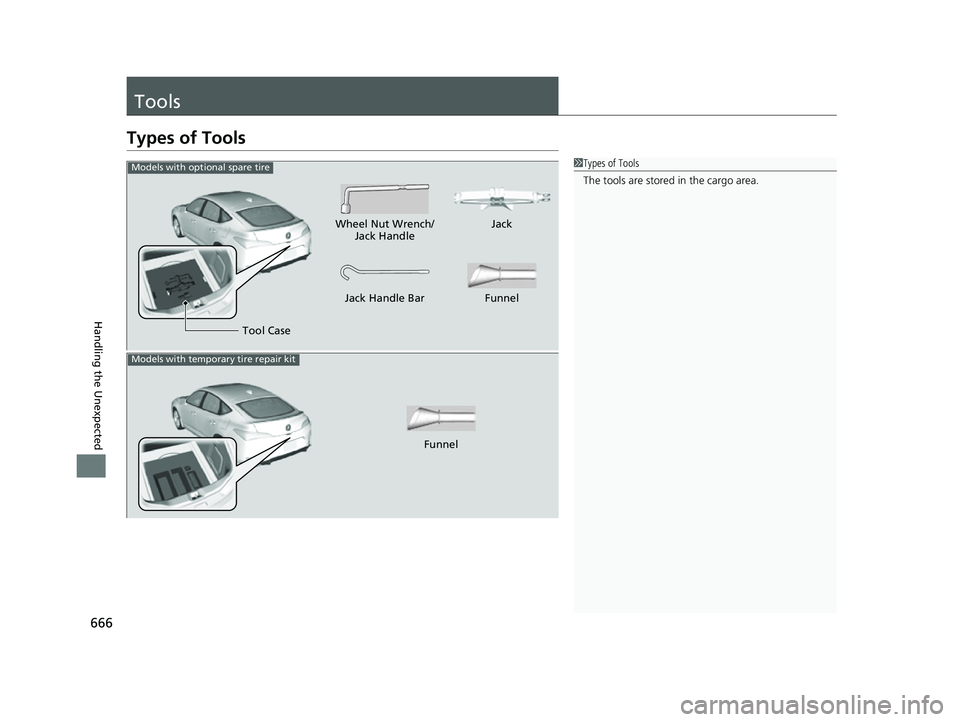

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle Bar
Tool Case Funnel
Models with optional spare tire
Funnel
Models with temporary tire repair kit
23 ACURA INTEGRA-313S56000_03.book 666 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

667Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Models with temporary tire repair kit
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4.8 mm).
•The tire side wall is damaged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
Contact Area
When the puncture is: Kit Use
Smaller than 3/16 inch (4.8 mm)Yes
Larger than 3/16 inch (4.8 mm) No
23 ACURA INTEGRA-313S56000_03.book 667 ページ ２０２２年３月１８日　金曜日　午前１１時４７分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
668
Handling the Unexpected
*1: U.S. models
*2: Canadian models

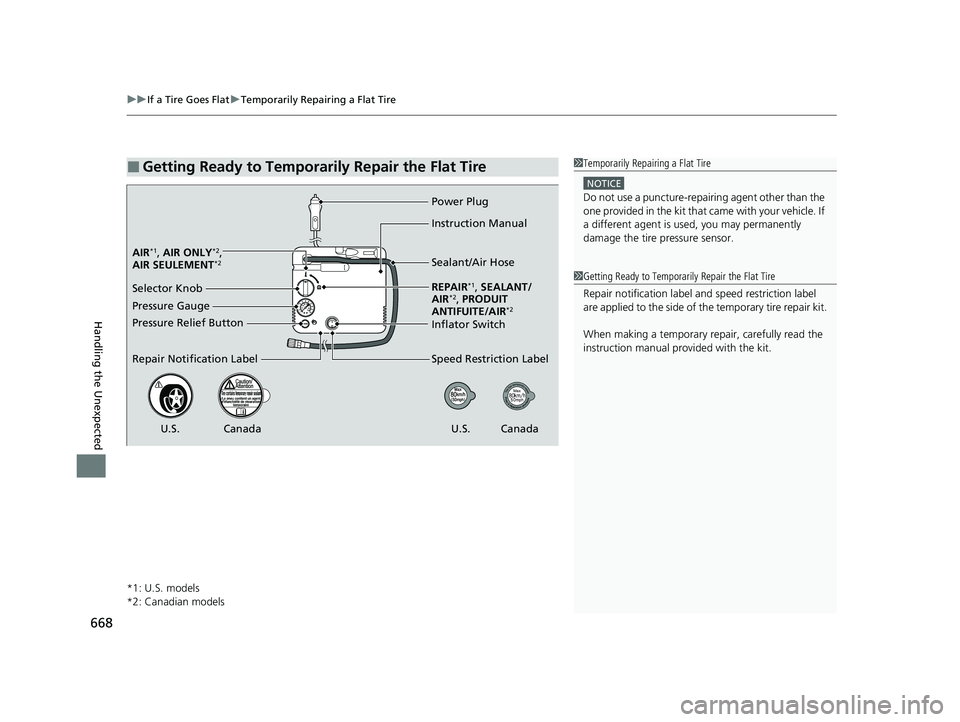

■Getting Ready to Temporarily Repair the Flat Tire1Temporarily Repairing a Flat Tire
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
1 Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of th e temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Pressure Gauge AIR
*1, AIR ONLY*2,
AIR SEULEMENT*2
Power Plug
Pressure Relief Button
Repair Notification Label Instruction Manual
Sealant/Air Hose
REPAIR
*1, SEALANT/
AIR*2, PRODUIT
ANTIFUITE/AIR*2
Inflator Switch
Speed Restriction Label
Selector Knob
U.S. Canada U.S. Canada
23 ACURA INTEGRA-313S56000_03.book 668 ページ ２０２２年３月１８日　金曜日　午前１１時４７分
