cruise control ACURA INTEGRA 2024 Owners Manual

7
Quick Reference Guide❚ Headlights/ Turn Signals
(P183, 184)
❚ Fog Lights* (P187)
❚Paddle Shifter (Shift down)* (P446)
❚Left Selector Wheel (P238)
❚ Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P512)
❚ Lane Keeping Assist System (LKAS)
Button
(P556)
❚ Interval Button (P525)
❚Steering Wheel Adjustments (P196)
❚ Heated Steering Wheel (P223)
$BOBEJBO
NPEFMT
❚Right Selector Wheel (P118)
❚Bluetooth ® HandsFreeLink ® System
Buttons* (P405)
❚Horn (Press an area around .)
❚ Adaptive Cruise Control (ACC) Buttons*
(P533)
❚Paddle Shifter (Shift up)* (P446)
❚ Wipers/ Washers (P191)
❚Audio Remote Controls (P238)
❚ Voice Control Buttons* (P288)
* Not available on all models
24 ACURA INTEGRA-313S56100.book 7 ページ ２０２３年２月１３日　月曜日　午後２時４１分

27
Quick Reference Guide
AcuraWatchTM (P486)
AcuraWatch
TM is a driver support system
which employs the use of two distinctly
different kinds of sens ors: the sonar sensors
located in the front and rear bumpers and
the front grille, and a front wide view
camera mounted to the interior side of the
windshield behind the rearview mirror.
AcuraWatch
TM is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windshield behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Front Wide View
Camera
Sonar Sensors
*
Collision Mitigation
Braking System
TM
(CMBS
TM) (P489)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Low Speed Braking
Control
* (P501)
Using sonar sensors located on the front and
rear bumpers and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving or when the
accelerator pedal is depressed with too
much force. The system then assists in
avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
Continuously variable transmission models
with parking sensor system
Low Speed Braking
Control
* (P507)
Using sonar sensors located on the front and
rear bumpers and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving. The system
then assists in avoiding collisions and
reducing damage from impact through
assistive braking.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* (P512)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Manual transmission models
* Not available on all models
24 ACURA INTEGRA-313S56100.book 27 ページ ２０２３年２月１３日　月曜日　午後２時４１分

28
Quick Reference Guide
Adaptive Cruise Control
(ACC)
* (P533)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Lane Keeping Assist
System (LKAS)
(P553)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist* (P565)
The Traffic Jam Assist system uses a front
wide view camera mounted to the upper
portion of the windshield to detect and
monitor left and right white (or yellow)
traffic lane lines.
Based on inputs from the front wide view
camera, the system can apply steering
torque to keep your vehicle in the center of
the detected lane.
Road Departure
Mitigation System
(P 574)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P583)
Reminds you of road sign information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge and the head-up display
*.
24 ACURA INTEGRA-313S56100.book 28 ページ ２０２３年２月１３日　月曜日　午後２時４１分

87
uuIndicators u
Continued
Instrument Panel
*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine
has started. If an indicator does not come on or turn off, th ere may be a malfunction in the corresponding system. To resolve t he issue, follow the instructions in the
owner's manual.
Auto High-Beam
Indicator
Low Tire Pressure/
TPMS Indicator
Turn Signal and
Hazard Warning
Indicators
Lights On
Indicator High Beam
Indicator
Fog Light
Indicator*
System Message
Indicator Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
Safety Support
Indicator (Green/Gray)

P. 95
Auto Id
le Stop System
Indicator
(Amber)* P. 99
 P. 96
 P. 96 
P. 101
*1
 P. 96
 P. 96

P. 96 Immobilizer System
Indicator

P. 98
S

ecur
ity System Alarm
Indicator 
P. 98
 P. 97 
P. 102
 P. 106
*1
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Indicator
(White/Green) P. 101
*1
Lane Keeping Assist
System (LKAS) Indicator
(White/Green) 
P. 102
*1 *1Safety Support
Indicator (Amber)
P. 103
*1
NORMAL Mode
Indicator* P. 97
Auto Idle Stop OFF
Indicator* P. 99
Auto Idle Stop
Suspend Indicato
r* P. 100
SPORT
Mode Indicator 
P. 97
Cruise Mode Indicator
(White/Green) 
P. 102
Adaptive Cruise Control
(ACC) with Low Speed
Follow
* Interval
Indicator 
P. 102
Auto Idle Stop
Indicator (Green)* P. 99COMFORT Mode
Indicator 
P. 97 INDIVI DUAL
Mode
Indicator
* P. 97
SPORT+
Mode
Indicator
* P. 97
* Not available on all models
24 ACURA INTEGRA-313S56100.book 87 ページ ２０２３年２月１３日　月曜日　午後２時４１分

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow*.
●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow* is deactivated temporarily after the
battery has been disconnected, then re-
connected.
●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow* has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 429●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Indicator
(White/Green)
●Lights up in white wh en you press the
button.
●Lights up in green when you press the RES/+/
SET/− switch up or down.
2Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
* Not available on all models
24 ACURA INTEGRA-313S56100.book 101 ページ ２０２３年２月１３日　月曜日　午後２時４１分

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 429●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 553
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 530
2 To Switch ACC to Cruise Control P. 550
Adaptive Cruise
Control (ACC) with
Low Speed Follow
*
Interval Indicator
●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow* indicator
comes on.2 To Set or Change Following-interval
P. 525, 545
* Not available on all models
24 ACURA INTEGRA-313S56100.book 102 ページ ２０２３年２月１３日　月曜日　午後２時４１分

uuGauges and Displays uGauges
110
Instrument Panel
Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam
Assist*.
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
2 Lane Keeping Assist System (LKAS) P. 553
2 Traffic Jam Assist
* P. 565
■Current Mode for ACC with Low Speed Follow*, the LKAS,
and Traffic Jam Assist*
1 Current Mode for ACC with Low Speed Follow*, the LKAS, and
Traffic Jam Assist*
When you set speed for A CC with Low Speed Follow*
or cruise control, a set sp eed mark will be displayed
on the speedometer.
Set
Speed
* Not available on all models
24 ACURA INTEGRA-313S56100.book 110 ページ ２０２３年２月１３日　月曜日　午後２時４１分

143
uuGauges and Displays uHead-Up Display*
Continued
Instrument Panel

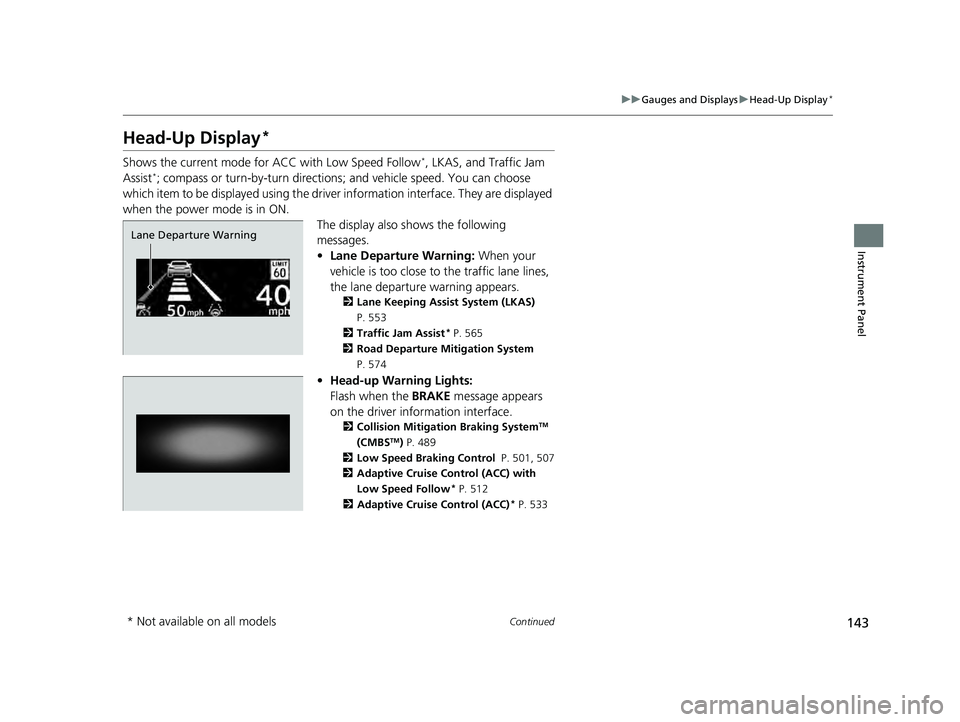

Head-Up Display*
Shows the current mode for ACC with Low Speed Follow*, LKAS, and Traffic Jam
Assist*; compass or turn-by-turn directions; and vehicle speed. You can choose
which item to be displayed using the driver information interface. They are displayed
when the power mode is in ON. The display also shows the following
messages.
•Lane Departure Warning: When your
vehicle is too close to the traffic lane lines,
the lane departure warning appears.
2 Lane Keeping Assist System (LKAS)
P. 553
2 Traffic Jam Assist
* P. 565
2 Road Departure Mitigation System
P. 574
• Head-up Warning Lights:
Flash when the BRAKE message appears
on the driver information interface.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 489
2 Low Speed Braking Control P. 501, 507
2 Adaptive Cruise Control (ACC) with
Low Speed Follow
* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
Lane Departure Warning
* Not available on all models
24 ACURA INTEGRA-313S56100.book 143 ページ ２０２３年２月１３日　月曜日　午後２時４１分

147
uuGauges and Displays uHead-Up Display*
Instrument Panel
Shows your driving speed in mph or km/h.
Shows the current mode for ACC with Low Speed Follow
I, LKAS, and Traffic Jam
AssistIM
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
2 Lane Keeping Assist System (LKAS) P. 553
2 Traffic Jam Assist
* P. 565
■Compass
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the Android Auto or Apple CarPlay, turn-by-
turn directions to your destination appear.
2 Android AutoTM P. 333
2 Apple CarPlay P. 326
■Speedometer
■Current Mode for ACC with Low Speed Follow*, LKAS, and
Traffic Jam Assist*
■Navigation
1 Speedometer
Switch between mph and km/h by using the driver
information interface or the customized features on
the audio/information screen.
2 Speed/Distance Units P. 131
2 Customized Features P. 367
1Navigation
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 367
Turn-by-turn directions may not be available for all
apps.
* Not available on all models
24 ACURA INTEGRA-313S56100.book 147 ページ ２０２３年２月１３日　月曜日　午後２時４１分

376
uuCustomized Features u
Features
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceChanges the distance at which Collision Mitigation Braking System
(CMBS) alerts.
2Collision Mitigation Braking SystemTM (CMBSTM) P. 489
Long/ Normal*1/Short
Head-up WarningToggles warning light for head-up flash alert. ON*1/OFF
ACC Forward Vehicle Detect
Beep
Toggles audible notification when vehicle has moved in/out of
Adaptive Cruise Control with Low Speed Follow* range.
2 Adaptive Cruise Control (ACC) with Low Speed Follow* P. 512
2 Adaptive Cruise Control (ACC)* P. 533
ON /OFF*1
Road Departure Mitigation
Setting Selects operating mode of the Ro
ad Departure Mitigation system.
2Road Departure Mitigation System P. 574
Narrow/Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepToggles the LKAS alert for not detecting road lines.
2 Lane Keeping Assist System (LKAS) P. 553ON /OFF*1
Blind Spot Info Toggles the blind spot inform
ation system audible alert.2Blind Spot Information System P. 482
Audible And Visual Alert*1/
Visual Alert
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognit ion system on instrument panel.
2Traffic Sign Recognition System P. 583Display*1/None
* Not available on all models
24 ACURA INTEGRA-313S56100.book 376 ページ ２０２３年２月１３日　月曜日　午後２時４１分
