Acura MDX 2004 Owner's Manual

This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
The vehicle has two A/C and
heater units. These units are
controled by the f ront panel controls,
unless the RR A/C button is turned
on. The rear passengers can also
adjust the direction, and temperature
and amount of the airf low. Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
To remove f og f rom the inside of the
windows:
Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature to your
pref erence.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f .Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Adjust the temperature so the
airf low f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
1.
2.
3.
4.
1.
2.
3.
4.
5.
If the interior is very warm,
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Dehumidif y the Interior
T o Def og and Def rost
107
NOTE:

The Automatic Climate Control
system can adjust the f an speed and
airflow levels to maintain the interior
temperature you select.Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see FULL AUTO in the
system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. In FULL AUTO
the rear A/C control panel cannot be
used. In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled.
Manually selecting a f unction causes
thewordFULLinthedisplaytogo
out.
Press the OFF button. However, a
lack of air f low can cause the
windows to fog up. It is
recommended that you keep the f an
on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
If you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select Fresh Air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. 1.
2.
1.
2.
3.
Comf ort and Convenience Feat ures
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Manual Operation
To Turn Everything Of f
Using A utomatic Climate Control
108

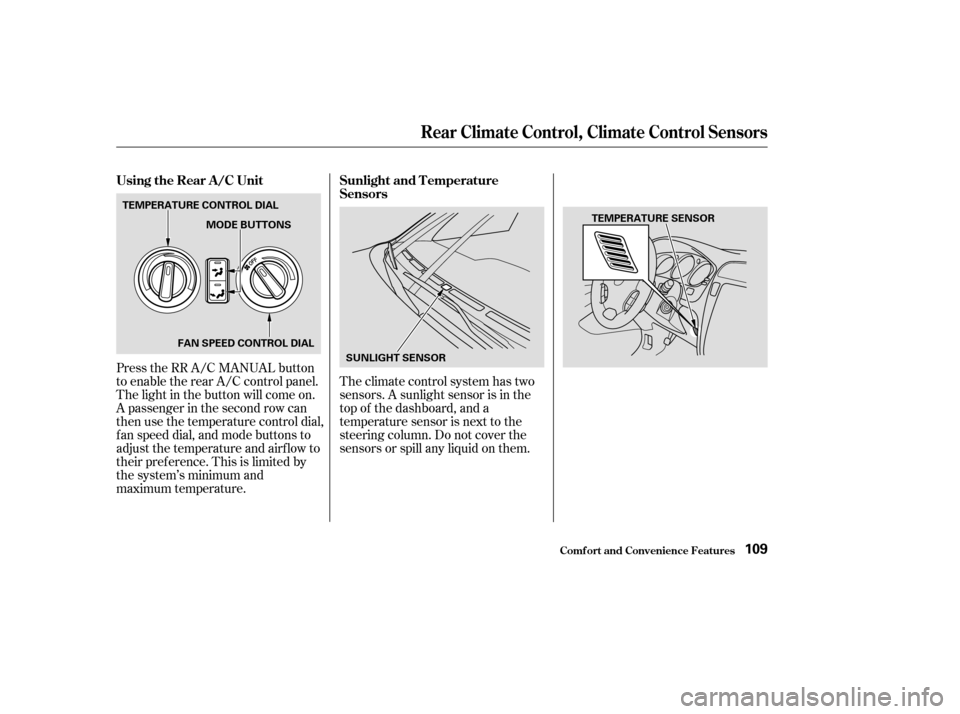

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The light in the button will come on.
A passenger in the second row can
then use the temperature control dial,
f an speed dial, and mode buttons to
adjust the temperature and airflow to
their pref erence. This is limited by
the system’s minimum and
maximum temperature.
Comf ort and Convenience Feat ures
Rear Climate Control, Climate Control Sensors
Sunlight and T emperature
Sensors
Using the Rear A /C Unit
109
SUNLIGHT SENSOR TEMPERATURE SENSOR
TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN SPEED CONTROL DIAL

Playing the Radio
Comf ort and Convenience Feat ures110
SCAN BUTTON PRESET BUTTONS
PWR/VOL
KNOB
PWR/VOL
KNOBPRESET BUTTONS TUNE KNOB
TUNE KNOB
SEEK BUTTONS
PWR/VOL KNOB
SCAN BUTTONSCAN
INDICATOR
STEREO INDICATOR
AM/FM
BUTTON SEEK BAR
AM
BUTTON
STEREO
INDICATOR
FM
BUTTON
(Touring Package)
(Premium Package) (Touring Package with RES)
AM
BUTTON FM
BUTTONSEEK BUTTONS
SCAN
BUTTON PRESET BUTTONS
TUNE KNOB

µµ
´µ
µ µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last turned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again. Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and . 1.
2.
3.
4.
CONT INUED
To Play the Radio
TUNESEEK
SCAN
Preset
To Select a Station TUNE,SEEK,SCAN, AUTO SELECT
Playing the Radio
Comf ort and Convenience Feat ures111

µµµ
µ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the Auto Select f eature
to find stations in the local area.
Press the A. SEL Button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset buttons as
described previously. press the
A. SEL button. This restores the
presets you originally set.
Adjust the Balance, or side-
to-side strength of the sound.
Adjust the Fader, or the
f ront-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the sound.
Push the control knob to get it to pop
out. Turn the appropriate knob to
adjust the Bass or Treble level. Pull
the knob out f arther to adjust the
FaderorBalance.Pushtheknob
back in when you are f inished. Press the TUNE knob repeatedly to
display Bass (BAS). Treble (TRE),
Balance (BAL), and Fader (FAD),
setting. Turn the TUNE knob to
adjust the setting. The indicators on
the display will show you the
adjustable range. The system will
return to the audio display in about 5
seconds.To turn of f Auto Select,
Without Touring Package With Touring Package
Playing the Radio
Comf ort and Convenience Feat ures
AUTO SELECT
Adjusting the Sound
BAL
FAD
TRE
BAS
112

You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
Your Acura’s radio can receive the
complete AM and FM bands.
Those bands cover these f requen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned f requencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned f requencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
How well your Acura’s radio receives
stations is dependent on many
f actors, such as the distance f rom
the station’s transmitter, nearby
large objects, and atmospheric
conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator willgo of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
74
CONT INUED
Comf ort and Convenience Feat ures
A udio System L ighting
Radio Frequencies
Radio Reception
Radio Reception
113

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Comf ort and Convenience Feat ures
Radio Reception
114

Playing a CD
Comf ort and Convenience Feat ures115
CD SLOTCD BUTTON
PWR/VOL KNOB
CD EJECT BUTTON
SKIP BUTTONS
SKIP BAR
CD LOAD BUTTON
RANDOM
BUTTON
REPEAT BUTTON
CD BUTTON
PWR/VOL
KNOB (Touring Package with RES) CD SLOT CD EJECT BUTTON
RANDOM BUTTON
REPEAT
BUTTON
PWR/VOL
KNOB CD SLOT SKIP BUTTONS
(Premium Package) (Touring Package)
REPEAT BUTTON RANDOM BUTTON
CD BUTTON
CD
EJECT
BUTTON

µ´
µ
´µ µ
µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
Press the eject button to remove the
CD. If you eject the CD, but do not
remove it from the slot, the system
will automatically reload the CD
af ter 15 seconds and put it in pause
mode. To begin playing, press the
CD button.
Press the AM or FM button (AM/
FMbuttononthemodelwithRear
Entertainment System) to switch to
the radio while a CD is playing.Insert a tape in the player to switch
to the tape while a CD is playing. If a
tape is in the player, press the TAPE
button. Press the CD button again to
switch back to CD player.
An optional six disc CD changer is
available for your vehicle from your
Acura dealer.
This disc changer uses the same
controls used f or the in-dash CD
player or the radio.
Load the CDs in the magazine and
load the magazine in the changer
according to the instructions that
came with the unit.
You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
Each time you press and
release the skip button the player
skips forward to the beginning of the
next track. Press and release the
skipbuttontoskipbackwardtothe
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe or skipbutton. To continuously replay
a track, press and release the RPT
button. You will see RPT/REPEAT
in the display. Press the RPT button
again to turn it off.
This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. Press the RDM button
again to return to normal play. If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
Comf ort and Convenience Feat ures
To Play a CD
To Stop Playing a CDOperating the Optional CD
Changer
SK IP REPEAT
RANDOM
Playing a CD, CD Changer
116
