Acura MDX 2017 Navigation Manual

320
Surround View Camera*Checking for Obstacles at the Rear of the Vehicle
Other Features
Checking for Obstacles at the Rear of the Vehicle
Display the rear view screen to check for any obstacles at the rear of the vehicle when
backing up the vehicle into a garage or the like.
Switch between the rear view and ground view and rear view and mirror view
accordingly.
■Description and operation of the screens
Change the gear position to .
Display the rear ground view screen.
1 Checking for Obstacles at the Rear of the Vehicle
Each guide line display can be turned ON/OFF.
The four cameras provide the ground view on
the screen even when the door mirrors are
folded.
Note that the view area and blind spots change
when the door mirrors are folded.
Display on the screen when
the mirrors are folded
Do not drive the vehicle with the
door mirrors folded.
The view displayed on the screen when
the door mirrors are folded is for
confirming the safety around the vehicle
during parking.
R
Rear view
The view image
from the rear camera.
View area of the
screen and distances
the reference lines
indicate.
Distance the projection lines
indicate. Rear and Ground View screen
Turn the steering
wheel more than
90 degrees
Press the CAMERA button to
change the screen to the rear
wide view and the rear
normal view screen. Ground view
An overhead view image of
the vehicle synthesized from
the images from the four
cameras.
When the steering wheel is
turned, the projection lines
that show the vehicle's
projected trajectory and tire
angles are displayed.
Blind spots appear in black.
Blind spots are to appear
black. The projection lines
are displayed 40cm outside
of the vehicle body.
1 m
3 m2 m
20 cm
Tailgate
3 m

321
Surround View Camera*Checking the Right and Left Sides of the Vehicle at Intersections with Poor Visibility
Other Features
Checking the Right and Left Sides of the Vehicle at
Intersections with Poor Visibility
Display the front blind view screen when conforming the right and left sides of the
vehicle at intersections with poor visibility.
■ Description and Operation of the Screens
To switch the screens, press the CAMERA button when the vehicle speed is below 12km/h.
Display the front blind view screen.
The view image from the
rear camera.
Tailgate Rear Normal View Rear Wide View
Press the CAMERA button to change the
screen to the rear ground view screen.
1 m 3 m
2 m1Checking for Obstacles at the Rear of the Vehicle
Each side view is not displayed when the door
mirrors are folded.
1 Checking the Right and Left Sides of the Vehicle at
Intersections with Poor Visibility
As the system uses a wide-angle view, the
displayed images on the screen will be largely
distorted and different fr om the actual distance.
The front blind view screen is switched in the
order shown in the figure on P.310.
Front blind view
The view image from the
front camera.
Front blind view screen
The view area of the screen is
180 degrees.

322
Surround View Camera*Checking for Obstacles in Front of the Vehicle
Other Features
Checking for Obstacles in Front of the Vehicle
Display the front view and ground view screen to check for any obstacles in front of
the vehicle when parking the vehi cle in a garage or the like.
■ Description and Operation of the Screens
To switch the screens, press the CAMERA button when the vehicle speed is below 12km/
h.
Display the front view and ground view screen.
1 Checking for Obstacles in Front of the Vehicle
Each guide line display can be turned ON/OFF.
The front view and ground view screen are
switched to in the order shown in the figure on
P.310.
The four cameras provide the ground view on
the screen even when the door mirrors are
folded.
Note that the view area and blind spots change
when the door mirrors are folded.
Display on the screen when
the mirrors are folded
Do not drive the vehicle with the
door mirrors folded.
The view displayed on the screen when
the door mirrors are folded is for
confirming the safety around the vehicle
during parking.
Front view
Motion that the projection
lines indicate. Front view and ground view screen
Ground view
An overhead view image of
the vehicle synthesized from
the images from the four
cameras.
When the steering wheel is
turned, the projection lines
that show the vehicle's
projected trajectory and tire
angles are displayed.
Blind spots appear in black.
The view image from the front
camera.
View area of the screen and
distances the reference lines
indicate.
Turn the
steering wheel
1 m

323

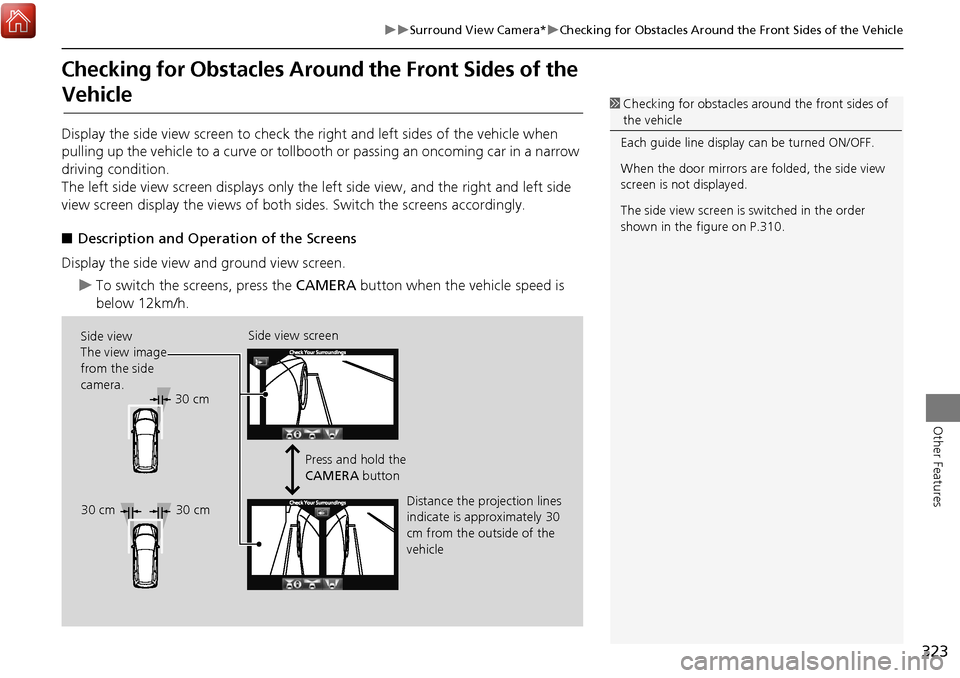

Surround View Camera*Checking for Obstacles Around the Front Sides of the Vehicle
Other Features
Checking for Obstacles Around the Front Sides of the
Vehicle
Display the side view screen to check the right and left sides of the vehicle when
pulling up the vehicle to a curve or tollbooth or passing an oncoming car in a narrow
driving condition.
The left side view screen displays only the left side view, and the right and left side
view screen display the views of both sides. Switch the screens accordingly.
■ Description and Operation of the Screens
Display the side view and ground view screen.
To switch the screens, press the CAMERA button when the vehicle speed is
below 12km/h.
1 Checking for obstacles around the front sides of
the vehicle
Each guide line display can be turned ON/OFF.
When the door mirrors are folded, the side view
screen is not displayed.
The side view screen is switched in the order
shown in the figure on P.310.
Side view
The view image
from the side
camera. Side view screen
Press and hold the
CAMERA button
Distance the projection lines
indicate is approximately 30
cm from the outside of the
vehicle
30 cm
30 cm 30 cm

324
Surround View Camera*Customized Surround View Camera System
Other Features
Customized Surround View Camera System
HCAMERA button  SETTINGS button  Camera Settings
Set the camera screen settings.
The following item s are available:
•Fixed Guideline: Sets whether to turn the display of the reference lines on or not.
On: Displays the reference lines.
Off : Disables the feature.
• Dynamic Guideline : Sets whether to turn the displa y of the projection lines on or
not.
On : Displays the projection lines.
Off : Disables the feature.
• Automatically show camera after reverse : Sets whether to automatically
switch between the cameras to use when the gear position is changed out of
to move the vehicle forward.
On
Off
• Default camera mode in forward : Sets which screen to display when the multi-
view camera system is turned on while the vehicle is moving forward.
Front ground view
Last Used
Front blind view
Side view
R

325
Surround View Camera*Customized Surround View Camera System
Other Features
•Default camera mode in reverse : Sets which screen to display when the multi-
view camera system is turned on while the vehicle is backing up.
Rear ground view
Last Used
Rear normal view
Rear wide view
• Show camera when decelerating : Sets whether to automatically return the
display to the camera view screen when the vehicle speed is reduced to lower
than 12km/h, after the display is switched from the camera view screen to audio/
information screen when the vehicle speed exceeds 15km/h while the Surround
View Camera System is on.
On
Off
• Clear parking guidance automatically: Sets whether to automatically turn the
display of the parking guide lines off or not.
On : Displays the parking guide lines.
Off : Disables the feature.
• Display : Adjust the screen’s preferences.

326
Other Features
Troubleshooting
Backing up using the parking guide lines
Vehicle positionCausesolutionReference page
Turns too big.Did you turn the steering wheel
before the initial positioning guide
enters the parking space? •Stop the vehicl e and turn the
steering wheel when the initial
positioning guide comes to the
center of parking space. 2 Backing Up
The Vehicle into
a Parking Space
Marked with
Parking Lines
P. 312
Did you turn the steering wheel
before the steering position
alignment guide enters the parking
space while backing up?• Stop the vehicl e and turn the
steering wheel when the steering
position alignment guide fits in
the parking space.
Did you fully turn the steering wheel while
backing up?• Fully turn the steering wheel when
steering.
Turns too short.Did you turn the steering wheel after
the initial positioning guide comes
outside of the parking space? •Stop the vehicl e and turn the
steering wheel when the initial
positioning guide comes to the
center of the parking space.
Did the steering position alignment
guide come off of the parking space
while backing up?• Stop the vehicl e and turn the
steering wheel when the steering
position alignment guide fits in
the parking space.
The projection line is off.-• The position is automatically corrected
after continuing to drive for a short
amount of time.

327
TroubleshootingParallel-parking using the parking guide lines
Other Features
Parallel-parking using the parking guide lines
Vehicle positionCausesolutionReference page
Too deep.Did the steering position alignment
guide come off of the curbside line
of the parking space while backing
up? •Stop the vehicle and turn the
steering wheel when the steering
position alignment guide
overlaps with the curbside line of
the parking space. 2 Parallel
Parking the
Vehicle into a
Parking Space
Marked with
Parking Lines.
P. 316
Did you fully turn the steering wheel while
backing up?• Fully turn the steering wheel when
steering.
Too shallow.Did you turn the steering wheel
before the steering position
alignment guide overlaps with the
curbside line of the parking space
while backing up?•Stop the vehicle and turn the
steering wheel when the steering
position alignment guide
overlaps with the curbside line of
the parking space.
Too close to the
vehicle in front.Did you turn the steering wheel
when the initial positioning guide is
outside of the parking space? • Stop the vehicle and turn the
steering wheel when the initial
positioning guide comes to the
corner of the parking space.
Too close to the
vehicle behind.Was the initial positioning guide
inside of the parking space?• Stop the vehicle and turn the
steering wheel when the initial
positioning guide comes to the
corner of the parking space.
Did you fully turn the steering wheel while
backing up?•Fully turn the steering wheel when
steering.
The projection line is
off.-•The position is automatically corrected
after continuing to drive for a short
amount of time.

328
TroubleshootingAbout camera view image
Other Features
About camera view image
ConditionCausesolutionRefer to:
Camera view
images are hard
to see.The images may not be displayed clearly when:
•At night, in rainy condition, and a dark location
• The camera lens has insects, moist, or debris stuck to
the camera lens.
• The camera lens is scratched.
• The temperature of the camera is high.
• Strong light such as the sun's light shines on the
camera.*
• When light shines on the camera in a dark location.
* When strong light shines on the camera, halation which fogs around the light source or smearing
which creates the streaks of the light may occur. • When the camera view image is not clearly
displayed due to weather conditions, etc,
visually confirm the safety using mirrors.-
Camera view
images are not
clear.If the camera lens is dirty, clear images are not
displayed.•When the camera lens is dirty, wipe off the
dirt, debris, and the like using water, mild
detergent, or glass cleaner.
• Never use any benzine, thinner, or polishing
powder such as cleanser. It will cause
damage to the lens.-
Camera position
is shifted.The camera body or its surrounding parts have been
subject to some severe impact or pressure.•Do not have any severe impacts or pressures
on the camera body or its surrounding
parts.
• In case of being subject to an impact, stop
using the camera and contact a dealer.-

329
Troubleshooting
Troubleshooting....................................330
Map, Voice, Entering Destinations .........330
Traffic ...................................................332
Guidance, Routing ................................333
Update, Coverage, Map Errors ..............334
Display, Accessories ..............................335
Miscellaneous Questions .......................335
Surround View Camera* .......................335
Error Messages ......................................336
Navigation System ................................336
CD Player ..............................................337
Hard Disc Drive (HDD) Audio .................338
iPod/USB Flash Drive .............................339
Aha
TM Radio ..........................................340 Surround View Camera* ...................... 340
