ACURA NSX 2020 Workshop Manual

49
uuAirbagsuFront Airbags (SRS)
Safe DrivingThe passenger’s airbag have advanced features to help reduce the likelihood of
airbag related injuries to a smaller occupant. The passenger’s advanced airbag system has
weight sensors.
We advise against allowi ng a child age 12 or
under to ride in the passenger’s seat. However, if you do allow a child age 12 or
under to ride in the passenger

50
uuAirbagsuDriver’s Knee Airbag
Safe Driving
Driver

51
uuAirbagsuDriver’s Knee Airbag
Safe Driving
■When driver

52
uuAirbagsuSide Airbags
Safe Driving
Side Airbags
The side airbags help protect the torso and pelvis of the driver or a passenger during
a moderate-to-severe side impact.The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.
Both are marked SIDE AIRBAG.
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.
■Housing Locations
1Side Airbags
Make sure you and your passenger always sit upright.
Leaning into the path of a side airbag can prevent the
airbag from deploying pr operly and increases your
risk of serious injury.
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
Do not cover or replace th e seat-back covers without
consulting an authorized Acura NSX dealer.
Improperly replacing or covering seat-back covers can
prevent your side airbag s from properly deploying
during a side impact.
Housing
Location
■Operation
When
inflated
Side Airbag
20 ACURA NSX PMC-31T6N6300.book 52 ページ ２０１９年９月１１日　水曜日　午後４時５１分

53
uuAirbagsuSide Airbags
Safe Driving
■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag. ■ When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag would not have been
needed nor provided protection even if it had deployed.
20 ACURA NSX PMC-31T6N6300.book 53 ページ ２０１９年９月１１日　水曜日　午後４時５１分

54
uuAirbagsuSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and any passengers
during a moderate-to-severe side impact. The side curtain airbags equipped in this
vehicle are also designed to help reduce the likelihood of partial and complete
ejection of vehicle occupants through side windows in crashes, particularly rollover
crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side impact.
■Housing Locations
1Side Curtain Airbags
If the SRS control unit senses that your vehicle is
about to rollover, it imme diately deploys both side
curtain airbags and activates both seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airb ag deploys even if there
is no occupant on that side of the vehicle.
To get the best protecti on from the side curtain
airbags, occupants should wear their seat belts
properly and sit upr ight and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
20 ACURA NSX PMC-31T6N6300.book 54 ページ ２０１９年９月１１日　水曜日　午後４時５１分

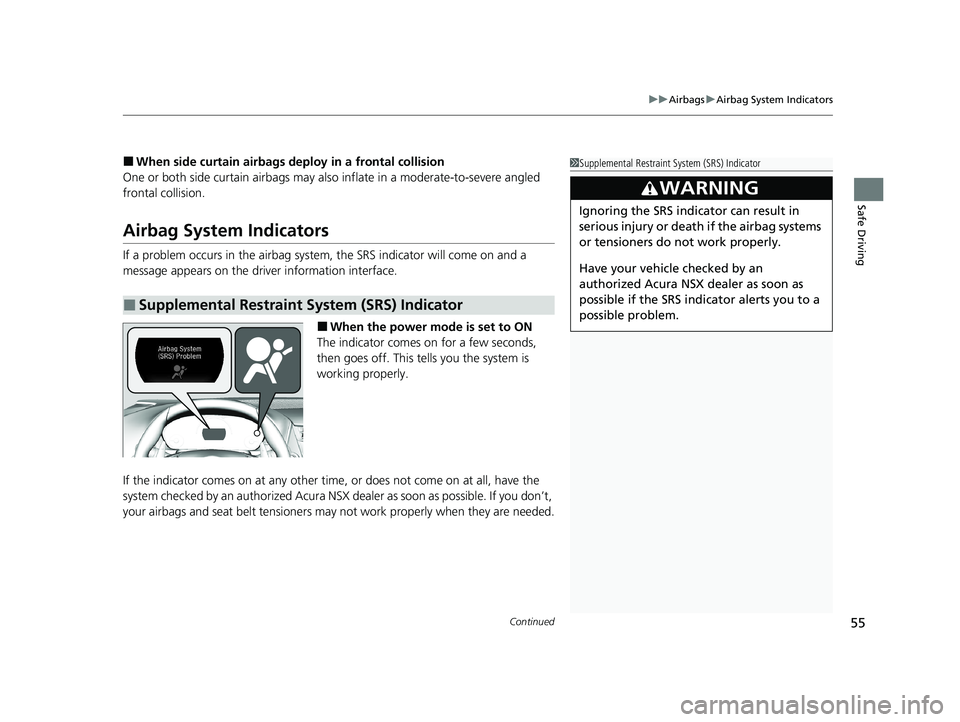

Continued55
uuAirbagsuAirbag System Indicators
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain ai rbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag system , the SRS indicator will come on and a
message appears on the driver information interface.
■When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time , or does not come on at all, have the
system checked by an authorized Acura NSX dealer as soon as possible. If you don’t,
your airbags and seat belt tensioners may not work properly when they are needed.
■Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint System (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly. Have your vehicle checked by an
authorized Acura NSX dealer as soon as
possible if the SRS indicator alerts you to a possible problem.
20 ACURA NSX PMC-31T6N6300.book 55 ページ ２０１９年９月１１日　水曜日　午後４時５１分

uuAirbagsuAirbag System Indicators
56
Safe Driving■ When the passenger front airbag off
indicator comes on
The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the weight sensors detect
about 65 lbs (29 kg) or less, the weight of an
infant or small child, on the seat.
Your vehicle is not recommended for child passengers. Never put a rear-facing child
seat in this vehicle.
If you decided to disregard our recommendations and transport a small child, they
should be properly restrained. 2 Child Safety P. 58
Objects placed on the seat can also cause the indicator to come on.
If the passenger’s seat is empty, the passenger’s front airbag will not deploy and the
indicator will not come on.
■Passenger Front Airbag Off Indicator1Passenger Front Airbag Off Indicator
If the indicator comes on with no passenger and no objects on the passenger’s se at, or with an adult
riding there, something may be interfering with the
weight sensor, such as: • An object hanging on the seat.
• An object pressing the rear of the seat-back.
• The seat or seat-back is forced back against cargo
on the rear trays or floor behind it.
• An object placed under the passenger’s seat.
If none of these conditions exist, have your vehicle
checked by an authorized Acura NSX dealer as soon
as possible.
The passenger front airbag off indicator may come on and go off repeatedly if the total weight on the
seat is near the airbag cutoff threshold.
U.S. Canada
20 ACURA NSX PMC-31T6N6300.book 56 ページ ２０１９年９月１１日　水曜日　午後４時５１分

57
uuAirbagsuAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by an authorized Acura NSX dealer in the following situations:
■ When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt te nsioner has been activated, it must be
replaced. ■ When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not in flate, have an authorized Acura NSX dealer inspect the
following: the weight sensors in the passenger’s seat, seat belt tensioners, and each
seat belt that was worn during the crash. ■ Do not remove or modify a seat without consulting an authorized Acura
NSX dealer
This would likely disable or affect the prope r operation of the weight sensors in the
passenger’s seat. If it is necessary to re move or modify a seat to accommodate a
person with disabilities, contac t an authorized Acura NSX dealer, or for U.S. vehicles,
Acura Client Relations at 1-844-682-2872 and for Canadian vehicles, Acura Client
Service at 1-888-9-ACURA-9 or 1-844-9-MYNSX-9 (NSX-specific).
1Airbag Care
We recommend against the use of salvaged airbag
system components, includi ng the airbag, tensioners,
sensors, and control unit.
20 ACURA NSX PMC-31T6N6300.book 57 ページ ２０１９年９月１１日　水曜日　午後４時５１分

58
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly res trained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.
To reduce the number of child deaths and in juries, every state, Canadian province
and territory requires that children be prope rly restrained when they ride in a vehicle.
Since this vehicle does not have a back seat, we recommend that you do not
carry a child, age 12 or under, as a passenger. This is because:
• An inflating front or side ai rbag can injure or kill a child sitting in the passenger’s
seat.
• A child in the passenger’s seat is more likel y to interfere with the driver’s ability to
safely control the vehicle.
• Statistics show that children of all sizes and ages are safer when they are properly
restrained in a rear seat. Because this vehicle does not have a rear seat, we
recommend that you do not carry a child age 12 or under in this vehicle.
1Protecting Child Passengers
The National Highway Traffic Safety Administration
and Transport Canada reco mmend that all children
ages 12 and under be properl y restrained in a rear
seat. Some states or provin ces/territories have laws
restricting where ch ildren may ride.
Never put a rear-facing child seat in this vehicle.
3WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be proper ly restrained with a
seat belt, using a booster seat if necessary.
