ACURA NSX 2022 Owners Manual

Continued309
uuBefore Driving uDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, sto pping distance, and tires, and make it unsafe.
2Maximum Load Limit P. 311
•Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the seat footwe lls. Make sure to secure the floor mat.
u An object or unsecured floor mat can in terfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close and lock both doors and the hatch.
2 Locking/Unlocking the Doors from the Inside P. 118
•Adjust your seating position properly.
2 Adjusting the Seats P. 146
•Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 144
2 Adjusting the Steering Wheel P. 143
■Interior Checks1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk ha ve the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
22 ACURA NSX PMC-31T6N6500.book 309 ページ ２０２１年９月２８日　火曜日　午後４時７分

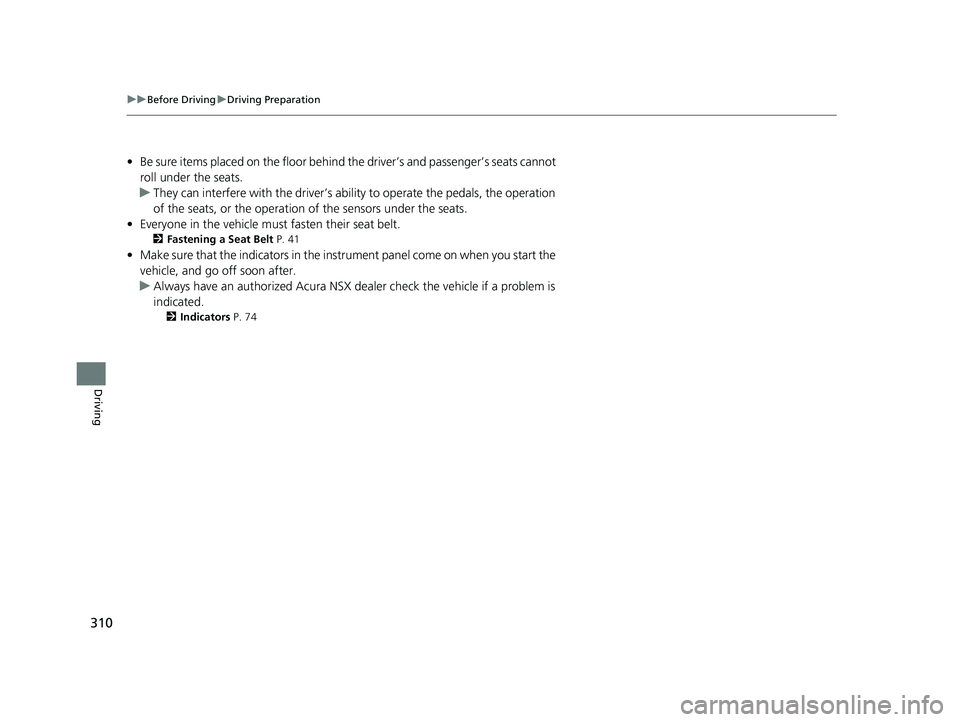

310
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the driver’s and passenger’s seats cannot
roll under the seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 41
•Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have an authorized Acura NSX d ealer check the vehicle if a problem is
indicated.
2 Indicators P. 74
22 ACURA NSX PMC-31T6N6500.book 310 ページ ２０２１年９月２８日　火曜日　午後４時７分

311
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your ve hicle is 507 lbs (230 kg).
The maximum load for the carg o area is 100 lbs (45 kg).
See the Tire and Loading Information label attached to the driver’s
doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1)Locate the statement “The combined weight of occupants and cargo
should never exceed XXX kg or XXX lbs.” on your vehicle’s placard.
(2)Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4)The resulting figure equals the available amount of cargo and
luggage load capacity. For exampl e, if the “XXX” amount equals
1,400 lbs. and there will be five 150 lb. passengers in your vehicle, the
amount of available cargo and luggage load capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)
1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 470
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 470
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
Label Example
22 ACURA NSX PMC-31T6N6500.book 311 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuBefore Driving uMaximum Load Limit
312
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a trailer.
2 Towing a Trailer P. 318
Load Limits Example
Example1 Max Load 507 lbs
(230 kg) Passenger Weight
150 lbs x 1 + 257 lbs = 407 lbs (68 kg x 1 + 117 kg = 185 kg) Maximum Cargo
Weight 100 lbs
(45 kg)
Example2 Max Load 507 lbs
(230 kg) Passenger Weight
150 lbs x 2 + 107 lbs = 407 lbs (68 kg x 2 + 49 kg = 185 kg) Maximum Cargo
Weight 100 lbs
(45 kg)
22 ACURA NSX PMC-31T6N6500.book 312 ページ ２０２１年９月２８日　火曜日　午後４時７分

313
uuBefore Driving uHigh-Performance Driving
Continued
Driving
High-Performance Driving
Your Acura NSX is designed, built and equipped with systems and features to
provide you with exceptional driving performa nce, including the ability to engage in
high-performance driving. Ho wever, due to the risks to both you and other road
users, including the risk of injury or death from a high-speed loss of control or crash,
if you engage in high-performance driving, Acura recommends you only do so
where conditions are controlled, such as at a track or other closed-course venue.
When driving on public roads you should always obey the posted speed limits and
other traffic laws, reduce speed as needed for traffic and environmental conditions,
and not engage in driving behaviors (includi ng, for instance, use of Launch Control)
that may create heightened risks for your self and any other road users who may be
present (even if you are unaware of them).
NSX TRACK mode, Launch Control and other systems are designed for increased
performance, both in terms of accelerati on and handling, up to near-performance-
limit conditions. They are most appropriat ely used on closed courses and they should
not be used on public roads. Use of these systems may delay the intervention of
vehicle safety systems designed to minimize the risk of a loss of traction or steering
control, and can cause the NSX to handle differently than you might expect or
would experience under normal driving conditions. Use of these systems will not
make up for a lack of appropriate driver experience and skill, and will not allow the
driver to overcome risks created by:
• A lack of proper vehicle maintenance
• Less than ideal road conditions and/or unfamiliarity with the driving environment
• Other traffic or road users
1High-Performance Driving
NOTICE
The NSX warranty does not cover any damage or
failure resulting from hi gh-performance driving,
racing, competitive driving of any sort whatsoever, or
use on a track or similar-type venue. See warranty
book for detailsM
2 TRACK Mode P. 338
2 Launch Control P. 339
22 ACURA NSX PMC-31T6N6500.book 313 ページ ２０２１年９月２８日　火曜日　午後４時７分

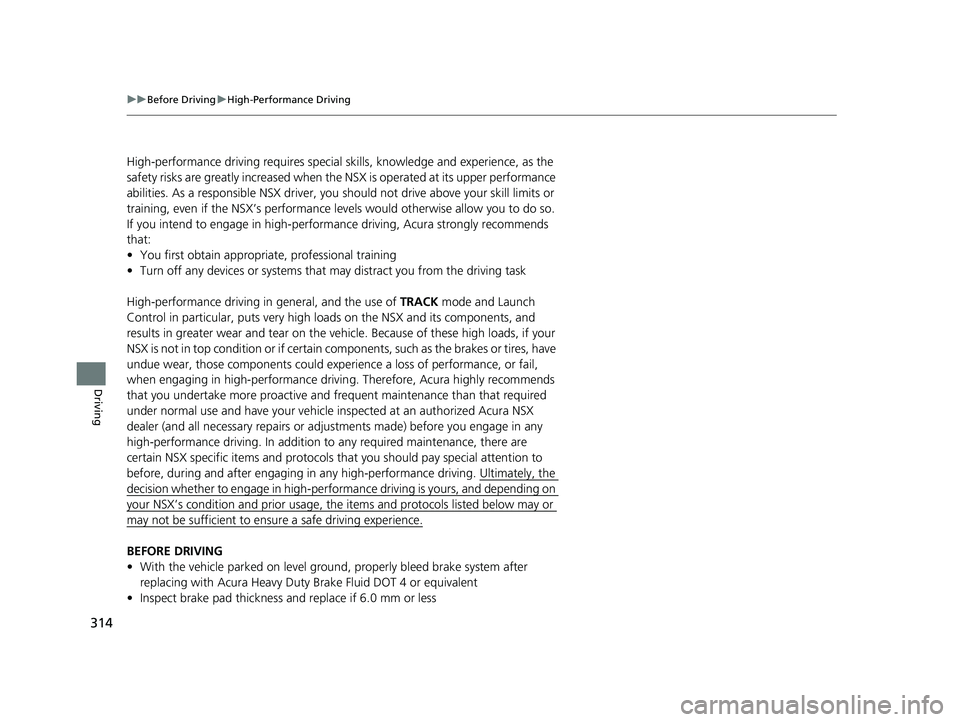

314
uuBefore Driving uHigh-Performance Driving
Driving
High-performance driving requires special skills, knowledge and experience, as the
safety risks are greatly increased when the NSX is operated at its upper performance
abilities. As a responsible NSX driver, you should not drive above your skill limits or
training, even if the NSX’s performance leve ls would otherwise allow you to do so.
If you intend to engage in high-performance driving, Acura strongly recommends
that:
• You first obtain appropriate, professional training
• Turn off any devices or systems that may distract you from the driving task
High-performance driving in general, and the use of TRACK mode and Launch
Control in particular, puts very high loads on the NSX and its components, and
results in greater wear and tear on the vehicl e. Because of these high loads, if your
NSX is not in top condition or if certain com ponents, such as the brakes or tires, have
undue wear, those components could experience a loss of performance, or fail,
when engaging in high-performance drivin g. Therefore, Acura highly recommends
that you undertake more proactive and frequent maintenance than that required
under normal use and have your vehicle inspected at an authorized Acura NSX
dealer (and all necessary repairs or adju stments made) before you engage in any
high-performance driving. In addition to any required maintenance, there are
certain NSX specific items and protocols that you should pay special attention to
before, during and after engaging in any high-performance driving. Ultimately, the
decision whether to engage in high-perfo rmance driving is yours, and depending on
your NSX’s condition and prior usage, the items and protocols listed below may or
may not be sufficient to ensure a safe driving experience.
BEFORE DRIVING
•With the vehicle parked on level gro und, properly bleed brake system after
replacing with Acura Heavy Duty Brake Fluid DOT 4 or equivalent
• Inspect brake pad thickness an d replace if 6.0 mm or less
22 ACURA NSX PMC-31T6N6500.book 314 ページ ２０２１年９月２８日　火曜日　午後４時７分

Continued315
uuBefore Driving uHigh-Performance Driving
Driving
• Burnish the brake pads shortly before high -performance driving so that they have
the performance characteristics necessary to repeatedly and quickly slow the NSX
when it is being operated at signific antly high speeds. (While the NSX’s brake
pads are properly burnished for the demands expected in ordinary day-to-day
driving, high-performance driving puts unique demands on the brake system
which require further burnishing.)
• Inspect ALL cooling openings to confirm th ey are open and free of debris such as
leaves, etc. Cooling openings include engine undercover ducts, heat resistance
ducts, brake ducts, radi ators, and intercoolers
• Remove Tire Repair Kit from the trunk, along with any other cargo area contents
• Check tire wear and tire pressure, and m ake certain wheel lug bolts are properly
torqued, as driving at high speed puts additional strain on tires and wheels. Never
use slick tires, and do not use Summer Only tires if temperatures will be lower
than 45°F (7°C)
• If you anticipate sustained driving at speeds greater than 168 mph/270 km/h,
adjust the cold tire pressure as shown on the driver door jamb warning label. This
will help avoid heat build-up and sudden tire failure1 High-Performance Driving
3WARNING
Use of slick tires/racing slicks may subject
the chassis and body components to higher
dynamic loads than they were designed for.
Higher than intended dynamic loads could
result in component fail ure, loss of control,
and serious injury or death to you or others.
Do not install slick tires on the NSX.
Canadian models
U.S. models
22 ACURA NSX PMC-31T6N6500.book 315 ページ ２０２１年９月２８日　火曜日　午後４時７分

316
uuBefore Driving uHigh-Performance Driving
Driving
• Inspect all exhaust mounts for cracks or signs of wear
WHILE DRIVING
• You may see a brake warning message in the Driver Information Interface (and
warning message chime) and/or expe rience increased brake pedal stroke.
If either occurs, immediately slow do wn and allow for increased stopping
distances. The message will disappear once the brakes have cooled and the
system has returned to normal operating condition
• After high-performance driving, it is critic al to allow your vehicle to properly cool
down. Do not immediately stop your vehicle. Instead, continue driving at reduced
speeds, allowing for increased braking di stances until your vehicle returns to
normal operating temperatures. Once you stop and safely park the NSX, open the
hatch to aid cooling. If the engine oil temperature reaches the mark during
high-performance driving, have your NSX inspected by an authorized Acura NSX
dealer
H
22 ACURA NSX PMC-31T6N6500.book 316 ページ ２０２１年９月２８日　火曜日　午後４時７分

317
uuBefore Driving uHigh-Performance Driving
Driving
AFTER DRIVING
• Check your NSX, and each of its relevant components, to make sure that it still is
in a safe operating condition (example: wh eel lug bolt torque, tire pressure, etc.).
We recommend repeating the BEFORE DRIV ING protocol, and if any item shows
excessive wear or appears to be in an unusual condition, have it replaced, or
exercise appropriate caution when driv ing and see your authorized Acura NSX
dealer
For more information, please contact your authorized Acura NSX dealer, and/or
Acura Client Relations.
2 Client Service Information P. 481
22 ACURA NSX PMC-31T6N6500.book 317 ページ ２０２１年９月２８日　火曜日　午後４時７分

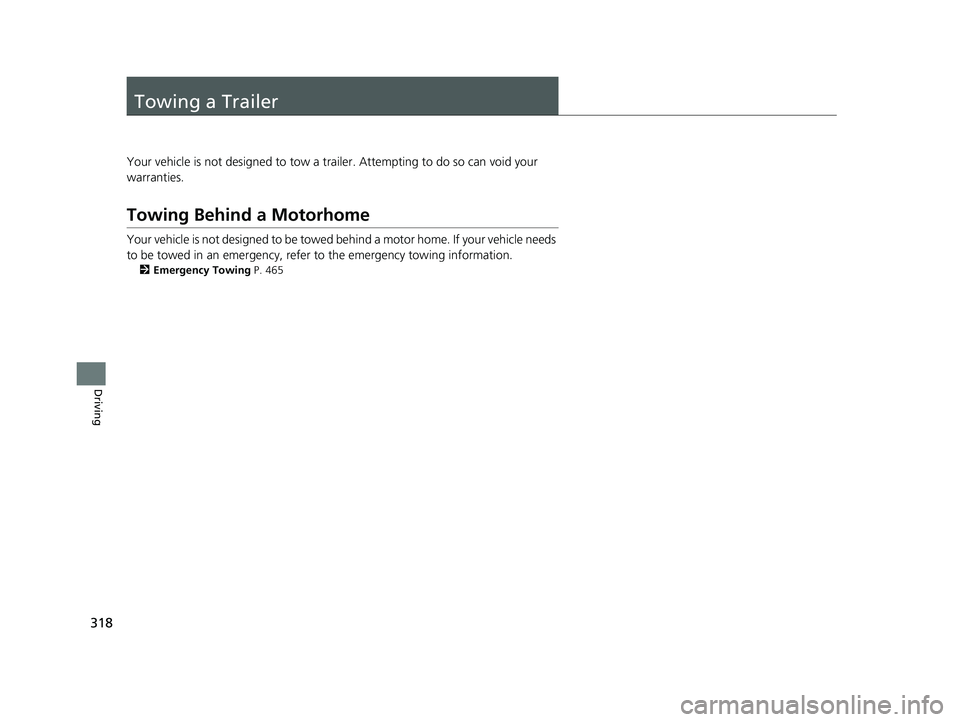

318
Driving
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Behind a Motorhome
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refe r to the emergency towing information.
2Emergency Towing P. 465
22 ACURA NSX PMC-31T6N6500.book 318 ページ ２０２１年９月２８日　火曜日　午後４時７分
