window ACURA NSX 2022 Owners Manual

Contents
Child Safety P. 61Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Hatch P. 122 Security System P. 125 Opening and Closing the Windows P. 128
Adjusting the Mirrors P. 144 Adjusting the Seats P. 146 Interior Convenience Items P. 150
Audio Error Messages P. 222General Information on the Audio System P. 225
Bluetooth ® HandsFreeLink ® P. 269 AcuraLink ® P. 303
When Driving P. 319 Braking P. 355Parking Your Vehicle P. 362
Refueling P. 369 Fuel Economy and CO
2 Emissions P. 372
Maintenance Under the Hood and Hatch P. 385 Replacing Light Bulbs P. 401
Checking and Maintaining Tires P. 407 12-Volt Battery P. 417 Remote Transmitter Care P. 418
Cleaning P. 420 Accessories and Modifications P. 428 Storage P. 430
Power System Won’t Start P. 447 If th e 12-Volt Battery Is Dead P. 450
Fuses P. 460 Emergency Towing P. 465 If You Cannot Unlock the Fuel Fill Door P. 466
Devices that Emit Radio Waves P. 473 Reporting Safety Defects P. 474
Authorized Manuals P. 480 Client Service Information P. 481
Quick Reference GuideP. 6
Safe DrivingP. 33
Instrument PanelP. 73
ControlsP. 107
FeaturesP. 161
DrivingP. 307
MaintenanceP. 375
Handling the UnexpectedP. 433
InformationP. 469
IndexP. 482
22 ACURA NSX PMC-31T6N6500.book 5 ページ ２０２１年９月２８日　火曜日　午後４時７分

Visual Index
8
Quick Reference Guide❚Power Window Switches (P 128)
❚Driver’s Front Airbag (P 48)
❚Hatch Release Button (P 122)
❚Hood Release Handle (P 388)
❚Passenger’s Front Airbag
(P 48)
❚Glove Box (P 152)
❚Driver’s Knee Airbag (P 52)
❚Door Mirror Controls (P 145)
❚Power Door Lock Master Switch (P 120)
❚Fuel Fill Door Release Button (P 370)
❚USB Port (P 163)
❚Memory Buttons (P 142)
❚SET Button (P 142)
❚Rearview Mirror (P 144)
❚Driver’s Side Interior Fuse
Boxes
(P 462)
❚Passenger’s Side Interior Fuse
Box
(P 463)
❚USB Port (P 163)
❚Accessory Power Socket
(P 154)
❚Electric Parking Brake Switch
(P 355)
❚Automatic Brake Hold Button
(P 358)
❚Shift Button
Electronic Gear Selector
(P 324)
22 ACURA NSX PMC-31T6N6500.book 8 ページ ２０２１年９月２８日　火曜日　午後４時７分

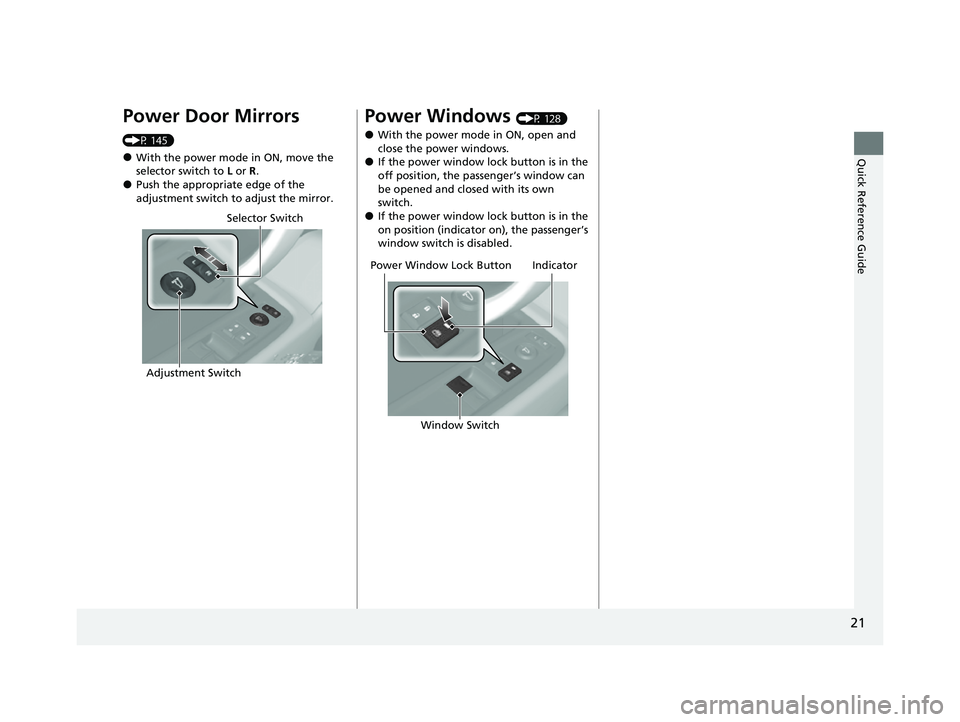

21
Quick Reference Guide
Power Door Mirrors
(P 145)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P 128)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, the passenger’s window can
be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator on), the passenger’s
window switch is disabled.
Power Window Lock Button
Window SwitchIndicator
22 ACURA NSX PMC-31T6N6500.book 21 ページ ２０２１年９月２８日　火曜日　午後４時７分

46
uuAirbags uAirbag System Components
Safe Driving
The front, driver’s knee, side, and side
curtain airbags are deployed according to
the direction and severity of impact. Both
side curtain airbags are deployed in a
rollover. The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bDriver’s knee airbag. The knee airbag is
stored under the steering column. It is
marked SRS AIRBAG.
cTwo side airbags, one for the driver and
one for the passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
dTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
eAn electronic control unit that, when the
power system is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit can record such information.
fAutomatic seat belt tensioners. In
addition, the driver’s and passenger’s
seat belt buckles incorporate sensors that
detect whether or not the belts are
fastened.
gWeight sensors in the passenger’s seat.
The sensors are used for occupant
classification to activate or deactivate the
passenger’s airbag.
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the passenger’s front airbag has
been turned off.
jAn indicator on the instrument panel that
alerts you to a possib le problem with your
airbag system or seat belt tensioners.
kA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.
22 ACURA NSX PMC-31T6N6500.book 46 ページ ２０２１年９月２８日　火曜日　午後４時７分

48
uuAirbags uTypes of Airbags
Safe Driving
Types of Airbags
Your vehicle is equipped with four types of airbags:
• Front airbags: Airbags in front of the driv er’s and passenger’s seats.
• Driver’s knee airbag: Airbag under the steering column.
• Side airbags: Airbags in the driver’s a nd passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to -severe frontal collision to help protect
the head and chest of the driver and/or passenger.
SRS (Supplemental Restraint System) indica tes that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant’s primary
restraint system.
The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the passe nger. Both airbags are marked SRS AIRBAG.
■Housing Locations
1Types of Airbags
The airbags can inflate whenever the power mode is
in ON.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the infl ator material and is not harmful.
People with respiratory pr oblems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
1 Front Airbags (SRS)
During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, dependi ng on the severity of the
crash, whether or not the se at belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.
22 ACURA NSX PMC-31T6N6500.book 48 ページ ２０２１年９月２８日　火曜日　午後４時７分

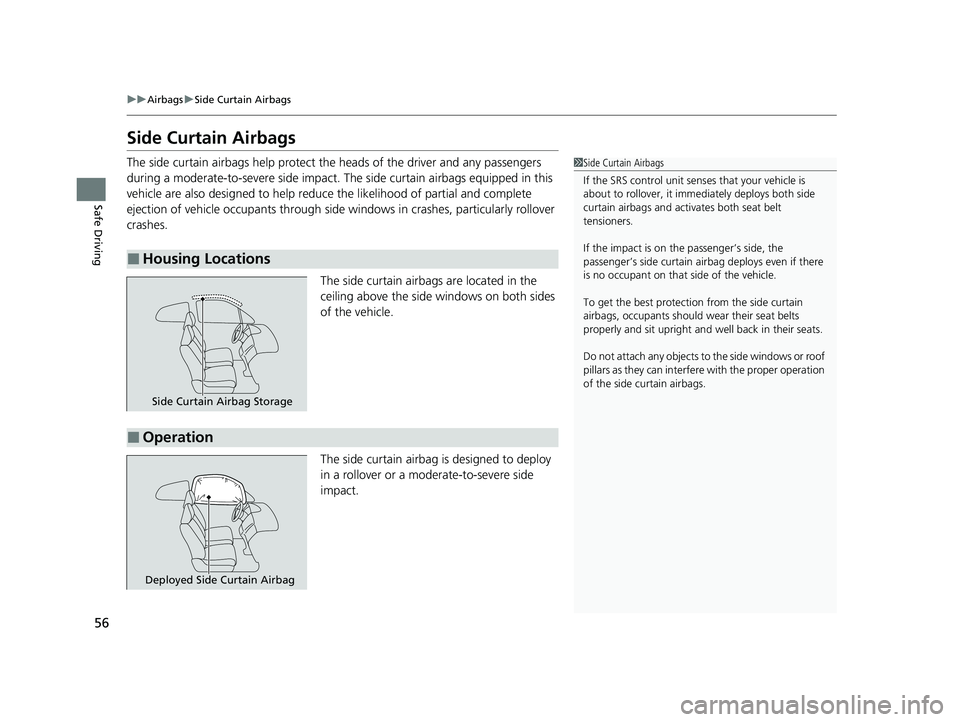

56
uuAirbags uSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and any passengers
during a moderate-to-severe side impact. The side curtain airbags equipped in this
vehicle are also designed to help reduce the likelihood of partial and complete
ejection of vehicle occupants through side windows in crashes, particularly rollover
crashes.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.
■Housing Locations
1Side Curtain Airbags
If the SRS control unit sens es that your vehicle is
about to rollover, it imme diately deploys both side
curtain airbags and activates both seat belt
tensioners.
If the impact is on the passenger’s side, the
passenger’s side curtain airbag deploys even if there
is no occupant on that side of the vehicle.
To get the best protecti on from the side curtain
airbags, occupants should wear their seat belts
properly and sit upr ight and well back in their seats.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
22 ACURA NSX PMC-31T6N6500.book 56 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuChild Safety uProtecting Child Passengers
62
Safe Driving
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child an d cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly se cured to the vehicle using the lap belt
portion of the lap/shoulder belt.
• Do not allow children to operate the doors, windows, or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1 Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels. 2 Safety Labels P. 71
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt.
22 ACURA NSX PMC-31T6N6500.book 62 ページ ２０２１年９月２８日　火曜日　午後４時７分

87
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Roll the right selector wheel to see the message again with the
system message indicator on.
MessageConditionExplanation
• Appears when the washer fluid is low.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 400
•Appears when the scheduled maintenance is due soon.
• Consequently, Service Due Now and Service Past
Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 381
•Appears when the temperatur e of the transmission is
starting to get too hot.
• The performance of the vehicle may be reduced.•It may not be possible to use the paddle shifters.
• Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears when the transmission system temperature is
too high. The vehicle does not operate properly.•You may find it difficult to accelerate, or to start the
vehicle on uphill.
• Immediately stop in a safe place in
(P.
• Let the engine idle until the message disappears.
22 ACURA NSX PMC-31T6N6500.book 87 ページ ２０２１年９月２８日　火曜日　午後４時７分

107
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 108
Locking and Unlocking the Doors Key .................................................. 109
Low Keyless Access Remote Signal Strength ......................................... 110
Locking/Unlocking the Doors from the Outside .......................................... 111
Locking/Unlocking the Doors from the Inside ............................................. 118
Auto Door Locking/Unlocking .......... 121
Opening and Closing the Hatch....... 122
Security System ................................ 125 Immobilizer System .......................... 125
Security System Alarm...................... 125
Opening and Closing the Windows.... 128
Operating the Switches Around the
Steering Wheel ENGINE START/STOP Button............. 130
Turn Signals ..................................... 133
Light Switches.................................. 134
Daytime Running Lights ................... 137
Wipers and Washers ........................ 138
Rear Defogger/Heated Door Mirror Button ....139
Brightness Control ........................... 140 Driving Position Memory System ...... 141
Adjusting the Steering Wheel .......... 143
Adjusting the Mirrors ....................... 144
Interior Rearview Mirror ................... 144
Power Door Mirrors ......................... 145
Adjusting the Seats .......................... 146
Interior Convenience Items .............. 150
Climate Control System ................... 156
Using Automatic Climate Control .... 156
Automatic Climate Control Sensors......160
22 ACURA NSX PMC-31T6N6500.book 107 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuSecurity System uSecurity System Alarm
126
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF.
• The hood and hatch are closed.
• Both doors are locked fro m outside with the key, remote transmitter or keyless
access system.
■When the security system alarm sets
The security system indicator in the in strument panel blinks. When the blinking
interval changes after about 15 seconds, the security system is set.
■To cancel the security system alarm
The security system is canceled when th e vehicle is unlocked using the remote
transmitter, keyless ac cess system, or when the pow er mode is set to ON. The
security system indicator goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•The door is unlocked with the lock tab.•The hatch is opened with the hatch release button
on the driver’s door or wi th the emergency hatch
opener.
•The gear position is shifted out of ( P.
•The hood is opened with the hood release.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
keyless access system.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Do not open the hatch with the key unless it is an
emergency.
Opening the hatch with the key will trigger the
security system. 2 If You Cannot Open the Hatch P. 467
22 ACURA NSX PMC-31T6N6500.book 126 ページ ２０２１年９月２８日　火曜日　午後４時７分
