Acura RDX 2014 Navigation Manual

100
Map MenuDisplaying the Map Menu
Navigation
•Traffic Incidents: Displays a list of the traffic incidents around your current
location or on your current route.
2 Traffic Rerouting™ P. 120
• Weather Info: Allows you to view the weather forecast, warning list, warning
map, and radar image map.
2 Weather Information P. 115
• Guidance Menu: Allows you to set or confirm the guidance points and freeway
exits for your route.
2 Guidance Menu P. 101
• Find Nearest…: Allows you to find the nearest place/landmark (e.g., nearest gas
station) by specifying a category. You ca n then add the location to the list of
destinations, set as a waypoint, or set as your destination.
2Changing Your Destination P. 129
• Map Information: Allows you to select the info rmation icons to display on the
map, change the orientation of the ma p, or display your current location.
2Map Information P. 106
• Cancel Route: Cancels your current route.
2Canceling the Route P. 123
QRG

101
Map MenuGuidance Menu
Guidance Menu
HENTER button (on map)  Guidance Menu
Display the guidance points and freeway ex its for your route, and set the display
mode for the map and guidance screens.
Rotate i to select an item. Press u.
The following items are available:
• Directions : Displays a list of the guidance points.
2Directions P. 102
• Exit Info : Displays a list of the freeway exits.
2Freeway Exit Information P. 103
• Guidance Mode : Selects the guidance display mode.
2Guidance Mode P. 104
Continued
QRG
Navigation

102
Map MenuGuidance Menu
Navigation
HENTER button (on map)  Guidance Menu  Directions
Display a list of the guidance points on your route for your confirmation. 1.Rotate i to select a guidance
point from the list. Press u.
The system displays a map of
the guidance point.
2. Press u to select RETURN or press
the CANCEL button to return to
the previous screen.
■ Directions1 Directions
Guidance points with exit information are
indicated by a (freeway exit information)
icon. Move y to select Exit Info to display the
exit information.
2 Freeway Exit Information P. 103
The route guidance inform ation is automatically
deleted when you reac h your destination.
QRG

103
Map MenuGuidance Menu
HENTER button (on map)  Guidance Menu  Exit Info
Display a list of the freeway exits for the route. You can view freeway exit
information (whether the exit is near gas stations, restaurants, ATMs, etc.) and add
new destinations or waypoints to the calculated route.
1.Rotate i to select an exit from
the list. Press u.
2. Rotate i to select a list item.
Press u.
Move w or y to display
information for different exits.
The location is displayed on the
Calculate Route screen.
2 Calculating the Route P. 91
■Freeway Exit Information1 Freeway Exit Information
d “Display Freeway Exit Information”
You can scroll the map a nd select a (freeway
exit information) icon on the map screen to
display the freeway exit information. The
icon is only displayed if there is exit information
available.
Icons are displayed only at 1/4, 1/2, or 1 mile
scale.
2 Showing Icons on the Map P. 107
The route guidance inform ation is automatically
deleted when you reac h your destination.
Continued
QRG
Navigation

104
Map MenuGuidance Menu
Navigation

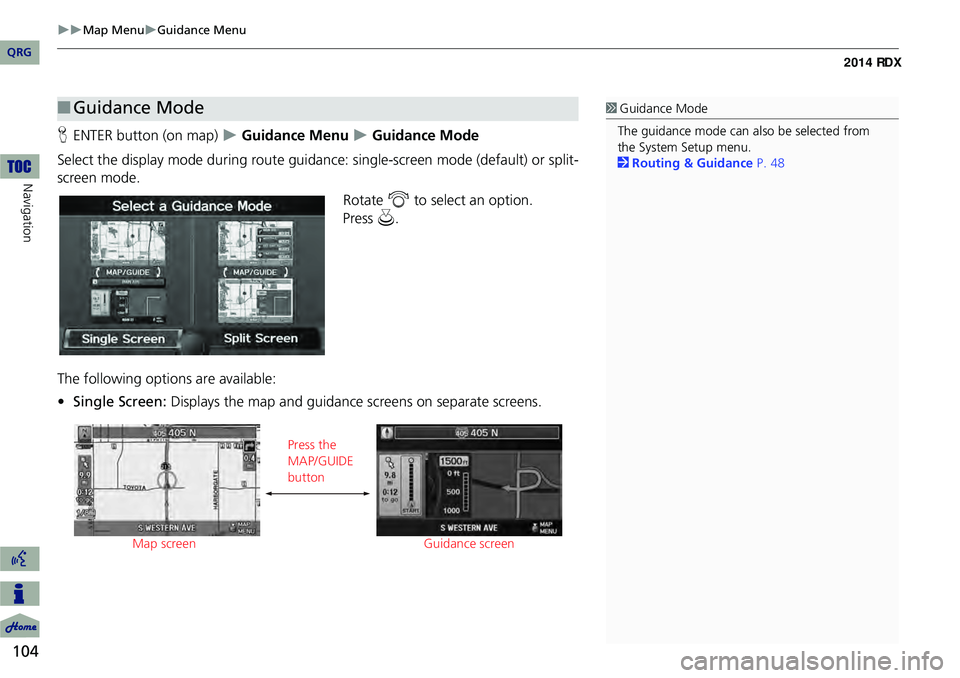

HENTER button (on map)  Guidance Menu  Guidance Mode
Select the display mode during route guidan ce: single-screen mode (default) or split-
screen mode.
Rotate i to select an option.
The following options are available:
• Single Screen: Displays the map and guidance screens on separate screens.
■Guidance Mode1 Guidance Mode
The guidance mode can al so be selected from
the System Setup menu.
2 Routing & Guidance P. 48
Map screen Press the
MAP/GUIDE
button
Guidance screen
QRG
Press u .

105
Map MenuGuidance Menu

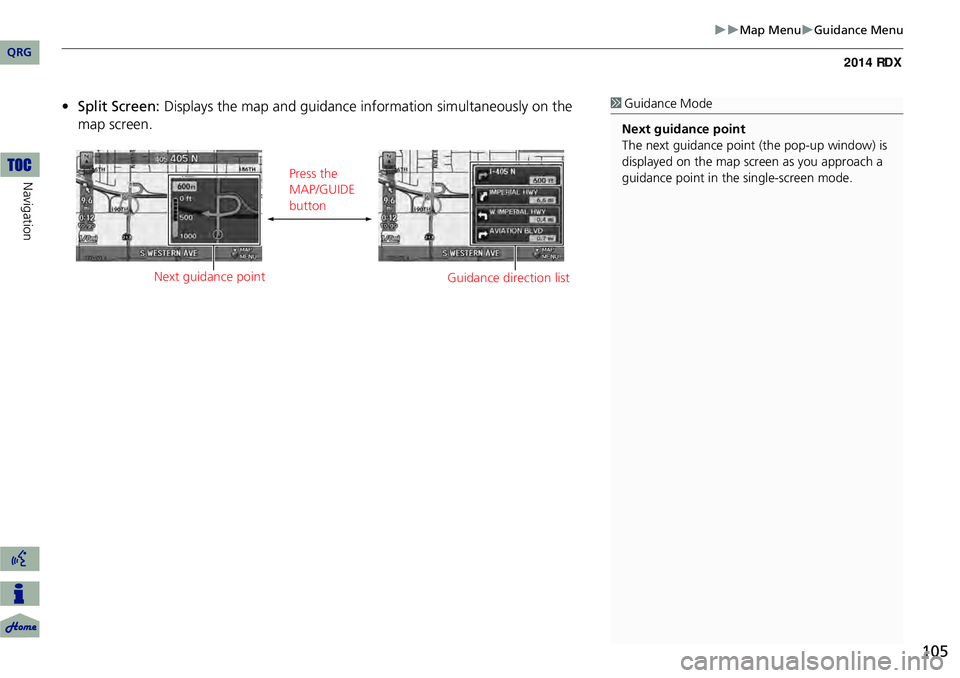

•Split Screen: Displays the map and guidance information simultaneously on the
map screen.1 Guidance Mode
Next guidance point
The next guidance point (the pop-up window) is
displayed on the map scre en as you approach a
guidance point in the single-screen mode.
Next guidance point Press the
MAP/GUIDE
button
Guidance direction list
QRG
Navigation

106
Map MenuMap Information
Navigation
Map Information
HENTER button (on map)  Map Information
Select the landmark icons to display on the ma p, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Rotate i to select an item. Press u .
The following item s are available:
• Show Icon on Map: Selects the icons to display on the map.
2Showing Icons on the Map P. 107
• North-up/Heading-up: Selects the map orientation ( North-up or Heading-up).
2Map Orientation P. 109
• Current Location: Displays and saves your current location.
2Current Location P. 110
• Map Legend: Displays an overview of the map features.
2Map Legend P. 111
QRG

107
Map MenuMap Information
HENTER button (on map)  Map Information  Show Icon on Map
The icon bar along the bottom of the screen allows you to select the icons that are
displayed on the map. Rotate i to select an icon in the
icon bar. Press u.
Pressing u toggles the icon display
on or off.
Repeat the procedure as necessary.
The following options are available:
• Icon check boxes : Displays or hides the traffic, weather, and landmark icons.
2Map Screen Legend P. 10
2AcuraLink Real-Time Traffic™ P. 15
2AcuraLink Real-Time Weather™ P. 15
• ALL OFF: Hides all icons.
• ICON OPTION : Fine-tunes the icon display. Move r.
2 Fine-tuning the Icons P. 108
■Showing Icons on the Map1 Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say d
“Display hospital” ).
2 Map Display Commands P. 244
Continued
QRG
Navigation

108
Map MenuMap Information
Navigation
■Fine-tuning the Icons
Icons in some categories can be fine-tuned to display or hide.
1.Rotate i to select an icon
category from the list (e.g., Other
Icons ). Press u.
2. Rotate i to select the icons to
display on the map. Press u.
Pressing u toggles the icon
display on or off.
Repeat the procedure as
necessary.
3. Move r to select OK.
1Fine-tuning the Icons
To display the “Other Icons,” be sure to turn on
OTHER ICON in the icon bar.
QRG

109
Map MenuMap Information
HENTER button (on map)  Map Information
Select the map orientation. Rotate i to select North-up or
Heading-up . Press u.
The system changes the map
orientation and displays the map
screen.
The following options are available:
• North-up : Displays the map with North always pointing up.
• Heading-up : Displays the map so that the direction you are traveling is always
pointing up.
■ Map Orientation1 Map Orientation
d “Display Heading-up” (on map screen), d
“Display North-up” (on map screen)
The red arrow in the symbol always points North.
On scales greater than 1 mile, North-up mode is
always used.
Continued
QRG
Navigation
