uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

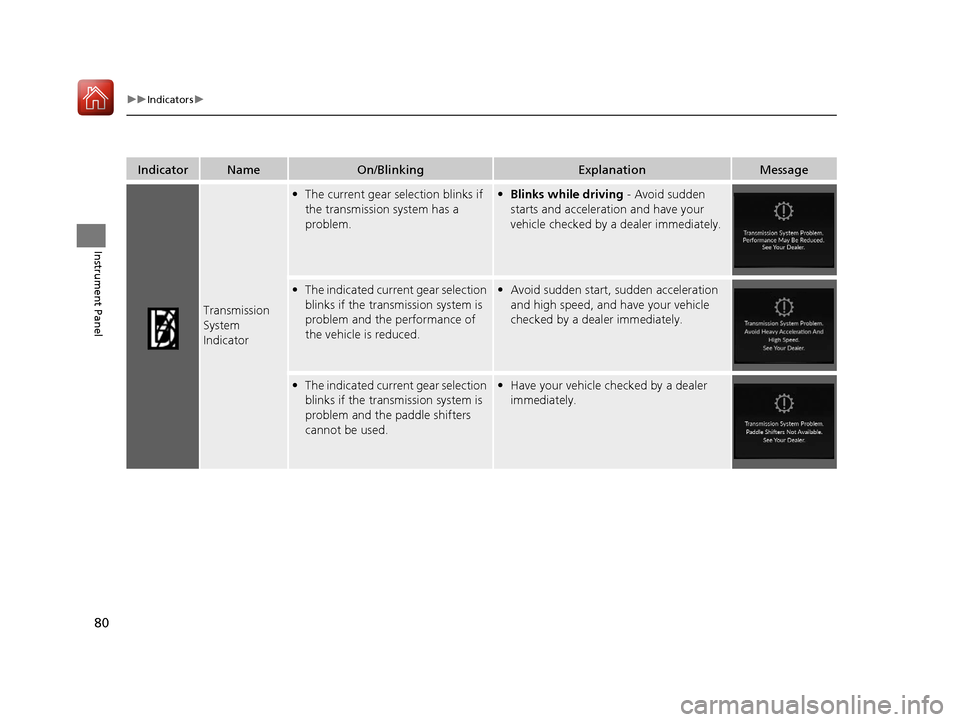

Transmission
System
Indicator
•The current gear selection blinks if
the transmission system has a
problem.• Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
• The indicated current gear selection
blinks if the transmission system is
problem and the performance of
the vehicle is reduced.• Avoid sudden start, sudden acceleration
and high speed, and have your vehicle
checked by a dealer immediately.
•The indicated current gear selection
blinks if the transmission system is
problem and the paddle shifters
cannot be used.• Have your vehicle checked by a dealer
immediately.
20 ACURA RDX-31TJB6111.book 80 ページ ２０２０年２月１１日　火曜日　午後２時６分

81
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System
Indicator
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and
the vehicle is no longer able to run.•Immediately park your car in a safe place.
2 Emergency Towing P. 628
•Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if there is a
problem with the transmission and
it is not possible to select
(P.
•Depending on the circumstances, you can
set the power mode to on as an
emergency measure.
2 If the Transmission System Indicator
Blinks along with the Warning
Message P. 620
•While the vehicle is stopped, apply the
parking brake.
• Have your vehicle checked by a dealer
immediately.
20 ACURA RDX-31TJB6111.book 81 ページ ２０２０年２月１１日　火曜日　午後２時６分

82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

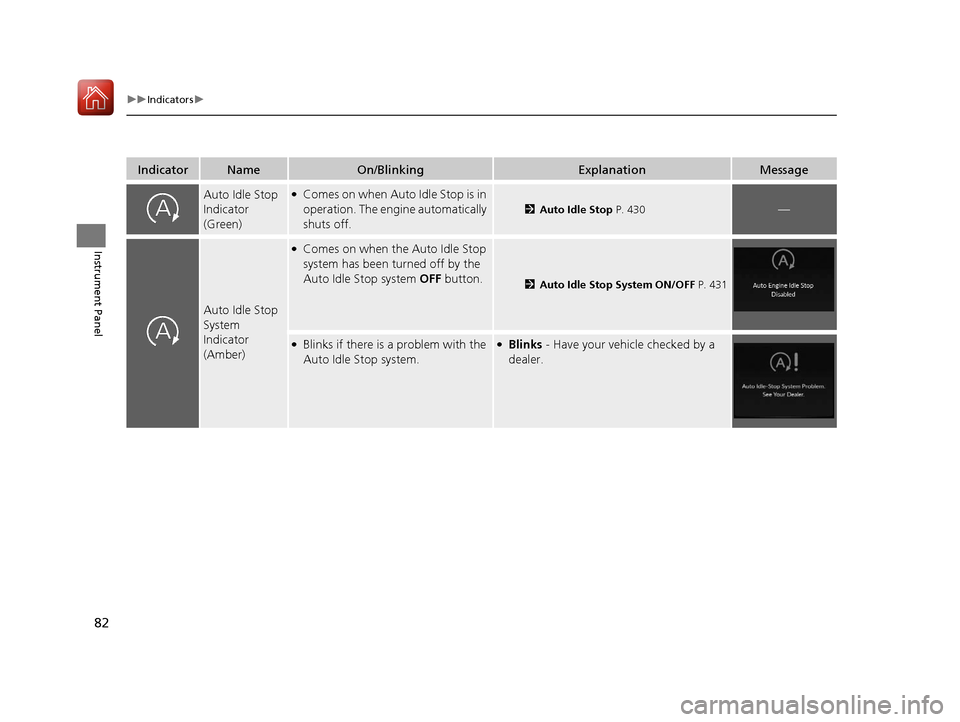

Auto Idle Stop
Indicator
(Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop P. 430—
Auto Idle Stop
System
Indicator
(Amber)
●Comes on when the Auto Idle Stop
system has been turned off by the
Auto Idle Stop system OFF button.
2Auto Idle Stop System ON/OFF P. 431
●Blinks if there is a problem with the
Auto Idle Stop system.●Blinks - Have your vehicle checked by a
dealer.
20 ACURA RDX-31TJB6111.book 82 ページ ２０２０年２月１１日　火曜日　午後２時６分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
•Blinks and the beep er sounds for a
few seconds if you are not wearing
a seat belt when you set the power
mode to ON, then the indicator
comes on.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you
and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.•The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
• Stays on after you and/or the front
passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 36
Low Fuel
Indicator
•Comes on when the fuel reserve is
running low (approximately 2.4
U.S. gal./9.1 Liter left).
• Blinks if there is a problem with the
fuel gauge.•Comes on - Refuel your vehicle as soon
as possible.
• Blinks - Have your vehicle checked by a
dealer.
20 ACURA RDX-31TJB6111.book 83 ページ ２０２０年２月１１日　火曜日　午後２時６分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

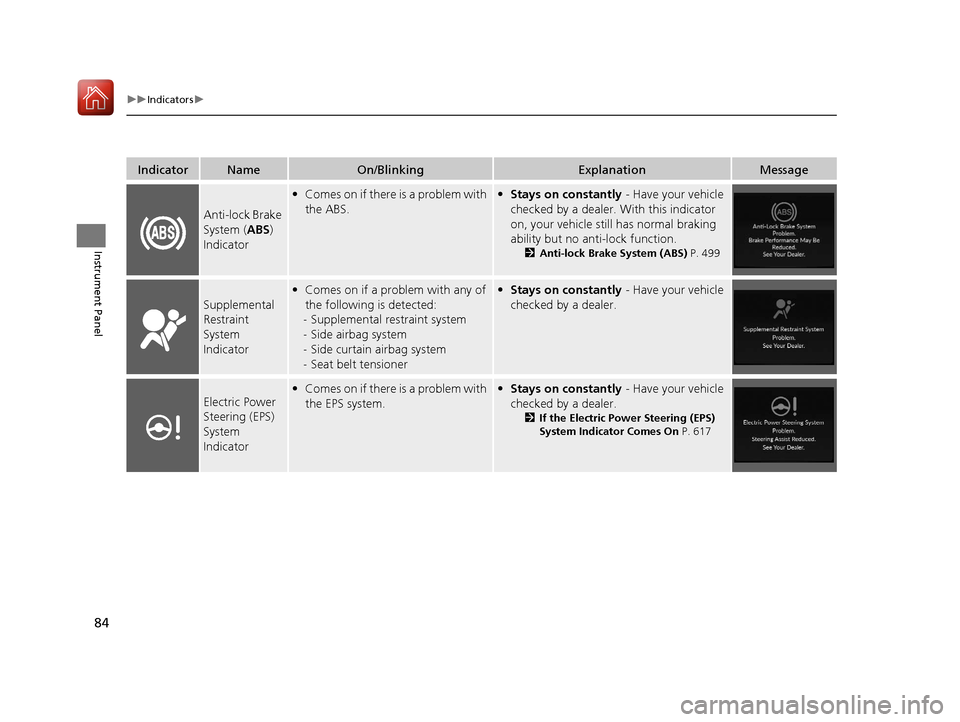

Anti-lock Brake
System (ABS)
Indicator
• Comes on if there is a problem with
the ABS.• Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 499
Supplemental
Restraint
System
Indicator
•Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner• Stays on constantly - Have your vehicle
checked by a dealer.
Electric Power
Steering (EPS)
System
Indicator• Comes on if there is a problem with
the EPS system.• Stays on constantly - Have your vehicle
checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 617
20 ACURA RDX-31TJB6111.book 84 ページ ２０２０年２月１１日　火曜日　午後２時６分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

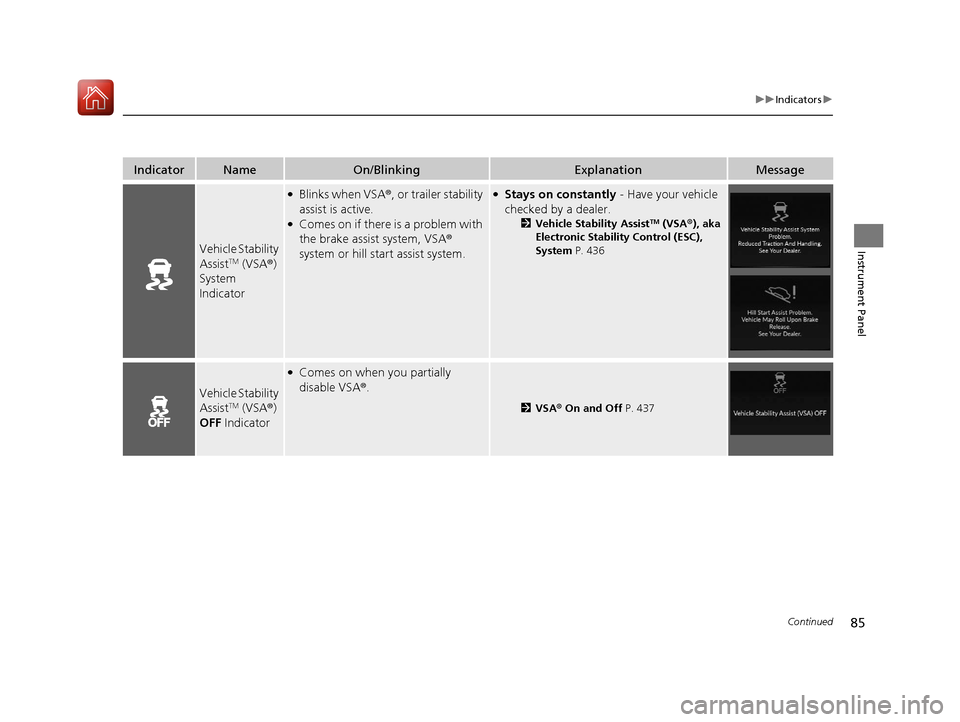

Vehicle Stability
AssistTM (VSA®)
System
Indicator
●Blinks when VSA ®, or trailer stability
assist is active.
●Comes on if there is a problem with
the brake assist system, VSA®
system or hill start assist system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 436
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
●Comes on when you partially
disable VSA ®.
2 VSA ® On and Off P. 437
20 ACURA RDX-31TJB6111.book 85 ページ ２０２０年２月１１日　火曜日　午後２時６分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
●Comes on if the tire pressure of any
of the tires becomes significantly
low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare tire, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
* Not available on all models
20 ACURA RDX-31TJB6111.book 86 ページ ２０２０年２月１１日　火曜日　午後２時６分

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard warning
button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 551
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator
•Comes on when the light switch in
a position other than OFF or when
the switch is set to AUTO and the
exterior lights come on.• If you set the power mode to VEHICLE OFF
while the lights are on, a chime sounds
when the driver’s door is opened.
—
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Auto High-
Beam Indicator•Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 191—
* Not available on all models
20 ACURA RDX-31TJB6111.book 87 ページ ２０２０年２月１１日　火曜日　午後２時６分

88
uuIndicators u
Instrument Panel
*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage*1
Immobilizer
System
Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.• Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 173—
Indicator
Indicator
20 ACURA RDX-31TJB6111.book 88 ページ ２０２０年２月１１日　火曜日　午後２時６分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
•Comes on along with a beep when
a problem is detected. A system
message on the multi-information
display appears at the same time.•While the indicator is on, roll the right
selector wheel to see the message again.
2 Switching the Display P. 129
•Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take the
appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is pressed.
—
