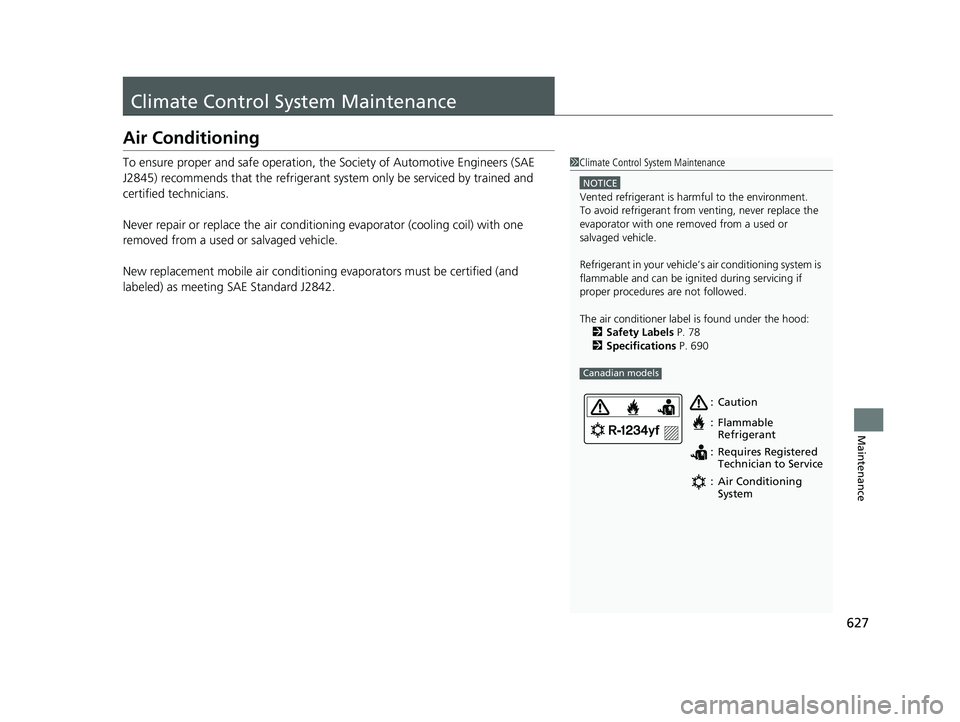

627
Maintenance
Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.1 Climate Control System Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’ s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 78
2 Specifications P. 690
Canadian models
Caution
Flammable
Refrigerant
Requires Registered
Technician to Service
Air Conditioning
System
:
:
:
:
23 ACURA RDX-31TJB6400.book 627 ページ ２０２２年８月４日　木曜日　午後１時５１分

665
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remo te Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing. The buttons on the
keyless remote should be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACURA RDX-31TJB6400.book 665 ページ ２０２２年８月４日　木曜日　午後１時５１分

666
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Engine Stop
NOTICE
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
23 ACURA RDX-31TJB6400.book 666 ページ ２０２２年８月４日　木曜日　午後１時５１分

676
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire
* is installed, the indicator will either come on or
it will first blink for abou t one minute, then stay on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
If the compact spare tire
* causes the indicator to come on, change the
tire to a full-size tire.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to first b link, and then stay on, change
the tire to a full-size tire. The indi cator goes off after driving for a few
miles (kilometers).
1 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON and transmission in
( P, while you
adjust tire pressure up or down, the system alerts you
as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for three seconds with
five seconds intervals.
Above recommended pressure: The beeper
sounds and lights flash tw ice every two seconds.
When a certain amount of time has passed since
activation, Tire Fill Assist wi ll be canceled until you set
the power mode to OFF.
You cannot use Tire Fill Assist if the engine was
started by the remote engine start, or if there is a
malfunction in the system.
If Tire Fill Assist does not work, use a tire pressure
gauge.
* Not available on all models
23 ACURA RDX-31TJB6400.book 676 ページ ２０２２年８月４日　木曜日　午後１時５１分

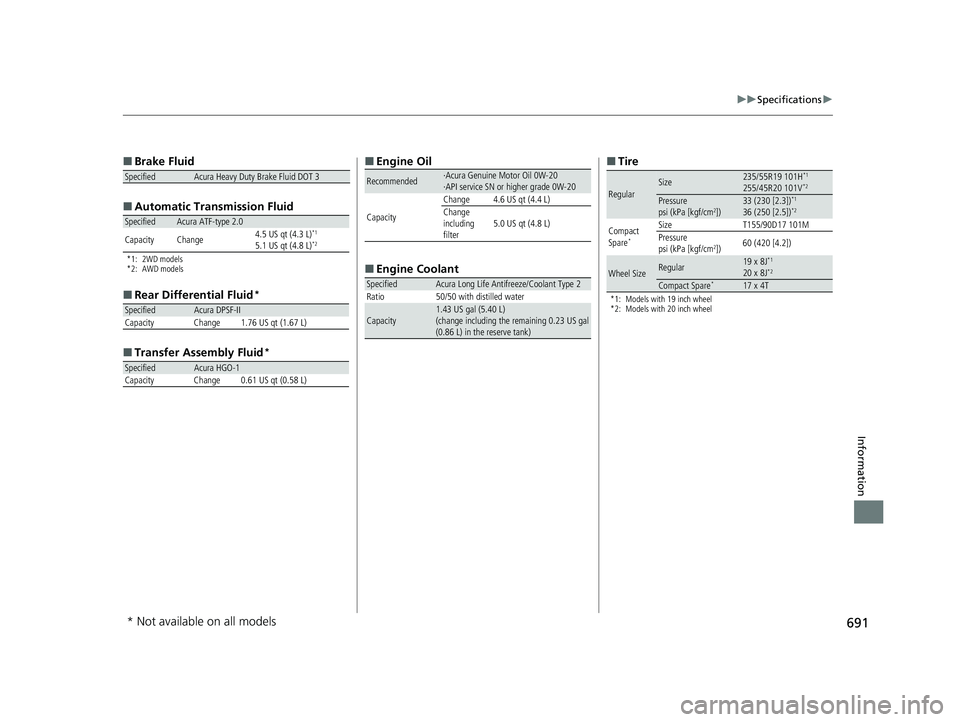

691
uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
*1: 2WD models
*2: AWD models
■
Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF-type 2.0
Capacity Change 4.5 US qt (4.3 L)*1
5.1 US qt (4.8 L)*2
SpecifiedAcura DPSF-II
Capacity Change 1.76 US qt (1.67 L)
SpecifiedAcura HGO-1
Capacity Change 0.61 US qt (0.58 L)
■ Engine Oil
■ Engine Coolant
Recommended·Acura Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change 4.6 US qt (4.4 L)
Change
including
filter
5.0 US qt (4.8 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.43 US gal (5.40 L)
(change including the remaining 0.23 US gal
(0.86 L) in the reserve tank)
■ Tire
*1: Models with 19 inch wheel
*2: Models with 20 inch wheel
RegularSize235/55R19 101H*1
255/45R20 101V*2
Pressure
psi (kPa [kgf/cm2])33 (230 [2.3])*1
36 (250 [2.5])*2
Compact
Spare*
Size T155/90D17 101M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8J*1
20 x 8J*2
Compact Spare*17 x 4T
* Not available on all models
23 ACURA RDX-31TJB6400.book 691 ページ ２０２２年８月４日　木曜日　午後１時５１分

703
Index
Sequential Shift Mode............................. 457
Shifting ................................................... 451
Average Fuel Economy ............................ 141
AWD ......................................................... 474
B
Battery ...................................................... 623
Charging System Indicator ................ 87, 672
If the Battery Is Dead............................... 667
Maintenance (Checking the Battery) ....... 623
Belts (Seat) .................................................. 37
Beverage Holders ..................................... 235
Blind Spot Information System ............... 479
Bluetooth ® Audio ..................................... 316
Bluetooth ® HandsFreeLink ®................... 389
Booster Seats (For Children) ...................... 76
Brake System ............................................ 545
Anti-lock Brake System (ABS) .................. 553
Automatic Brake Hold ............................. 550
Brake Assist System................................. 554
Fluid ....................................................... 603
Foot Brake .............................................. 549
Indicator ............................... 81, 82, 83, 673
Indicator (Red) ........................................ 675
Parking Brake.......................................... 545
Brightness Control (Instrument Panel) ... 208
Built-in Key ............................................... 157
Bulb Replacement .................................... 605
Chicane
TM Taillights, Bra ke and Rear Side
Marker Lights ........................................ 607 Chicane
TM Taillights/Brak
e and Back-Up
Lights .................................................... 608
Fog Lights ................................................ 605
Front Turn Signal, Parking/Chicane
TM
Daytime Running and Front Side
Marker Lights ...................................... 605
Headlights ............................................... 605
High-Mount Brake Light .......................... 608
Puddle Lights ........................................... 608
Rear License Plate Light ........................... 608
Rear Turn Signal Light Bulbs .................... 606
Side Turn Signal/Em ergency Indicator
Lights .................................................... 605
Bulb Specifications ................................... 690
C
CAMERA Button....................................... 568
Carbon Monoxide Gas ................................ 77
Carrying Cargo .................................. 431, 433
Certification Label .................................... 692
Changing Bulbs ......................................... 605
Charging System Indicator ................. 87, 672
Chicane
TM Daytime Running Lights ......... 200
Child Safety ................................................. 64
Childproof Door Locks ............................. 171
Child Seat .................................................... 64
Booster Seats ............................................. 76
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67 Installing a Child Seat
with a Lap/Shoulder
Seat Belt .................................................. 71
Larger Children ......................................... 75
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Childproof Door Locks ............................. 171
Cleaning the Exterior ............................... 632
Cleaning the Interior ................................ 629
Client Service Information ....................... 701
Climate Control System ............................ 247
Changing the Mode ................................ 247
Defrosting the Windshield and Windows ............................................... 249
Dust and Pollen Filter............................... 628
Rear Temperature Control Dial ................ 251
Recirculation/Fresh Air Mode ................... 247
Sensors ................................................... 252
Synchronized Mode................................. 250
Using Automatic Climate Control ............ 247
Clock .......................................................... 154
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 486
Coat Hook ................................................. 237
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 486
Compact Spare Tire .......................... 641, 691
Console Compartment ............................. 234
Controls ..................................................... 153
23 ACURA RDX-31TJB6400.book 703 ページ ２０２２年８月４日　木曜日　午後１時５１分

704
Index
Coolant (Engine)....................................... 600
Adding to the Radiator ............................ 601
Adding to the Reserve Tank ..................... 600
Overheating............................................. 669
Creeping (Automatic Transmission) ........ 450
Cross Traffic Monitor ................................ 561
Cup Holders ............................................... 235
Customized Features ................................ 359
D
Dead Battery............................................. 667
Defaulting All the Settings ...................... 385
Defrosting the Windshield and Windows .................................................. 249
Devices that Emit Radio Waves ................ 693
Dimming Headlights ............................................... 197
Rearview Mirror ....................................... 213
Dipstick (Engine Oil) ................................. 596
Directional Signals (Turn Signal) .............. 196
Door Mirrors ............................................. 214
Doors ......................................................... 156
Auto Door Locking .................................. 172
Auto Door Unlocking ............................... 172
Keys ........................................................ 156
Locking/Unlocking the Doors from the
Inside ..................................................... 169
Locking/Unlocking the Doors from the Outside .................................................. 160
Lockout Prevention System ...................... 167 DOT Tire Quality Grading
........................ 617
Driving ...................................................... 429
Automatic Transmission .......................... 450
Braking ................................................... 545
Off-Highway Driving Guidelines............... 441
Shifting Gear ........................................... 451
Starting the Engine.................................. 443
Driving Position Memory System ............ 210
Dust and Pollen Filter ............................... 628
Dynamic Mode Switch ............................. 460E
Electric Parking Brake
Switch ..................................................... 545
Electric Power Steering (EPS) System
Indicator............................................ 95, 674
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 685
Emissions Testing (Readiness Codes) ....... 695
Engine ....................................................... 692
Coolant ................................................... 600
If the Battery Is Dead ............................... 667
Oil ........................................................... 595
Remote Engine Start................................ 445
Starting ................................................... 443
Engine Compartment Cover .................... 594
Engine Coolant ......................................... 600
Adding to the Radiator ............................ 601
Adding to the Reserve Tank..................... 600
Overheating ............................................ 669 Temperature Gauge ................................ 136
Engine Oil ................................................. 595
Adding ................................................... 597
Checking ................................................ 596
Displaying Oil Life ................................... 586
Engine Oil Pressure Low Warning ............ 671
Recommended Engine Oil ....................... 595
ENGINE START/STOP Button .................... 193
EPS (Electric Power Steering) System ...... 674
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) .......................... 632
Exterior Mirrors ........................................ 214F
Features.................................................... 253
Filters Dust and Pollen....................................... 628
Oil .......................................................... 598
Flat Tire ............................................. 641, 649
Floor Mats ................................................ 630
Fluids Automatic Transmission .......................... 602
Brake ...................................................... 603
Engine Coolant ....................................... 600
Windshield Washer ................................. 604
FM/AM Radio ........................................... 293
Fog Lights Indicator ................................................... 98
Folding Down the Rear Seats .................. 222
Foot Brake ................................................ 549
23 ACURA RDX-31TJB6400.book 704 ページ ２０２２年８月４日　木曜日　午後１時５１分

706
Index
Indicators..................................................... 80
Adaptive Cruise Control (ACC) with Low
Speed Follow (Amber) ............................ 102
Adaptive Cruise Control (ACC) with Low Speed Follow (White/Green) ... 102, 503
Anti-lock Brake System (ABS) ..................... 94
Auto High-Beam ........................................ 98
Auto Idle Stop (Green) ............................... 90
Auto Idle Stop OFF..................................... 90
Auto Idle Stop Suspend ................. 90, 91, 92
Auto Idle Stop System (Amber) .................. 90
Automatic Brake Hold........................ 85, 550
Automatic Brake Hold System ............ 85, 550
Charging System ............................... 87, 672
Cruise Mode (White/Green) ..................... 101
Electric Power Steering (EPS) System .. 95, 674
Engine Oil Pressure Low Warning............. 671
Fog Light ................................................... 98
Gear Position ............................................. 87
High Beam................................................. 98
Immobilizer System .................................... 99
Lane Keeping Assist System (LKAS) (Amber) ................................................. 102
Lane Keeping Assist System (LKAS) (White/Green) ........................................ 102
Lights On ................................................... 98
Low Fuel (Amber) ...................................... 94
Low Tire Pressure/TPMS ..................... 97, 676
M (sequential mode ) Indicator/Gear
Selection Indicator ................................... 87
Maintenance Minder ............................... 101 Malfunction Indicator Lamp............... 86, 672
Parking Brake a
nd Brake System
(Amber) ........................................... 83, 675
Parking Brake and Brake System (Red)...................... 81, 82, 673, 675
Safety Support (Amber) ........... 103, 104, 105
Safety Support (Green/Gray) .................... 106
Seat Belt Reminder .............................. 39, 93
Security System Alarm ............................... 99
Super Handling-All Wheel Drive
TM
(SH-AWD® ) ............................................ 101
Supplemental Restraint System ............ 60, 95
System Message ...................................... 100
Transmission System.......................... 88, 677
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®) OFF .......... 96
Vehicle Stability AssistTM (VSA ®)
System ............................................ 96, 471
VSA ® OFF ................................................ 472
Information .............................................. 689
Instant Fuel Economy ............................... 141
Instrument Panel ........................................ 79
Brightness Control................................... 208
Interior Lights ........................................... 230
Interior Rearview Mirror .......................... 213
iPad ........................................................... 337
iPhone ....................................................... 337
iPod ................................................... 310, 337
J
Jack (Wheel Nut Wrench) ........................ 645
Jump Starting ........................................... 667
K
Key Number Tag ...................................... 158
Keyless Access System .............................. 160
Keyless Lockout Prevention ..................... 167
Keys ........................................................... 156
Lockout Prevention ................................. 167
Number Tag............................................ 158
Rear Door Won’t Open ........................... 171
Remote Transmitter ................................ 165
Two-way Keyless Remote ........................ 168
Types and Functions................................ 156
Kickdown (Automatic Transmission) ...... 450
Knee Airbags .............................................. 54
L
Lane Keeping Assist System (LKAS) ........ 522
LATCH (Child Seats) ............................. 69, 73
Legal Information .................................... 351
License Information ................................. 354
Lights ................................................ 197, 605
Automatic............................................... 198
Bulb Replacement ................................... 605
Chicane
TM Daytime Running Lights .......... 200
Fog Lights ............................................... 200
High Beam Indicator ................................. 98
23 ACURA RDX-31TJB6400.book 706 ページ ２０２２年８月４日　木曜日　午後１時５１分

707
Index
Interior.................................................... 230
Light Switches......................................... 197
Lights On Indicator.................................... 98
Turn Signals and Hazard Warning ........... 196
Load Limits ............................................... 433
Locking/Unlocking ................................... 156
Auto Door Locking/Unlocking ................. 172
Childproof Door Locks ............................ 171
From Inside ............................................. 169
From Outside .......................................... 160
Keys........................................................ 156
Using a Key............................................. 166
Lockout Prevention System ..................... 167
Low Battery Charge ................................. 672
Low Fuel Indicator ..................................... 94
Low Speed Braking Control .................... 497
Lower Anchors ..................................... 69, 73
Luggage (Maximum Load Limit) ............. 433
Lumbar Support ....................................... 216
M
Maintenance.................................... 142, 581
Battery .................................................... 623
Brake Fluid .............................................. 603
Cleaning ................................................. 629
Climate Control System .......................... 627
Coolant .................................................. 600
Maintenance Minder
TM............................ 585
Oil .......................................................... 596
Precautions ............................................. 582 Radiator .................................................. 601
Remote Transmitter ......................... 625, 626
Replacing Light Bulbs ............................... 605
Safety ...................................................... 583
Service Items ........................................... 589
Tires ........................................................ 614
Transmission Fluid ................................... 602
Under the Hood ...................................... 592
Malfunction Indicator Lamp .............. 86, 672
Map Lights ................................................ 231
Maximum Load Limit ............................... 433
Meters, Gauges ......................................... 136
Mirrors ....................................................... 213
Adjusting ................................................. 213
Door ........................................................ 214
Exterior .................................................... 214
Interior Rearview ..................................... 213
Modifications (and Accessories) .............. 636
MP3 ........................................................... 313
MP3/WMA/AAC ........................................ 313
Multi-Information Display ....................... 137
Switching the Display .............................. 139
Warning and Information Messages ........ 107
Multi-View Rear Camera .......................... 565
N
Navigation................................................ 141
Numbers (Identification) .......................... 692
O
Odometer................................................. 137
Off-Highway Driving Guidelines ............. 441
Oil (Engine) ............................................... 595
Adding .................................................... 597
Checking................................................. 596
Displaying Oil Life .................................... 586
Engine Oil Pressure Low Warning ............ 671
Recommended Engine Oil ............... 595, 691
Viscosity .......................................... 595, 691
Open Source Licenses ............................... 353
Opening/Closing Hood....................................................... 593
Panoramic Roof ....................................... 189
Power Windows ...................................... 186
Tailgate ................................................... 173
Outside Temperature Display .................. 137
Overheating .............................................. 669
P
Paddle Shifters (Sequential Shift
Mode) ...................................................... 457
Panic Mode ............................................... 185
Panoramic Roof ........................................ 189
Parking ...................................................... 555
Parking Brake ........................................... 545
Parking Brake and Brake System Indicator .................................................. 673
Parking Brake and Brake System Indicator
(Amber) ..................................................... 83
23 ACURA RDX-31TJB6400.book 707 ページ ２０２２年８月４日　木曜日　午後１時５１分

709
Index
Snow Tires................................................ 622
Sonar Sensors ........................................... 544
Spare Tire ......................................... 641, 691
Spark Plugs ............................................... 690
Specifications ........................................... 690
Specified Fuel ................................... 575, 690
Speed Limit Information ......................... 138
Speed/Distance Units ............................... 142
Speedometer ............................................ 136
Sport Gauge Settings ............................... 143
SRS Airbags (Airbags) ................................ 49
Starting Assist Brake Function ................ 470
Starting the Engine .................................. 443
Does Not Start ........................................ 664
If the Battery Is Dead............................... 667
Remote Engine Start ............................... 445
Steering Wheel ........................................ 212
Adjusting ................................................ 212
Stopping ................................................... 555
Summer Tires ............................................ 622
Sunglasses Holder .................................... 238
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 474
Supplemental Restraint System (SRS) ....... 49
Surround View Camera System ............... 567
Switches (Around the Steering Wheel) ............................................ 6, 7, 193
Synchronized Mode ................................. 250
System Message Indicator ....................... 100
System Updates ........................................ 281
T
Tachometer............................................... 142
Tailgate ..................................................... 173
Unable to Open ....................................... 687
Temperature
Gauge ..................................................... 136
Outside Temperature Display ................... 137
Temperature Sensor ......................... 137, 252
Temporary Tire Repair Kit ........................ 650
Tie-down Anchors .................................... 237
Time (Setting) ........................................... 154
Tire Fill Assist ............................................ 676
Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist .................................. 475
Indicator ............................................ 97, 676
Tire Repair Kit ........................................... 649
Tires ........................................................... 614
Air Pressure ..................................... 615, 691
Checking and Maintaining ....................... 614
Inspection ................................................ 614
Labeling .................................................. 615
Puncture (Flat Tire) ........................... 641, 649
Regulations ............................................. 617
Rotation .................................................. 621
Spare Tire ........................................ 641, 691
Summer .................................................. 622
Temporary Tire Repair Kit ........................ 650
Tire Chains .............................................. 622
Tire Repair Kit .......................................... 649
Wear Indicators ....................................... 619
Winter ..................................................... 622 Tools
.......................................................... 640
Towing a Trailer ....................................... 435
Equipment and Accessories ..................... 437
Load Limits .............................................. 435
Towing Behind a Motorhome ................. 440
Emergency .............................................. 685
TPMS (Tire Pressure Monitoring System) with Tire Fill Assist .................................. 475
Indicator............................................ 97, 676
Traffic Sign Recognition System .............. 535
Transmission ....................................... 21, 451
Automatic ......................................... 21, 451
Fluid ........................................................ 602
Gear Position Indicator ...................... 87, 453
Indicator.................................................. 677
Number................................................... 692
Sequential Shift Mode ............................. 457
Transmission System Indicator.................................................... 88
Trip Computer .......................................... 140
Trip Meter ................................................. 140
23 ACURA RDX-31TJB6400.book 709 ページ ２０２２年８月４日　木曜日　午後１時５１分
