To activate RDS program search
with the interf ace dial, push the
AUDIO button to display the FM
radio inf ormation on the screen.
Push the selector down, and turn the
knob to select RDS SEARCH icon.
Press ENTER on the selector. The
screen shows you the RDS category
list.Turn the knob to the desired RDS
category.
While the RDS category is selected,
move the selector knob to the right
to select SEEK in the upper right
corner of the screen. Then press
ENTER to activate the seek f unction.
The scan f unction samples all
stations with strong signals on the
selected RDS category. To activate it,
press and release the SCAN button.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal in the selected
RDS category. You will also see the
selected RDS category name
blinking in the display while
searching it. When the system finds
one, it will stop and play that station
f or about 10 seconds.
CONT INUED
RDS Program SCAN
Audio System
Features
221
RDS CATEGORY LIST
SEEK is selected. SEEK/SCAN ICON
2009 RL

Turn the knob to the desired RDS
category.
To activate RDS program scan with
the interf ace dial, push the AUDIO
button to display the FM radio
inf ormation on the screen. Push the
selector down, and turn the knob to
select RDS SEARCH icon. Press
ENTER on the selector. The screen
shows you the RDS category list. While the RDS category is selected,
move the selector knob to the right
to select SCAN in the upper right
corner of the screen. Then press
ENTER to activate the scan function.
If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ will be blinking f or
about 5 seconds, then the system
goes back to the last selected station. You can use the RDS program
search or scan f unction even if the
PS name display f unction is of f . In
this case, the display shows a
f requency in place of a PS name.
Audio System
222

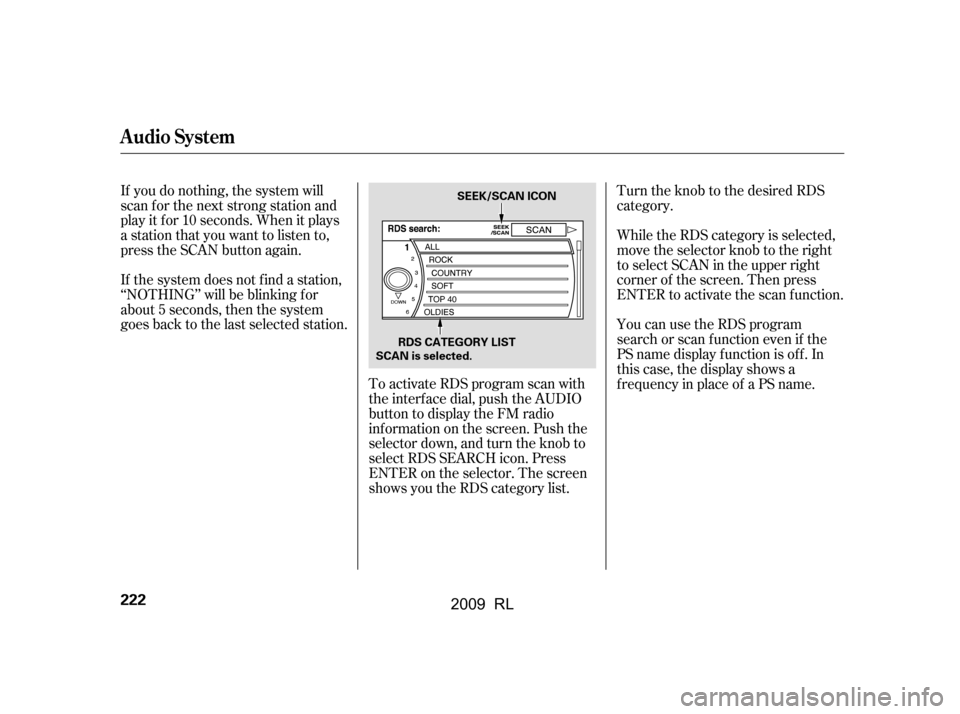

SEEK/SCAN ICON
RDS CATEGORY LIST
SCAN is selected.
2009 RL

This f unction displays the radio text
inf ormation of the selected RDS
station.To activate radio text display, use
the interf ace dial. Push the selector
down, and turn the knob to select
RADIO TEXT icon. Press ENTER on
the selector to enter the setting.The display shows up to 64
characters on the selected RDS
station.
If the selected RDS station has the
radio text inf ormation, you will see
the text indicator on the screen.
Radio T ext Display
Audio System
Features
223
RADIO TEXT ICON TEXT INDICATOR
2009 RL

Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzDriving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
The radio can receive the complete
AM and FM bands.
How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Audio System
A M/FM Radio Frequencies A M/FM Radio Reception
224
2009 RL

µµ µTo adjust bass
and treble, select BASS or TREBLE,
andpressENTERontheinterface
selector. The current setting is
shownonthedisplay.Turnthe
interf ace knob to the desired level,
and enter your selection by pressing
ENTER on the interf ace selector. These
modes adjust the strength of the
sound coming f rom each speaker.
Fader adjusts the f ront-to-back
strength, while balance adjusts the
side-to-side strength. To adjust f ader
and balance, select FADER or
BALANCE, then press ENTER on
the interf ace selector. The current
setting is shown on the screen. Turn
the interface knob to the desired
level, and enter your selection by
pressing ENTER on the interf ace
selector. To equalize the f ader or
balance, turn the interf ace knob until
the marks on the sound grid come to
the center of the adjustment bar. To
adjust the strength of the sound
f rom the center or subwoof er
speaker, select it and press ENTER
on the interf ace selector. Turn the
interf ace knob to the desired level,
and enter your selection by pressing
ENTER on the interf ace selector.
CONT INUED
BASS/TREBL E FADER/BAL ANCE CENTER/SUBWOOFER
Audio System
Features
227
2009 RL

µµ
To set this f eature on or of f , select
AudioPilot,andpressENTERonthe
interf ace selector. Turn the interf ace
knob to ON or OFF, and press
ENTER on the interf ace selector.
TheONorOFFindicatorisshown
on the screen. Bose AudioPilot
digital processing monitors sound
within the cabin, and helps
compensate f or unwanted ambient
noise with no perceived change in
audio volume.
Bose Centerpointsignal processing processes stereo
and matrix surround recordings to
f ive independent channels, delivering
a multi-channel surround sound
experience, even f rom conventional
stereo discs.
To set this f eature on or of f , select
Centerpoint, and press ENTER on
the interf ace selector. Turn the
interface knob to ON or OFF, and
press ENTER on the interf ace
selector. The ON or OFF indicator is
shownonthedisplay.
Centerpoint
is only available
when listening to a CD (CD-DA). AudioPilot
and Centerpointare
registered trade marks of the Bose
corporation.
A udioPilotCenterpoint
Audio System
228
NOTE:
2009 RL

CONT INUED
Audio System
Playing the XMRadio
Features
229

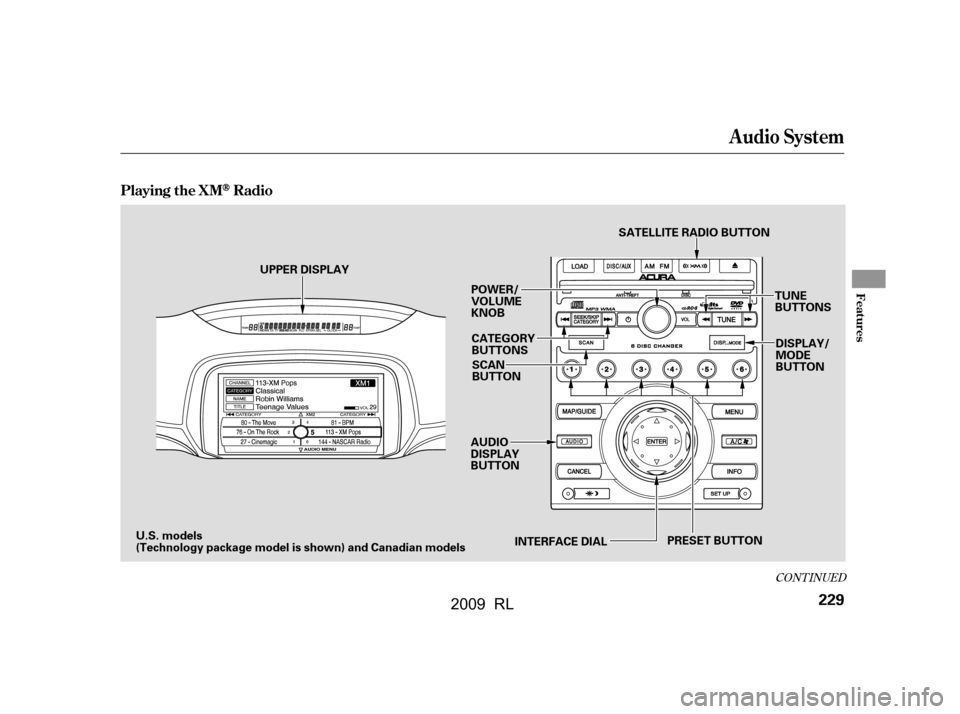

SCAN
BUTTONSATELLITE RADIO BUTTON
UPPER DISPLAY
INTERFACE DIAL
POWER/
VOLUME
KNOB
CATEGORY
BUTTONS
U.S. models AUDIO
DISPLAY
BUTTON
PRESET BUTTONDISPLAY/
MODE
BUTTON
TUNE
BUTTONS
(Technology package model is shown) and Canadian models
2009 RL

XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
also allows you to view channel and
category selections in the audio
display.
Your vehicle is capable of receiving
XM Radio anywhere in the United
States, and Canada, except Hawaii
and Alaska. XM is a registered
trademark of XM Satellite Radio
,
Inc. Push the AUDIO button to display
XM inf ormation on the screen. You
can operate the XM Satellite Radio
system with the interf ace dial.
To listen to XM satellite radio, turn
the ignition switch to the
ACCESSORY (I) or ON (II) position.
Push the power/volume knob to turn
on the audio system, and press the button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
Audio System
Operating the XM Radio
230
2009 RL

µµ
µ
µ
CONT INUED
To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. The
CATEGORY or CHANNEL mode is
displayed on the screen. To switch
the mode with the interf ace dial,
scroll down, select MODE, and press
ENTER on the selector.
In the category mode, such as Jazz,
Rock, Classical, etc., you can
navigate through all of the channels
within that category. In the channel
mode, you can select all of the
available channels.
Each time you press and release the
DISP/MODE button, the audio
display changes in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. Onthescreen,youwillseethe
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
SCAN, press the SCAN button. To
scan with the interface dial, scroll
down, and push interf ace selector to
the right. You will see SCAN on the
screen.
The system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
SCAN button or push the interf ace
selector to the right again.
Press either side of the bar to select
another category. You can also
change a category by pushing the
interf ace selector lef t or right.
Press either side of the
TUNE bar to change channel
selections. Press the side of the
bar f or higher numbered channels
and the side for lower
numbered channels. You can also
change channels with the interf ace
selector, push down the interf ace
selector to select AUDIO MENU,
then turn the interface knob to
choose TUNE and press ENTER on
the selector. Turn the interface knob
to the appropriate direction. In the
category mode, you can only select
channels within that category.
Audio System
MODE SCA N
CATEGORY ( or )
TUNE
Features
231
2009 RL

µYoucanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band. Once a channel is stored, press and
release the proper preset button to
tune to it.
Press the button or scroll
up again. The other XM band will
be shown. Store the next six
channels using steps 2 and 3.
Repeat steps 2 and 3 to store the
f irst six channels.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Use the TUNE or SCAN f unction
to tune to a desired channel.
To store a channel:
Press the button or scroll
up by pushing the interf ace
selector up. Either XM1 or XM2
will be shown on the display.
1.
2.
3.
4.
5.
Preset
Audio System
232
XM BAND
