If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous. Therearetwowaystotowyour
vehicle:
The operator
loads your vehicle on the back of a
truck.
The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required. If , due to damage, your vehicle must
be towed with the f ront wheels on
the ground, do this:
The tow
truck uses two pivoting arms that go
under the f ront tires and lif t them of f
the ground. The rear tires remain on
the ground. Start the engine.
Shif t to the D position and hold f or
5 seconds, then to N.
Turn of f the engine.
Release the parking brake. Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
CONT INUED
On SH-AWD models
Except SH-AWD models
Flat -bed Equipment
Wheel-lif t EquipmentT his is the best way to
transport your vehicle.
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
This is an acceptable
way to tow your vehicle.
Emergency Towing
T aking Care of t he Unexpect ed
607
Towing with only two tires on the
ground will damage parts of the
all-wheel-drive system. Your vehicle
should be transported on a f lat-bed
truck or trailer.
12/07/20 11:48:16 31TK4640_612
ACCESSORY Mode is the
equivalent of ACCESSORY (I).
For more inf ormation, see pages and .
184 187
Î
Models equipped with the keyless
access system have an engine start/
stop button instead of an ignition
:
switch.
2013 TL

Î
With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
Emergency Towing
608
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight. Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
On models with the Keyless Access
system, the ENGINE START/STOP
BUTTON indicator will conf irm that
the power mode is in the ACCESSORY
mode and that the steering lock is
released. If the steering wheel does not
turn f reely, rotate the wheel right and
lef t while pressing the ENGINE
START/STOP BUTTON. This
inf ormation also appears on the multi-
inf ormation display (see page ).
189
12/07/20 11:48:22 31TK4640_613
T aking Care of t he Unexpect ed
ACCESSO RY Mode isthe
e quiv ale n t of A CCESSO RY (I).
F or m or einf or ma tion, se e pa ge s
an d .
184 187
Î
Mod els eq uip ped wit h th e keyless
a cce ss sy ste m have an en gin e sta rt/
s to p butto n in ste ad of an ignition
:
sw it c h.
2013 TL

To use the towing hook:Remove the cover f rom the f ront
bumper using your f ingers, or pry
it of f using a cloth and a f lat-tip
screwdriver to prevent scratches.
If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see page ).
When you need to release the
steering lock while your vehicle’s
battery is dead, do this:
Follow the proper jump starting
procedures, Step 1 through Step 5,
to apply the power to your vehicle
(see pages and ).
Follow the jump starting
procedures, Step 8 and Step 9, and
the instructions to disconnect the
jumpercable(seepage ).The
steering will remain unlocked even
if the battery is dead.
Failure to comply means the steering
lockmaybedamaged. Press the ENGINE START/STOP
button to set the power mode to
ACCESSORY (see page ) and
verif y the steering lock is released.
Remove the towing hook and
wheel nut wrench from the tool
case in the spare tire (see
page).
For very short distances, such as
f reeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the f ront bumper. If you slip the clutch f or a long time
while trying to get unstuck, you may
overheat and damage the
transmission. Use a tow service to
prevent transmission damage.
1.
2.
1.
2.
3.
591 592
184
592 607
584
CONT INUED
On models with keyless access systemIf Your Vehicle Gets Stuck
Emergency Towing, If Your Vehicle Gets Stuck
T aking Care of t he Unexpect ed
609
12/07/20 11:48:32 31TK4640_614
2013 TL

Screw the towing hook into the
hole, and tighten it with the wheel
nut wrench.
3.
If Your Vehicle Gets Stuck
610
WHEEL NUT WRENCH
To avoid damage to your vehicle, use
the towing hook f or straight, f lat
ground towing only. Do not tow at an
angle. The tow hook should not be used
to tow the vehicle onto a f lat bed. Do
not use it as a tie down.
12/07/20 11:48:36 31TK4640_615
T aking Care of t he Unexpect ed
2013 TL

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems. ................
Identif ication Numbers . 612
................................
Specif ications .614
DOT Tire Quality Grading ..........................
(U.S. Vehicles) .617
.................................
Tire Labeling .619
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .621
.......................
Emissions Controls .623
Three Way Catalytic .................................
Converters .625
........................
Emissions Testing .626
..
Devices that Emit Radio Waves . 628
T echnical Inf ormation
Technical Inf ormation
611
12/07/20 11:48:39 31TK4640_616
2013 TL

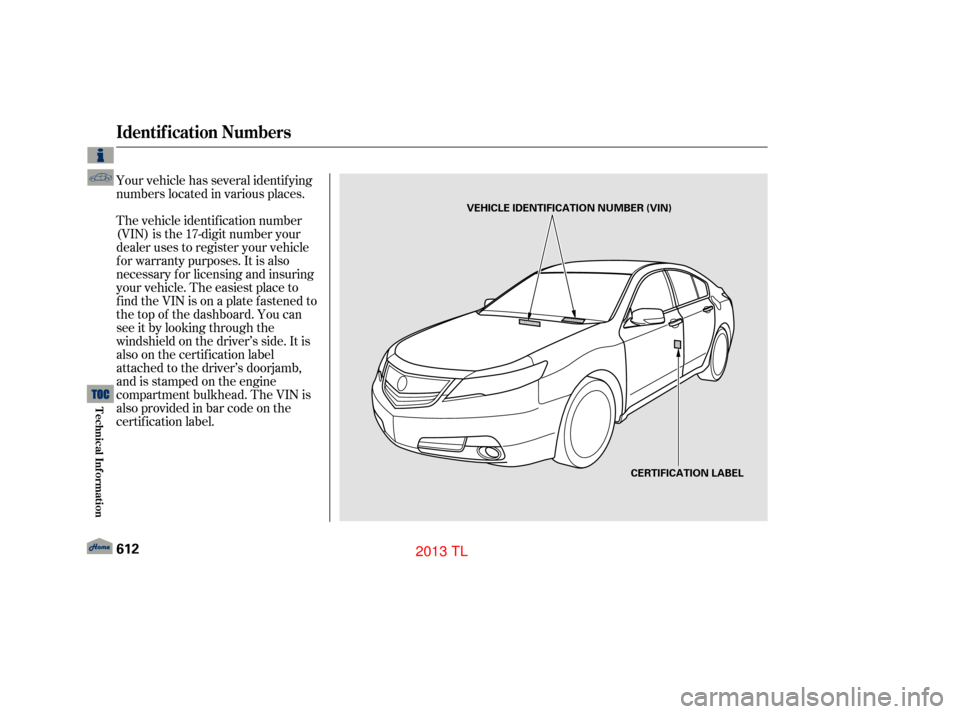

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
612
CERTIFICATION LABEL
VEHICLE IDENTIFICATION NUMBER (VIN)
12/07/20 11:48:43 31TK4640_617
Technical Inf ormation
2013 TL

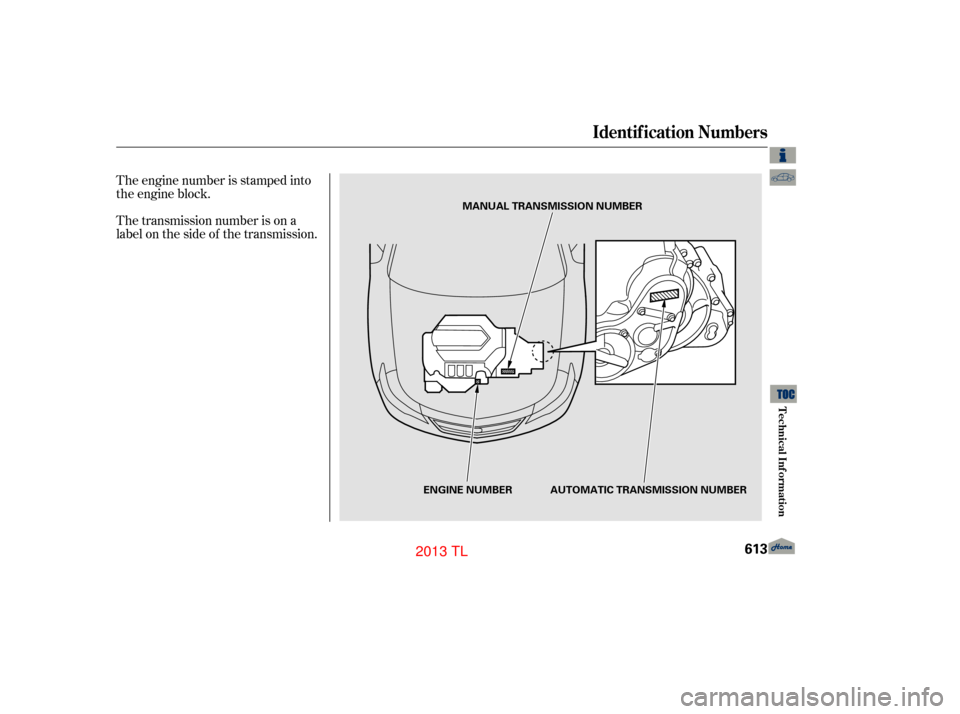

The engine number is stamped into
